UPDATE
NEW VERSION V3

V3 makes the inside of the blade thinner as per the reference photos. printed, it requires less sanding.

Coming soon V4 will make the inside a single mm thin, requiring sculpting with putty, this will give the blade center 0 layer lines

This is a model of the Makonde Dagger for the Punished Props community project! It was a fantastic exercise in Fusion 360, done in about 2.5 hours. It's still rough, and the angles aren't perfect (sanding definitely required) but I wanted to release a base for people to expand on.

This dagger is daunting, so giving anyone who wants a first step seemed like a nice thing to do! :)

My NEVA printer isn't set up for cura, so I couldn't print the center in "fuzzy surface" as I would have liked to. (In the upcoming days, I'll upload the files separated, so you can print the center separate.)

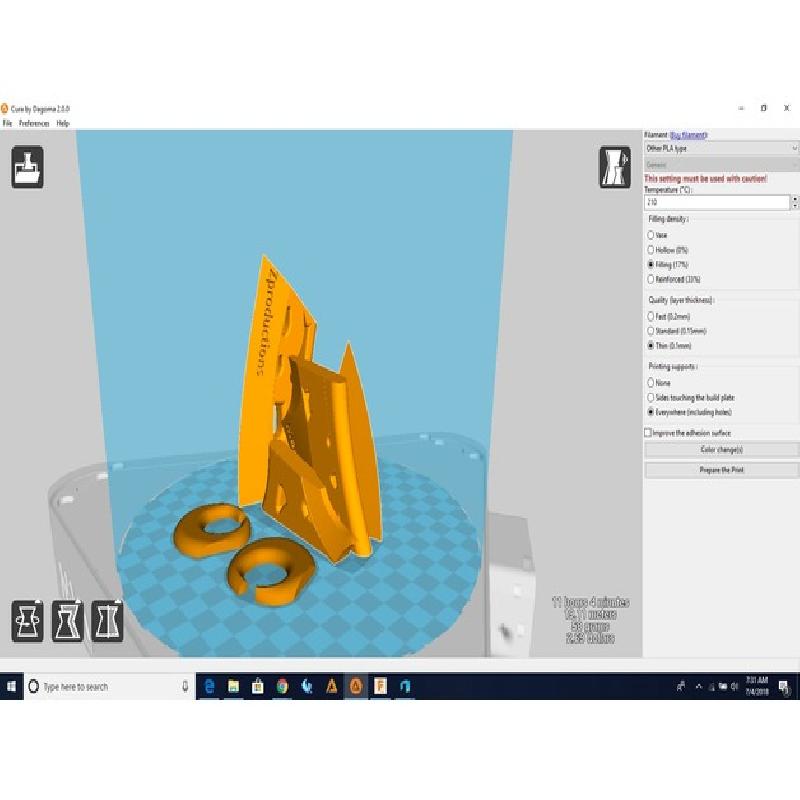

My setting turned out to take 11 hours.

Print Settings

Printer Brand:

DAGOMA

Printer:

Neva

Rafts:

No

Supports:

Yes

Resolution:

.01mm

Infill:

17% or more (for sanding and detailing)

Notes:

Still printing at the moment of publishing

How I Designed This

Fusion 360

... and using the fillet tool about 100 times!

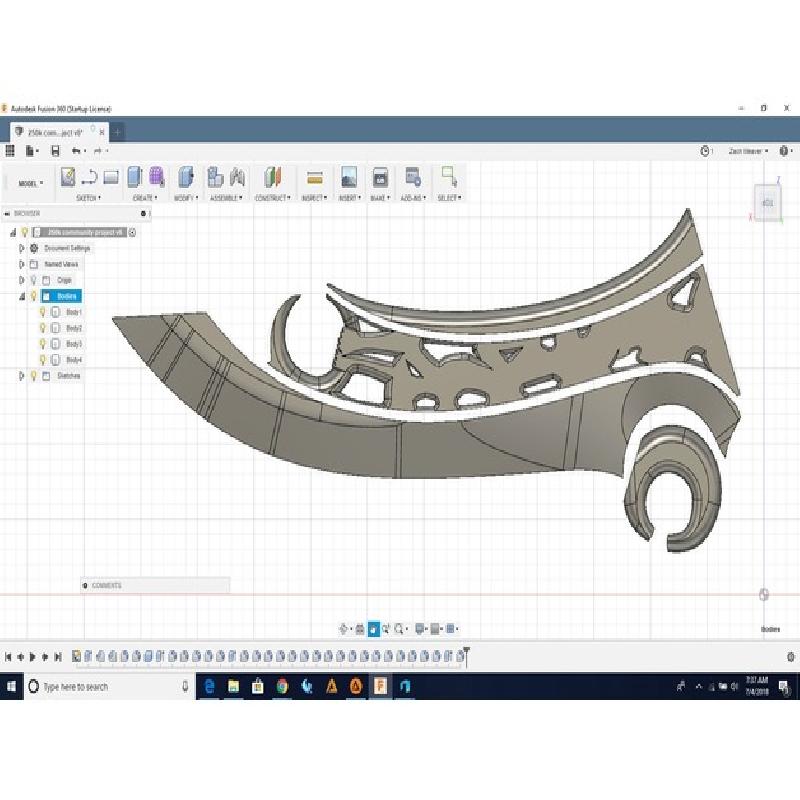

Modeled in Fusion 360, Sliced in 3d Builder.

Custom Section

THIS IS A WIP

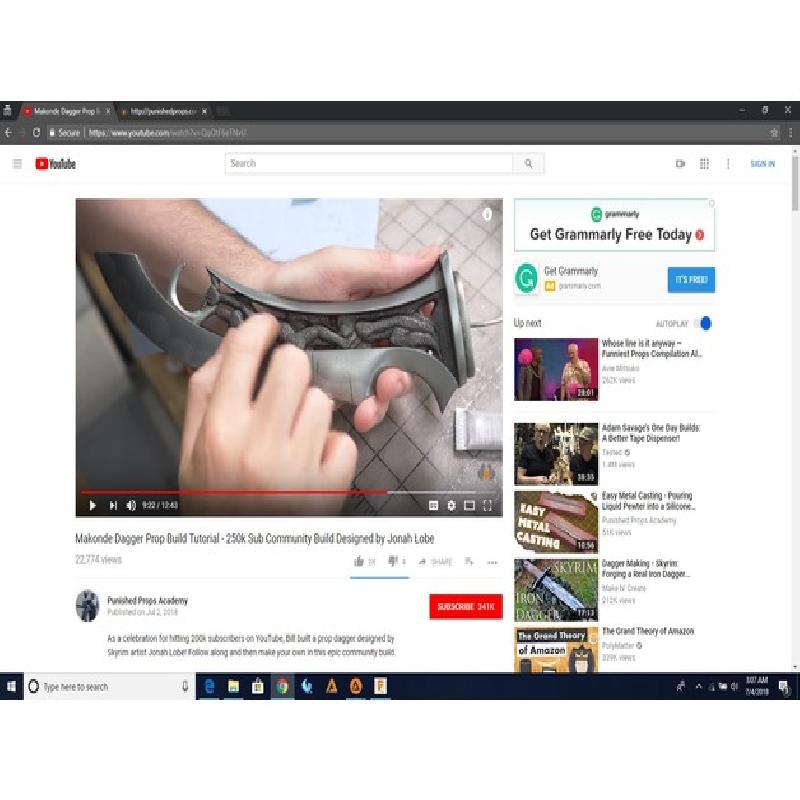

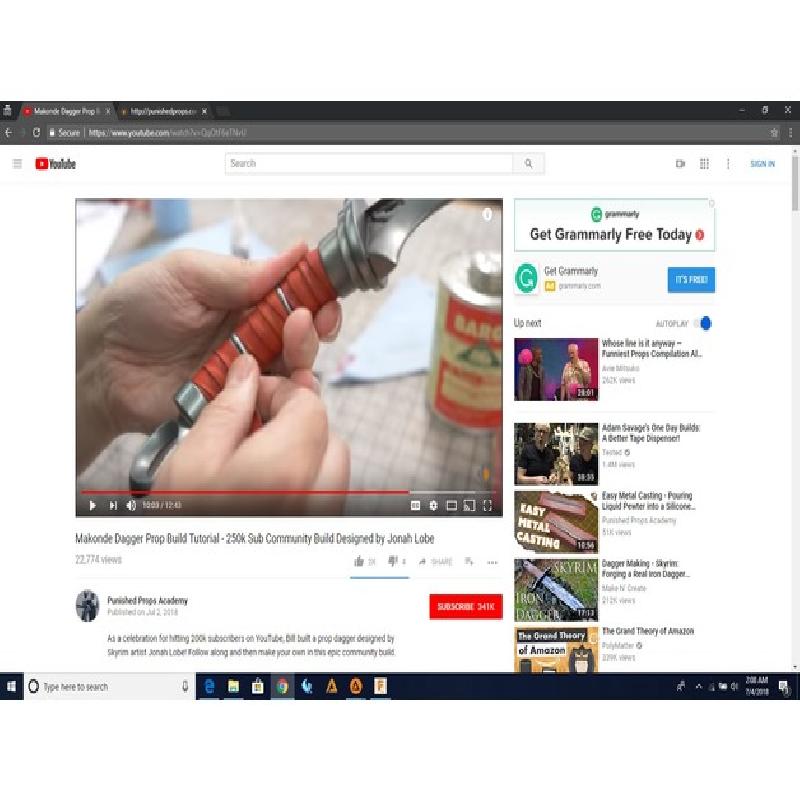

Bill Doran has continually brought the community together and is a huge inspiration to me and many others, his work is amazing and can be found on his YouTube channel - https://www.youtube.com/channel/UC27YZdcPTZM24PgjztxanEQ
