by GHathaway

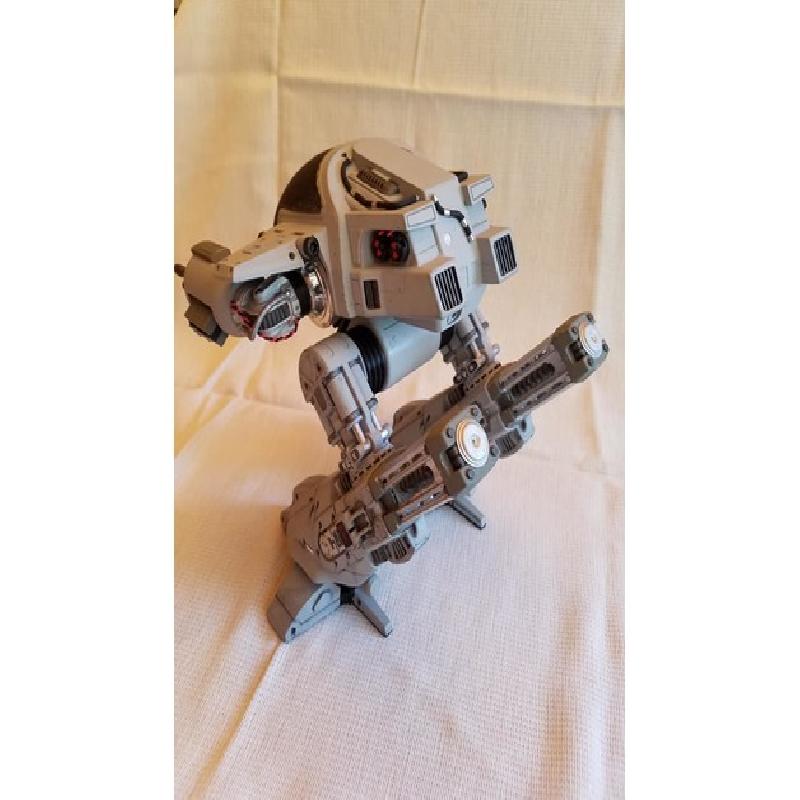

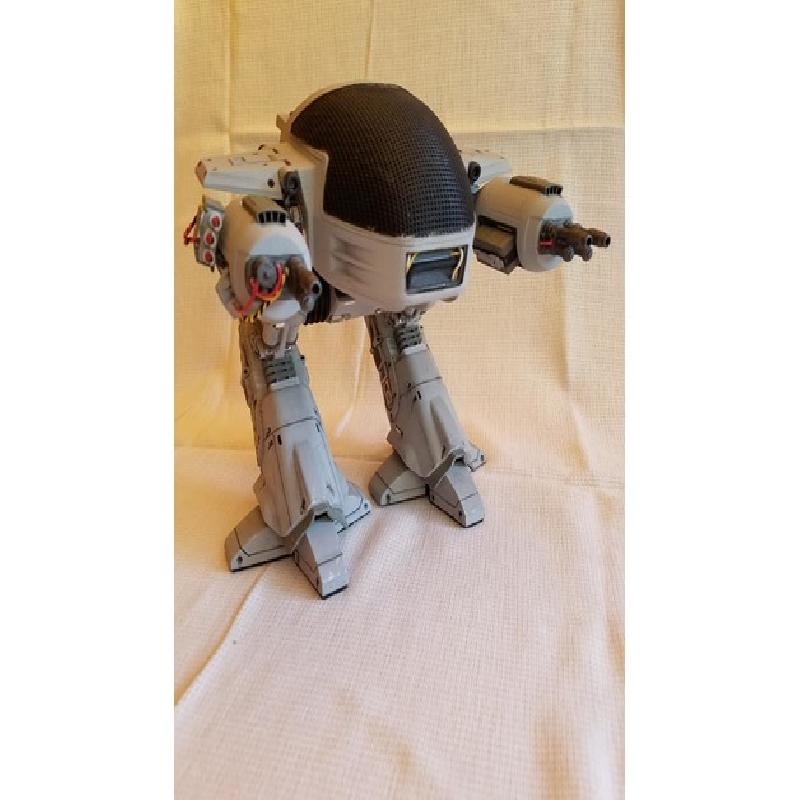

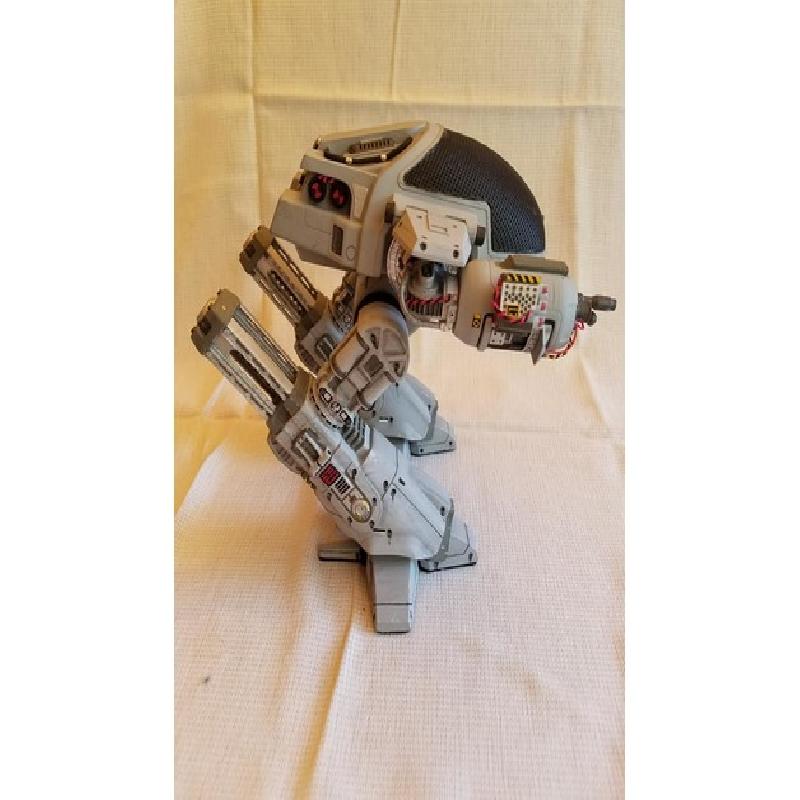

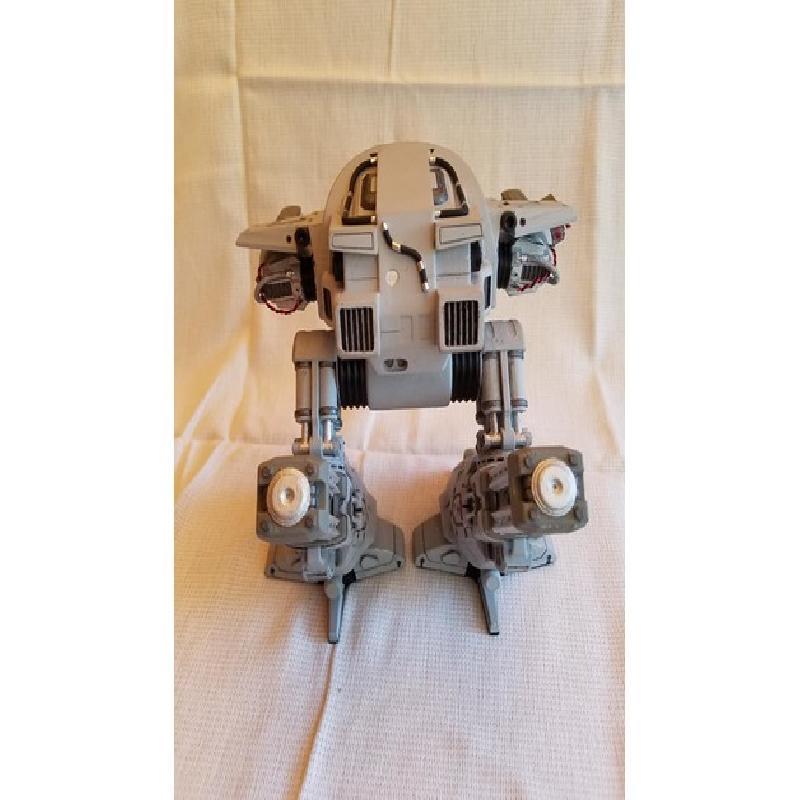

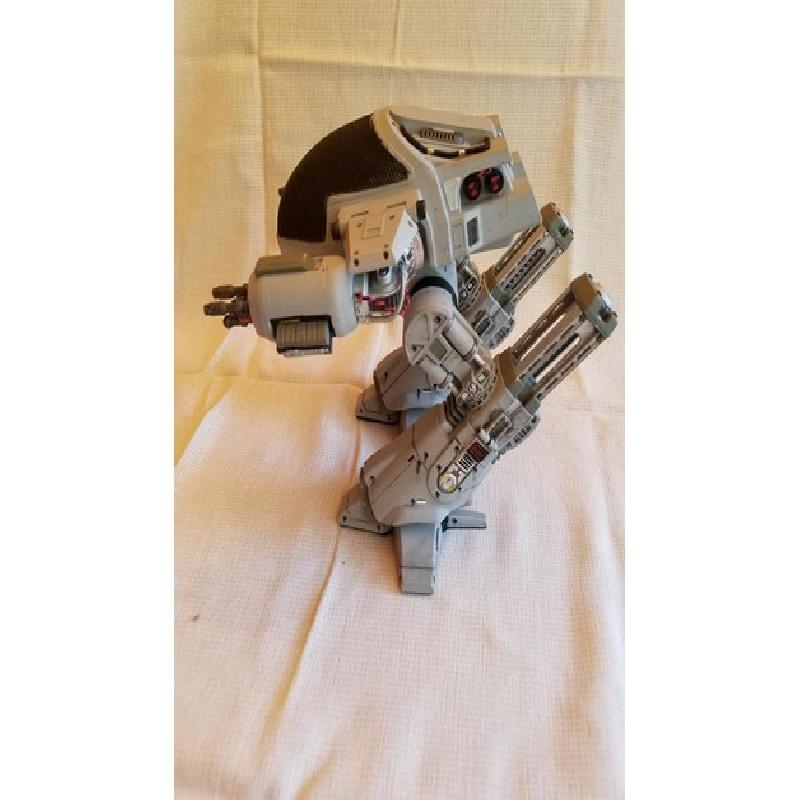

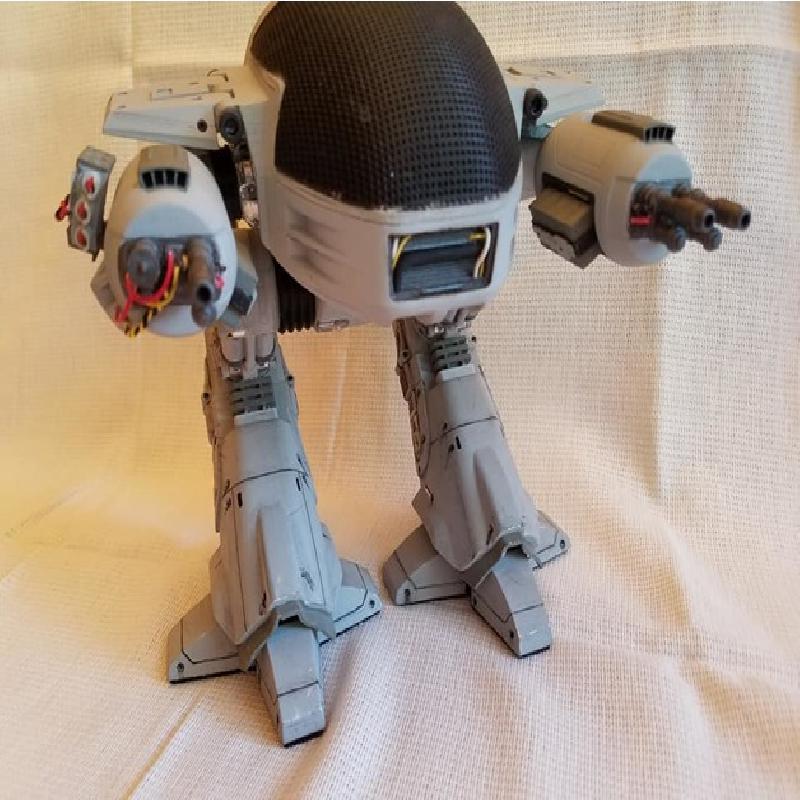

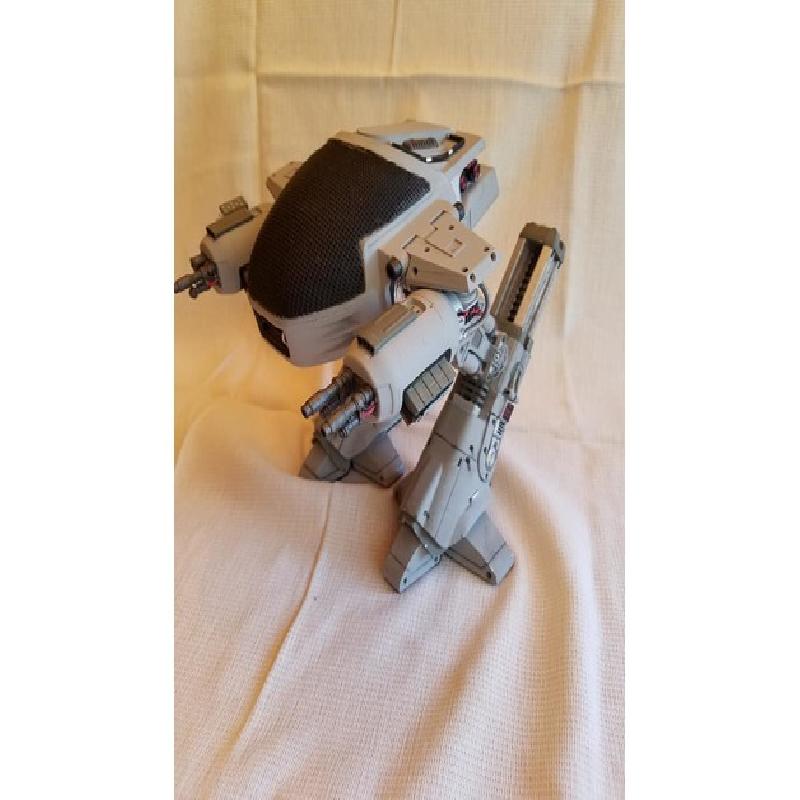

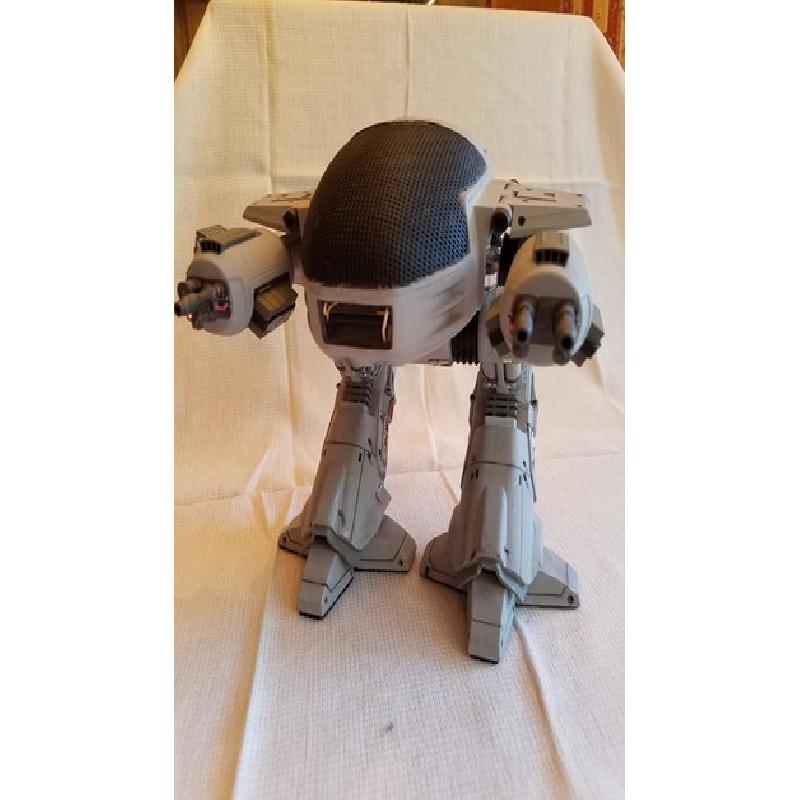

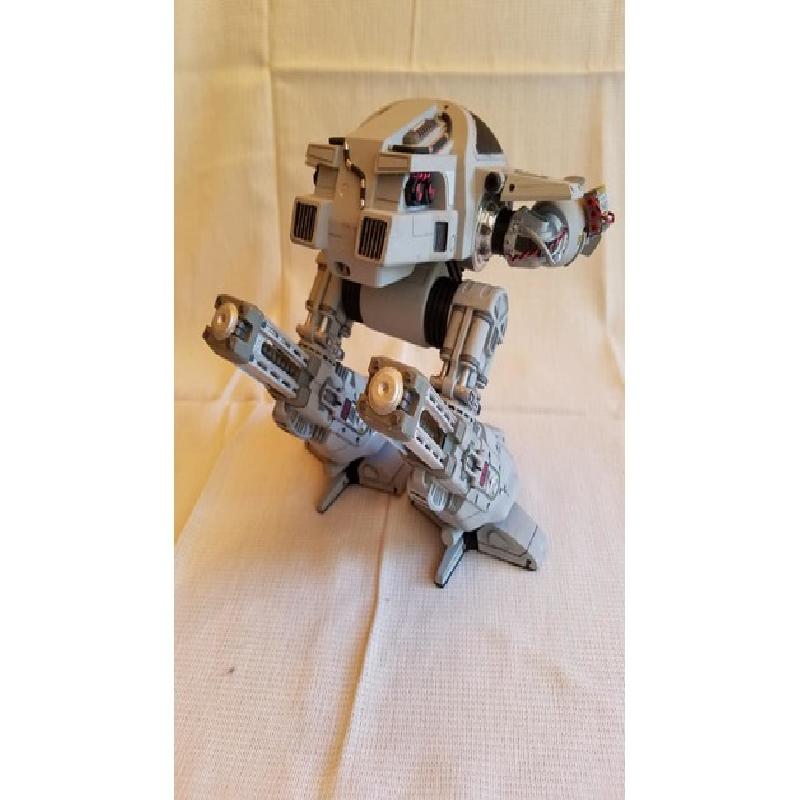

This is a remix of Ed 209 from Robocop by XYZ Workshop. Thanks for such a great model! It took me about 3 months to modify the existing files, print, prep, paint and assemble.

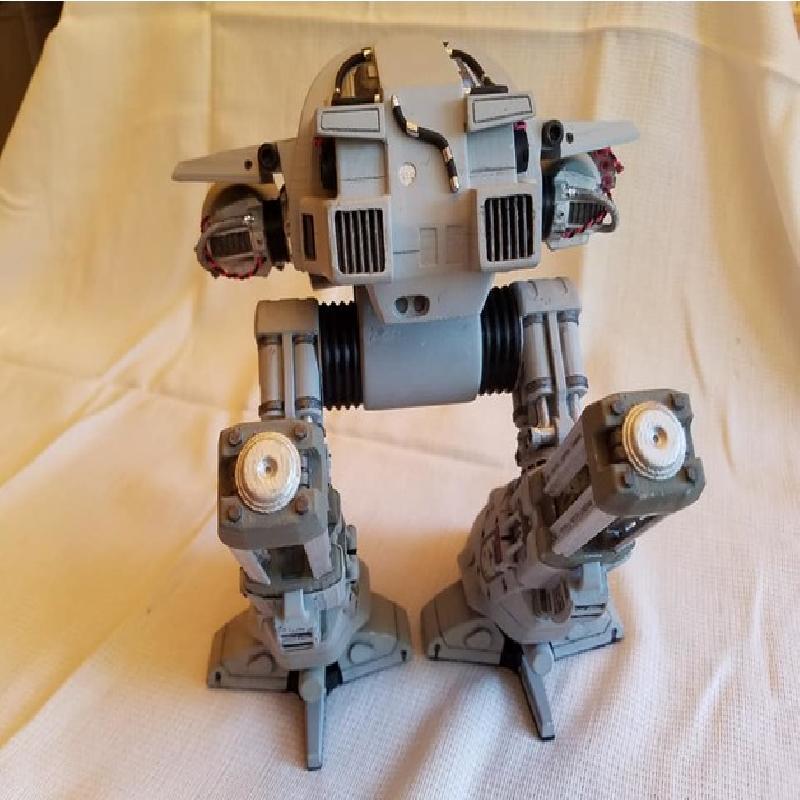

He measures a whopping 9" tall x 8.75" wide x 10" deep fully assembled.
This was a super fun project! I did all the modifications in Tinkercad. My modifications include:
Adding back toes, canisters above back toes, spindles in the main legs, rivets on legs, major modifications to the main body (it was in 2 pieces, now one whole piece), redesigned the shoulder plates, added rocket launcher to right arm (I have an open and closed version.), modified the guns, added small detail piece to the top of ammo boxes and added radioactive canisters to the side of the body.

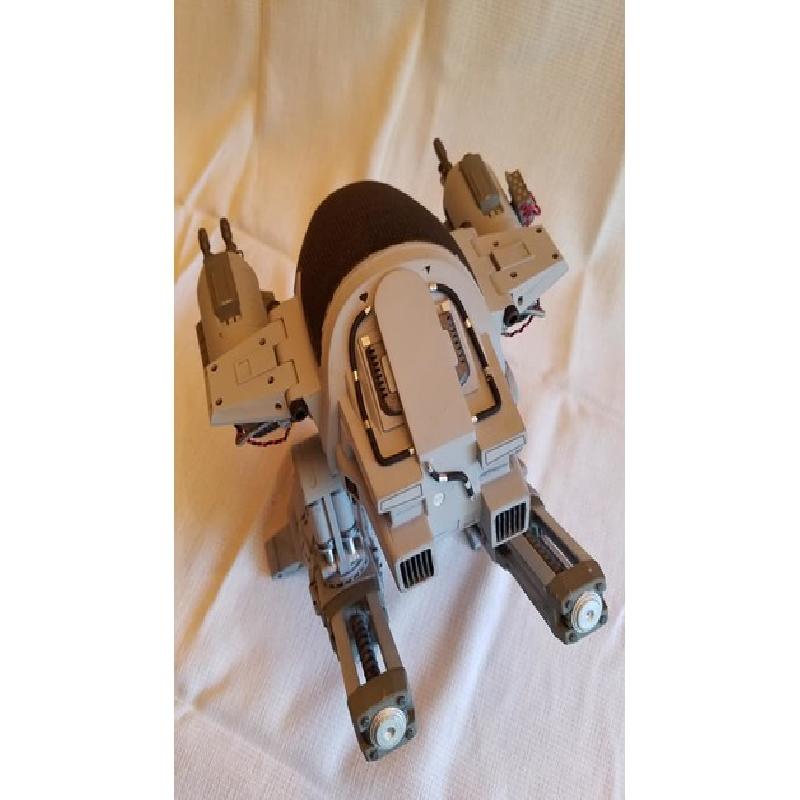

The hoses on his back are heated and bent styrene rods from the hobby store and all the wires are real wires. The hoses on his arms are painted paracord.
I wanted him to look as close as possible to the sideshow collectibles Ed 209 and I'm pretty pleased with the way he came out. This print pushed the limits of my printer at 200mm x 200mm x 200mm (8 in x 8 in x 8 in) aprox.
Thanks to: AlpineClimber247 for his tip "A #10 cap head bolt fit perfectly through the holes in the shoulder armor." worked perfectly!
Printer Brand:
Monoprice
Printer:
Maker Select Plus
Rafts:
No
Supports:
Yes
Resolution:
.1 layer Height
Infill:
25%
Notes:
Extruder temp = 200 degrees
Bed temp = 60 degrees
