by OderWat

This is a fixed version of the "Another Hodor" by Swift2568. I was very happy with his model until I imported it to my slicer. Basically there where two problems: First, the hair is defective and will get sliced and printed in a weird state. Second, you need supports which are hard to remove with such a small and detailed model.

So I got my freshly bought ZBrushCore and tried to fix both problems. I have redone the hair and beard area. Then I added some slopes to the door bars and changed the hands slightly. I also changed the invisible part of the robe. All those changes make it possible to print the model without any supports.

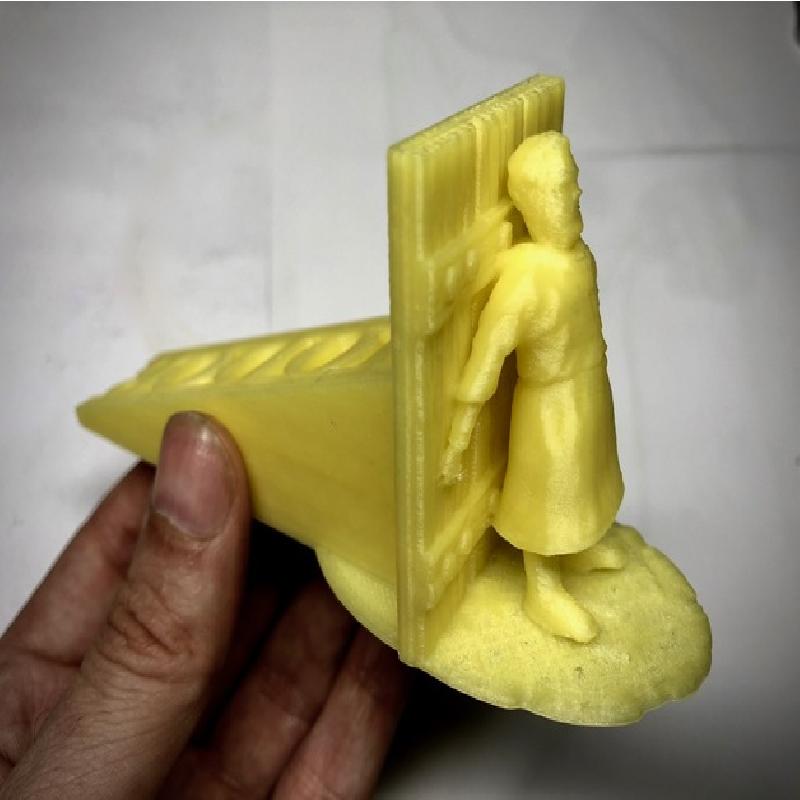

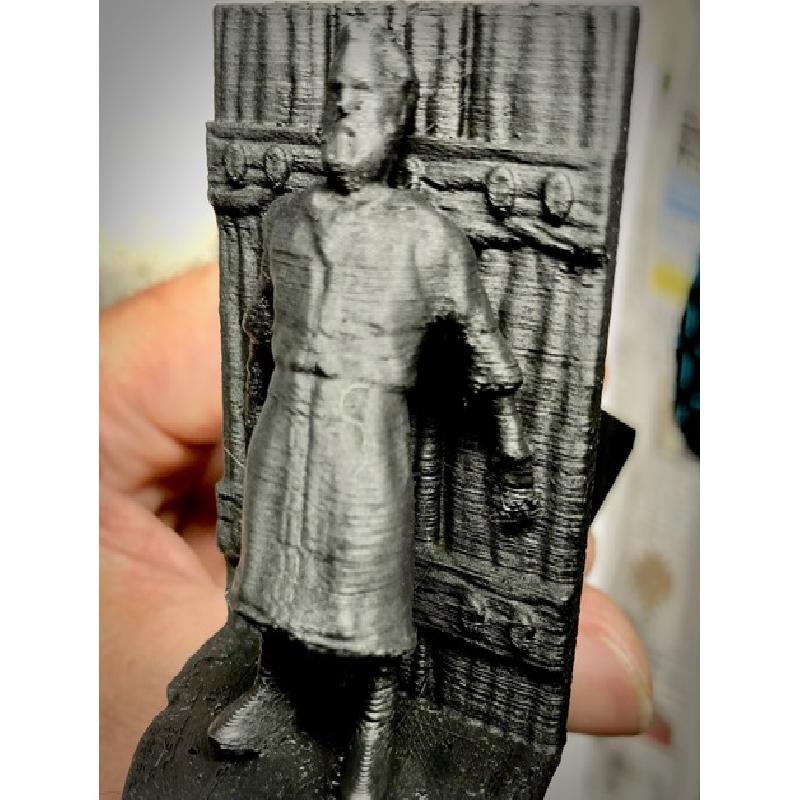

The example images where made on my Anycubic Kossel Plus Delta printer using adaptive layers (0.1-0.3) in Cura. It does not use supports at all. The PLA I used and the speed (40 / 80) is to high for a clean print. I think it is good enough for a doorstopper I want to use though.

I am going to give it a paint job later and will update the pictures then.

Print Settings

Printer:

Anycubic Kossel Plus Delta Printer

Rafts:

No

Supports:

No

Resolution:

0,1 or better

Infill:

30% or more

Notes:

I used quarter cubic infill at 30% and a 4 wall count for stability of the actual used part. I think I will use XTC 3D the ramp after the paint job to make it hard enough for a real usage.
