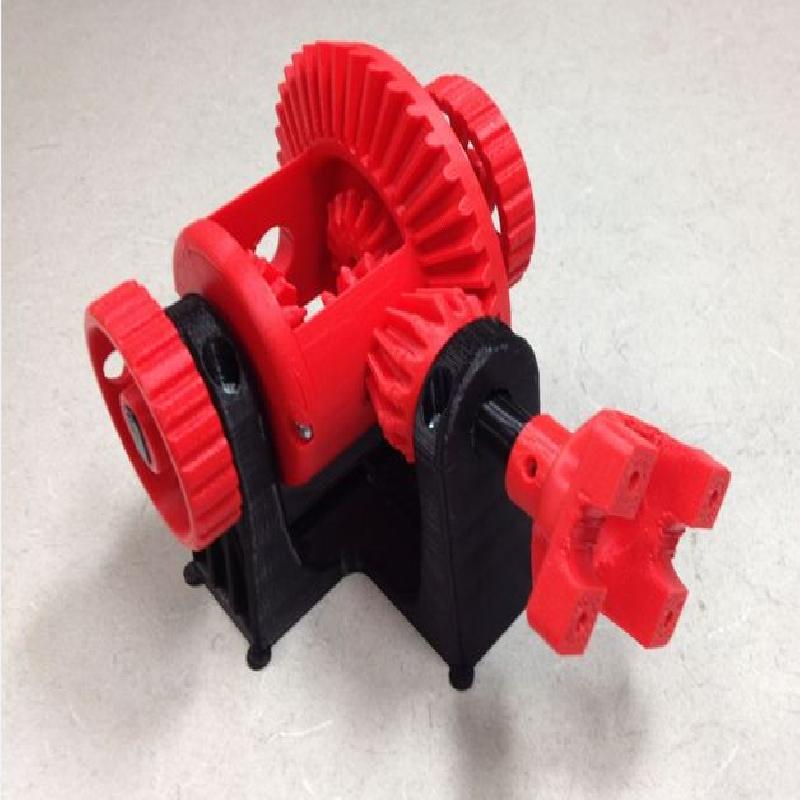

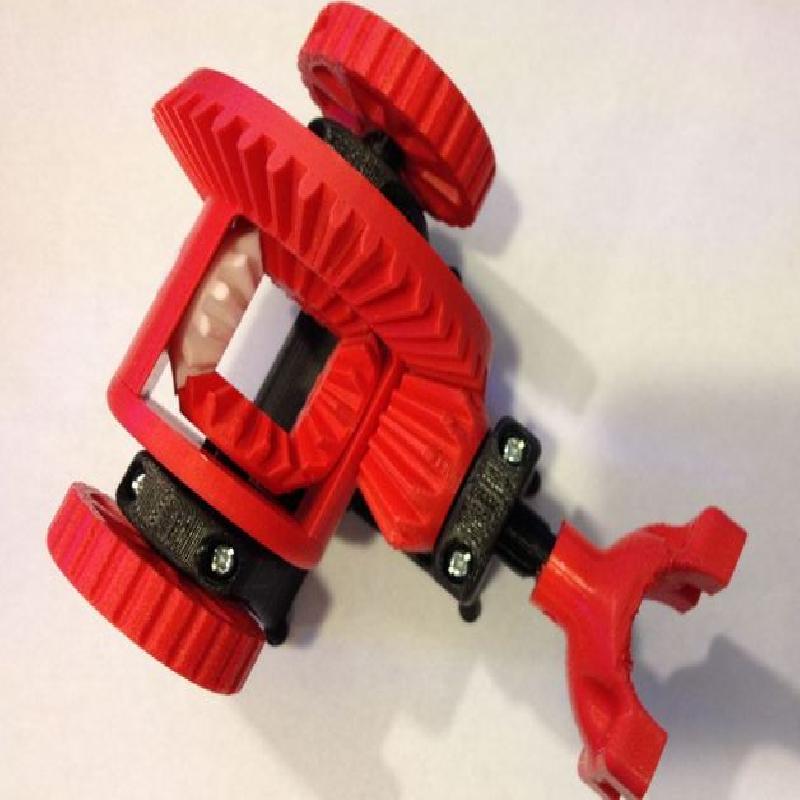

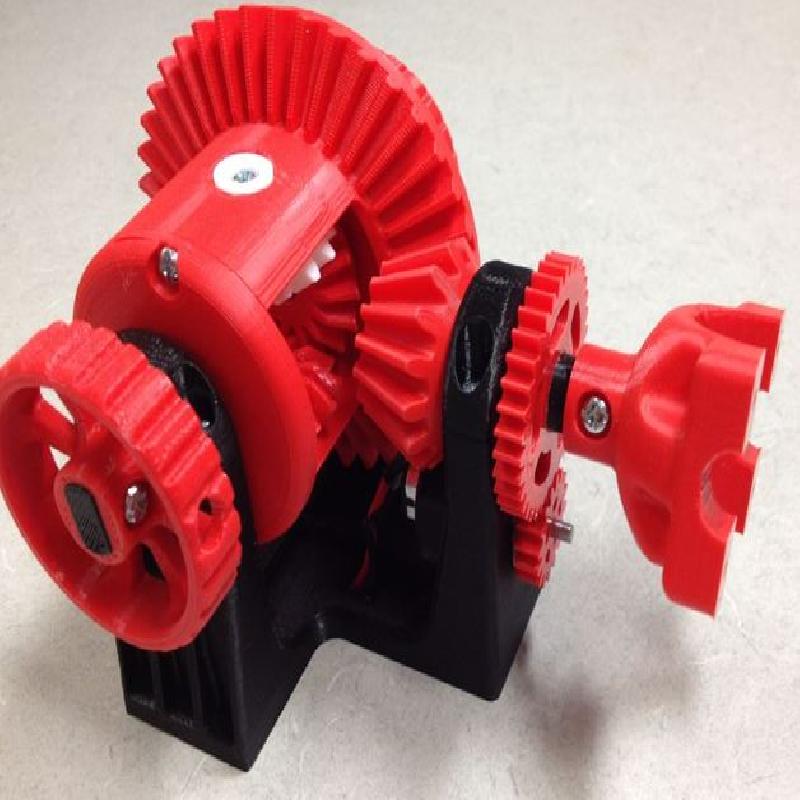

Remixed Differential from Thing-O-Fun. I added the Yoke to make it more realistic. The original files had a lot of play and were not all consistent sizes which are now consistent. I also redesigned the spider gears to accept screws from the outside to allow 4 spider gears to be installed.
Addition:

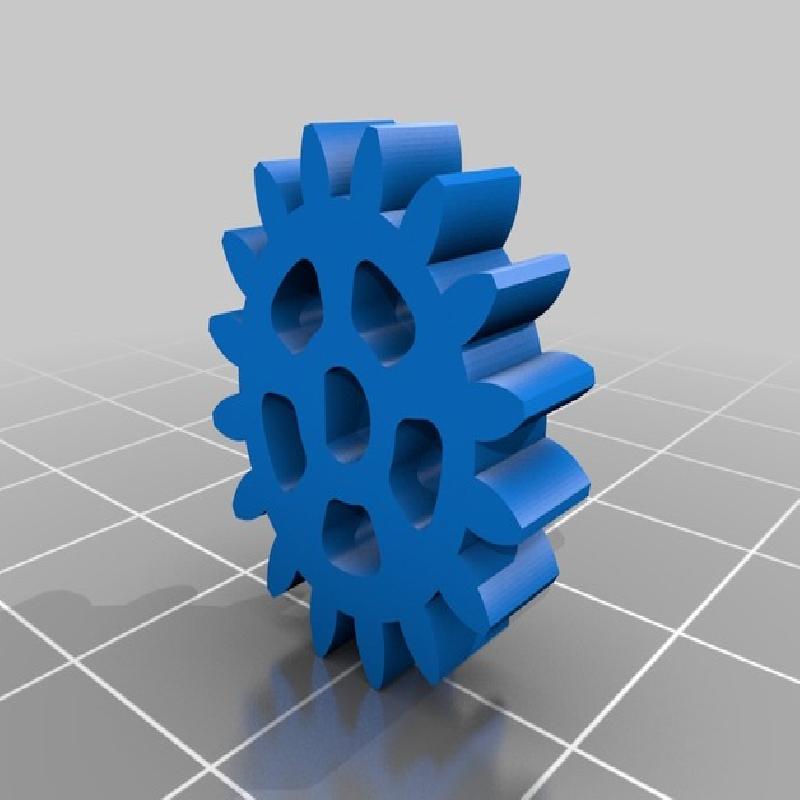

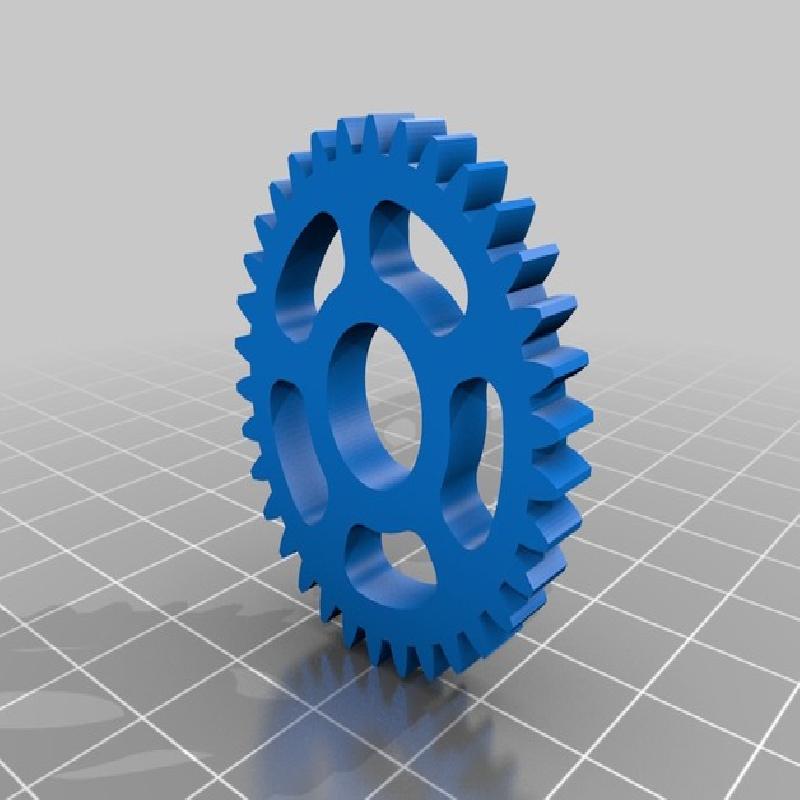

I added a stand with a motor from here http://www.jameco.com/webapp/wcs/stores/servlet/Product_10001_10001_2128219_-1. Use the 2 spur gears to drive the entire assembly. Motor can be wired to a USB port.
Print:

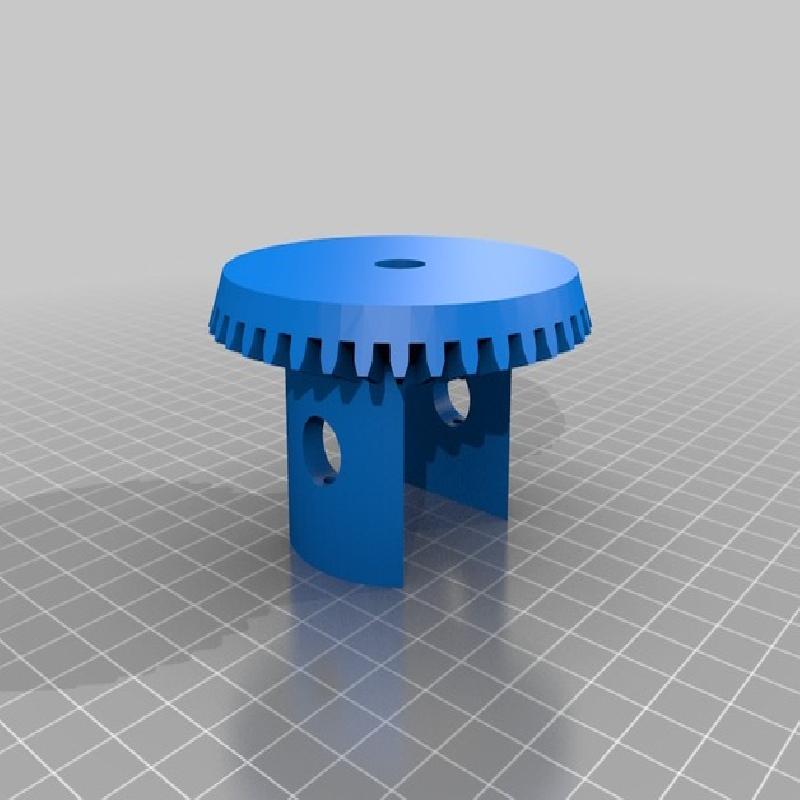

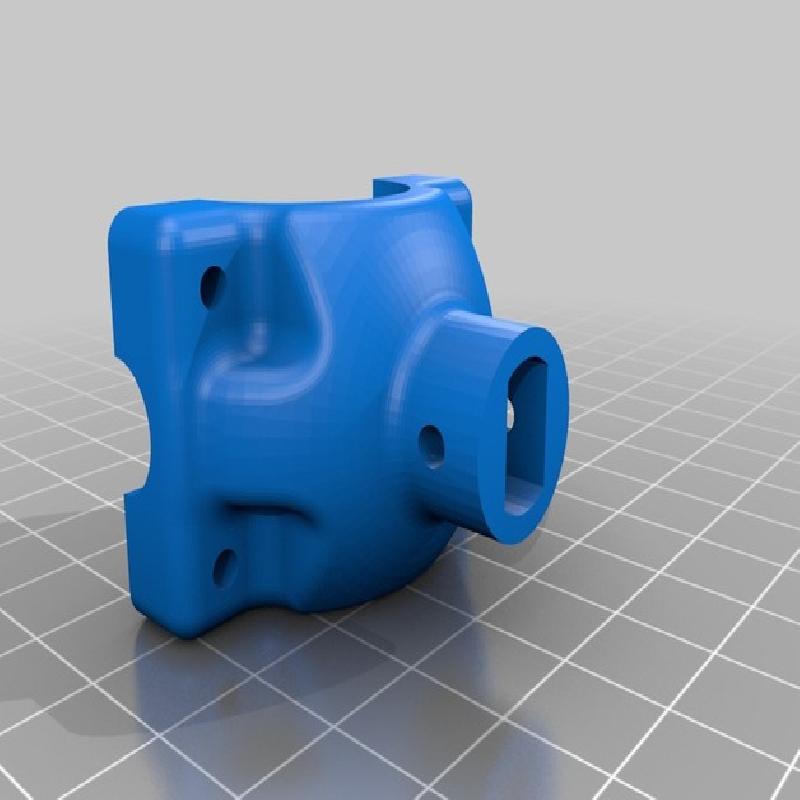

Casing (1)

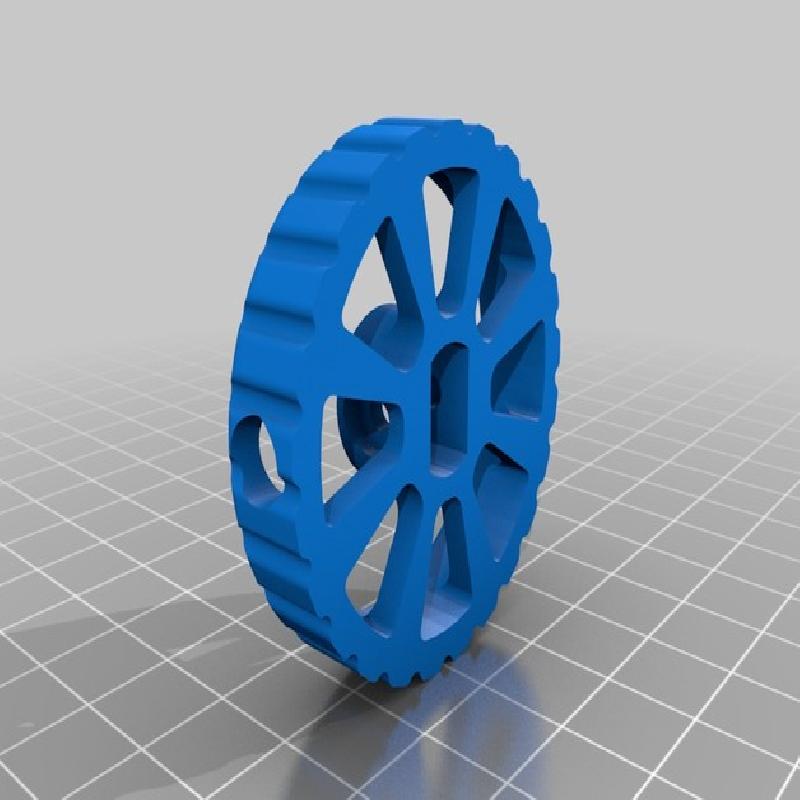

Handle_V2 (2)
Input Pinion (1)

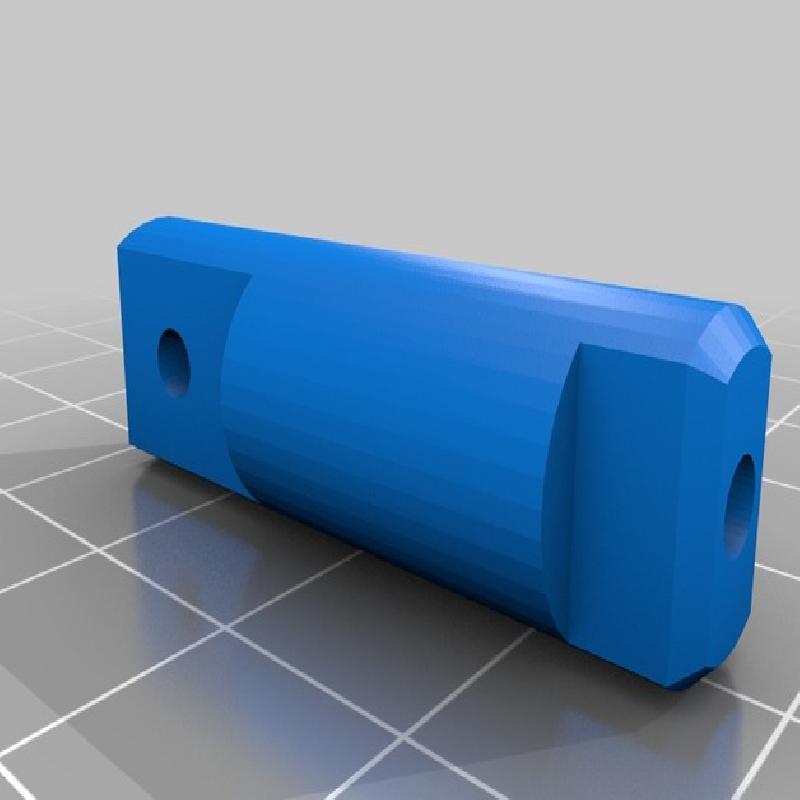

Shaft_V2 (3)

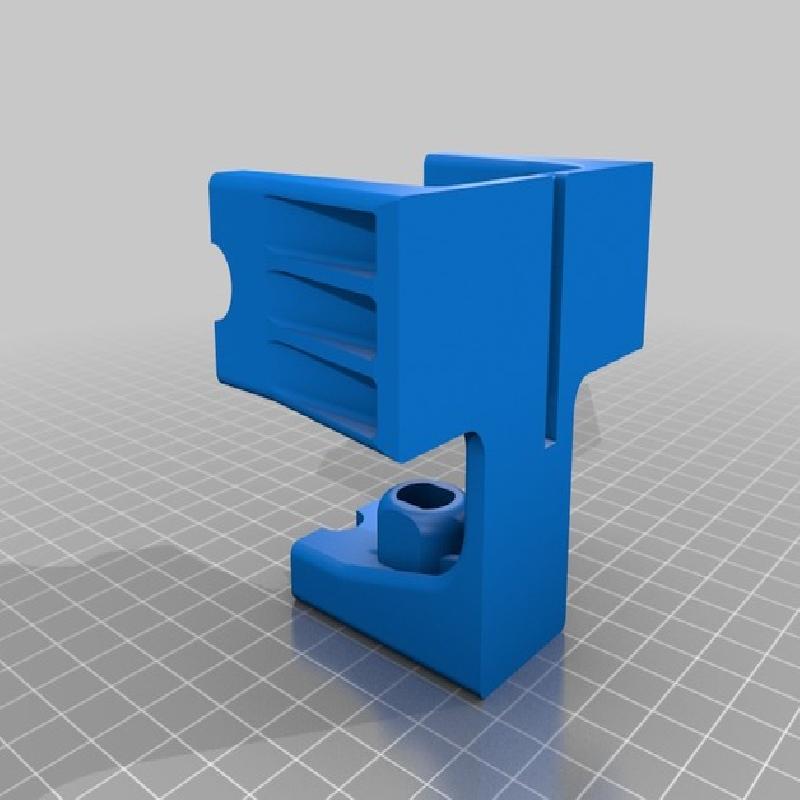

Side (1)
Side Gear_V2 (2)

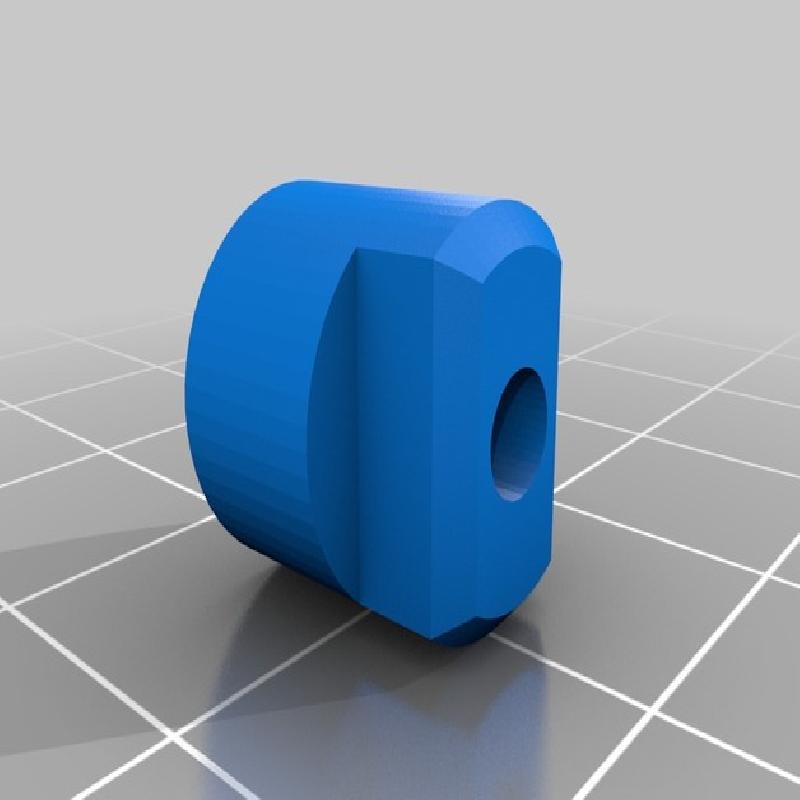

Spider Shaft_V2 (2)

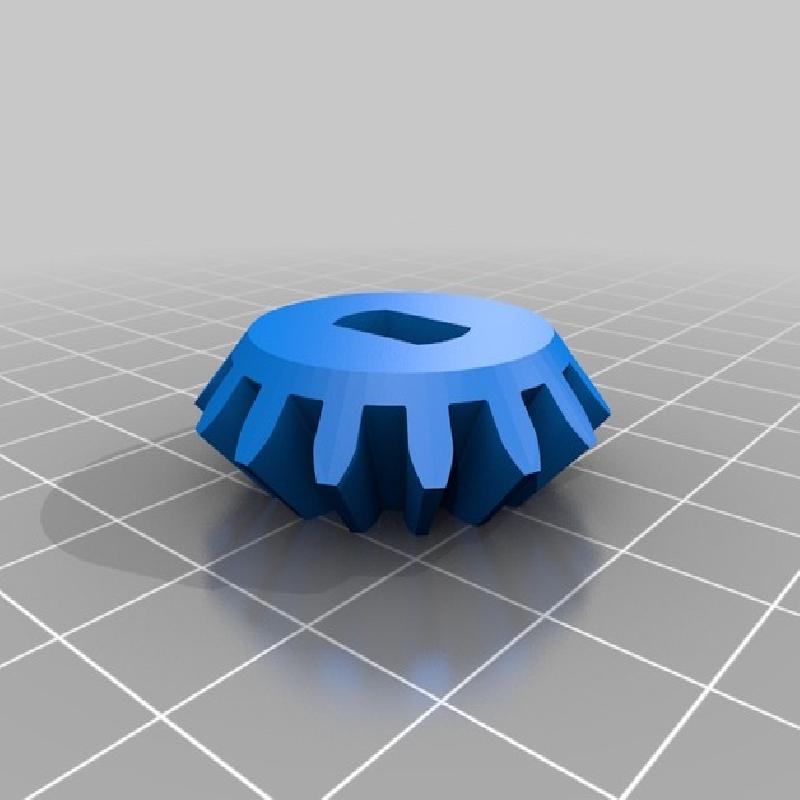

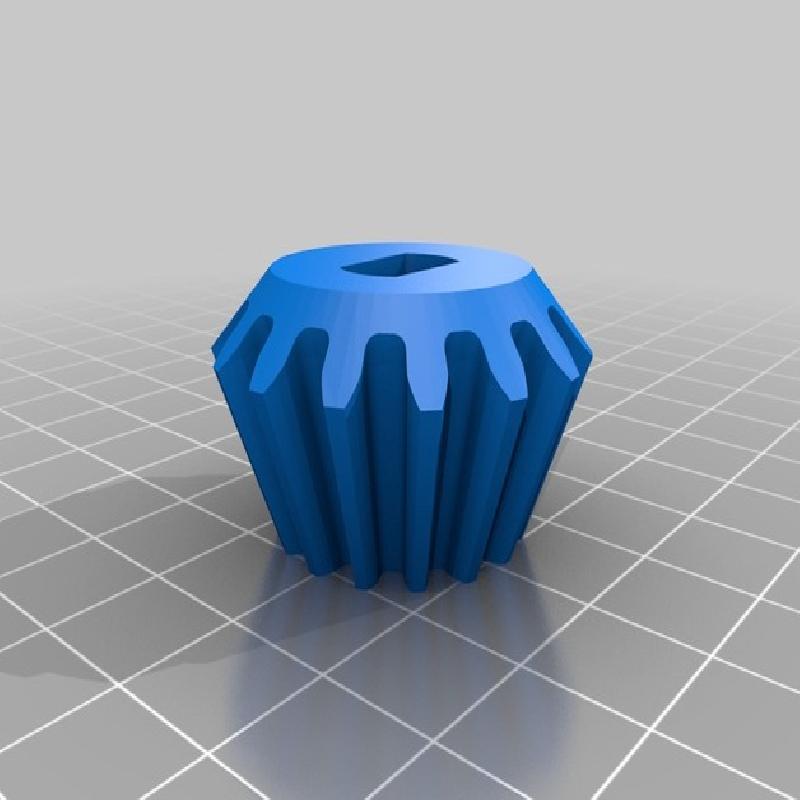

Spider_V2 (2)

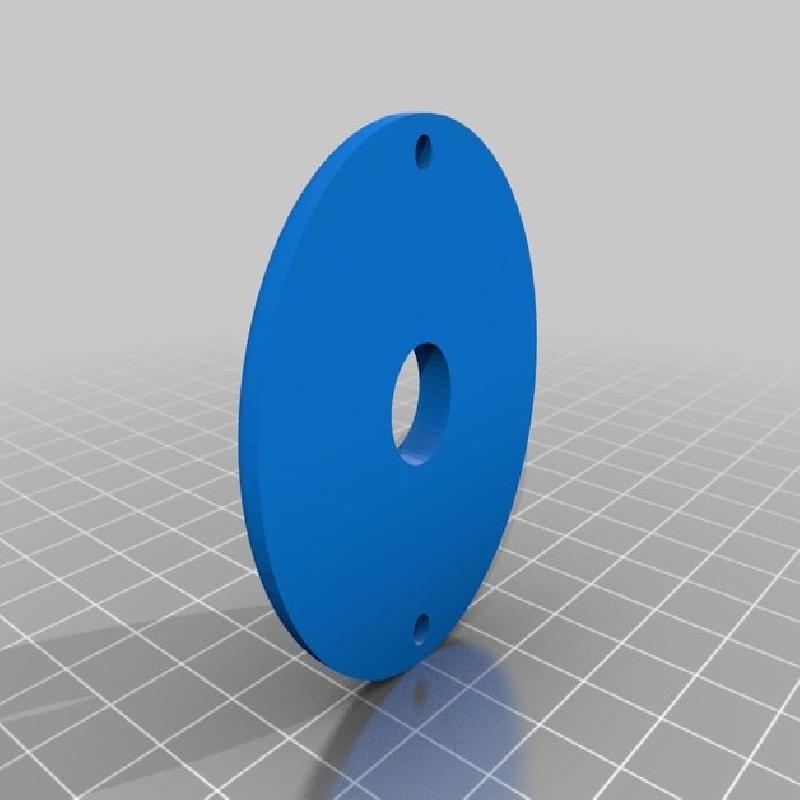

Top (3) (or you can print another 2 for the Yoke)

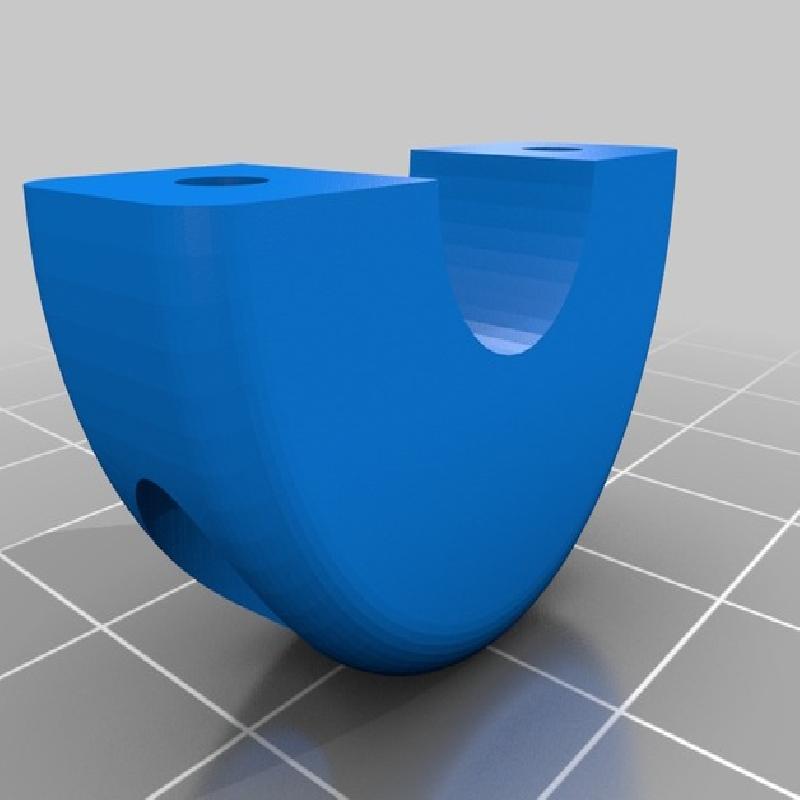

Yoke (1)
