by Braadlee

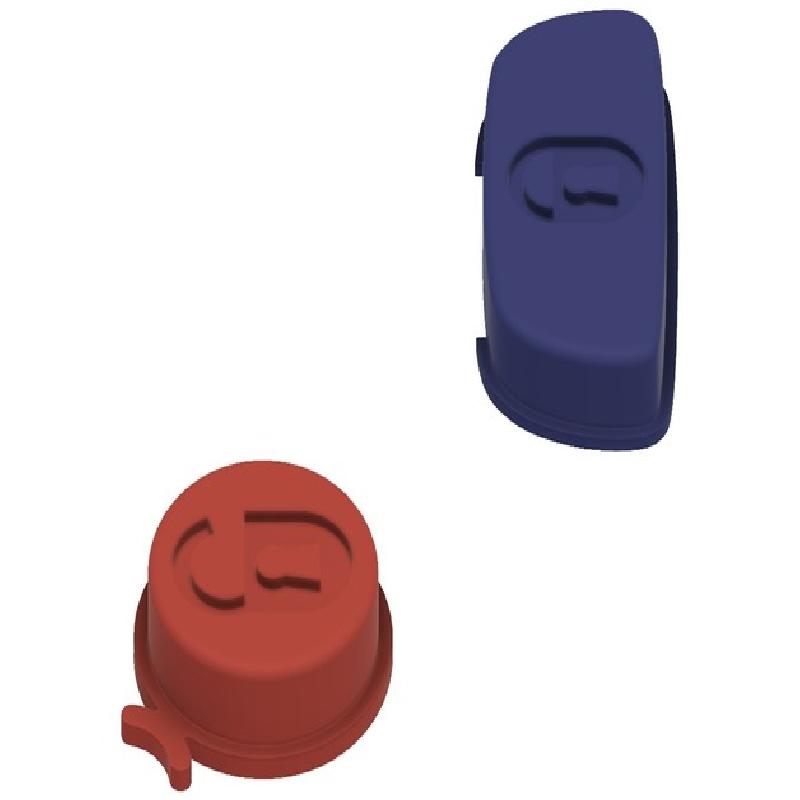

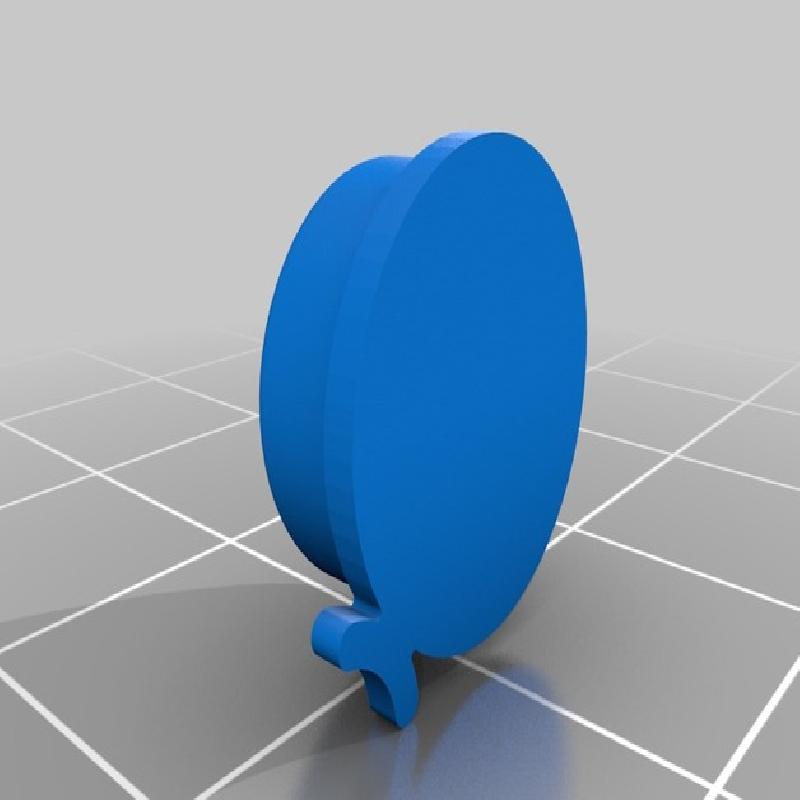

I added an catch to stop the unlock button from rotating so that the icon is always the right way up.

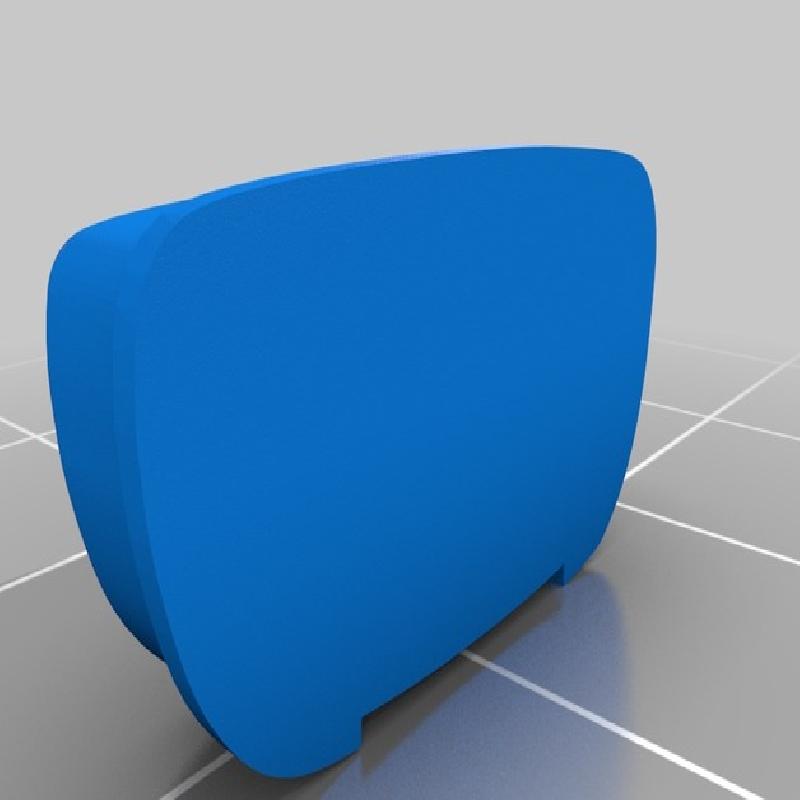

A section of the lip was removed from the lock button to compensate for internal plastic. It was a very tight fit and did not work prior to this (for me.)
The print worked for me at 100% scale, but if it is too tight, try printing at 99 or 98%
Printer:
Anycubic Kossel Pulley
Rafts:
No
Supports:
No
Resolution:
100% Scale - 0.1mm Layer height
Infill:
100%
Notes:
If too snug, print at 99% - 98%
I used 3DQF Pla
