by Hartvik

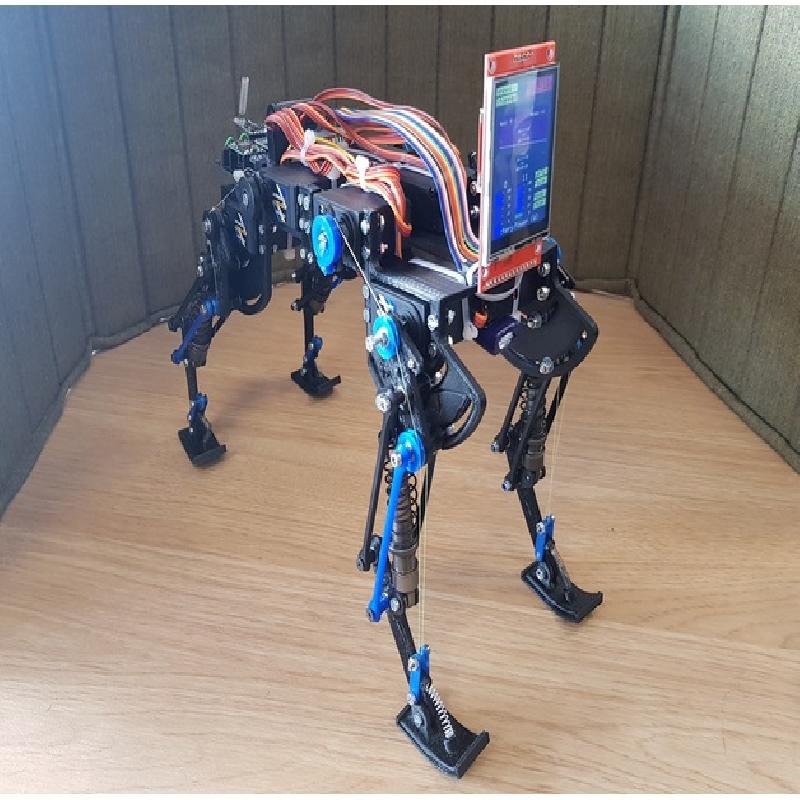

This is a robot platform I built to test machine learning algorithms during my master thesis.
https://www.youtube.com/watch?v=zNXgT2csQ7A&t=
To assemble the cat you also need 8 servo motors, 4 RC car springs, 3x8x3 mm ball bearings and some nut and bolts.

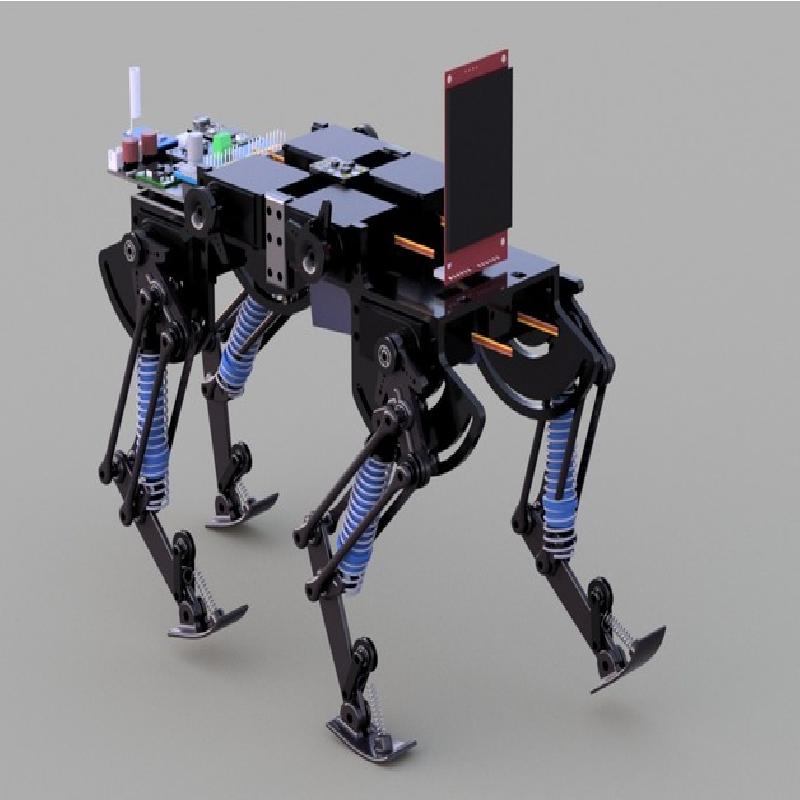

if you would like to modify the design the fusion 360 files are availible at Grabcad:
https://grabcad.com/library/3d-printed-robot-cat-1

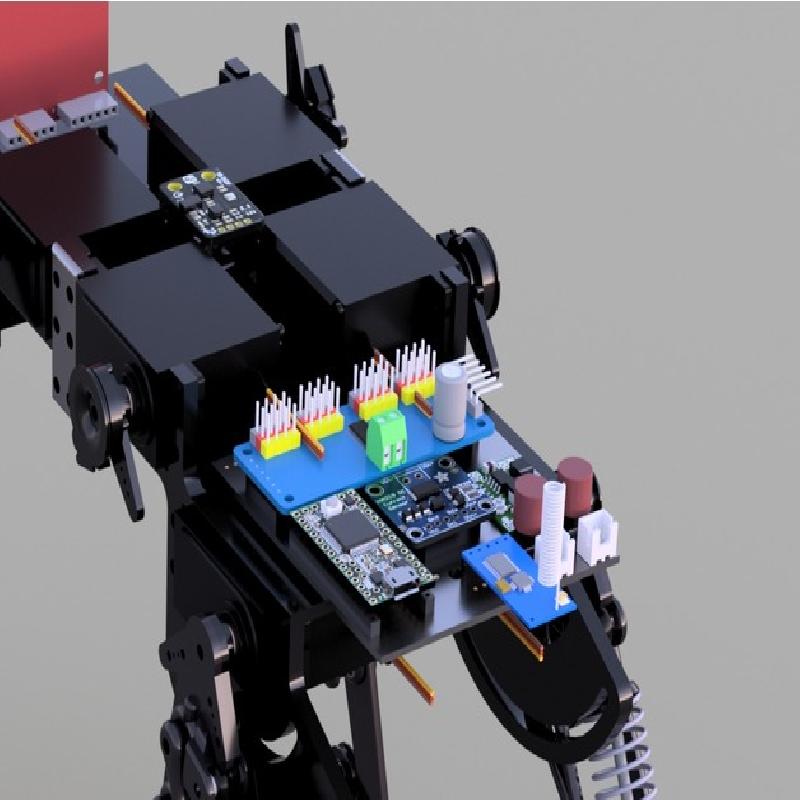

Parts I used:
Microcontroller:
Teensy 3.2
Servo PWM control (I2C bus):
PCA9685
Touchscreen:
2.4" SPI TFT LCD
Wireless communication:
HC-12
Ball bearings:
MR83ZZ 3x8x3mm
Motors: (X8)
https://hobbyking.com/en_us/turnigytm-tgy-1501mg-mg-servo-15-5kg-0-16sec-60g.html
Leg springs: (X4)
https://hobbyking.com/en_us/metal-rear-shock-a2031-2pcs.html?___store=en_us
Battery:
https://hobbyking.com/en_us/turnigy-nano-tech-1200mah-2s-15-25c-lipo-airsoft-pack.html
Springs from a ballpoint pen
Printer:
Monoprice Maker Select V2
Rafts:
No
Supports:
Yes
Resolution:
0.2 mm
Infill:
30%
