by atooltoscream, publishedApr 22, 2016

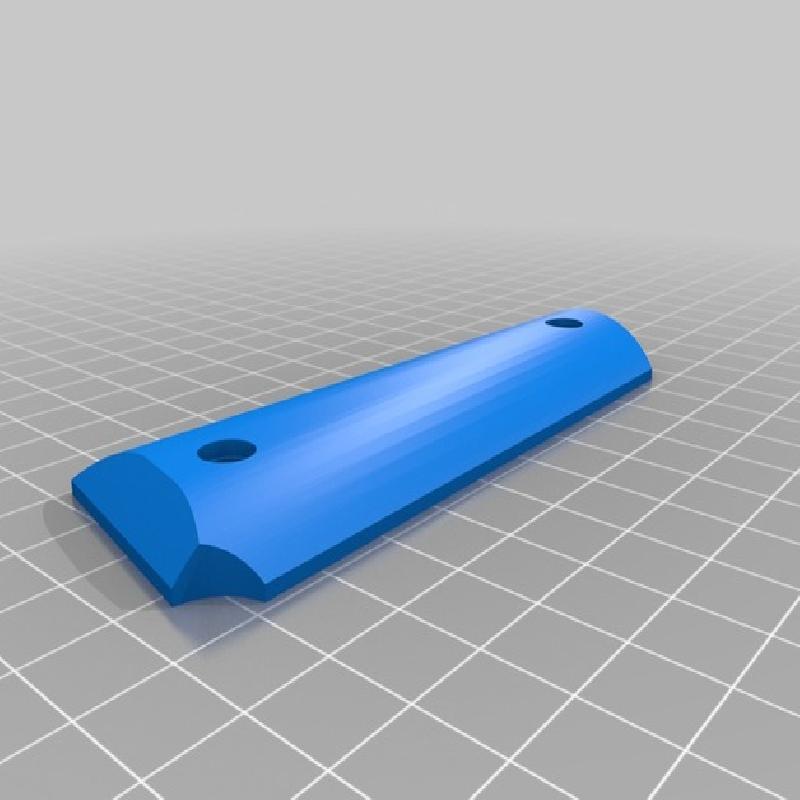

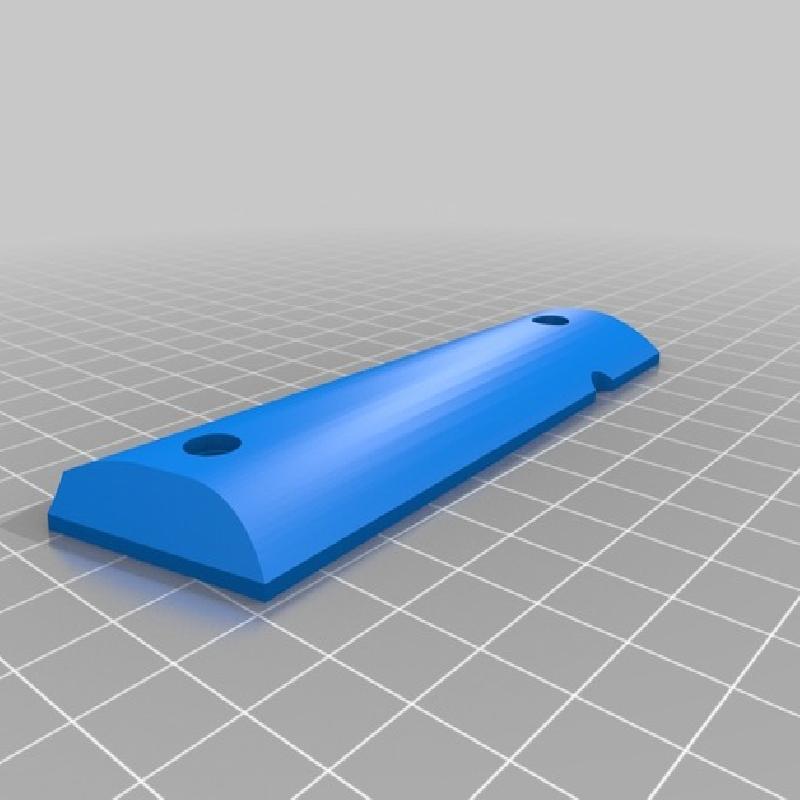

1911 grips.  The difference between these and the others I've found, is that I put a cutout in these ones for the plunger tube.  I have printed the left grip and the plunger cut-out fit perfect on my gun

I am also uploading STEP files so that you can put your own designs on these grips.

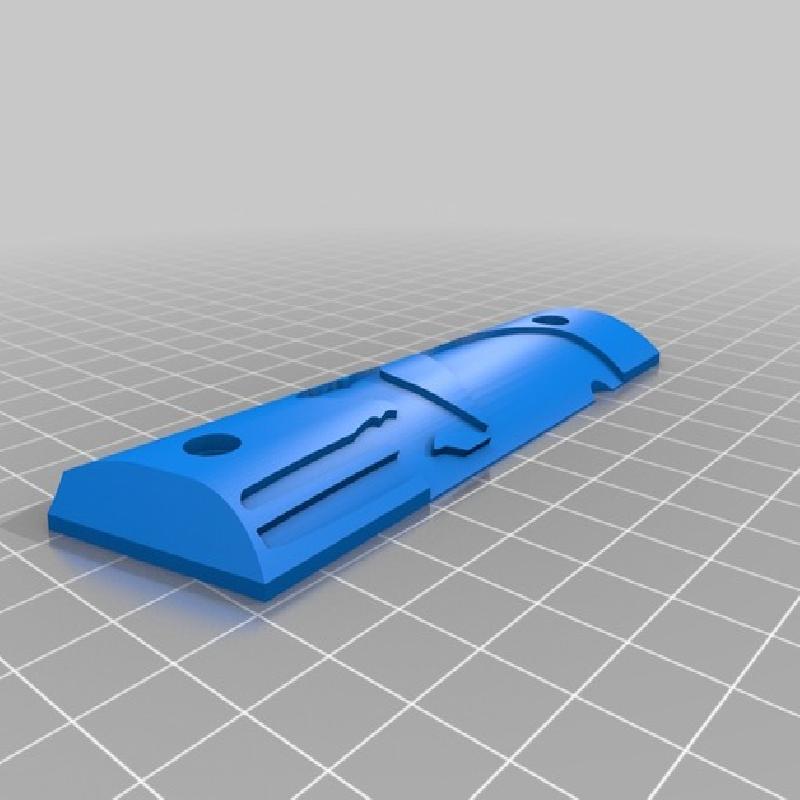

UPDATE:  Uploaded the Punisher grips shown in the pictures

Print Settings

Printer: Monoprice Maker Select

Rafts: No

Supports: No

Notes:

Print this at whatever resolution/fill you want.  The Punisher grip was printed at .25mm resolution with a 30% fill.  I printed it using Hatchbox wood filament.

Post-Printing

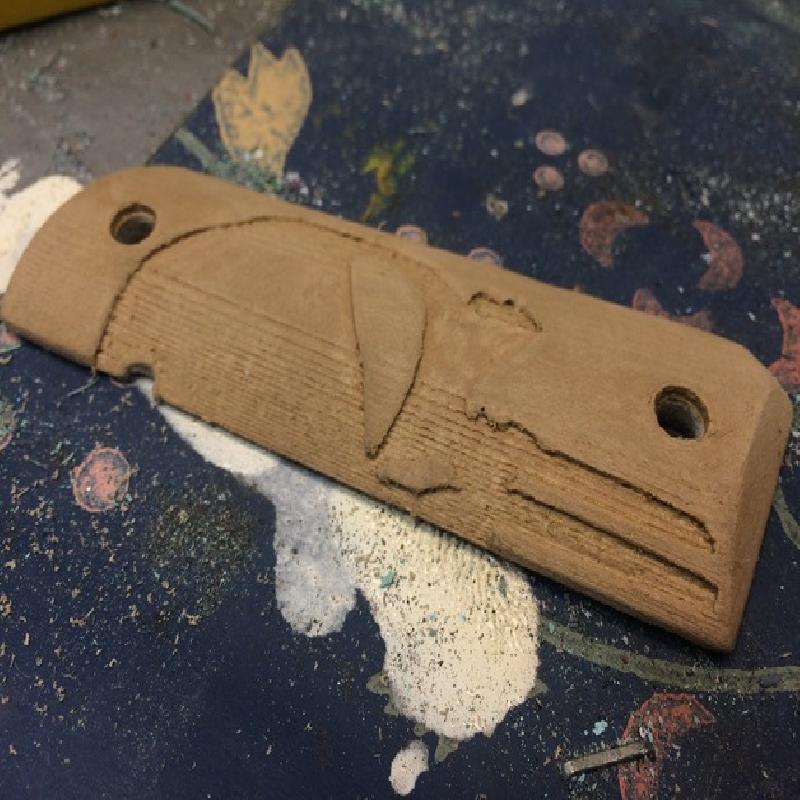

Since I printed it out of wood, I decided to sand it fairly smooth with a combination of sandpaper and dremel work, and then I stained it.

You can polish these smooth or leave them dirty.  Some people like the look of the layer lines.

These fit pretty tight on my Springfield M1911 Range Officer.  I had to shave a few thousandths of material out of the screw holes to get it to fit nicely.

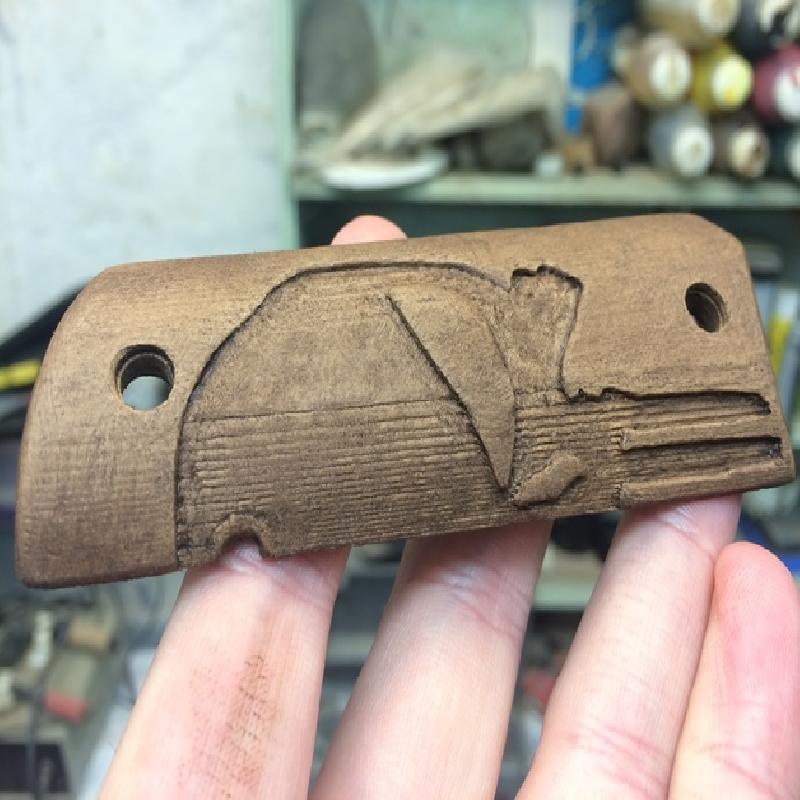

Edit: restained with dark maple. Looks good imo

How I Designed This

I didn't design these.  The only thing I did was add the plunger tube relief cut.

I CNC milled some Punisher grips out of aluminum a few years ago, so I've had these on my computer for awhile.

I'm pretty sure the original author of these grips is Robert Burns over at GrabCAD.  Link below:

https://grabcad.com/robert.burns
