by kr15_uk, published

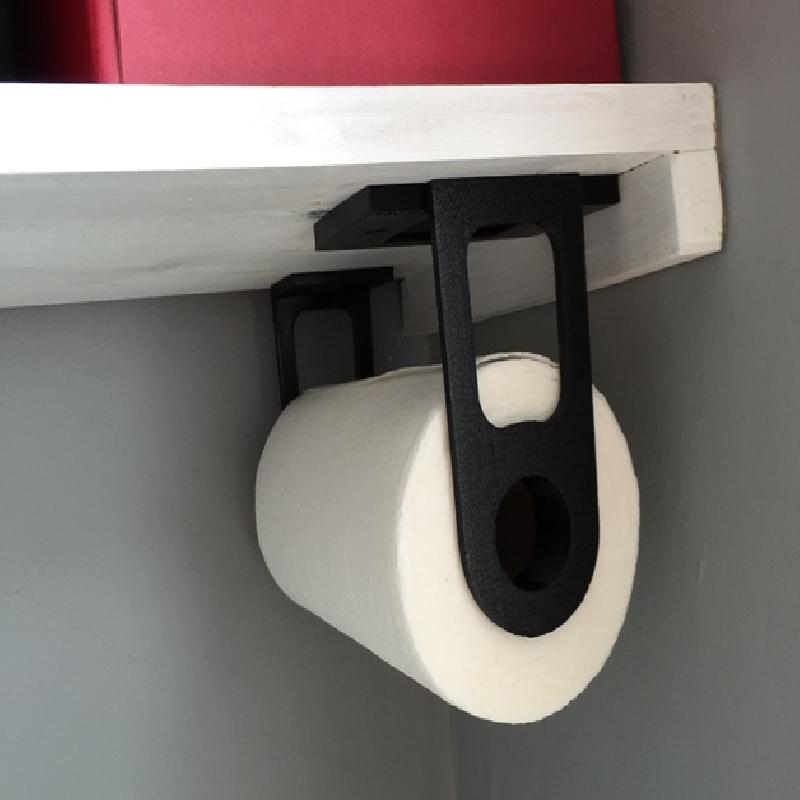

This is the remix of Paper Towel Holder made by areeve20.

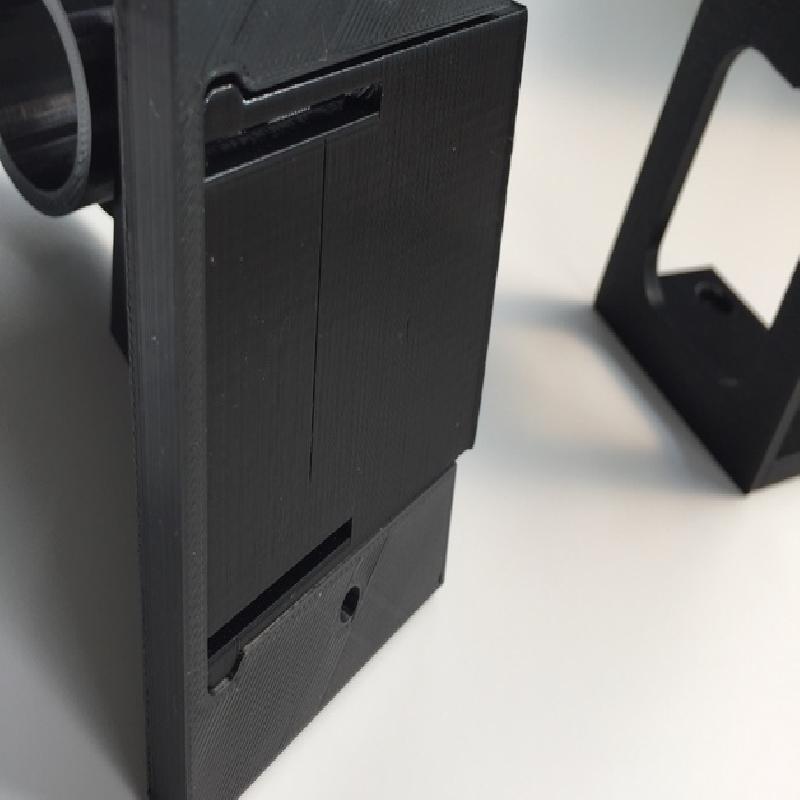

Original item had both legs the same height and when one of the legs is slid into the bracket one side turns out to be 5mm higher making paper towel sit on the lean.

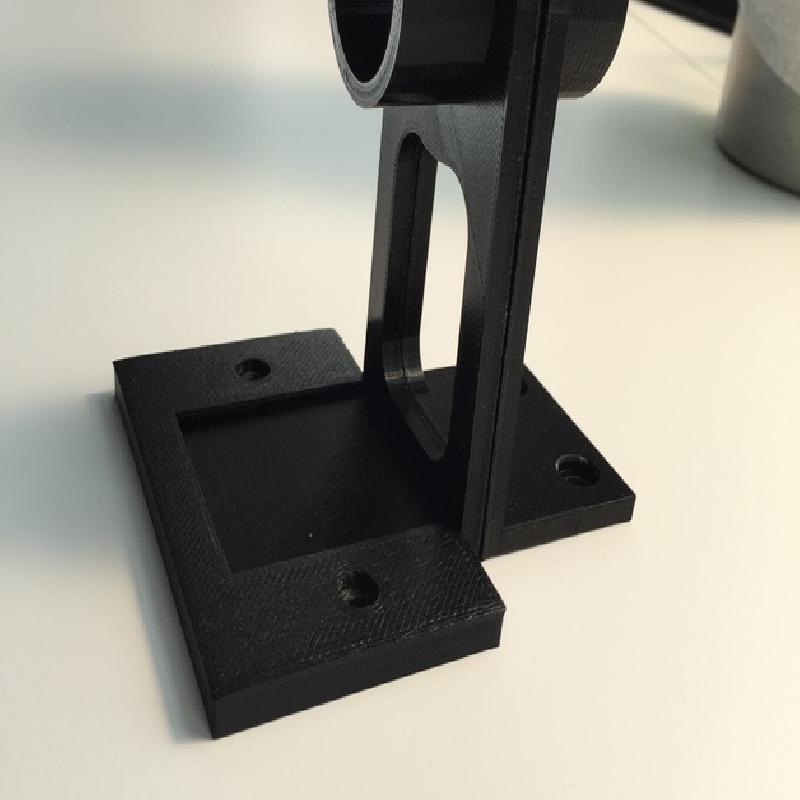

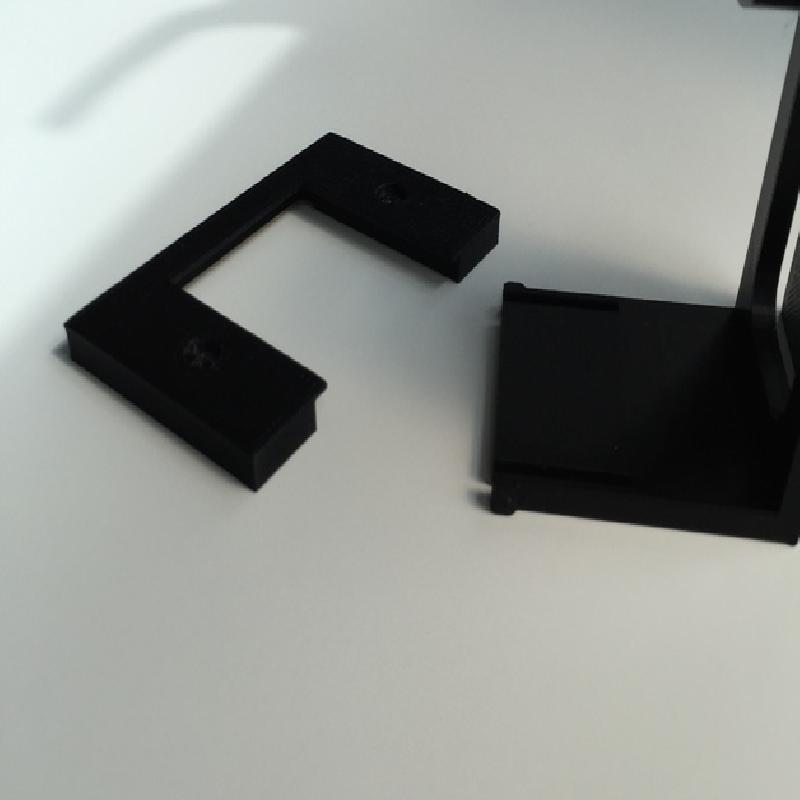

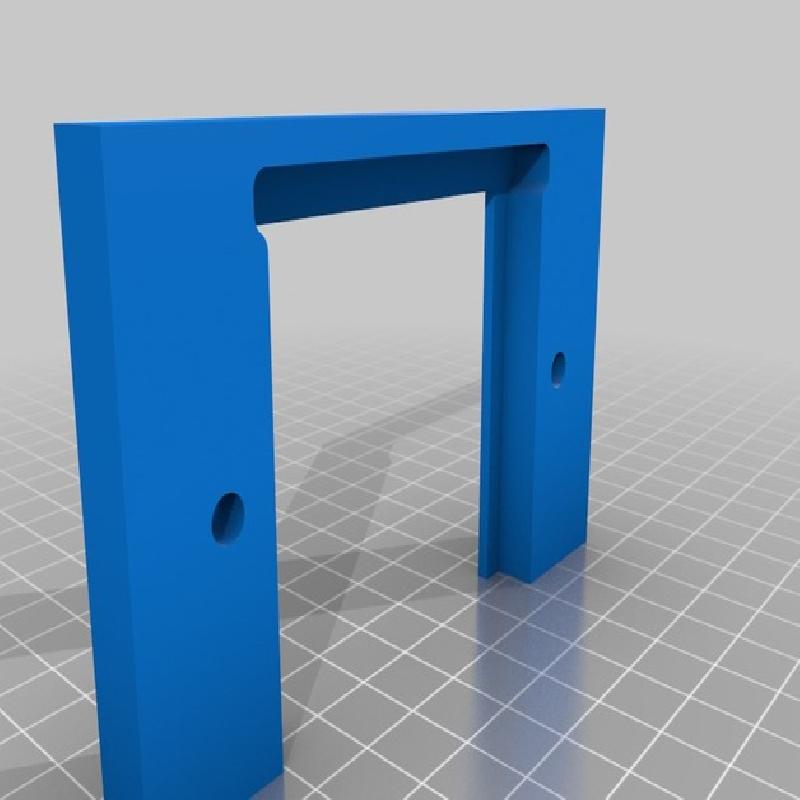

So in my remix I've only redesigned bracket by removing bottom bit and adding slightly larger sides to accommodate screw holes.
Done it by editing existing STL file using SketchUp.

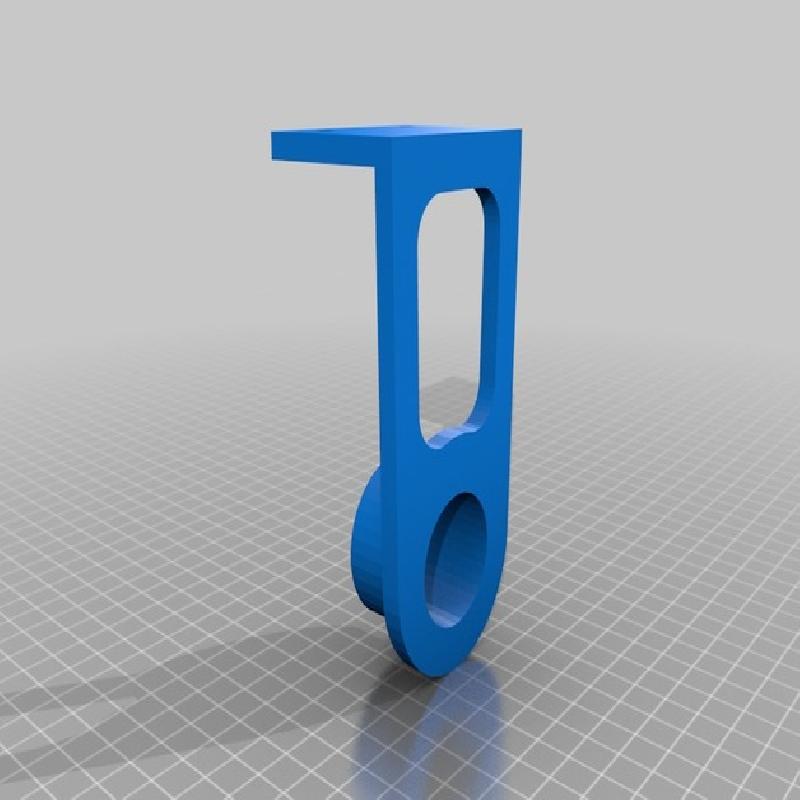

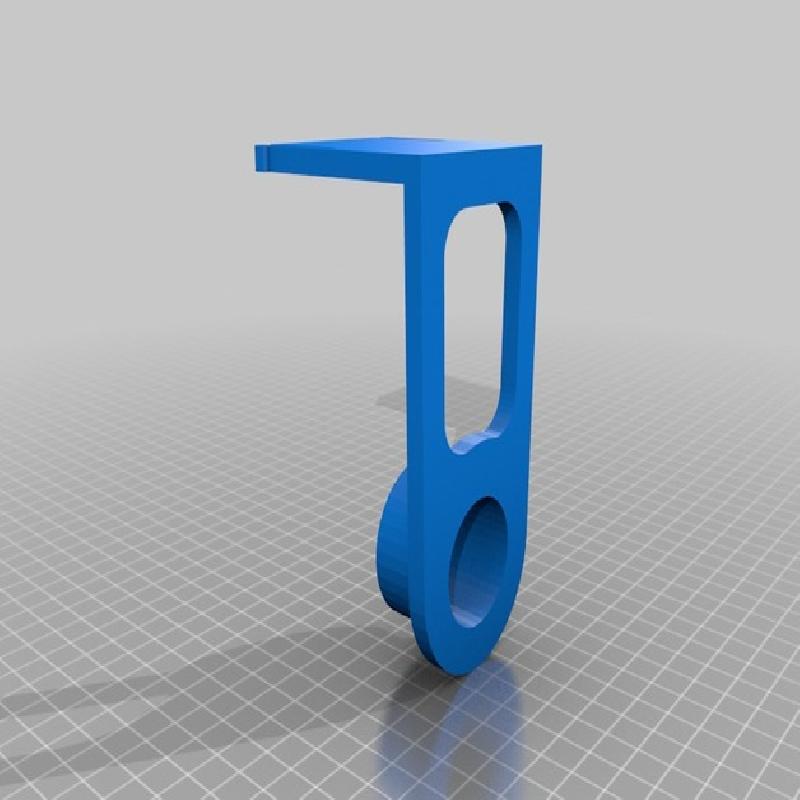

I was considering leaving the bracket as is and extend one of the legs but went with the bracket at the end.
Why?
I'm pretty sure that there are some other people who already printed original Towel Rail and this could be a quick fix (aka less filament/time to get it in level)
Enjoy.
Printer: XYZ Printing da Vinci Jr
Rafts: No
Supports: No
Resolution: 0.4 Nozzle, 0.2 Layer Height
Infill: 30%
