by Bshaw19

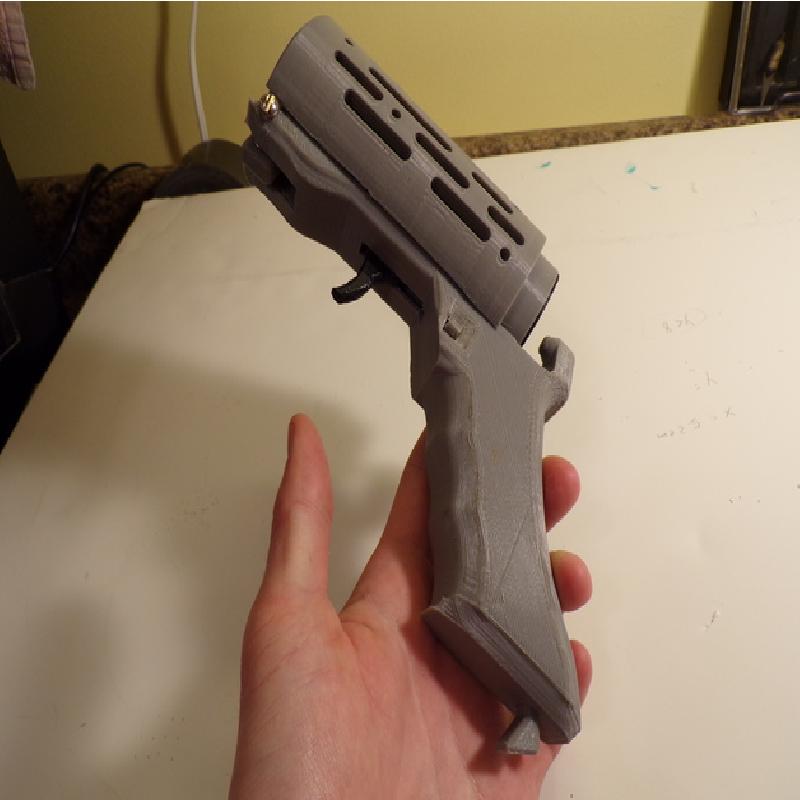

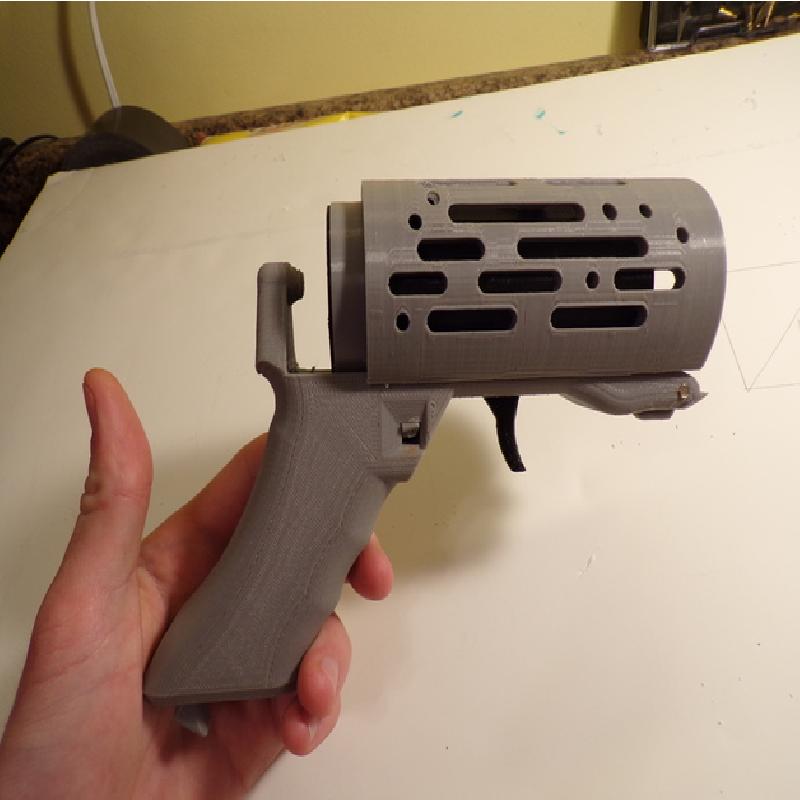

I was bored so I made this 40 mm grenade launcher. Works as a good secondary.
Rafts:
Yes
Supports:
Yes
Resolution:
.1
Infill:
the higher the better but at least 40
Notes:
Both the outer in the inner ring should be printed with rafts. The Shell thickness should be at least 1 mm because I have had problems with the grip breaking under recoil. I printed almost all of this out of ABS plastic because if it's being used in Airsoft it's going to get bounced around a lot.

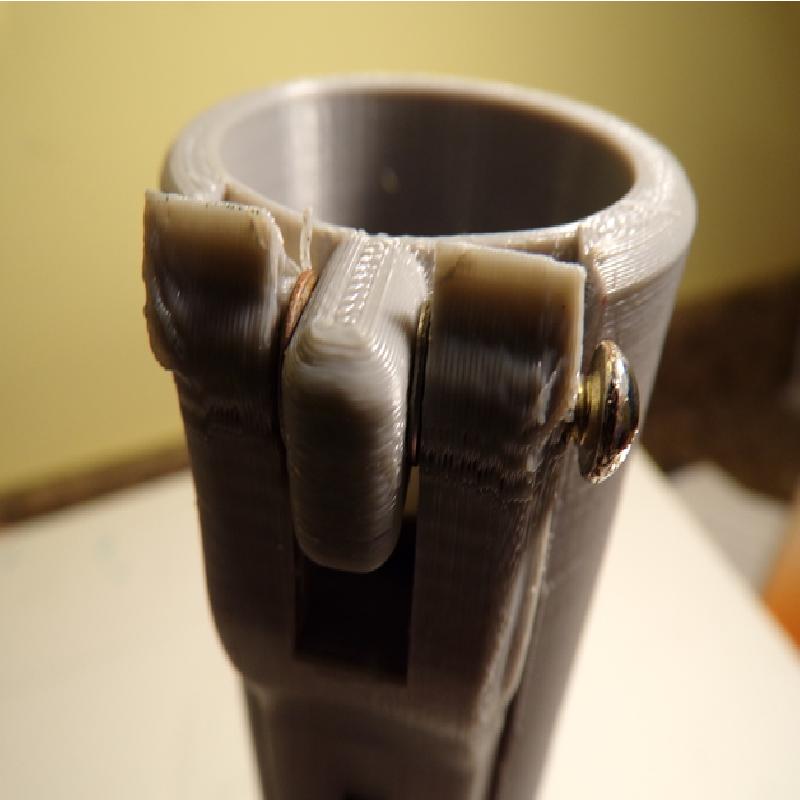

The inner and the outer ring need to be slid past each other until they's moved out. You will also need a screw to go through the whole that connects to the grip to the outer ring I recommend that you put metal washers in between the inner and outer ring as well.

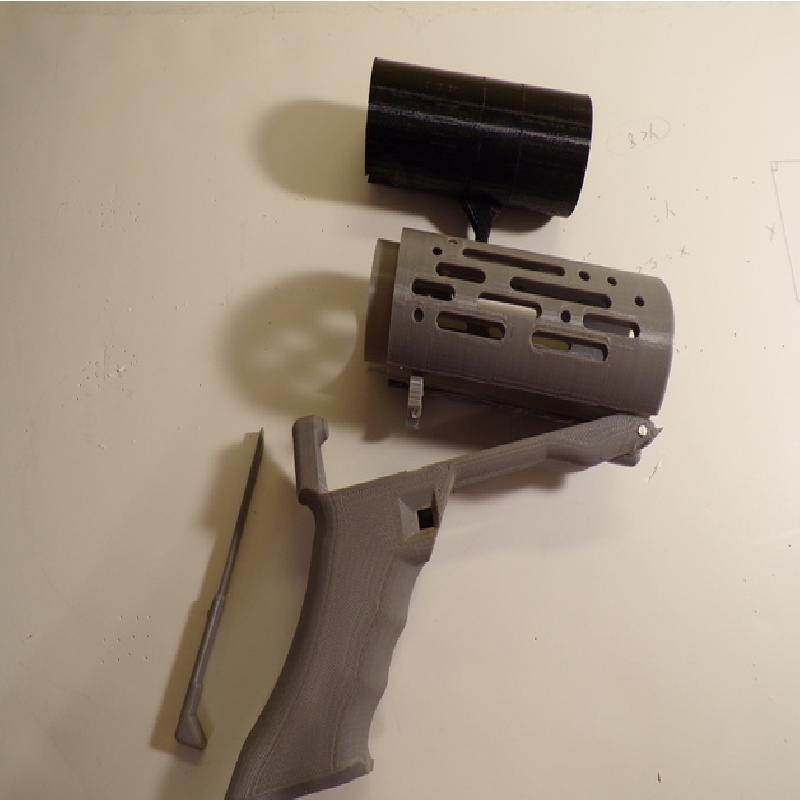

Assembly the inner ring goes inside the outer ring the outer ring attaches to the grip via a screw that will go through both the inner ring and the grip near the front of the gun and the safety goes in to the bottom of the grip so that though little.is facing towards the back of the gun.
