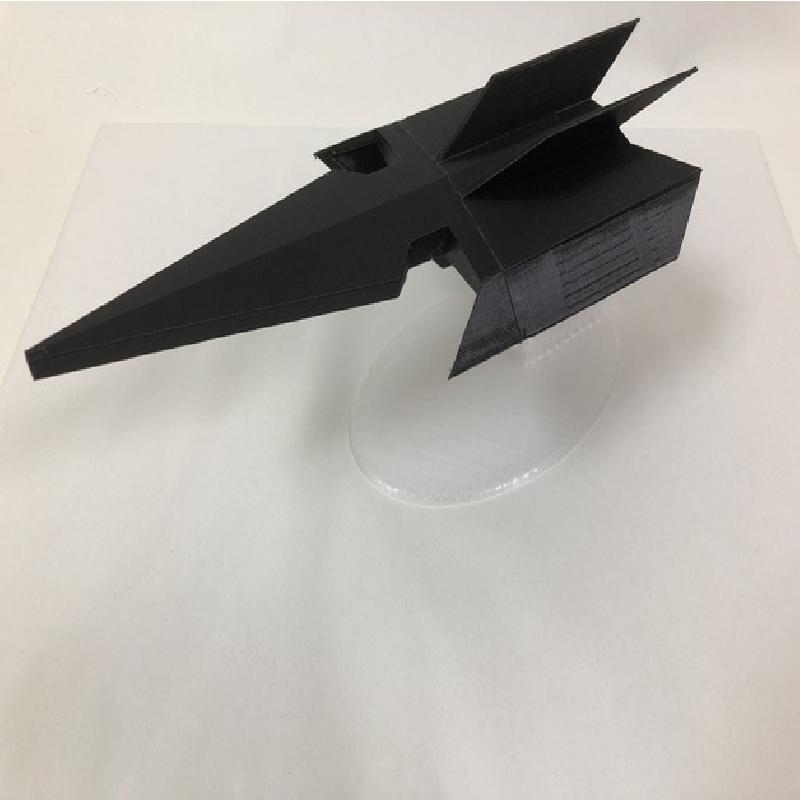

This is the TV-202 starship from the computer game Terminal Velocity (1995).

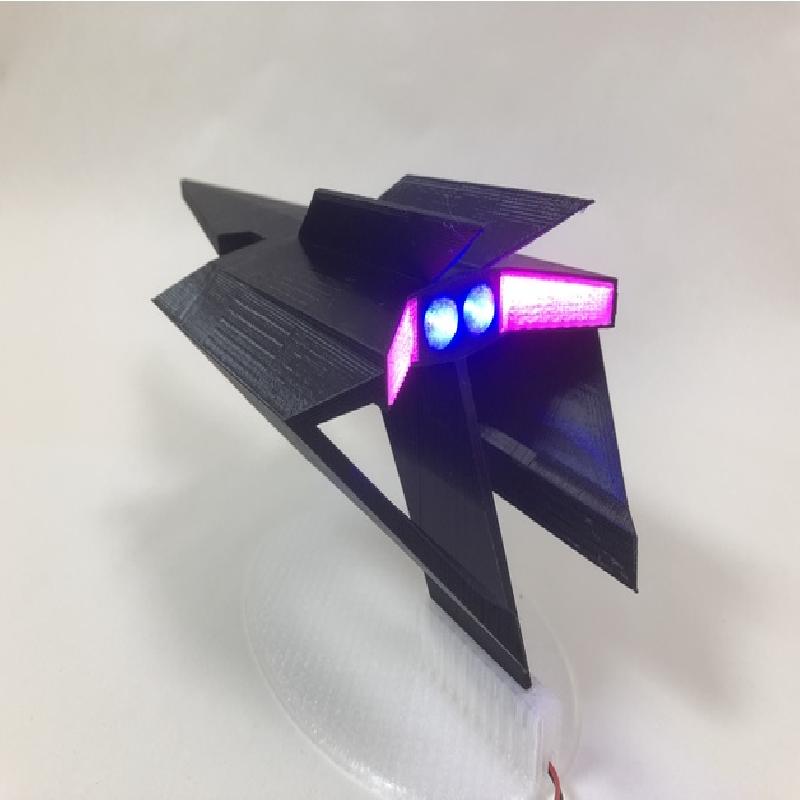

The model has LEDs to light up the engines. The wiring runs through the tail directly to the stand.

Check the video on YouTube and give me a thumb up if you like!
https://www.youtube.com/watch?v=LBIdnfrOIF0

Print Settings

Rafts:

No

Supports:

No

Resolution:

0.15mm

Infill:

20%

Filament:                                            ? PLA

Notes:

No support is needed.
Use a brim when printing the front and rear of the ship.

Post-Printing

Things you need

• 4 pink 5mm LEDs

• 2 blue 5mm LEDs

• a power supply

• resistors (220 ohm should work fine if you use a 5V power supply)

• wire thin enough to fit though the tail

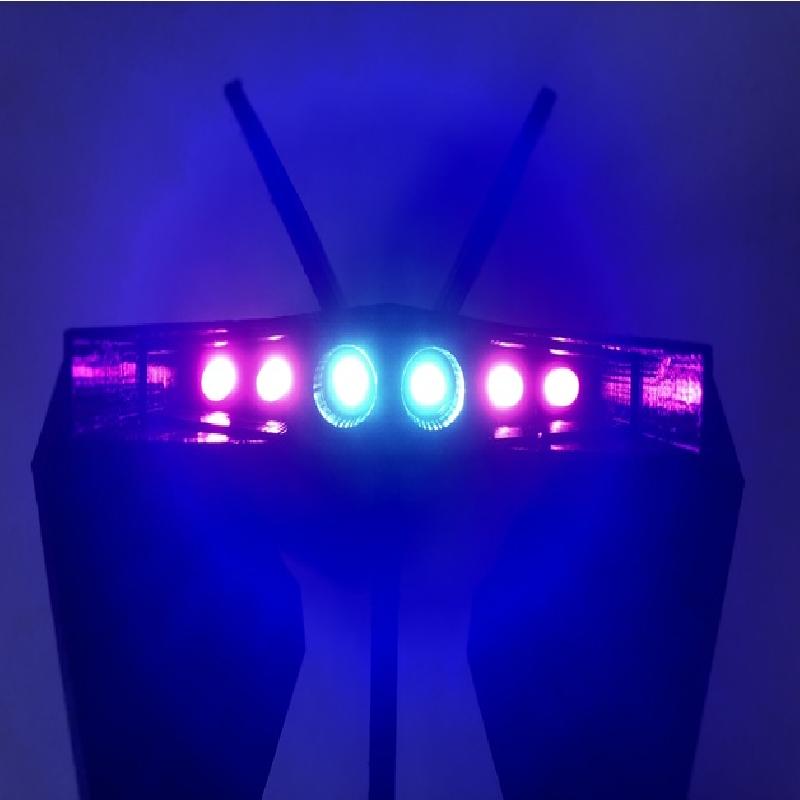

There are six slots for the LEDs at the rear of the ship. After printing, punch a hole though the bottom of the slots and check that the LEDs fit inside.

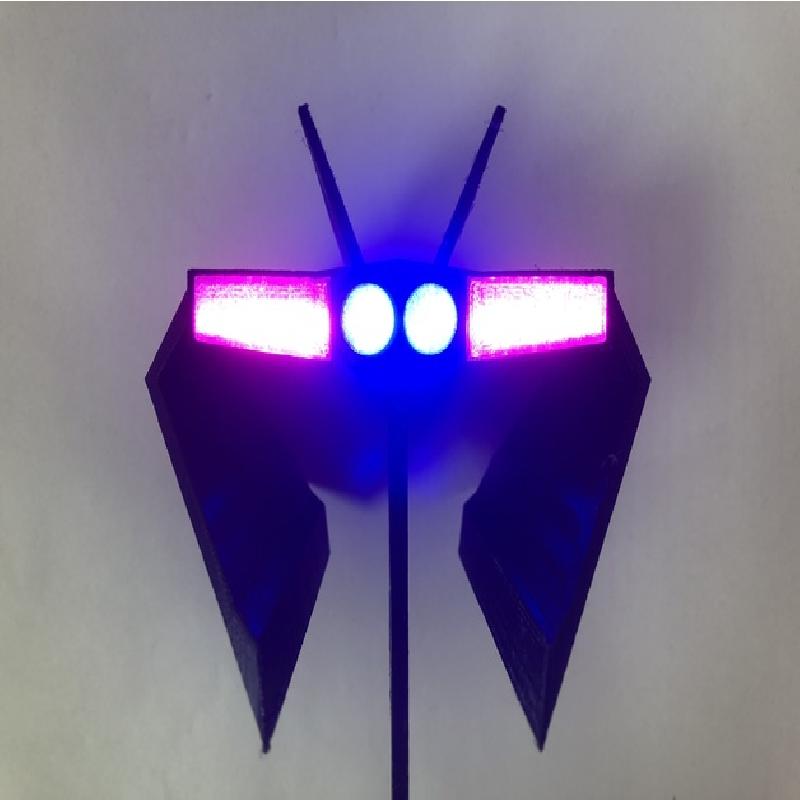

Solder a resistor in series with each LED, then wire them in parallel. Insert each LED though the peg hole and fit it trough the holes at the rear of the model (blue in the center, pink in on the side).

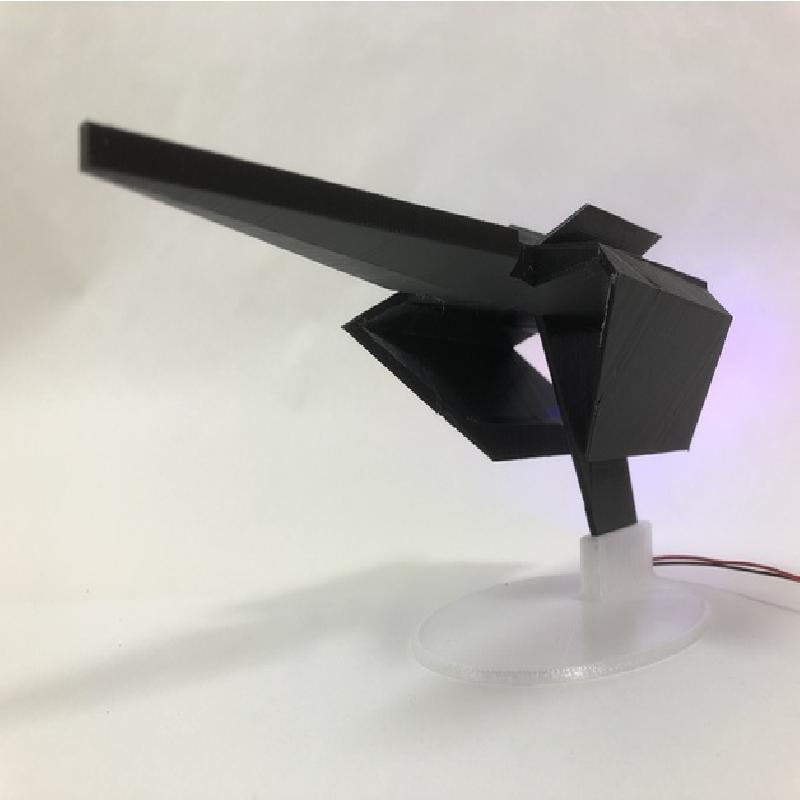

The wiring must run through the hollow tail, then to the hole at the rear of the stand.

How I Designed This

Designed in Fusion 360 using screenshots from the original game.
