by 7Fish

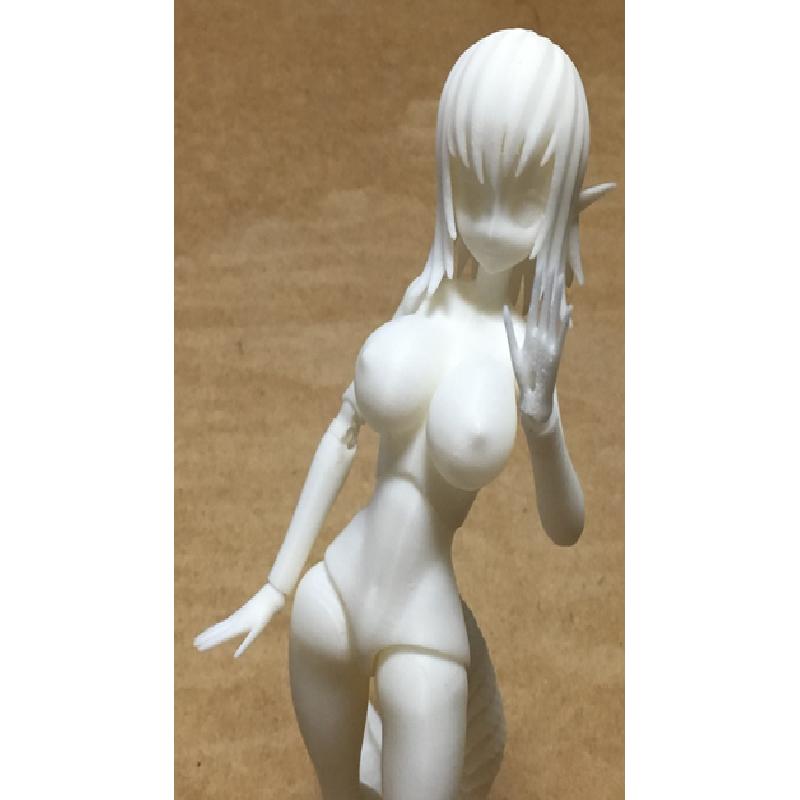

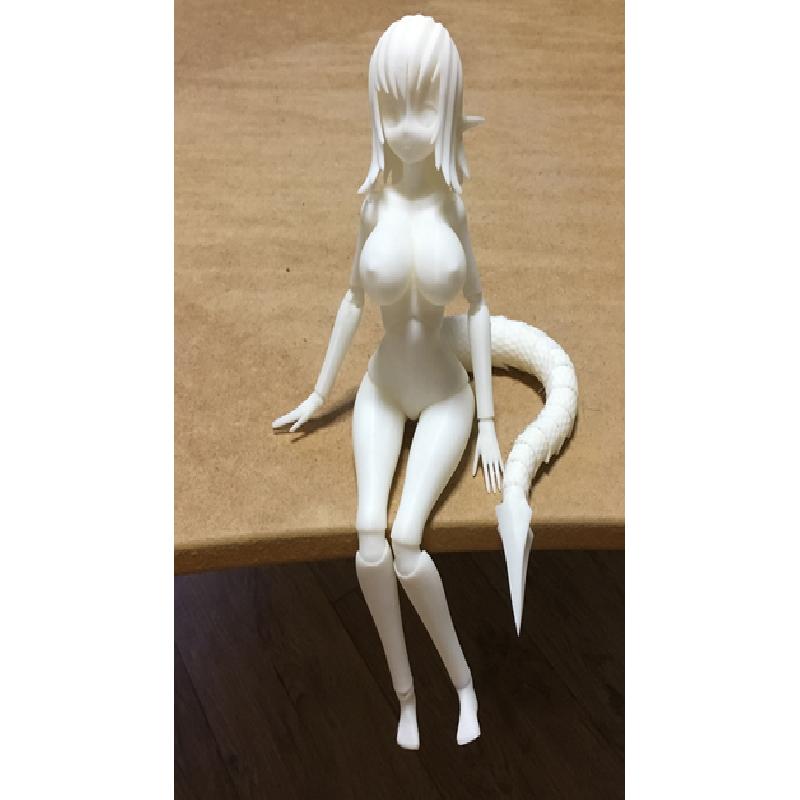

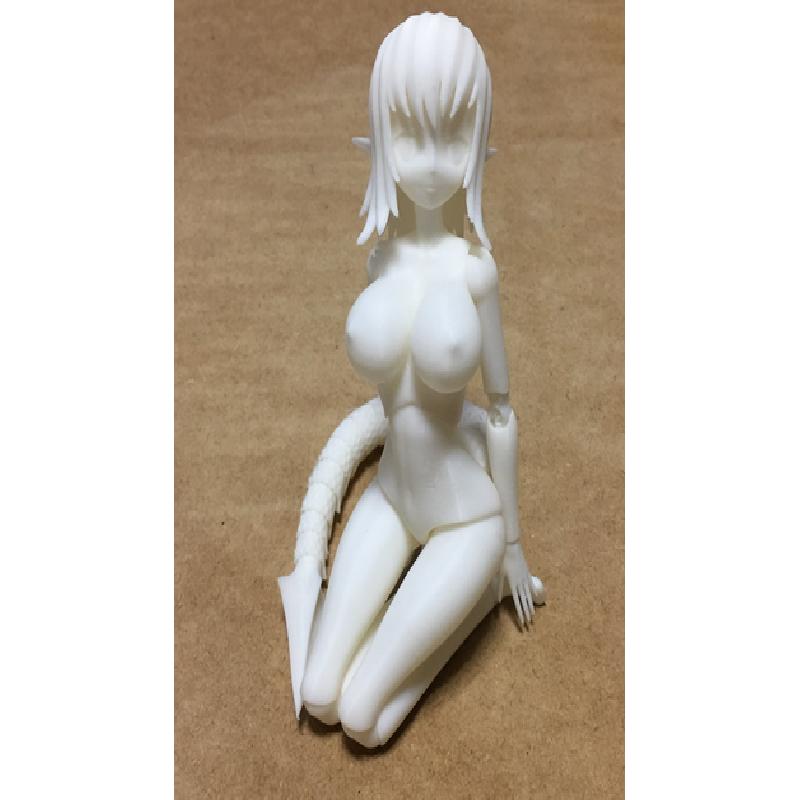

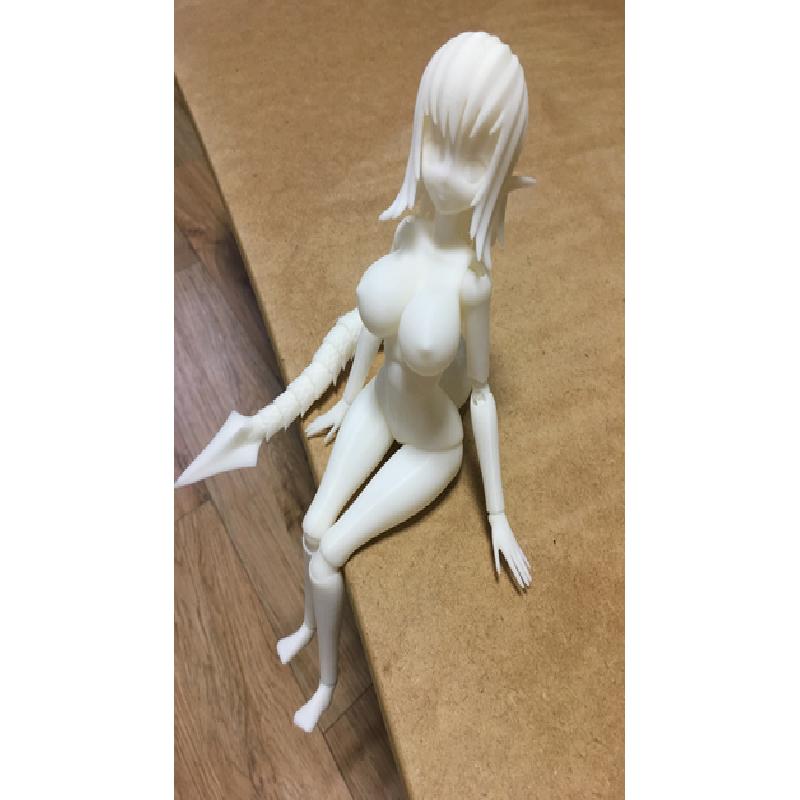

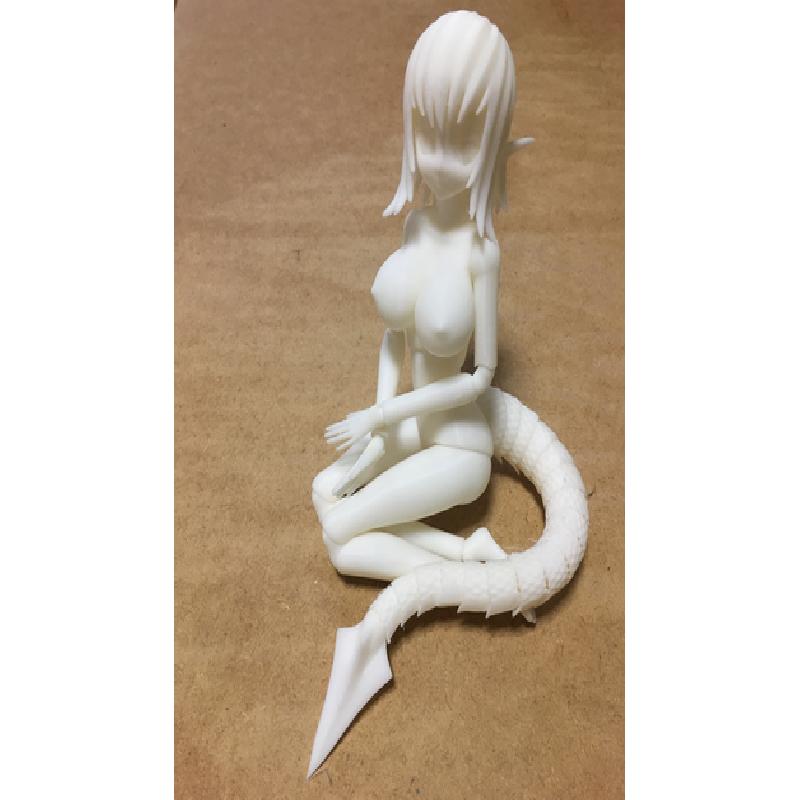

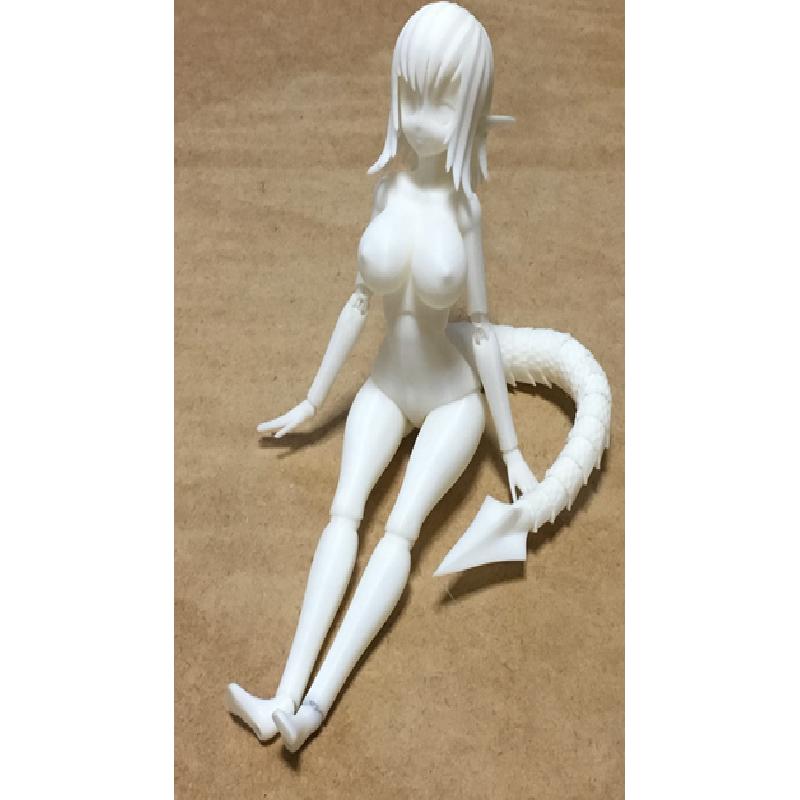

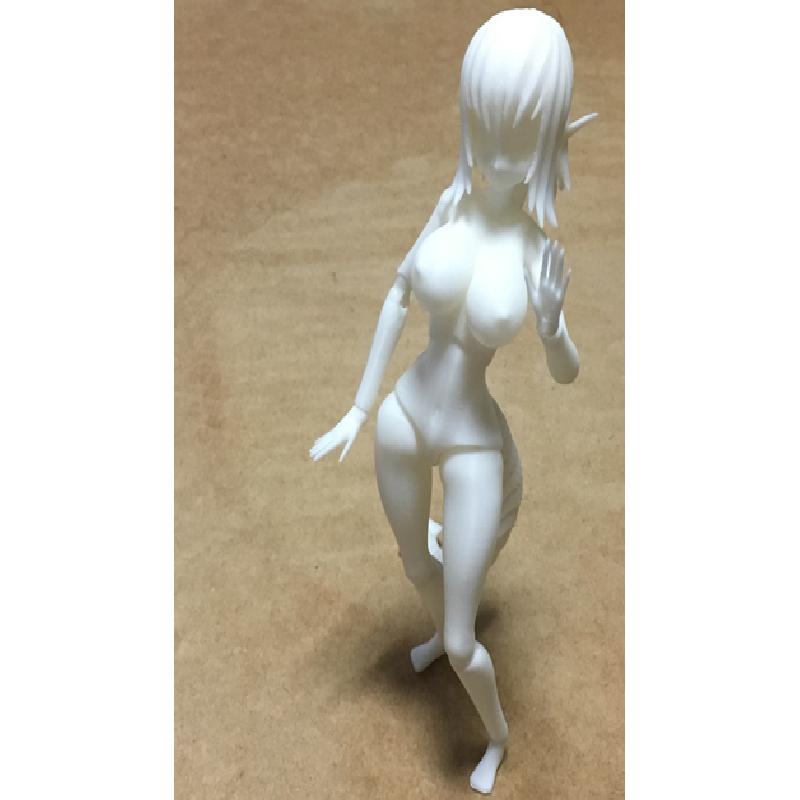

This is Sequeal to my Little Ball jointed Girl. her feautre and structure is similar to the Little jointed girl as such as Anime Style and identical BJD structure with additional Feature for optional build without using elasticall string like Fishing wire.

She is designed in 1/6 Scale of 160cm , Six head-figure which is over 250mm in totall.

it's chest is provided with eight variation to be customized, it is not entirely anatomically accurate shape :S

Parts without Supports will not provided, you must remove prebuilt supports yourself with 3d Applications

Feel free remix and fix girl to customize your girl.

Print Settings

Resolution:

0.15

Infill:

10

Notes:

Build Steps

The Head

Face (Detailed / Blank)

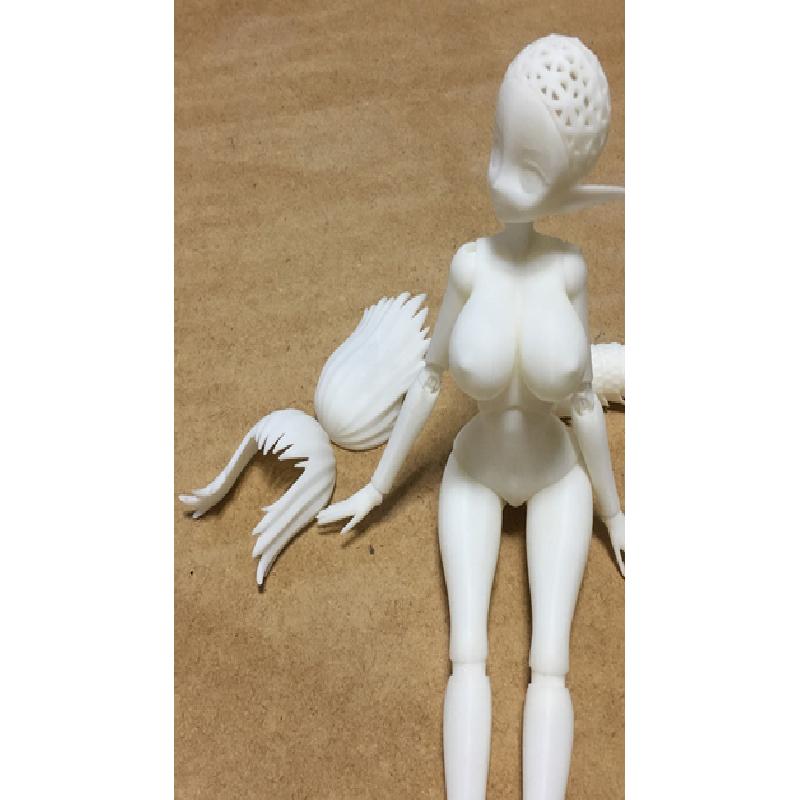

*the Hair head latice will might unable to remove from head peice onece snap pited into head which was my case, please install Hair Head Latice after you finished string or Assemble All of limbs.

Hair Head Latice

Hair Front

Hair Back

Neck to Chest Pin (Optional)

The Chest and Arms

Chest (from A to H variants)

Chest to Pelvis Pin (Optional)

Chest to Arm Pin (Optional)

Upper Arm (X Mirror)

Arm Pins 3EA (Optional)

Elbow X2

Lower Arm (X Mirror)

Hand  (X Mirror)

Pelvis and Legs

Pelvis

Pelvis to Legs Pins (Optional)

Thigh  (X Mirror)

Knee X2

Calf  (X Mirror)

Leg Pin 2EA

Foot to Leg Pin (Optional)

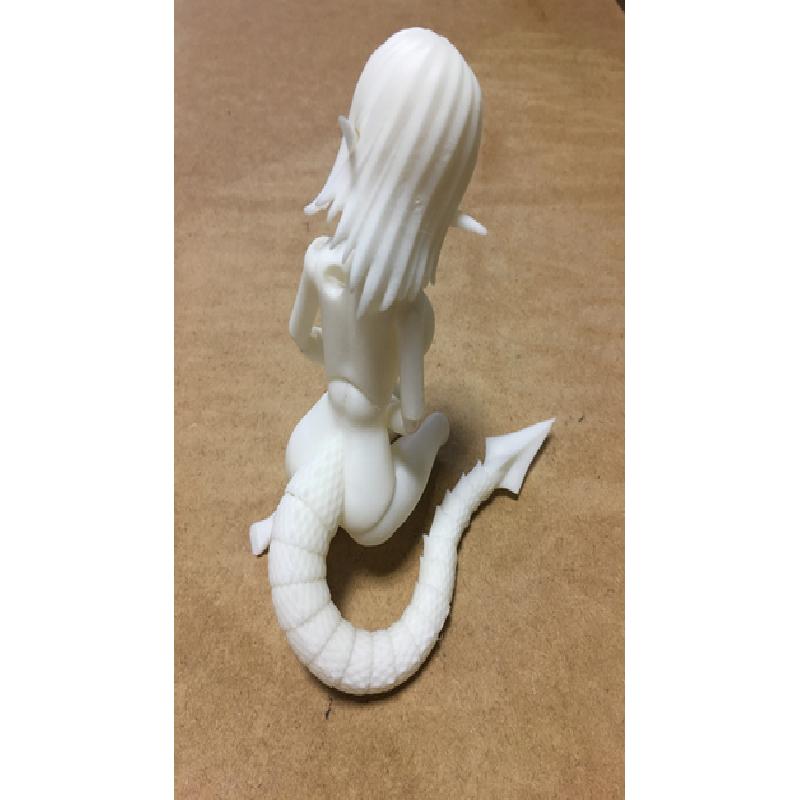

Tail (Optional)

the Tail's pre-built supports and orientation of parts are often seemed be useless to many builders, but the reasons i have insist align parts like this is it's help and reinforce the ball from getting destroyed by stress from the soket when the ball trying to inserted into the soket. i had developed some smliar ball jointed projects as well my dragons i had concluded that this way will help the ball's neck to survived the stress of being squashed.

The Tail is share parts with Seven the articulated dragon, it's base meshs and sizes are same but Scale's scale is different with them.

Tail Base

Tail 01-05

Tail 06-10

Tail 11-13

Tail Tip

How I Designed This

it was unsatisfied that it's Joints was mixture of old ways and a bit new trying but the balls are still too losed and easily pop out from soket especially Hand and foot. i might trying to find other ways to improve... you may need to insert metal wire or inflat the ball 0.1mm..
