by jahg
This is a remix of the excellent work done by Discosteveworld. The main changes are on the wheels - I wanted to make them single pieces that did not require any fasteners for the wheel (you still need to source qty 2 4mm x 50mm rods per wheel set, or a single 4mm x 100mm per set).
To make the single wheel work I remodeled the hub and tire and printed the tire with Fillamentum Flexfill 92A at 0.15mm layer height, 2 perimeters and no infill. This combination allows for enough give that the tires can be forced over the printed wheels.

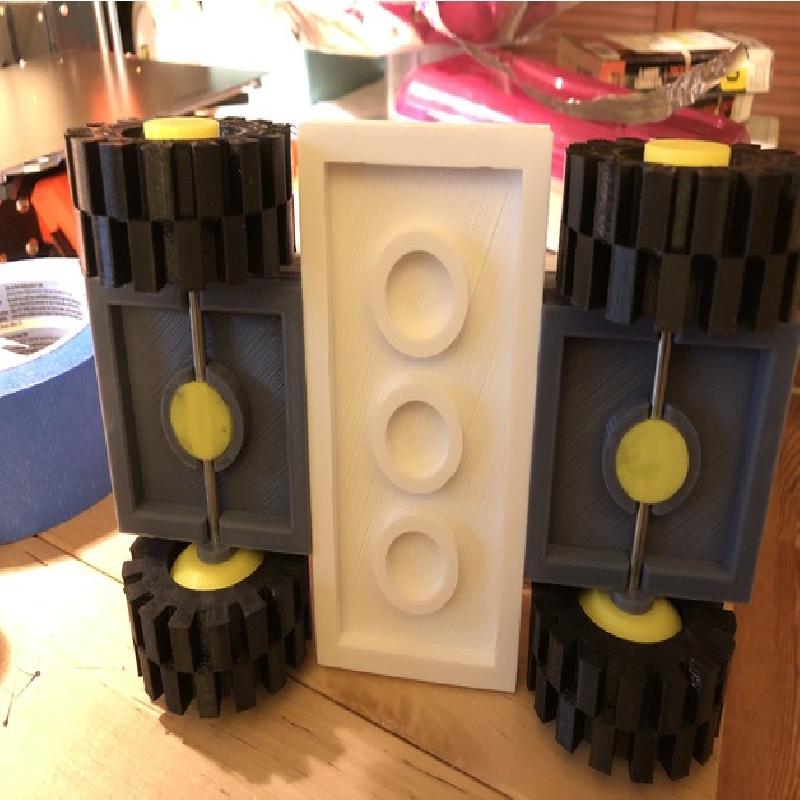

I also remodeled the wheel plate brick to more closely match the original piece. The disadvantage is that each wheel now requires printing and gluing 3 additional pieces to hold the axles in place, but I personally like the aesthetic you get with this layout. I also made minor changes to the rest of the bricks to adjust for the tolerances of my printer (Prusa i3 mk3) and to make them slightly easier to click together (chamfered edges on the bottom internal pieces for example).
Colors chosen were based on my lack of colors to choose from, not any attempt at originality or artistic expression.
Printer Brand:
Prusa
Printer:
Rafts:
No
Supports:
No
Resolution:
0.15mm
Filament: PLA
