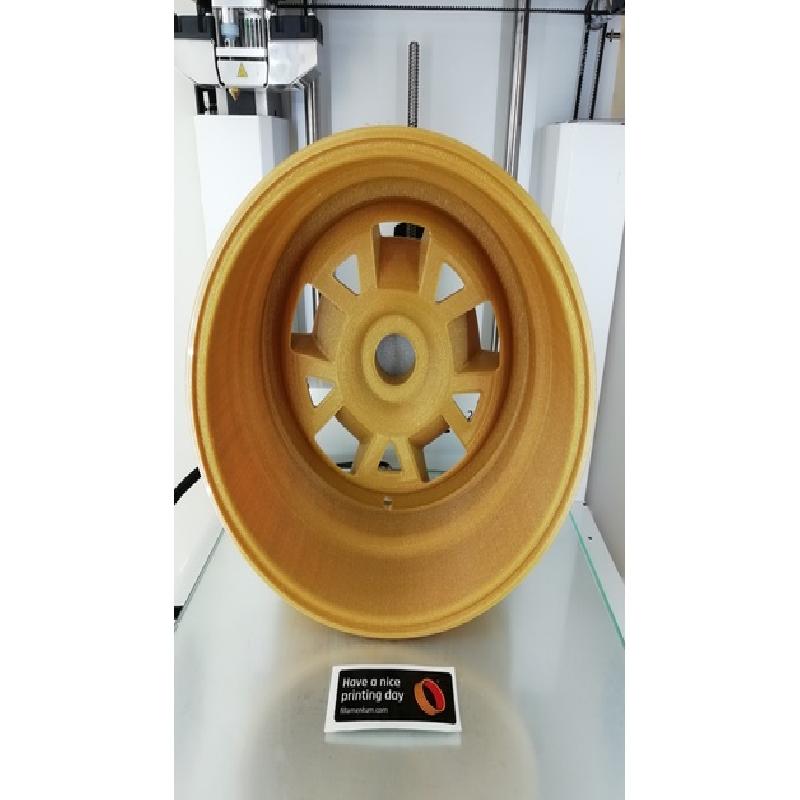

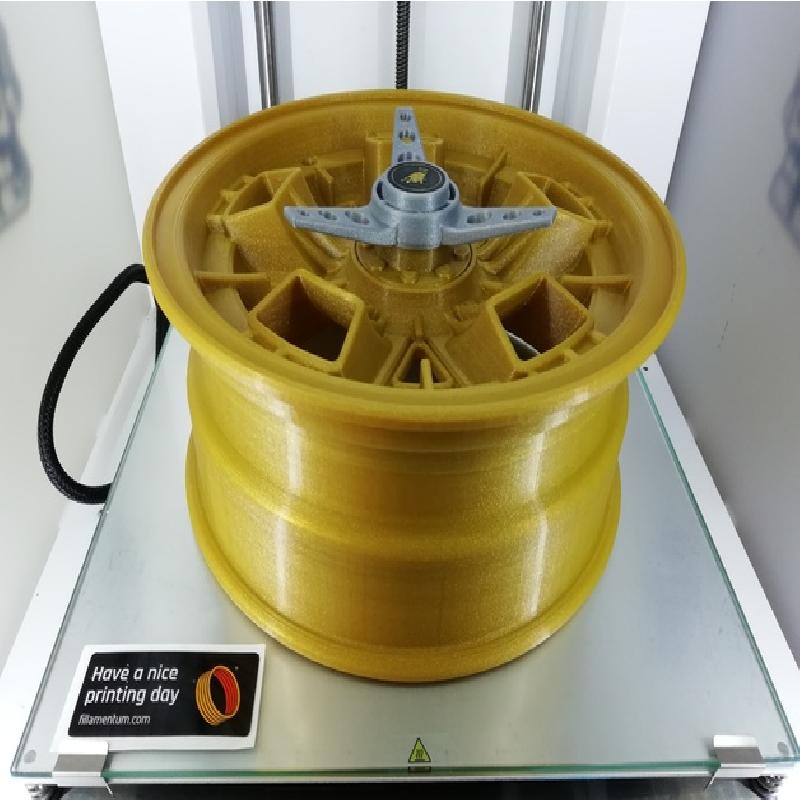

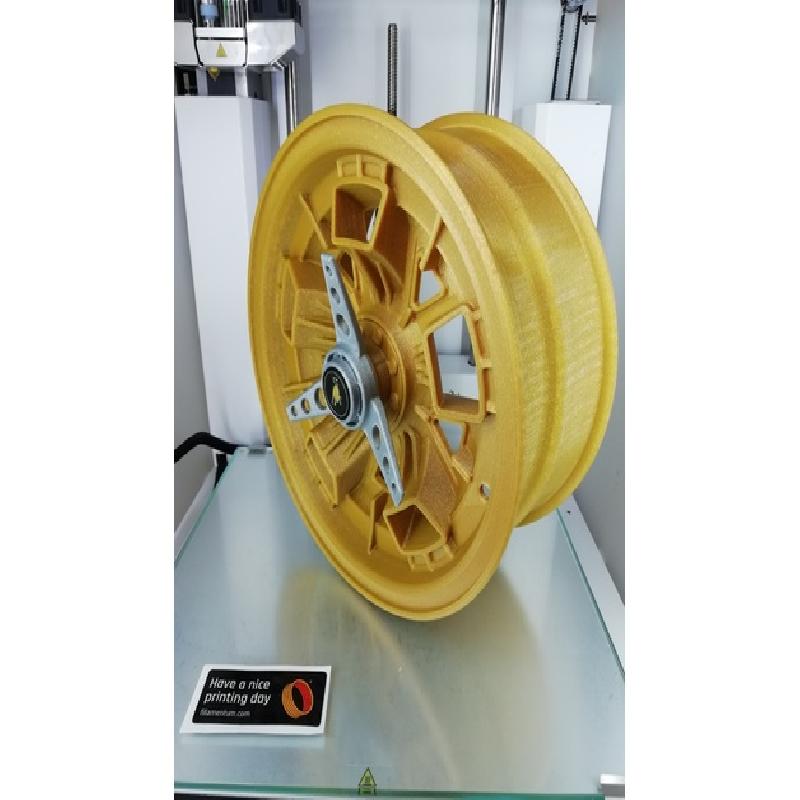

This is the 1961 Lamborghini Miura wheel rim.
The Lamborghini Miura was the first supercar mass manufactured.
I modeled the Lamborghini Miura rim in Catia V5. Then I made all the files print ready in Cura 3.4.1.
There are two printing options, the complete rim or divided into two parts. Two-part printing reduces print time by reducing supports.
Fillamentum was the filament sponsor for this project. So thank you Fillamentum. Go check out their filament here:
fillamentum.com
Printer: Ultimaker 2+
Filament: Fillamentum.
Fillamentum Extrafill Filament PLA Gold Happens
https://fillamentum.com/collections/pla-extrafill/products/fillamentum-pla-extrafill-gold-happens
Fillamentum Extrafill Filament PLA Rapunzel Silver
fillamentum.com/collections/pla-extrafill/products/fillamentum-pla-extrafill-rapunzel-silver
Fillamentum Extrafill Filament PLA Traffic Black
fillamentum.com/collections/pla-extrafill/products/fillamentum-pla-extrafill-traffic-black
If you're going to print this, be aware that scaling it down may cause some problems. The brand shield will become to small to print.
Soon I will introduce some change to simplify the printing at small scales.
Check me out on Twitter: @nachete2016
Printer Brand:
Ultimaker
Printer:
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2 layer
Infill:
18%
Filament: Fillamentum PLA Gold Happens, Rapunzel Silver and Traffic Black
Notes:
Body rim: 0,4 nozzle / 0.2 layer / 50º supports overhang angle.

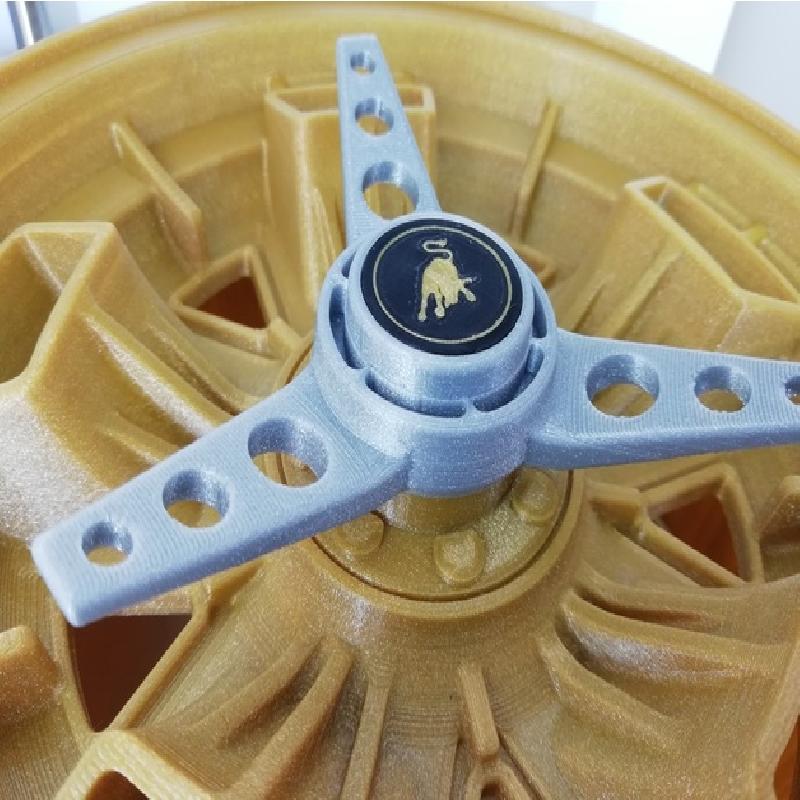

Central wheel wing nut: 0,4 nozzle / 0.2 layer / 50º supports overhang angle.
Brand shield: 0,25 nozzle / 0.15 layer.
