by Sniffynose

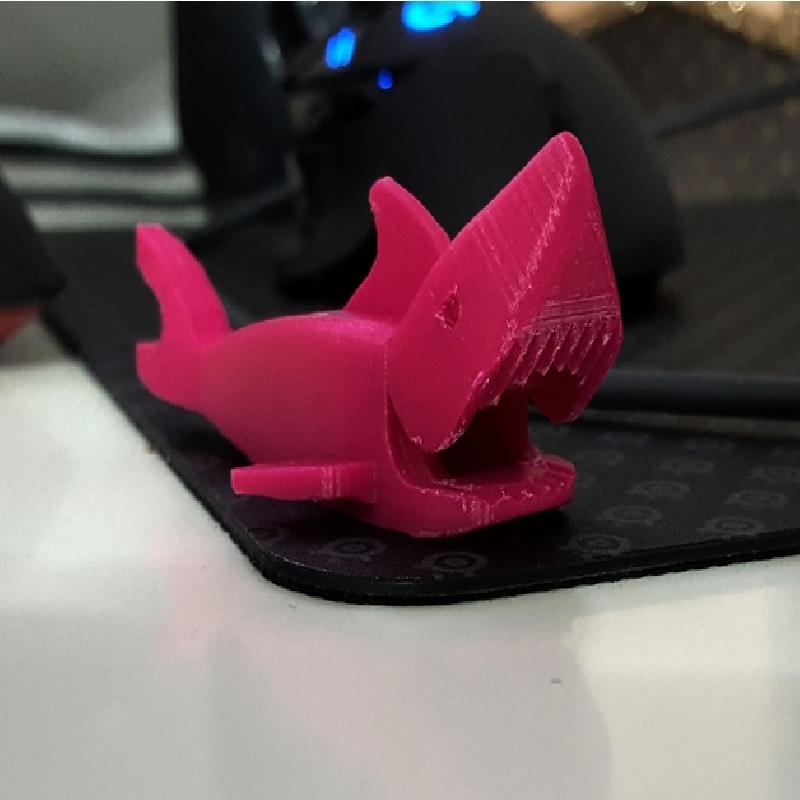

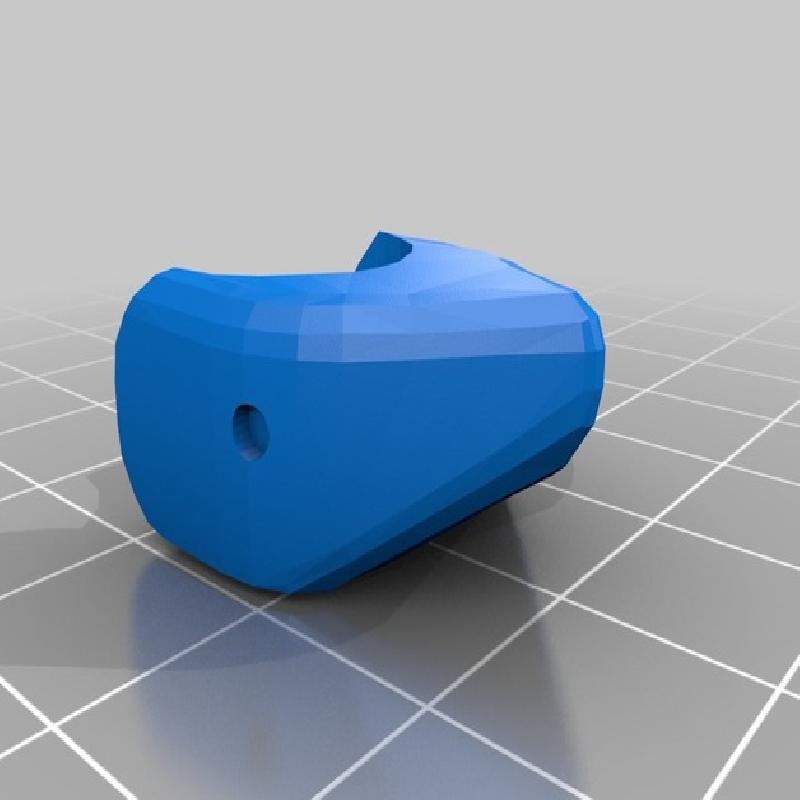

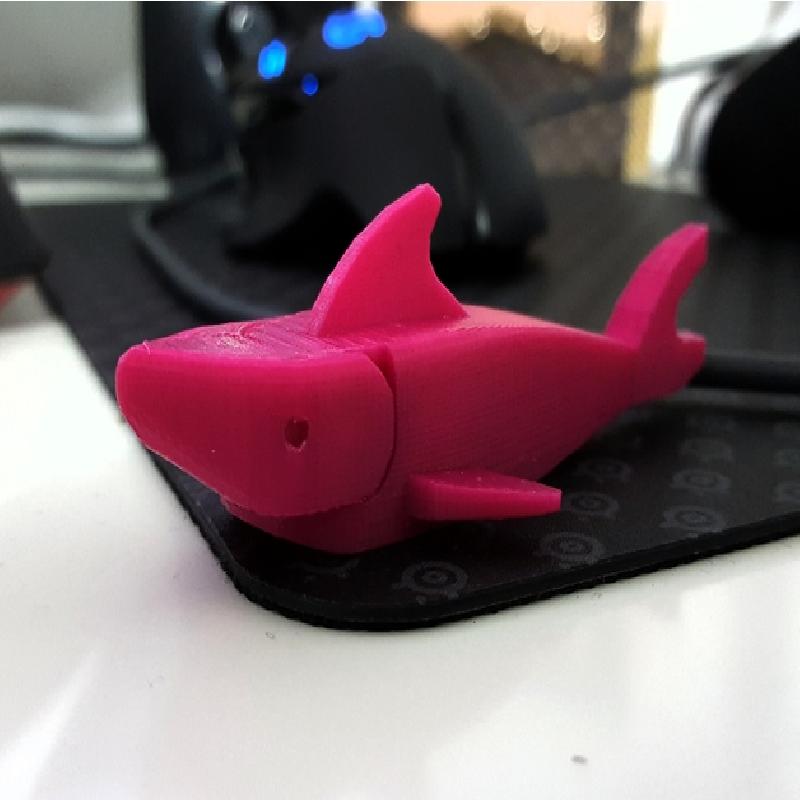

I printed the remade design which printed really well, but the jaws come out a bit too tight vs the original "block toy" that I have lying around so I added about 0.5mm expansion to the jaw and also made the eyes larger (2mm) so they would be more pronounced. After printing it fit much better and won't pop off the sockets when opened up to chomp =)

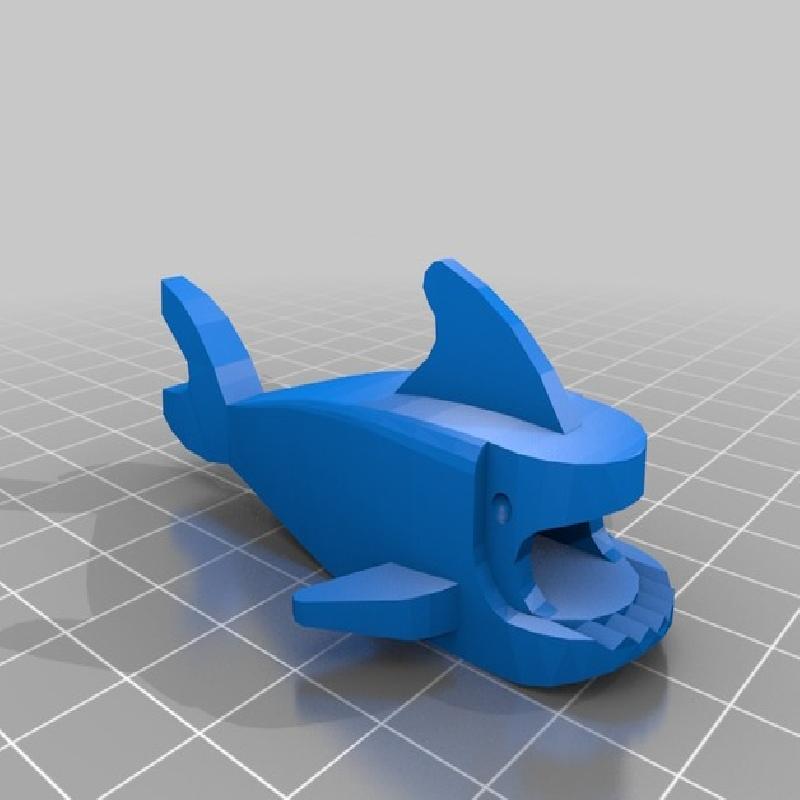

The remixed body design was fine I included it with the new head for completeness.
Rafts:
Yes
Supports:
Yes
Resolution:
1.0
Infill:
100
Notes:
I found printing it on a raft (2mm oversize) with a 5mm lift underneath meant I could use supports with a "support roof", giving perfect adhesion and easy removal with a nice clean looking bottom and well defined teeth. Originally I had printed right on the plate with supports but due to having a heated bed it just makes the first bottom layer look subpar vs exact level distance using a raft/support roof.
