by grim86

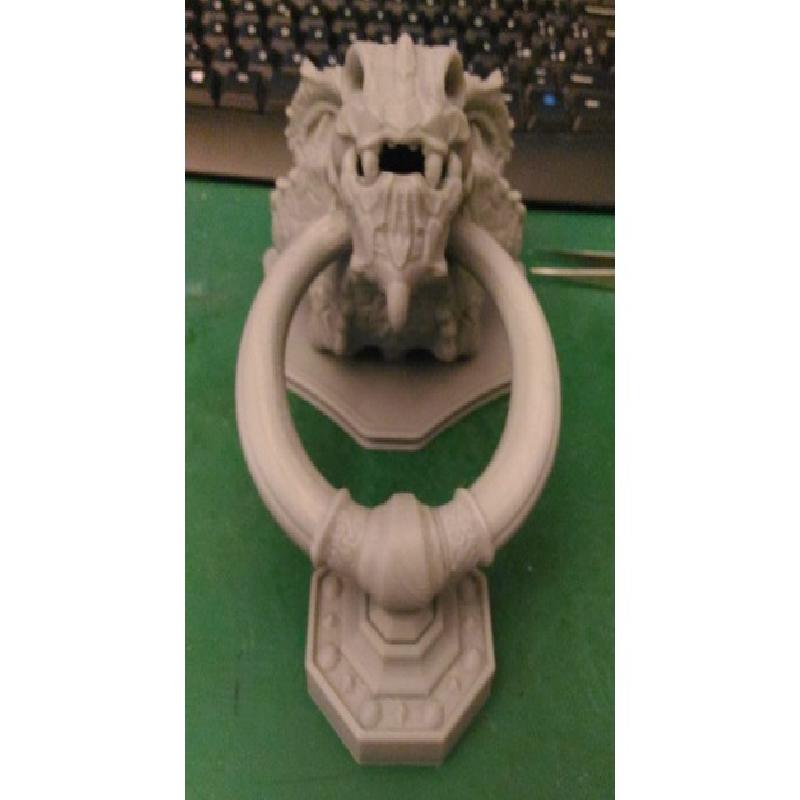

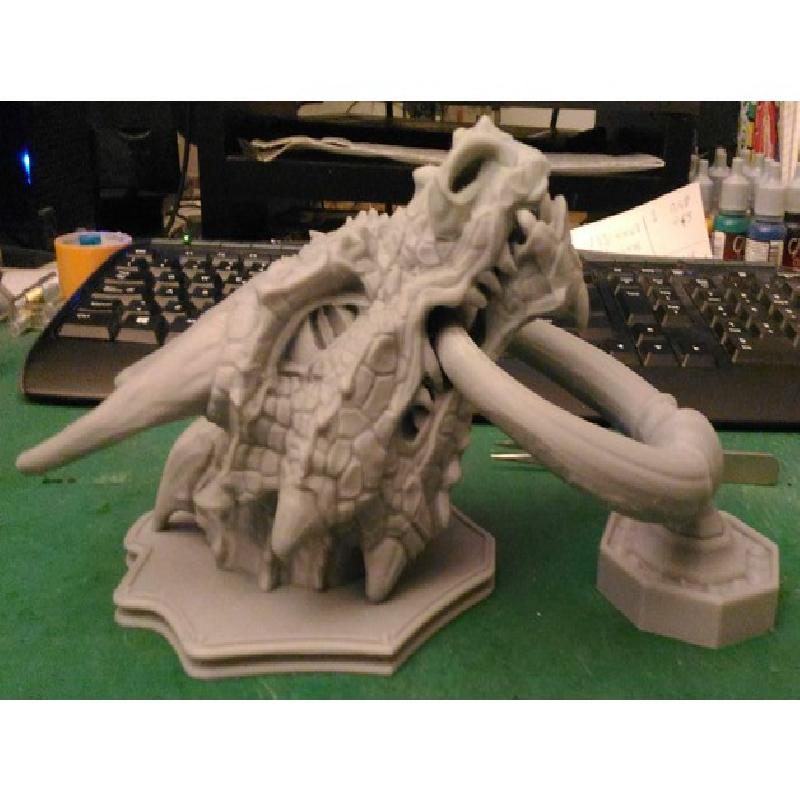

I scaled the head 70%, print the ring and the strike plate as is
the ring(part A and partB) must be assembled with the two alignment pins (cube and cylinder) , inside the mouth of the dragon
Printer Brand:
Prusa
Printer:
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
15%
Filament: Technology Outlet PLA Grey
Notes:
Top layer:4
Bottom Layer:3
Perimeter Shells:3
Infill: 15% for the head, 45% for the ring
Support infill percentage:30%
Extra inflation distance:1mm
Support base Layers:1
dense support layers:3
dense infill percentage:70%
support pillar resolution:4
max overhang:45°
Horizontal offset from part:0,30mm
Upper and Lower vertical separation layers:1
Extruder:190-185°C
Heatbed: 60-55°C
Cooling fan:100%@layer 4
Print Time:about 24h @40mm/s
