by DEZIGN, published

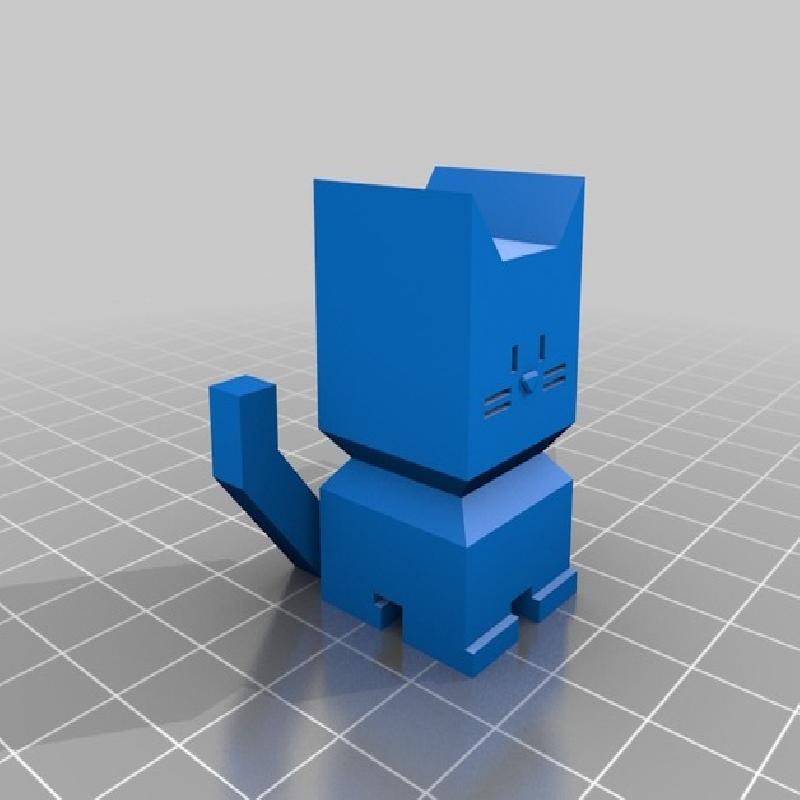

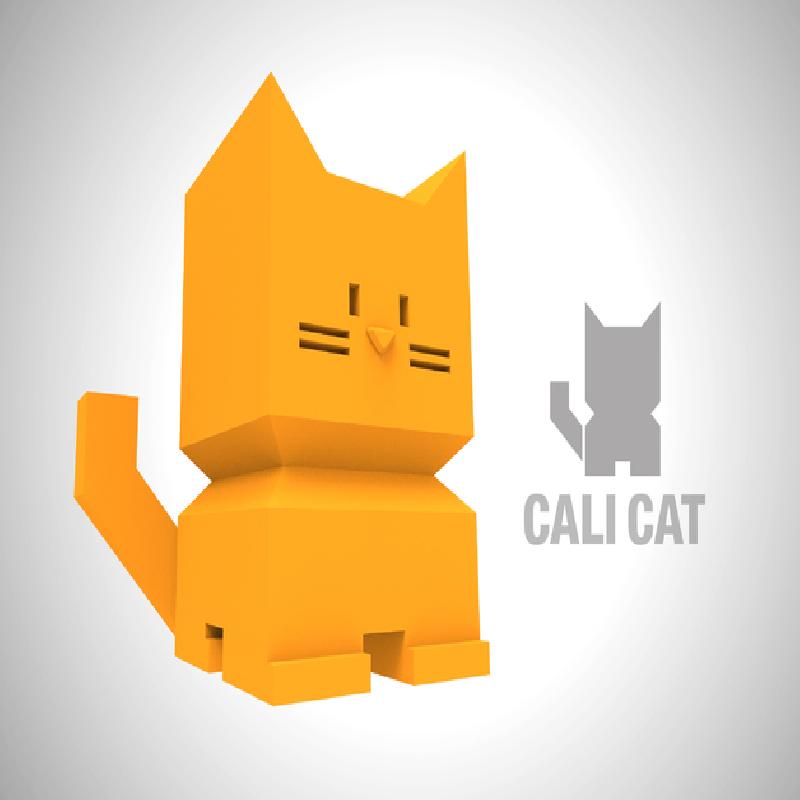

Introducing Cali Cat, because I’m sick of calibration cubes. Cali Cat is designed to be the purrfect initial calibration and benchmarking print. It is a simple, standard test to ensure you have the basics down before proceeding to advanced prints. Cali Cat is the alternative to boring cubes. It's a test print you can enjoy keeping. It consists of linear dimensioning tests of a calibration cube and more:

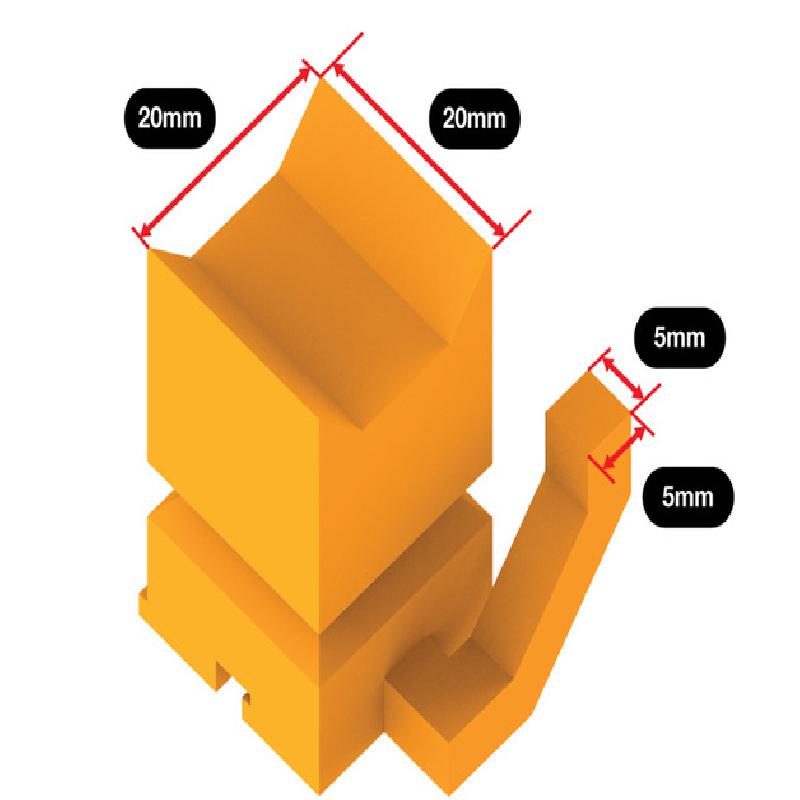

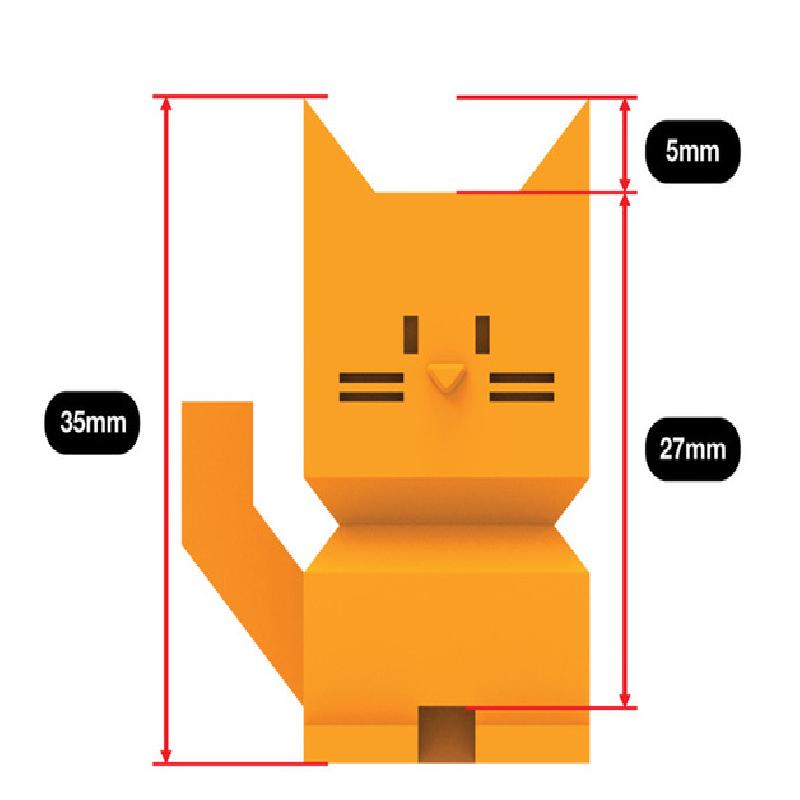

Linear dimensioning: Body 20x20mm, Height: 35mm, Tail 5x5mm

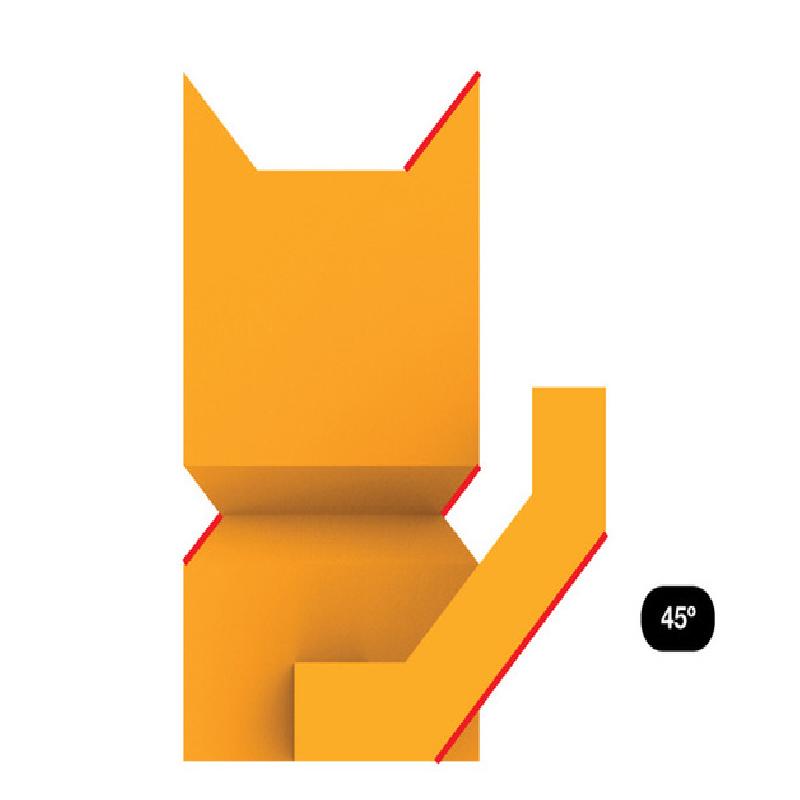

Inclines and overhangs: 45º
Minor Bridging: Body hanging over paws
Debossing and Embossing of facial feature details
Prints in under 1 hour.

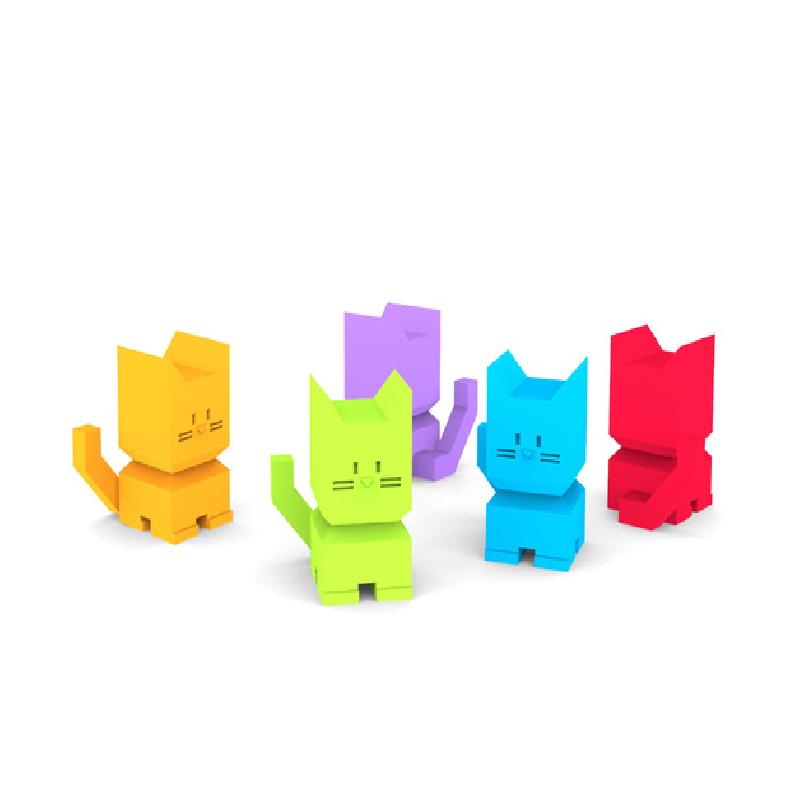

Calibrate your printer and grow an army of cats in the process! #3dCaliCat
Note:
Cali Cat has been entered into e3d BigBox Reddit Mascot contest. If chosen, it may become their official mascot. If not, Cali Cat will roam print beds everywhere as a nomad.
Rafts: No
Supports: No
Resolution: 0.25mm and under
Infill: 15% should be safe
Notes:

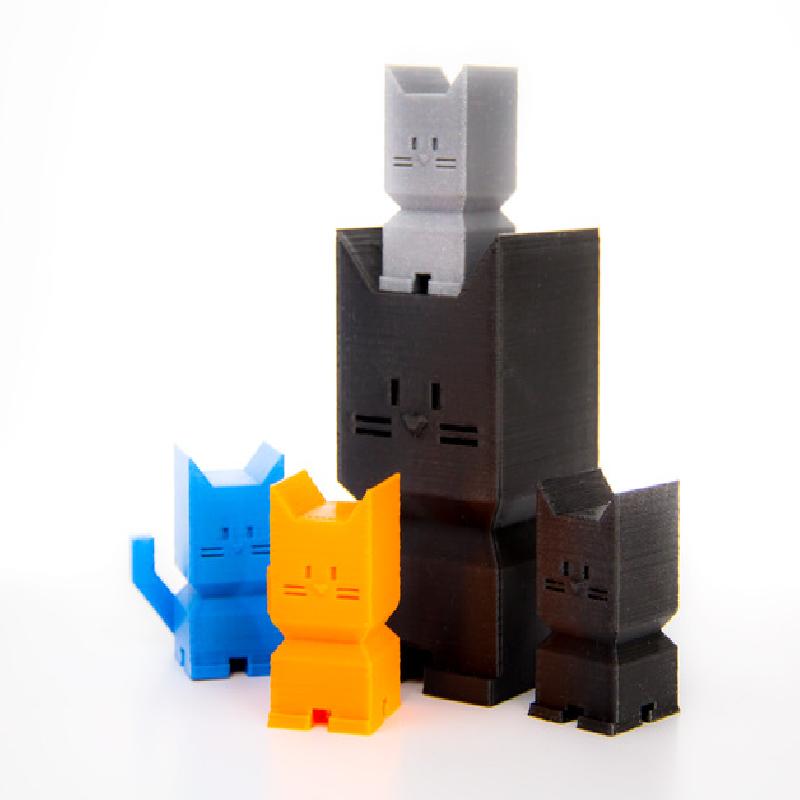

Cats sit perfectly on another cat's head of 2x the size.
