by 7Fish

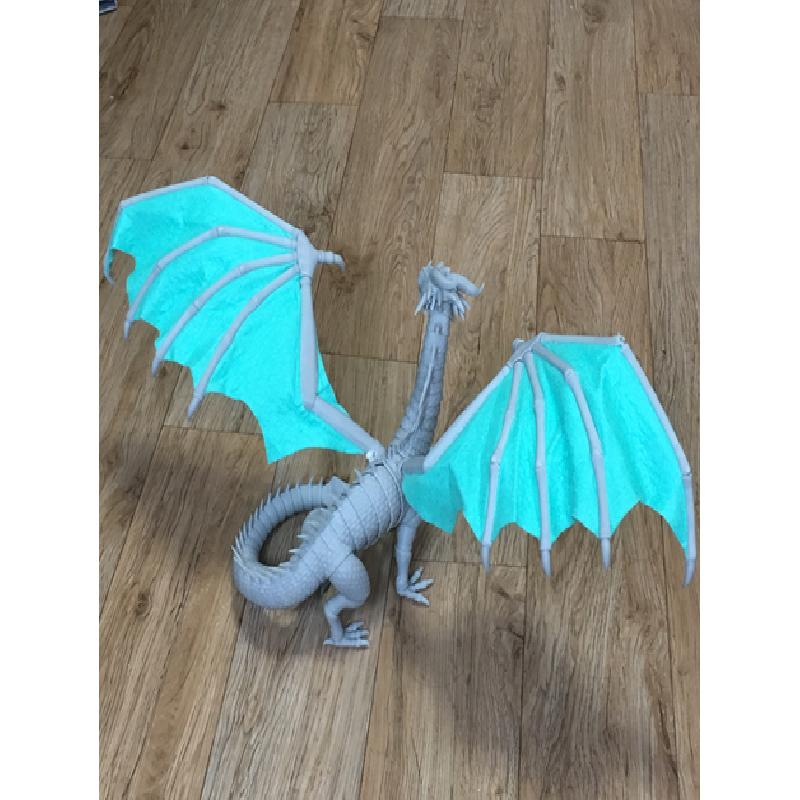

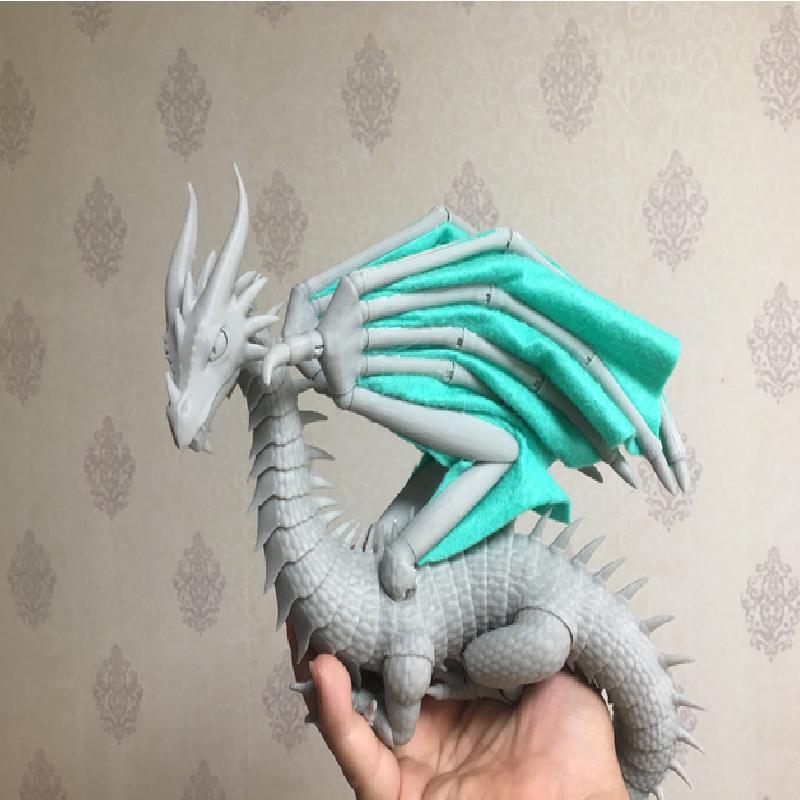

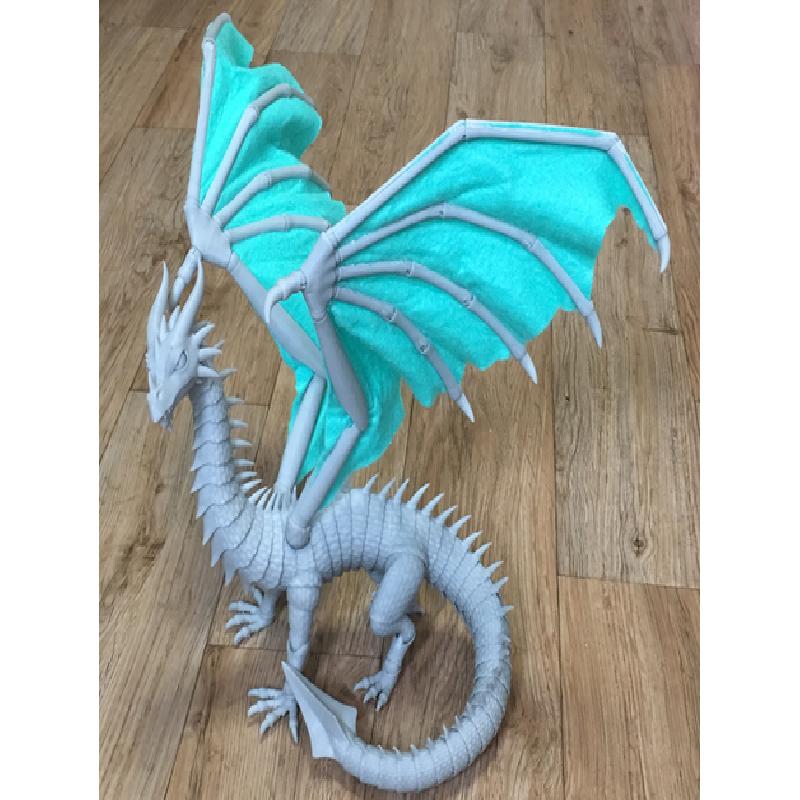

This is My eighth of dragon child and Sister to the Seven.
it more focused on stablize ball and joints strength and prevent ball's broken off. by chop off the ball it self from parts to prevent getting break off. but, it is pack of experimental tricks, you may need to glue the some parts together.
The head it self is same as Seven as i was had no idea for head when i started develope this dragon.
In end of build, Wing Base, Wing limbs Arm and legs And Artuculated Finger yet remain unstable.. So half succeed... perhaps i will build another to fix remaining troubles..
Resolution:
0.15
Infill:
10
Notes:
As improved version of Seven the Articulated dragon. it's have mostly same look and structure. however, some of joints desgins has changed for better stablitys and most impotantly to prevent the ball from break off by separate the ball from main parts.
Sadly, 'Wing base' part was not much changed from previeous dragon as i was can not acquire much spaces for better 'wing base' part from the Body 01. therfore, this part may weak to withstand weight of the wing so you will have to infill 'Wing base' part much more for better result.
All parts except Tail tip are supposed to Assemble with The Ball at supposed port on top of part
All parts are supposed to be Mirror X
Neck 01 ~ Neck 13 + The Ball X13
Body 01 ~ Body 06 + The Ball X6
Tail 01 ~ Tail 20 + The Ball X20
Tail 21 End Tip
Wing Cutting Template
Wing Base
Wing Arm 01 (Lower wingarm)
Wing Arm 02 (Upper Wingarm)
Wing Limb Hub
Wing Limb A (Longst and outer limb)
Wing Limb B
Wing Limb C
Wing Limb D (Shortst and inner limb)
Wing Limbs End Tip X8
Wing Finger
Wing Limb Test in Reserve
This part is not used in current model. however, current wing limb is a bit britle. Print two and compare to current wing limb. if you find Test limb is better than current one then tell me change all Limbs into this type.
Ankel Joint X4
Fore Arm Sholder
Fore Arm Upper
Fore Arm Lower
Fore Arm Foot Hub
Fore Arm Claw Finger X8
Back Leg Upper
Back Leg Mid
Back Leg Lower
Back Leg Foot
