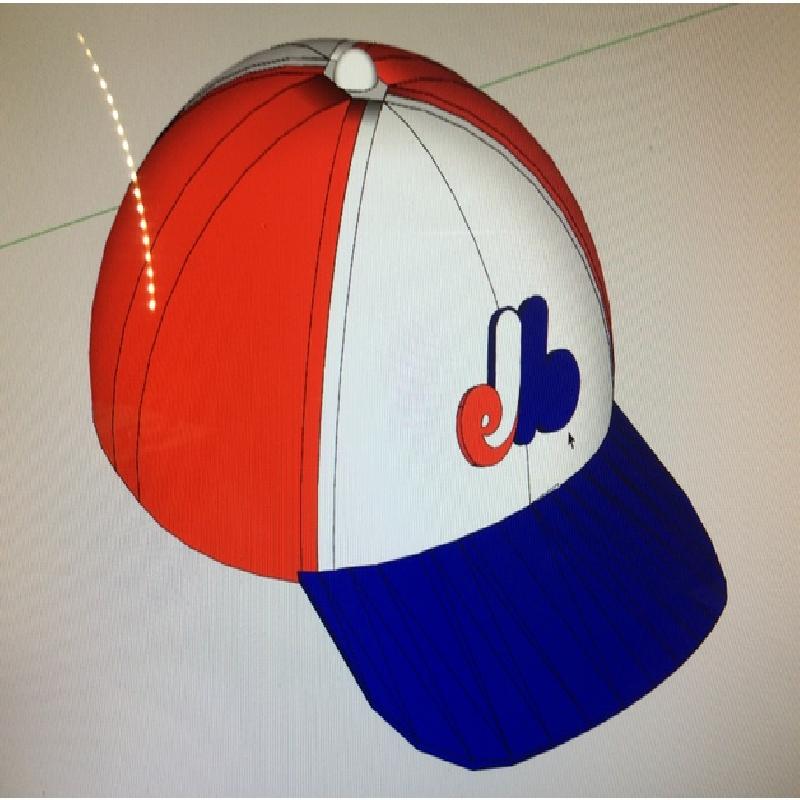

The overall project is to build a robot about 75 cm high. This cap will cover the head and allow easy access to the visual system as well as to the main computer. Why a cap? I just did not want to make hair.
The elongated rectangular pieces will serve as a frame and pieces to "attach" the visual appearance of the robot. The frame will also be used to guide the wires so they are as visible as possible.
Printed parts:
When the name of a file ends with 2X, it is to print 2 times
- If no such indication is present, it is only printed once.
Steps:
1 - Print all the parts
2 - Cut 10 pieces of filament with a diameter of 1.75mm and a length of 5mm each. It's little tips go to the base of the cap to help you guide the elements to stick
3 - Paste the outline of the cap together
4 - Paste the 2 pieces of the "palette" of the cap
5 - Paste the logo
6 - Stick the logo on the front of the cap on the round part
7 - Paste the "palette" on the base of the cap
Printer Brand:
FlashForge
Printer:
Rafts:
No
Supports:
No
Resolution:
200
Infill:
100
Filament: iPrint 3D ABS Blue, red and white
