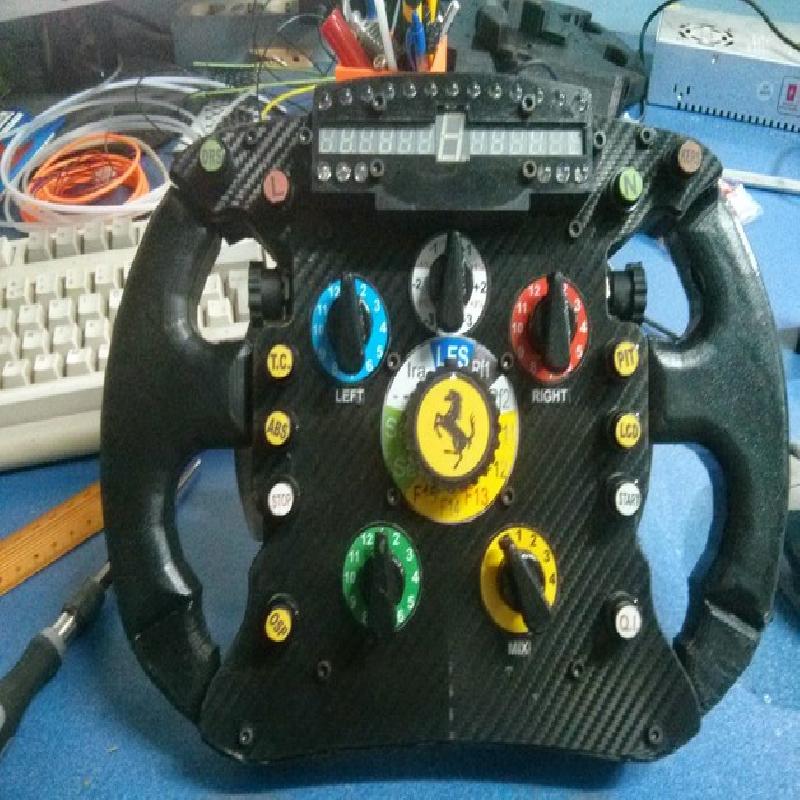

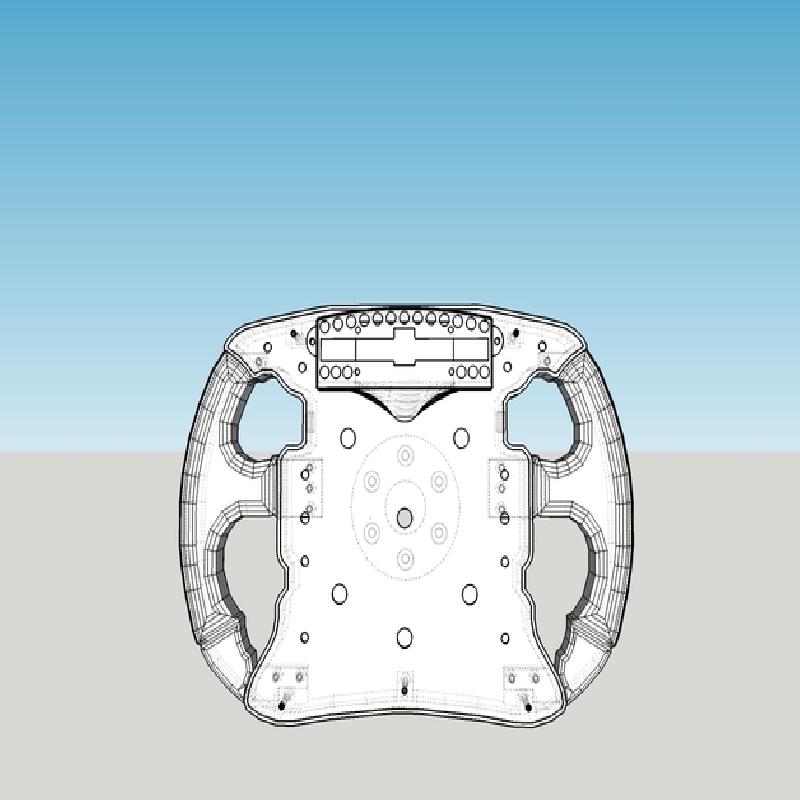

Complete F1 wheel to replace the original G25.
Second version of other wheel made time ago.
The hotbed in my prusa I3 is a 20x30cm now and is possible to made the body and cover parts complete.
Even the body and handles fit!!
In the first one with a default 20x20 bed i split them in two.

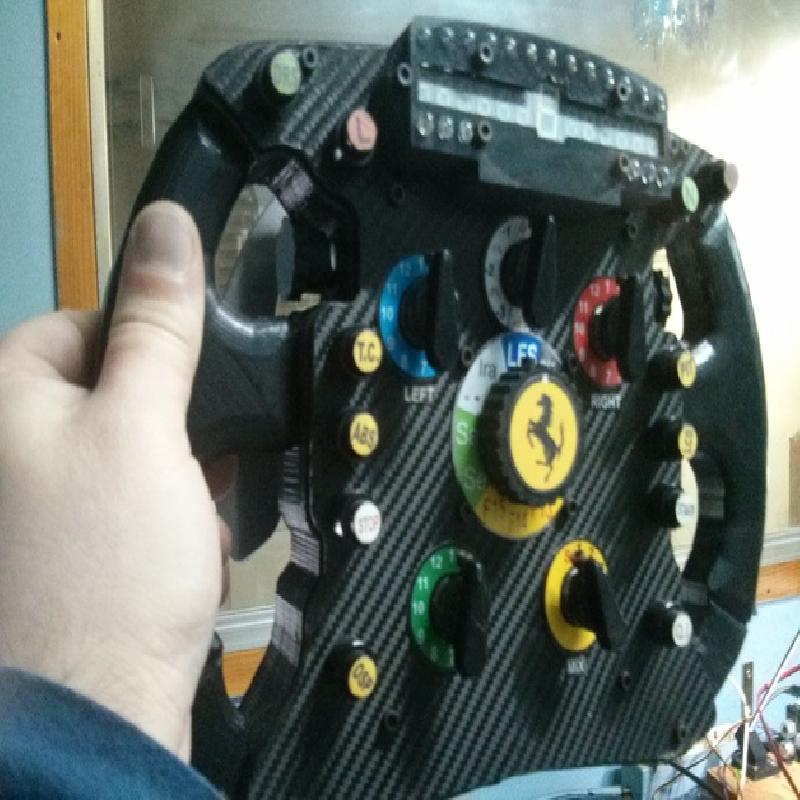

If i found the olds STL´s i promise upload them.The images with the wheel finished are from this version.

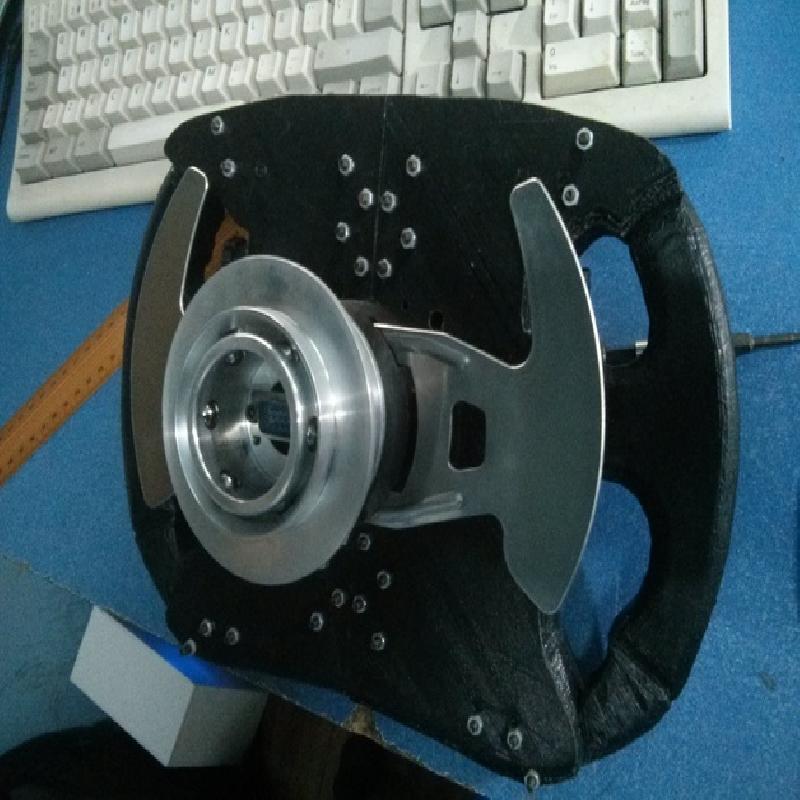

I use a quick release from http://simulaje.blogspot.com.es/ to change the rims easily for other tipe of car (i like rally games too:) but the wheel could be mounted to the G25 base permanently with the original screws if you plan to drive F1 cars only.
CHECK FOR UPDATES!!!
19/03/2015

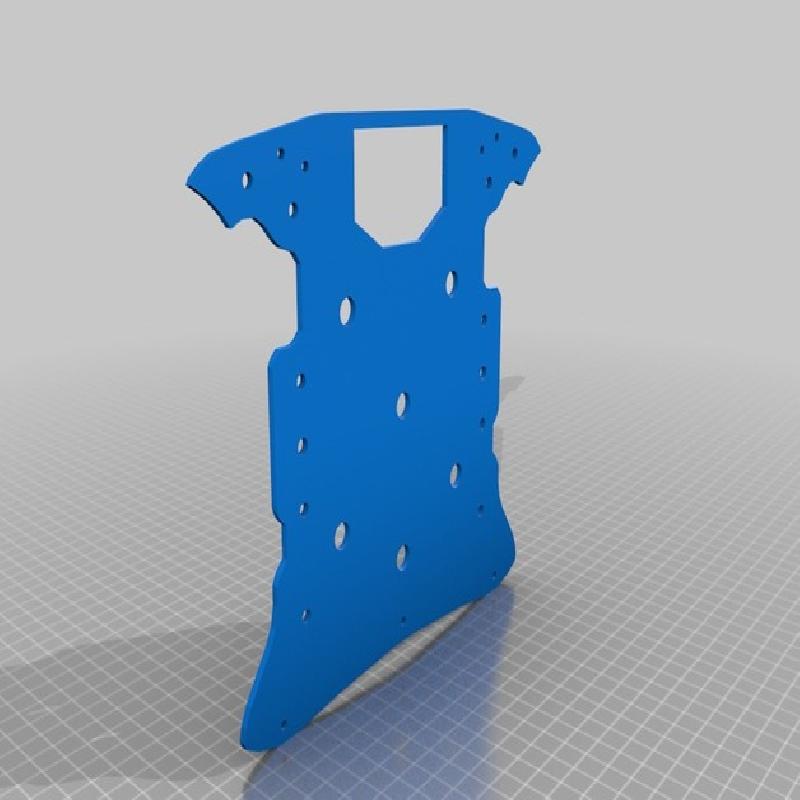

Added new cover version CoverF15Fullv2.stl with a recess of 0.5 mm to put the tags of the rotarys.
17/03/2015

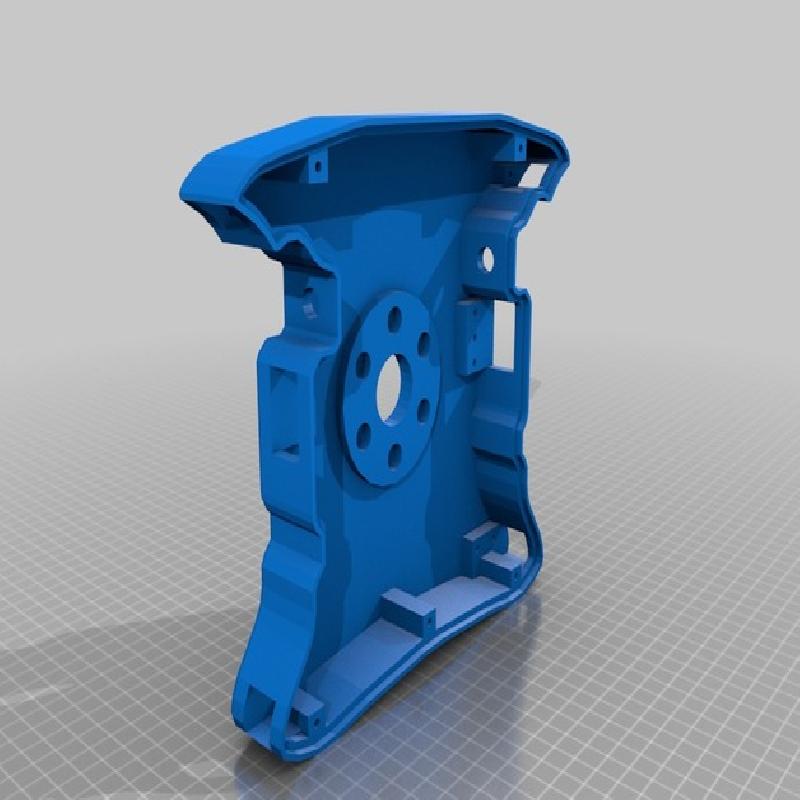

Uploaded repaired file BodyF15Full_repaired.stl with the nuts to fix the cover in the correct place (back)and some errors in the stl removed.
PLEASE DOWNLOAD THIS.
17/03/2015

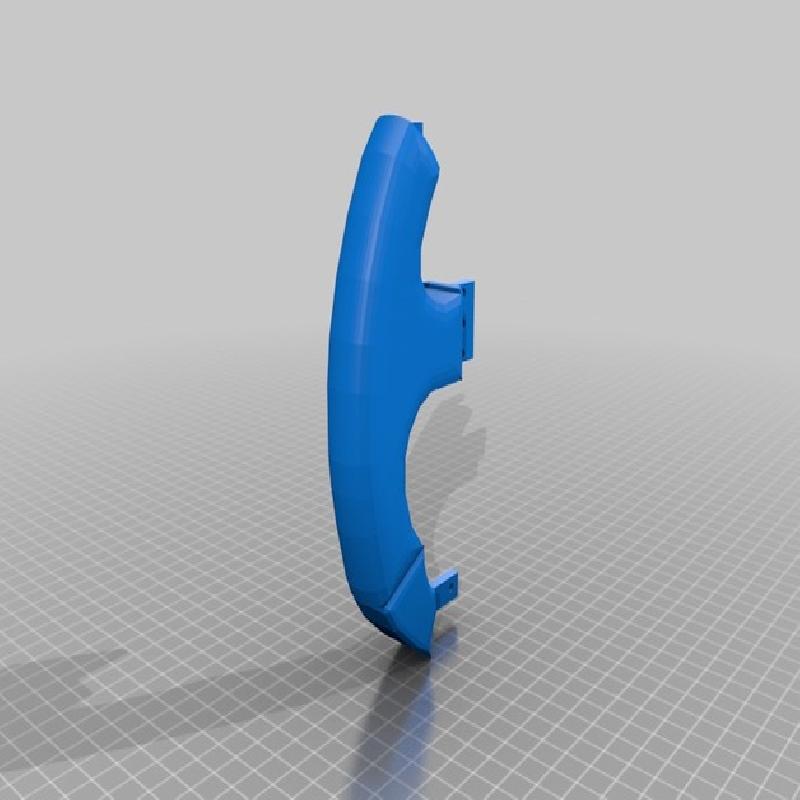

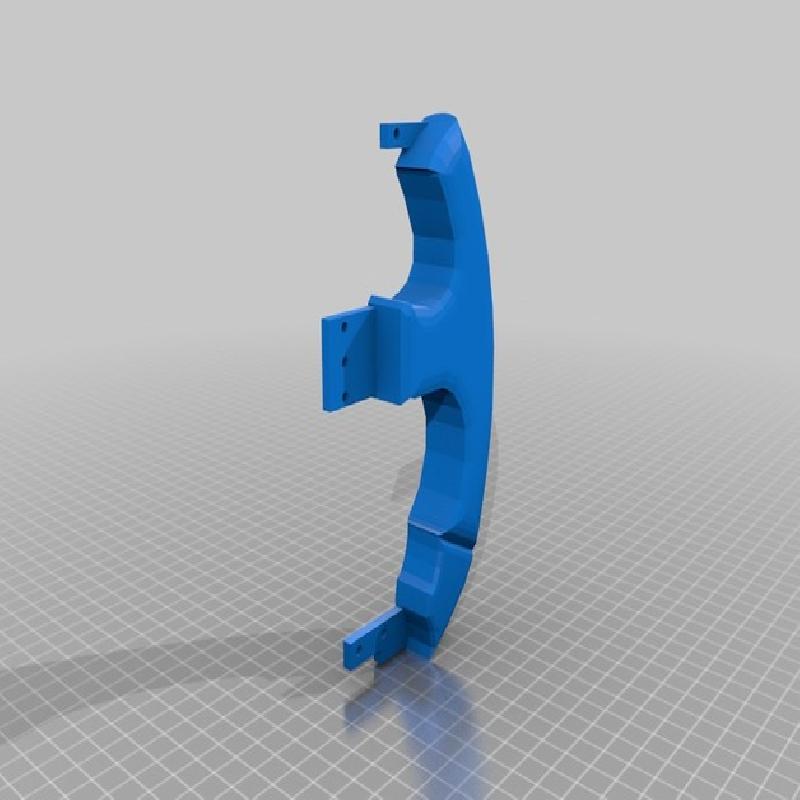

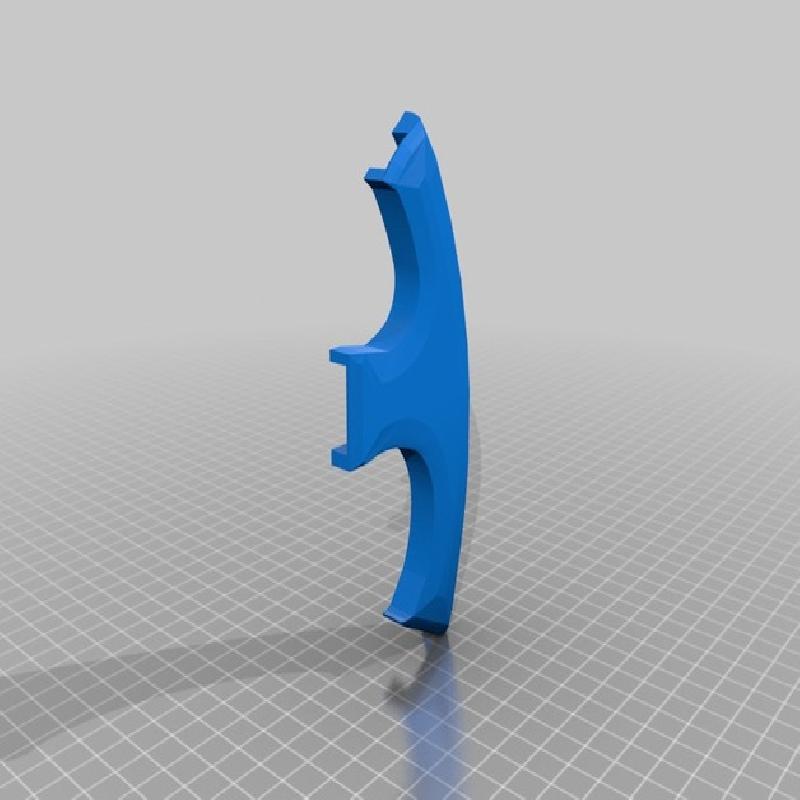

Uploaded another version of the body and handles,F15Plano.stl and ManetaF15Plano.stl.
Every handle comes in two halves,so 4 parts required.
Print 2 as is and 2 mirrowed.
If you want to apply Plastidip easily use them.You can hot glue them together with the body.
The part CoverF15Full.stl is compatible with this version.
12/03/2015
New version of the knobs uploaded!!!

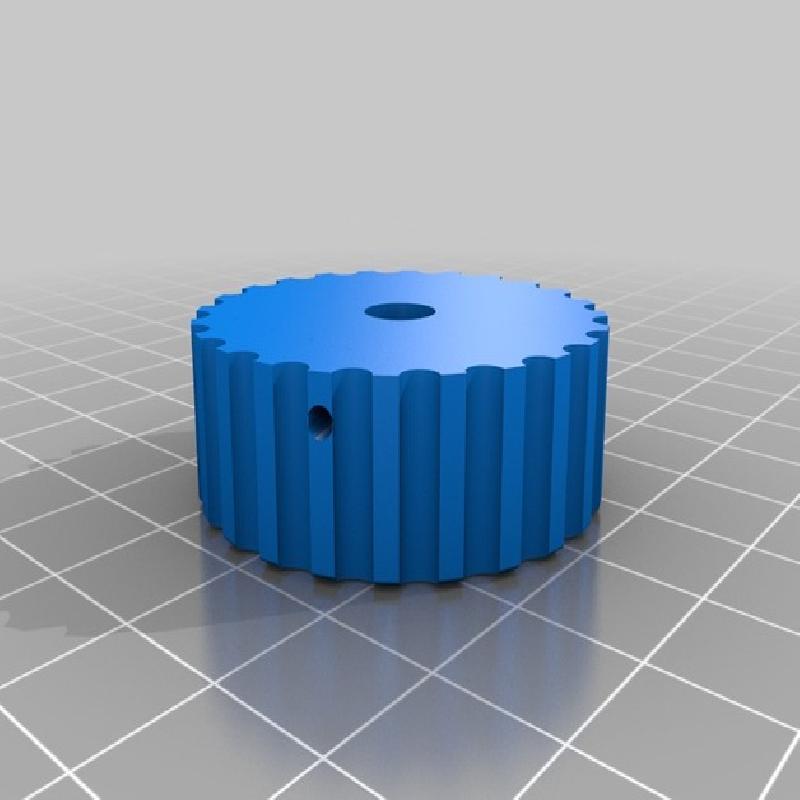

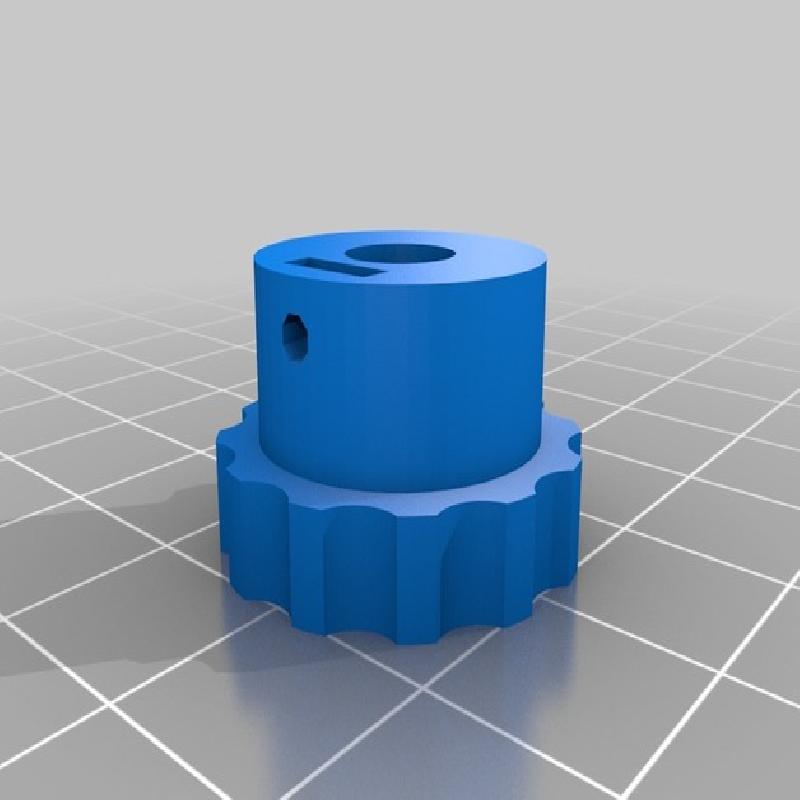

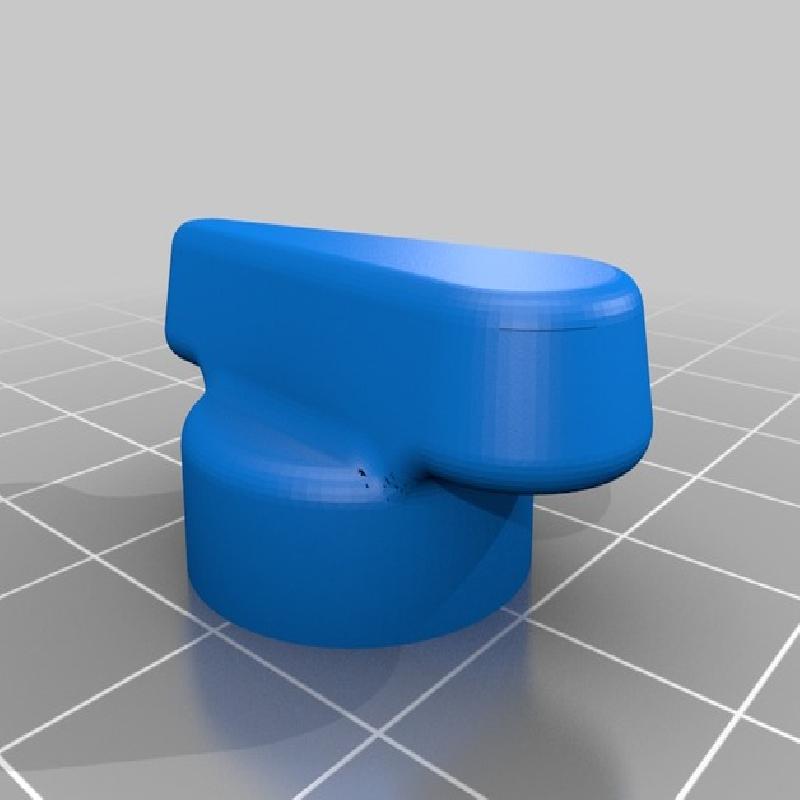

knob_ferrari_v9.stl with a hole to slide a m3 nut.I use v8 before without a nut since the screw only fix OK.Better solution instead.
Drill he hole with a 3mm bit.

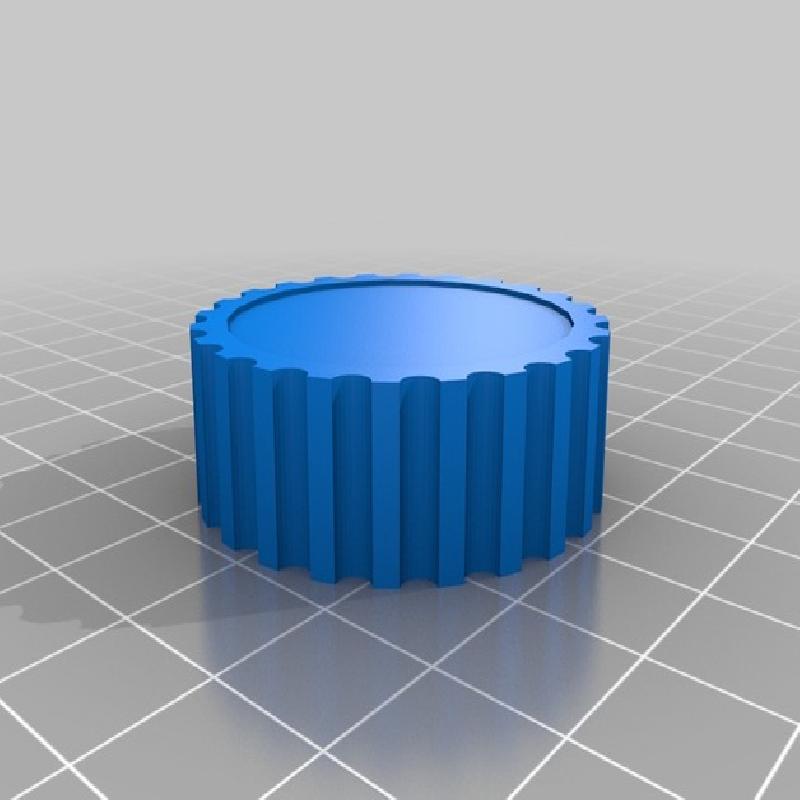

knobv8.stl clean from holes in the shell.I printed v7 the first time with no problems,but just in case.
11/03/2015
New files uploaded!!!
Cover and handles now 0.5 and 1mm tighter.Easy to put together with the body(Less file time work)
11/03/2015

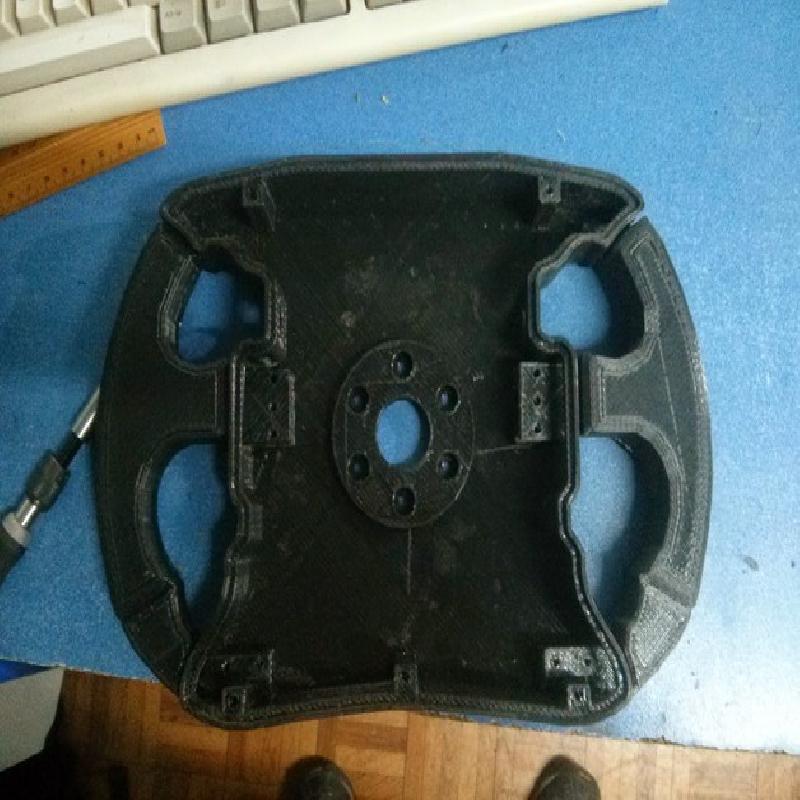

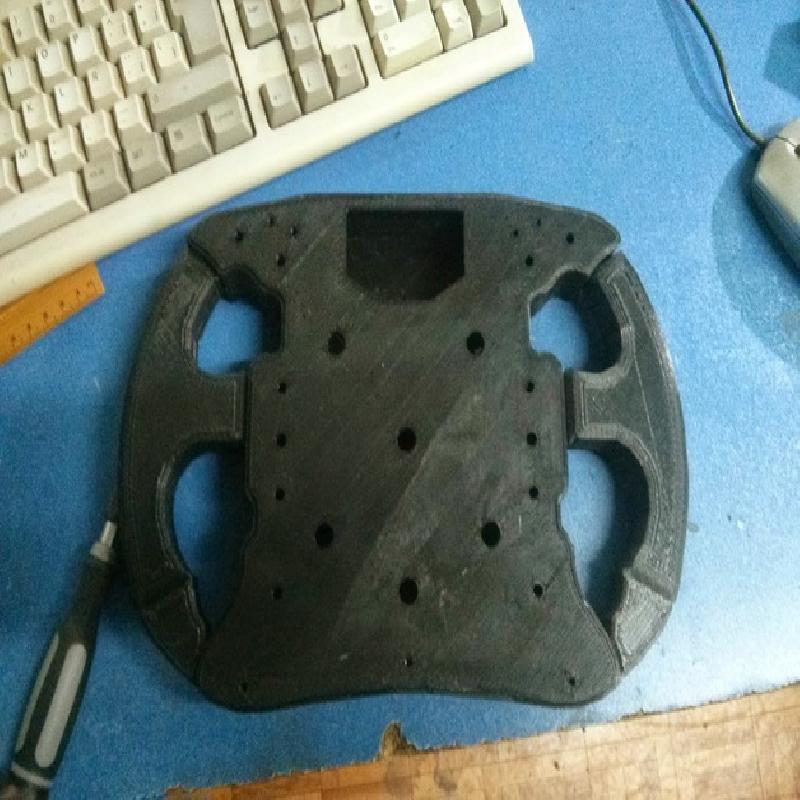

Added some images of the previous model and some of the printed pieces of the V2.
11/03/2015

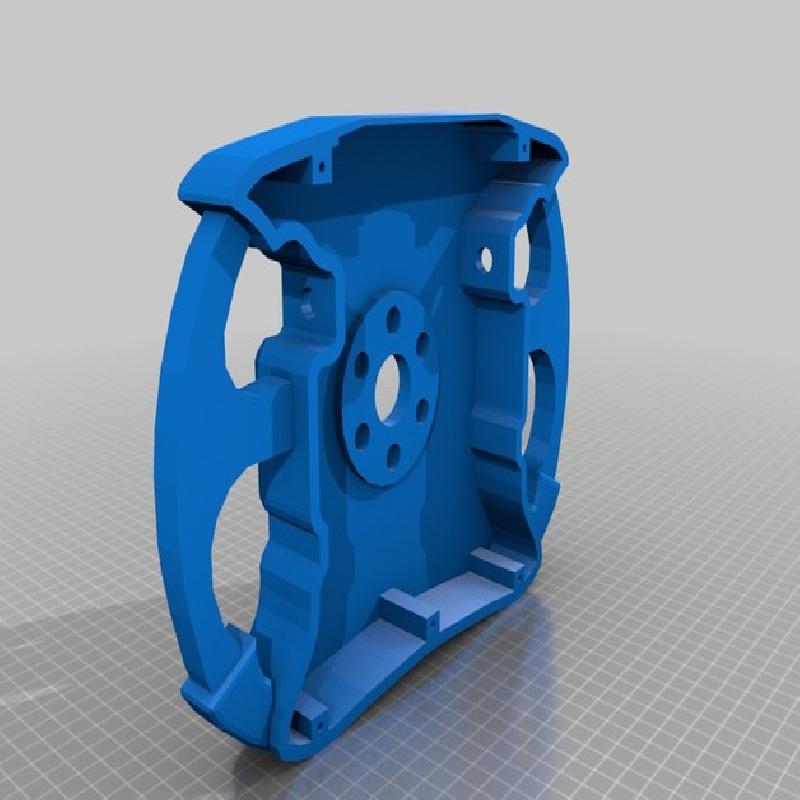

Uploaded a full body (BodyF15full.stl)with the handles attached.REMOVED
*File with errors.Download the new file repaired.Sorry for the inconveniences.**
A 20x30 bed is needed.A new cover (CoverF15full.stl) uploaded too.
Printer settings:
Printed with Cura 14.01

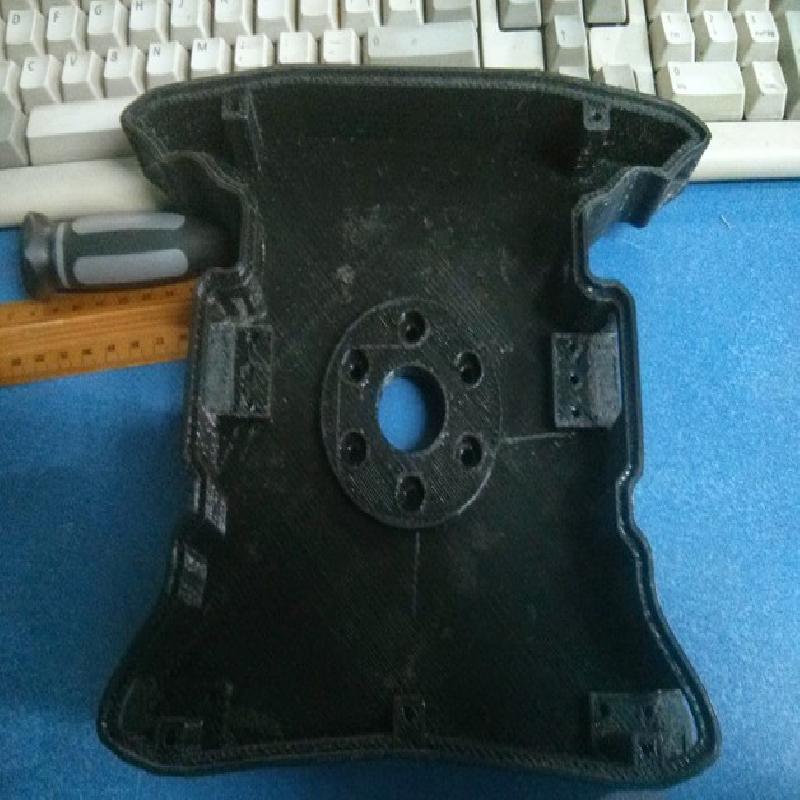

ALL PARTS EXCEPT THE DISPLAY COVER AND KNOBS
E3d Volcano 1mm nozzle and 30 mm/s speed.
PLA 100% infill,0.5 layer height.(0.3 with a 0.4 extruder.From 50% infill is OK too)

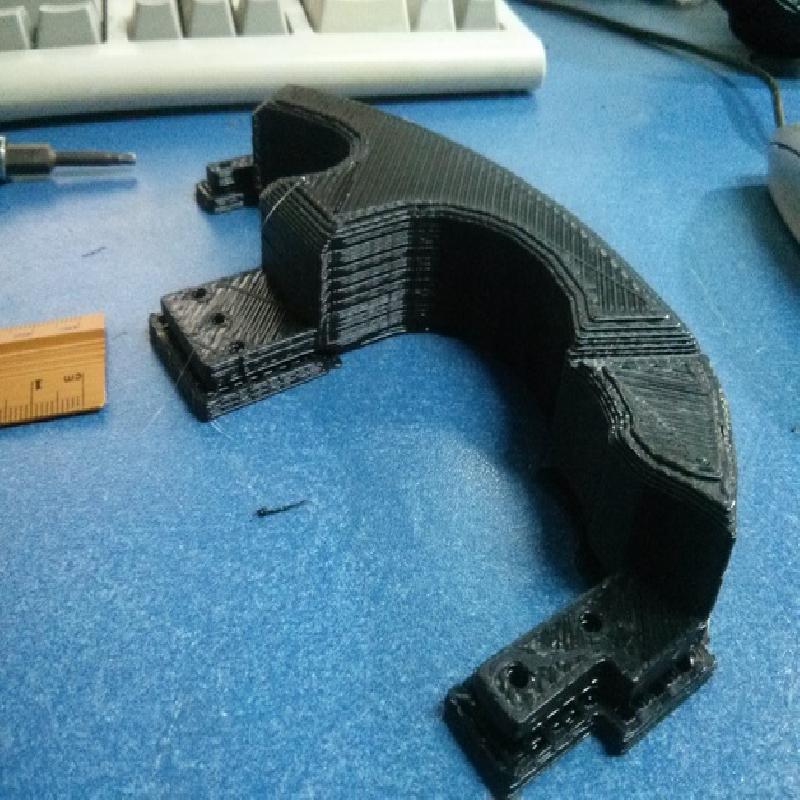

The handles need support.30% is OK.Print flat.
If you choose the full body version,use the same settings too.Beware the thing eats up 750gr of PLA with 100% infil.A complete spool!!!
You can lower to 50% instead for both parts body and cover.
For the plain version use the same settings too.Support 30%

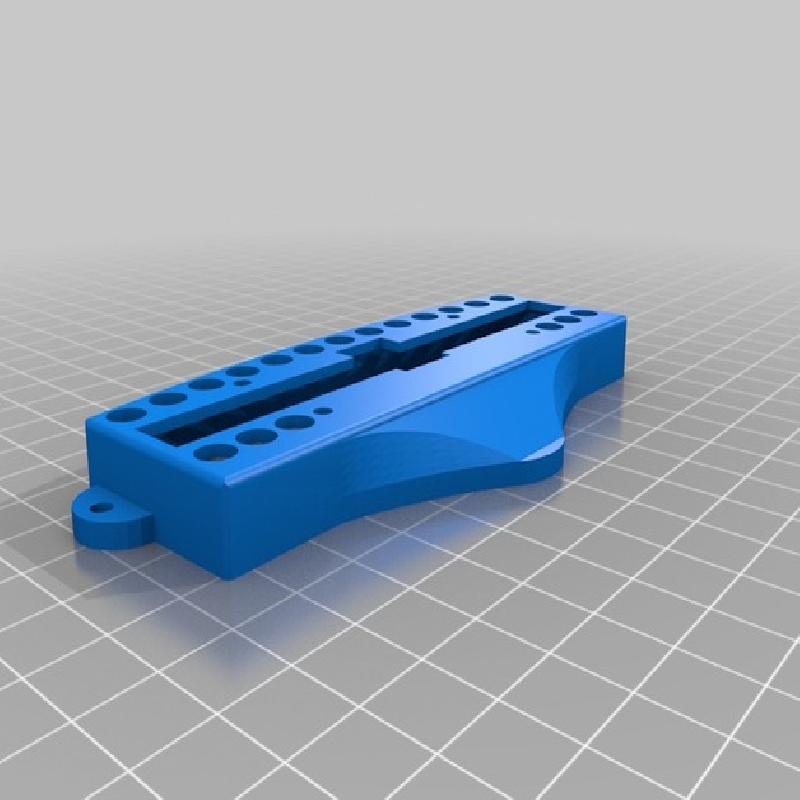

DISPLAY COVER AND KNOBSv7
E3d v5 0.4 nozzle 30 mm/s speed.
ABS 30% 0.1mm layer heigth.Print as the image with 20% support.
KNOBFERRARI AND KNOBLATERAL
Same settings above,no need support.
The reason for ABS is give the parts a acetone vapor bath,but feel free to made it of PLA too.
BOM (INCOMPLETE YET)
Electronic and stuff
1 x Leo Bodnar SLI-PRO http://www.leobodnar.com/products/SLI-PRO/.
1 x cable set http://www.leobodnar.com/shop/index.php?main_page=product_info&cPath=83&products_id=200
6 x 12 position rotary switches.
http://www.leobodnar.com/shop/index.php?main_page=product_info&products_id=201&zenid=b145bdcb9c011e45b2aec1b9005cb9a0
12 x buttons wih black covers and small guards http://www.leobodnar.com/shop/index.php?main_page=product_info&cPath=98_74&products_id=190
2 x rotary encoder http://www.leobodnar.com/shop/index.php?main_page=product_info&cPath=98_75&products_id=191
SCREWS AND NUTS

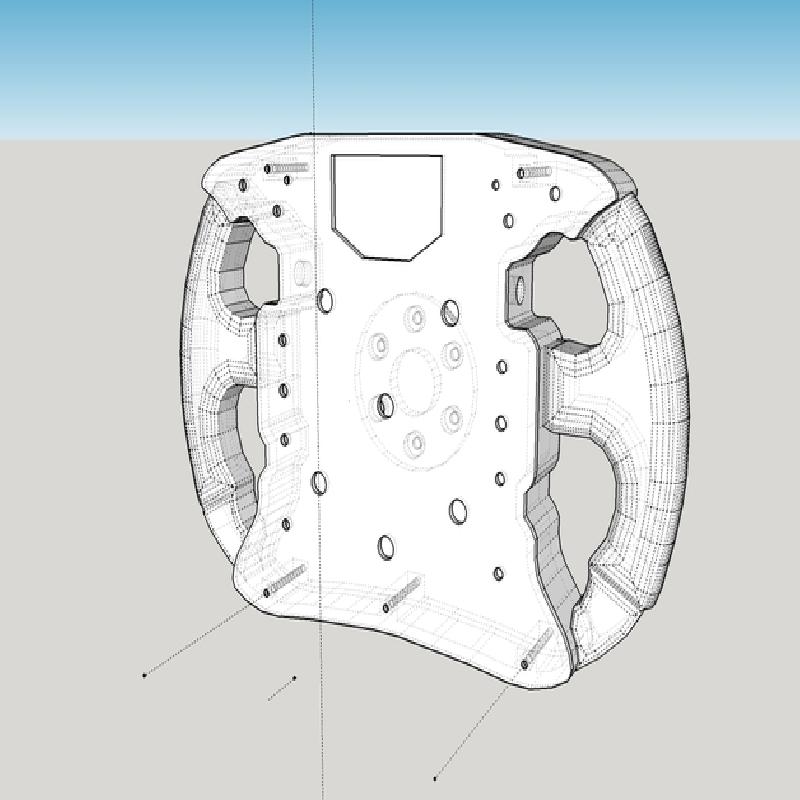

33 x M3 nuts.A lot of them but less that the V1 wheel.(See the image of the back)
12 x M3x20mm screws to fix the handles
5 x M3x40mm screws to fix the cover
4 x M2.5x10mm (or 15mm) to fix the display cover (i use M3 instead.Fits OK,but better if you have the appropiates)
10 x M3x10 screws.8 for the knobs,better if you use headless and 2 more for the display cover to the wheel cover
FUL BODY VERSION
Only 5 x M3 40 mm screws and 5 M3 nuts.:)
OTHER STUFF
Carbon fiber look-alike vinyl.I don´t remember where i bought mine.Example:http://www.vinilofibracarbono.com/
Plasti Dip 1 can.http://www.plasti-dip.es/ .Some kind of rubber in spray.This is used to coating the handles to be more soft and comfortable.
ASSEMBLY INSTRUCTIONS
COMING SOON!!!
Printed parts:
BodyF15 x 1
LeftHandleF15 x1
RightHandleF15 x1
CoverF15 x1
displayok x1
knob_ferrari_v8 x1
knobv7 x5
knoblateral_v5 x2
