Some fiiles are located in another listing, as noted in the narrative. I did this to cut down on the large # of files created for this model
This is a re work of Bergman's 1/100th scale model together with the Italian 20mm Breda AA gun from Dugzmodels CMP F-15 model
The truck is representative of the Chev 30 CWT trucks employed in the Western Desert Campaign by the Long Range Desert Group, or LRDG. This vehicle is offered in the Commonwealth Army listing in Bolt Action in the appropriate theatre.
Please note the .stls for the myriad of MGs offered for this model are NOT on this posting, but can be found on my post for the accompanying LRDG track, found here :
http://www.semaker.com/productdetail/17382
Also located in that file are sand channels and jerry cans that can be added to the sides and rear of the cargo box.

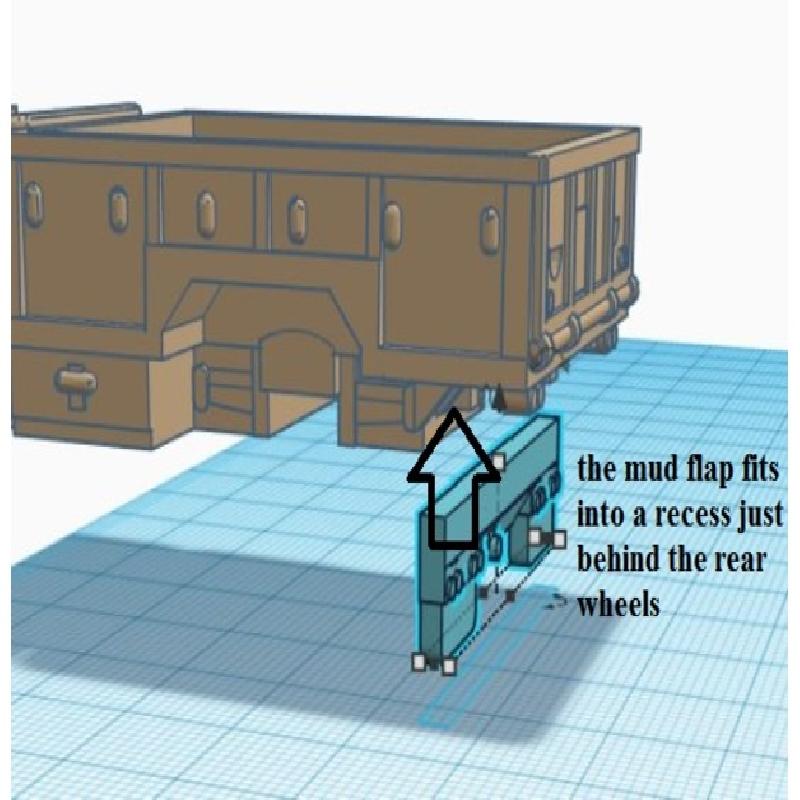

As noted in the base LRDG truck the mud flaps are a seperate file, done so to allow a flat base for the Hull on the print bed. Please see the CAD screen capture for placement.
with this model, I did the same alterations/additions I noted in the above noted file, plus reworked the 20mm Breda to improve printability. I mounted it on a pivot mount in the back bed.
I also added the wooden raised panels for the cargo box, as seen in the historical photos noted.

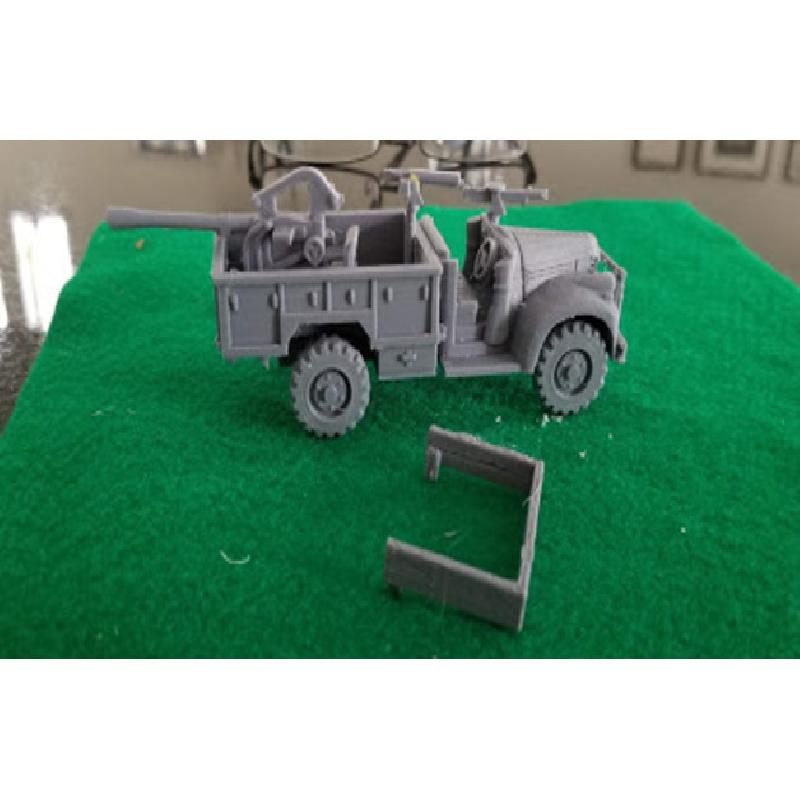

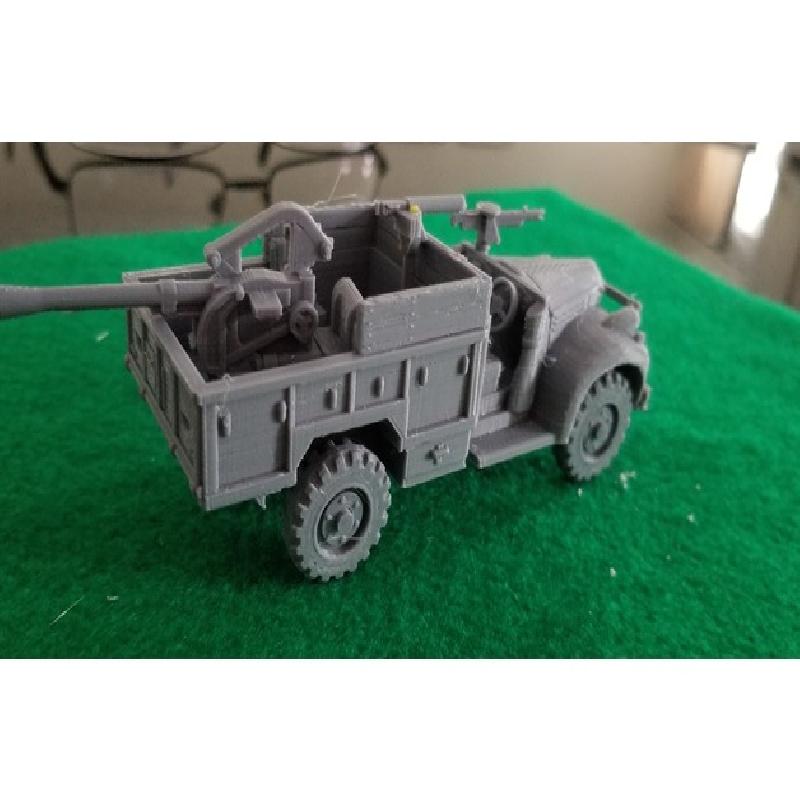

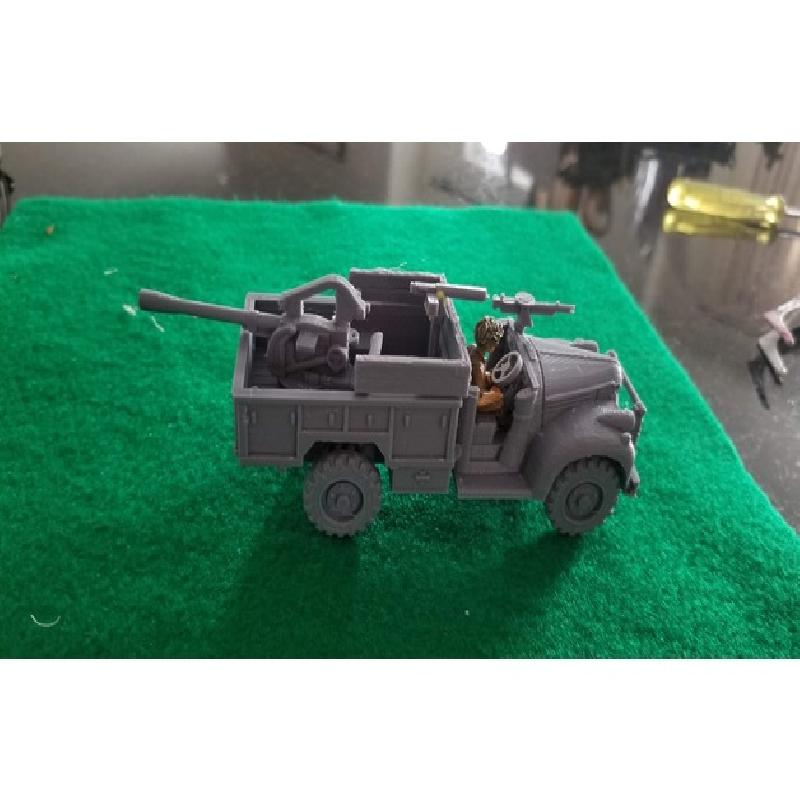

The model was just test printed, hence it is not painted as of yet, but I will add pics of same once I get that completed.
Supports:
Yes
Resolution:
fine -0.1mm
Infill:
15%
