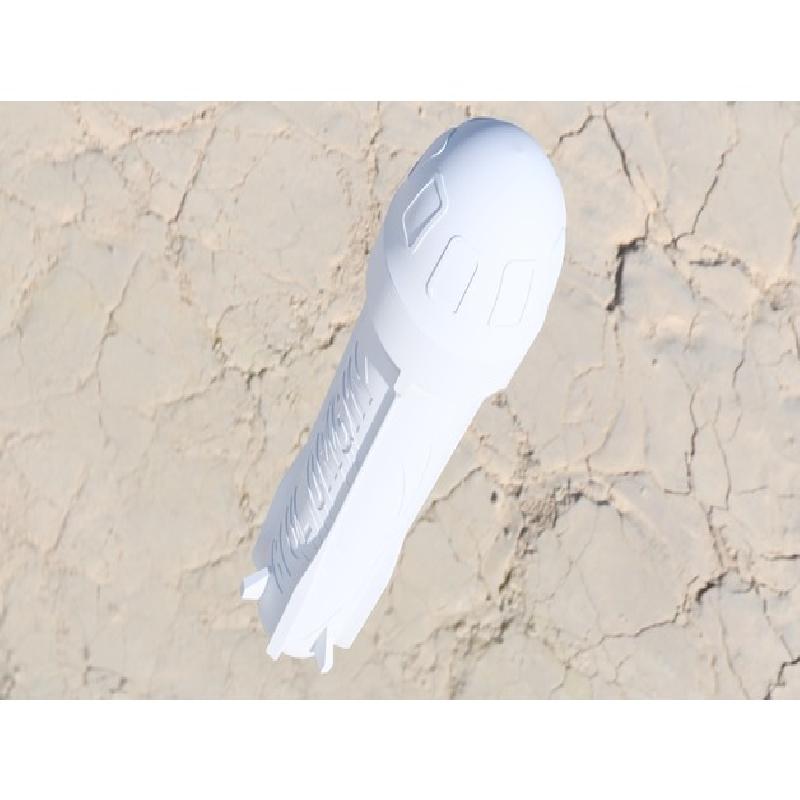

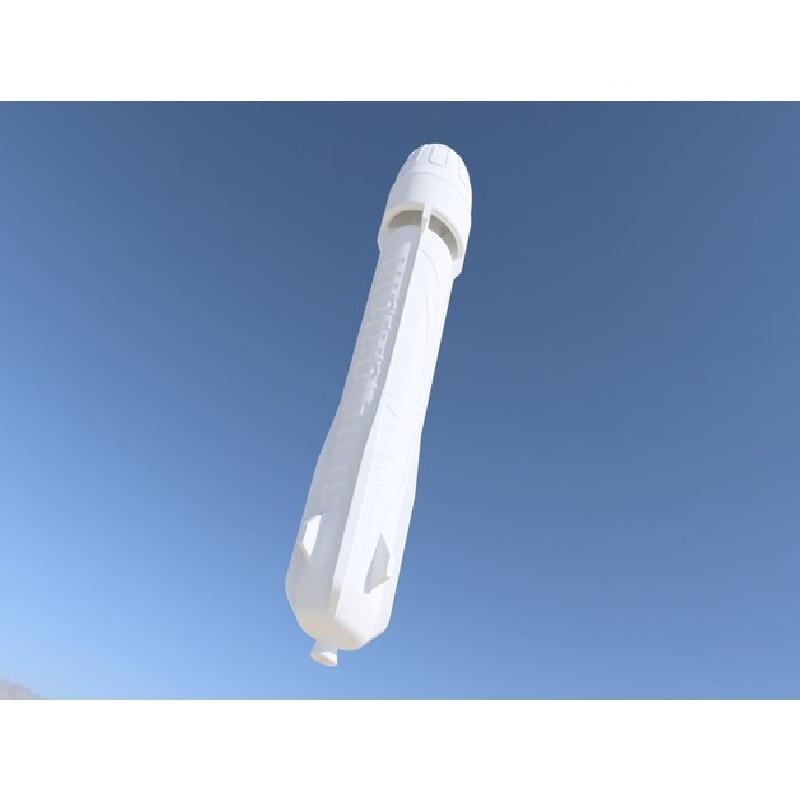

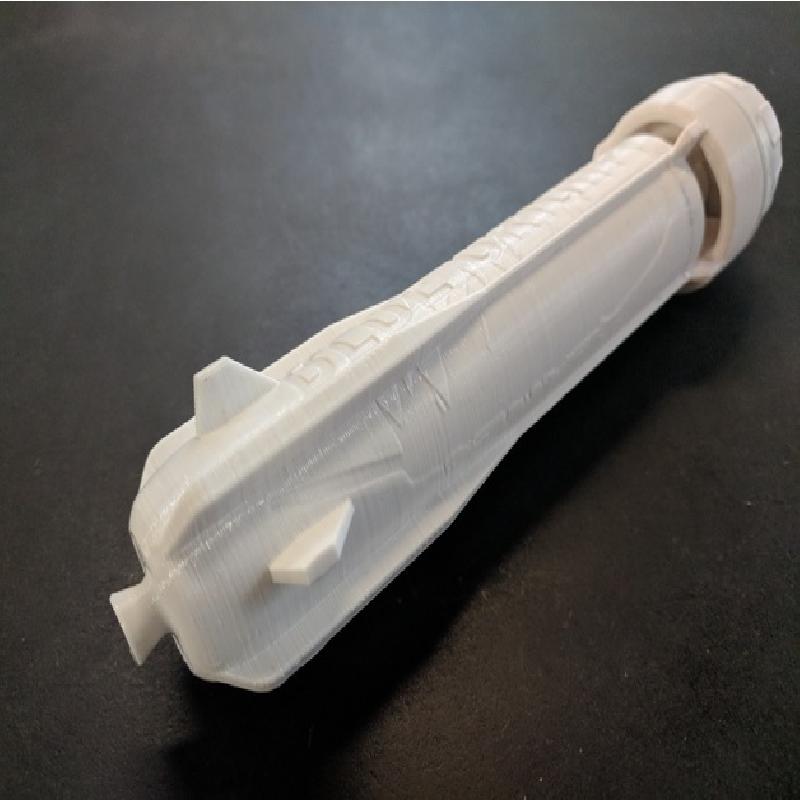

Not too accurate toy model of a  Blue Origin New Shepard rocket (design status of late 2018). Has detachable crew capsule by using a magnet. Originally made for lower earth orbit, this may actually stay in arms reach orbit of your child.

Model is not to scale.
Print support only needed for top of main part.

Print Settings

Printer:

Felix Tec 4 Dual

Rafts:

No

Supports:

Yes

Resolution:

0,2 mm layer heigth

Infill:

20%

Notes:

Print support only needed for top of main part.
Do not use rafts to guarantee a super flat glueing surface.
You may want to use a prime pillar for the top of the capsule to prevent the nozzle melting the pointy tip of the part if you print each part after one.

Post-Printing

Materials and Instructions

• 2 pcs. 1,5x10 mm disc type magnets

• Strong glue (i.e. two component glue)

1. Glue the parts together.

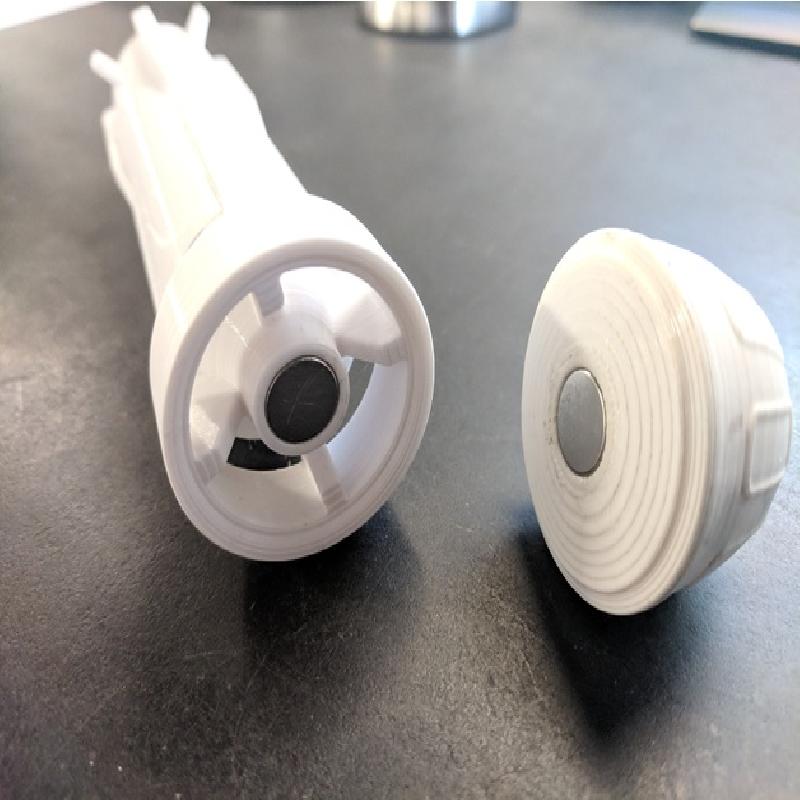

2. Glue the magnets into the fitting holes on main stage and capsule. Pay attention to the polarity of the magnets.

How I Designed This

Source

Based on some images used per 2018.
Not to scale and not too accurate. The capsule connector is completely freely designed for functional reasons.
