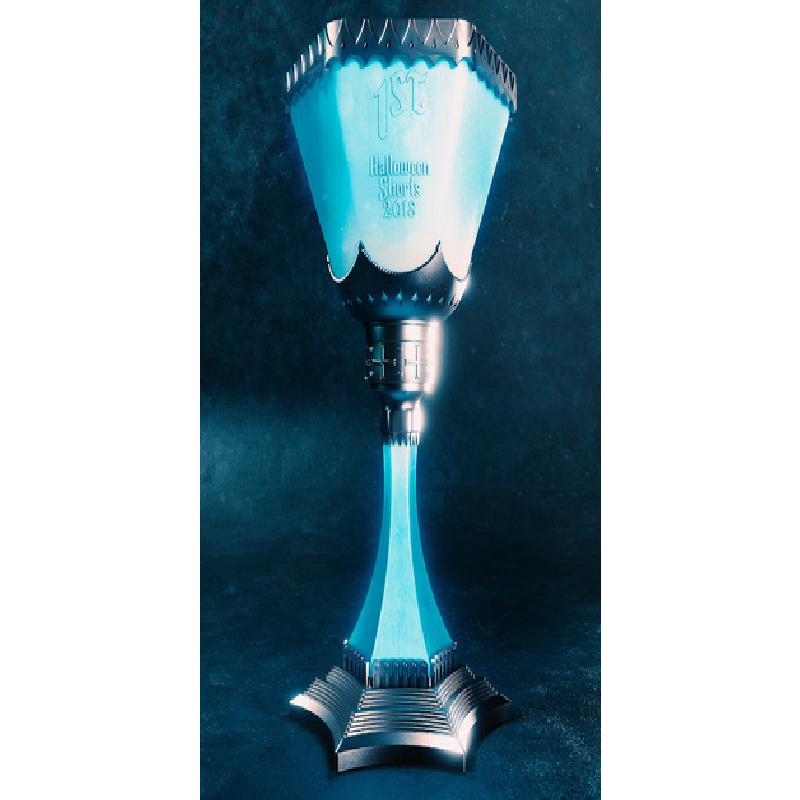

I created this trophy for my film group's Halloween film contest. The design of the trophy is based roughly on the Triwizard Cup from Harry Potter, albiet minus the dragon handles and some of the decoration patterns. I ran out of time before the contest to add those in myself, but if anyone wants to remix the design to add those handles and details, please do!
The base is designed with a little tray- the 4 corners are for 5mm magnets to hold the tray in place, and the center of the tray is designed for these 2.7" LED pucks I found on Amazon to allow the cup to glow. I printed the "glass" sections with clear PETG which actually allows the remote to work and control the lighting even with the trophy assembled. Included in the downloads is also a STEP file of my design as well, so you can edit it to fit any other lighting setup you might want.
The full trophy stands at 15" high and about 6" in diameter- it's quite a large piece.

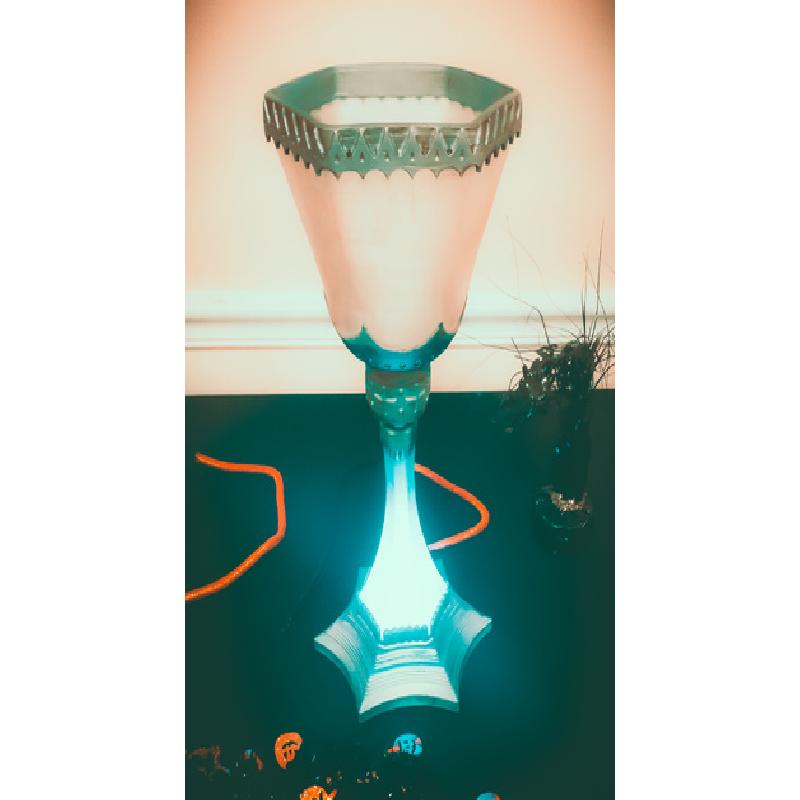

Finished and assembled at the film contest, with the puck set to fade through the colours
Easy Fit
The parts in this design go together really easily with a 0.35mm tolerance default. Designed to stack and slide together to be epoxy glued together.
The items stack in order from bottom to top:
Base
StemGlass
StemTop
GlassCradle
CupGlass
Cup Rim
The LightTray is removable to facilitate battery replacements and inserts from the bottom and should fit in any orientation.
