by Vagamar

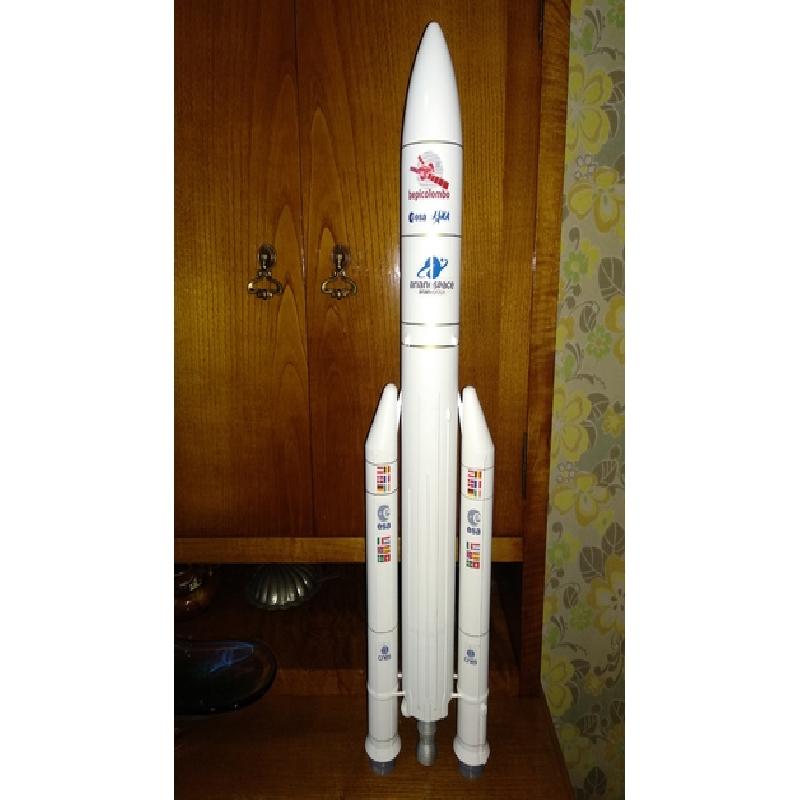

1:86.5 scale model of thge ariane 5 rocket

Cura Print settings:

Part 1:
.4 mm line width
layer height .3mm
3 top layers
0 bottom layers
wall line count 3
infill 10% with 2 gradual infill steps
outer wall speed 30
inner wall speed 50
top/bottom speed 40
fan 70%
suport angle 70º

Part 2:
.4 mm line width
layer height .3mm
3 top layers
0 bottom layers
wall line count 3
No infill
outer wall speed 30
inner wall speed 50
top/bottom speed 40
fan 70%
no suport

Part 3:
.4 mm line width
layer height .3mm
3 top layers
0 bottom layers
wall line count 3
no infill
outer wall speed 30
inner wall speed 50
top/bottom speed 40
fan 70%
no supports

Booster top:
.4 mm line width
layer height .3mm
3 top layers
0 bottom layers
wall line count 3
no infill
outer wall speed 30
inner wall speed 50
top/bottom speed 40
fan 70%
no support

Booster Bottom:
.4 mm line width
layer height .3mm
3 top layers
0 bottom layers
wall line count 3
infill 10% with 2 gradual infill steps
outer wall speed 30
inner wall speed 50
top/bottom speed 40
fan 70%
suport angle 70º

Booster motor:
.4 mm line width
layer height .3mm
3 top layers
0 bottom layers
wall line count 3
infill 10% with 2 gradual infill steps
outer wall speed 30
inner wall speed 50
top/bottom speed 40
fan 70%
suport angle 65º

ariane motor:
.4 mm line width
layer height .3mm
3 top layers
0 bottom layers
wall line count 3
infill 10% with 2 gradual infill steps
outer wall speed 30
inner wall speed 50
top/bottom speed 40
fan 70%
suport angle 65º

Booster tube:

No support, top and bottom layers, 100% infill or 6 wall layers to make it solid.

Glue everithing together, prime paint o whatever you want to do.

I printed in clear Inkjet Waterslide Decal Paper, and a layer of clear coat on top of the ink.

Print Settings

Printer:

Anet A8

Resolution:

.3

Filament:                                            geeetech PLA
