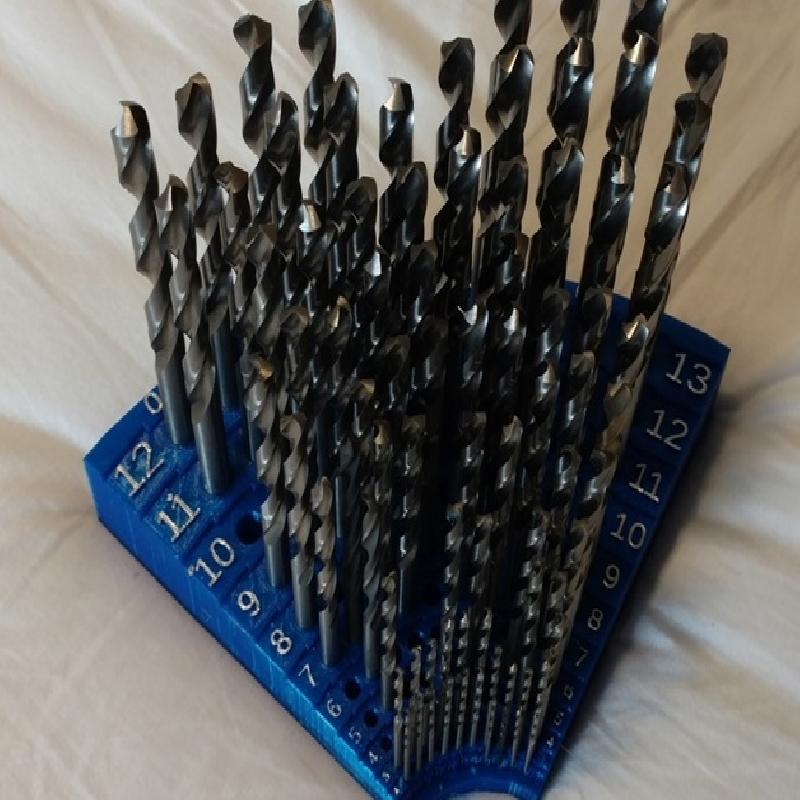

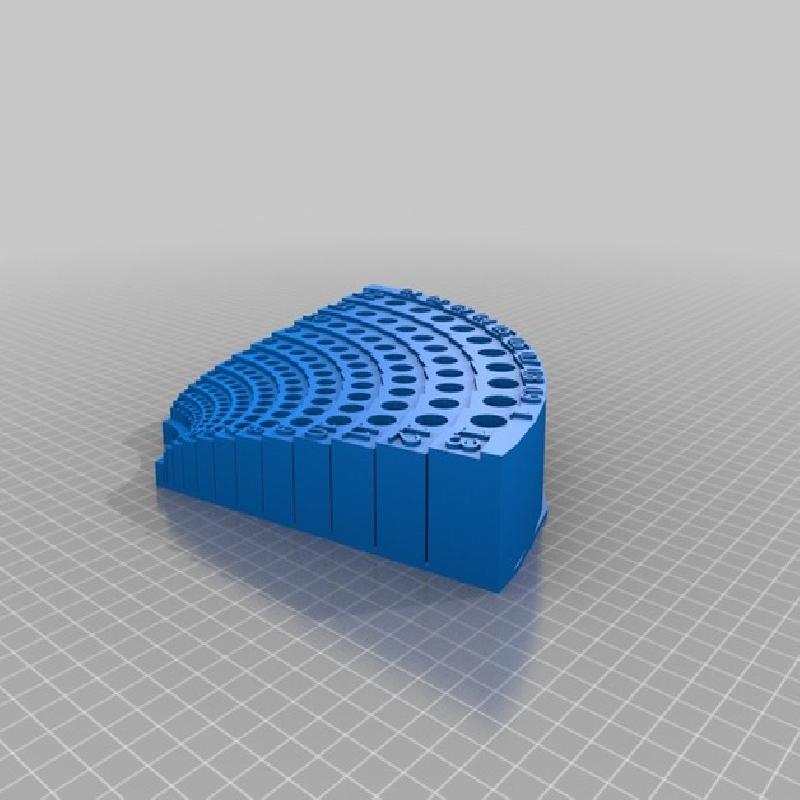

Simple holder for drills from 1.1mm to 13mm. OpenSCAD file included and can be modified for other hole sizes.
Printer: Felix 3.1 Dualhead
Rafts: No
Supports: No
Resolution: 300um
Infill: 5%
Notes:
Took about 16 hours to print. Needs bit higher temp than smaller objects, used 210C for nozzle (PLA) and 65C for table.

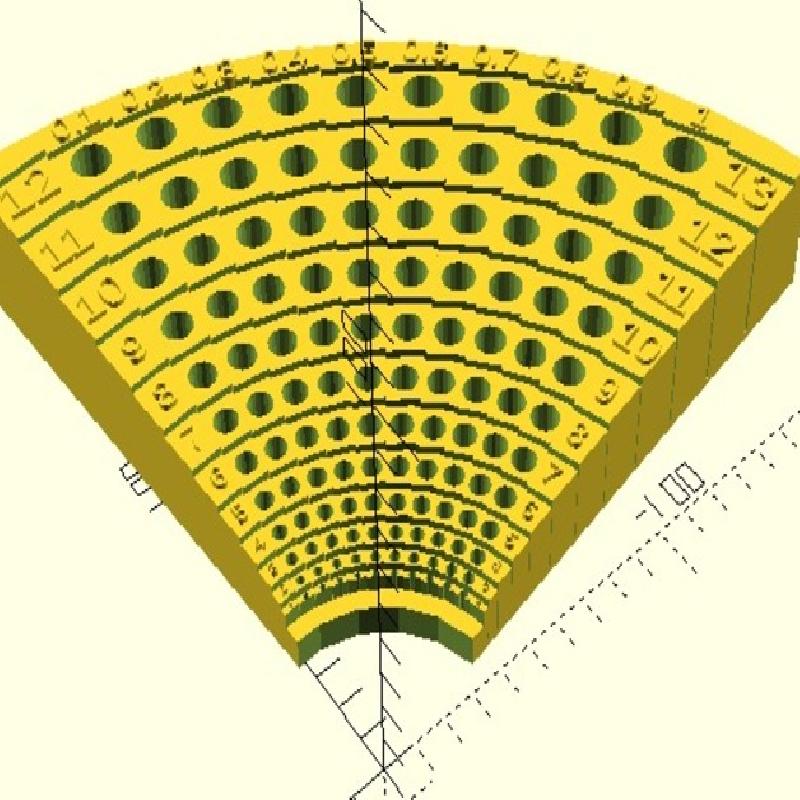

Designed with OpenSCAD and can be easily modified by altering design parameters. Printed with 0.2mm larger holes than drills which ok but holes are snug fit so the .STL and cad file are with 0.4mm increment.
