This is a re-modelled LR Wolf 110 without doors, and with modifications to approximate to the WMIK used by the British Army in recent operations, to 1:76 scale. It is labelled as experimental, as I am struggling with this model.
The model is based on a file contributed to the SketchUp library by Matt Patt, to whom go thanks and credit, but much changed as the basic LR is series III rather than Wolf.

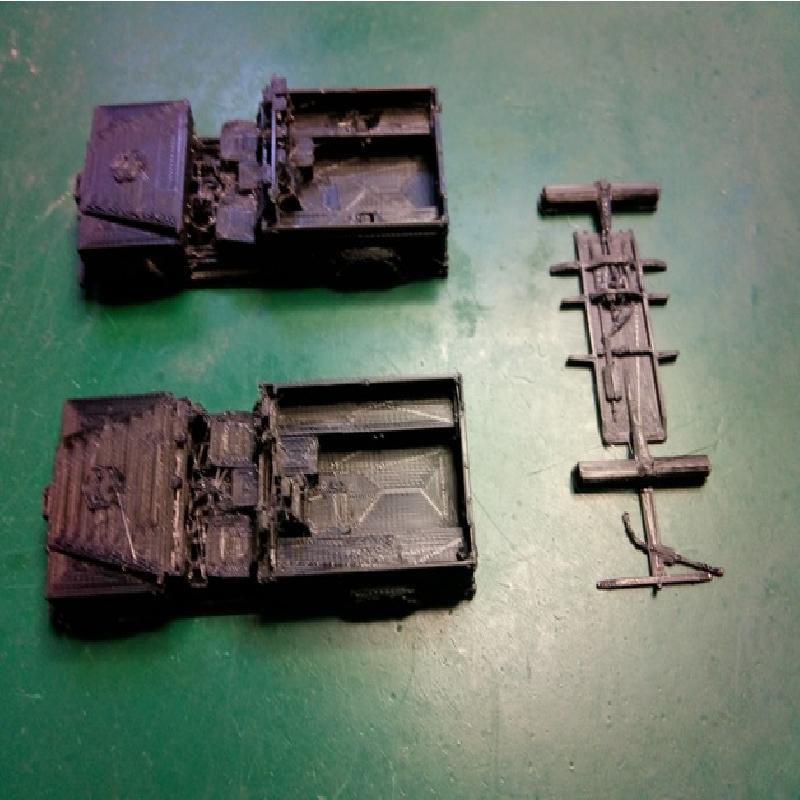

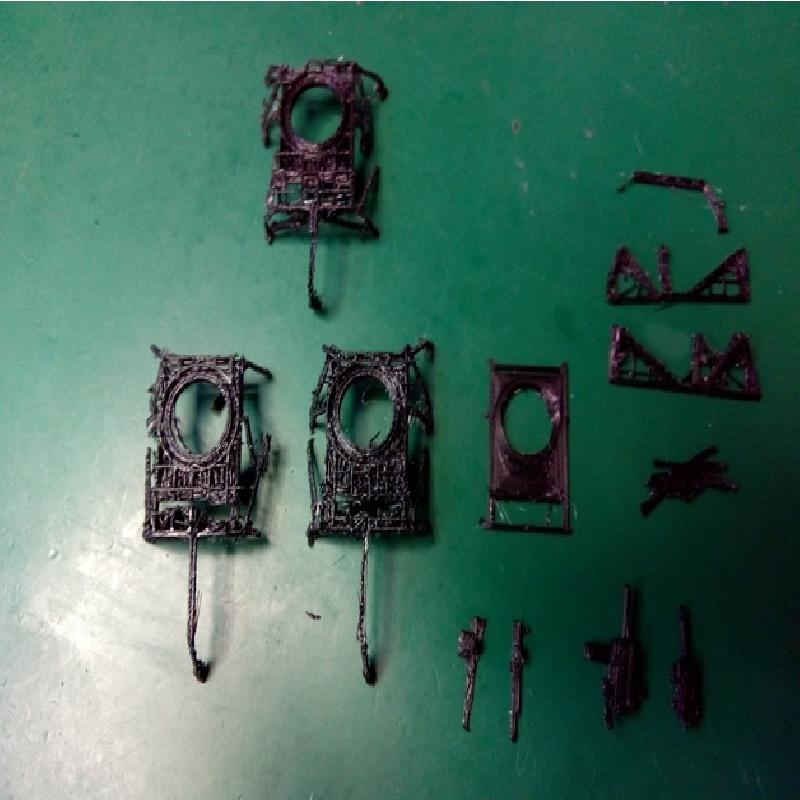

It is a challenging print, as the WMIK structure is a bit complex and difficult to print. I have tried printing the complete structure with various degrees of strengthening of the elements (files provided), but it was disappointing as the strength of the material is not sufficient when printed in layers. Accordingly, I have tried to split into sections, which was more successful as a print, but leaves the next challenge of assembly... Is there any good glue for this material, equivalent to the poly glues used on Airfix kits? The various failed or partially successful attempts are shown in a photo, with the weapons. Missing are the weapon mounts; further work required in this area. Antenna tuning boxes to be added to front wings as well, when I get a chance.
The basic Land Rover might be of interest in any case - I hope it is of some use. Other parts are inherited e.g. wheels. It uses different seats, so is perhaps a bit better than earlier attempts. Note the extra seat in the back, that is characteristic of the WMIKs
The photographs should be self-explanatory, but I can provide more detail if requested. I have provided models of the FN MG and the grenade launcher, in both 'raw' and 'strengthened' versions, and these have all been printed and are in the photographs.

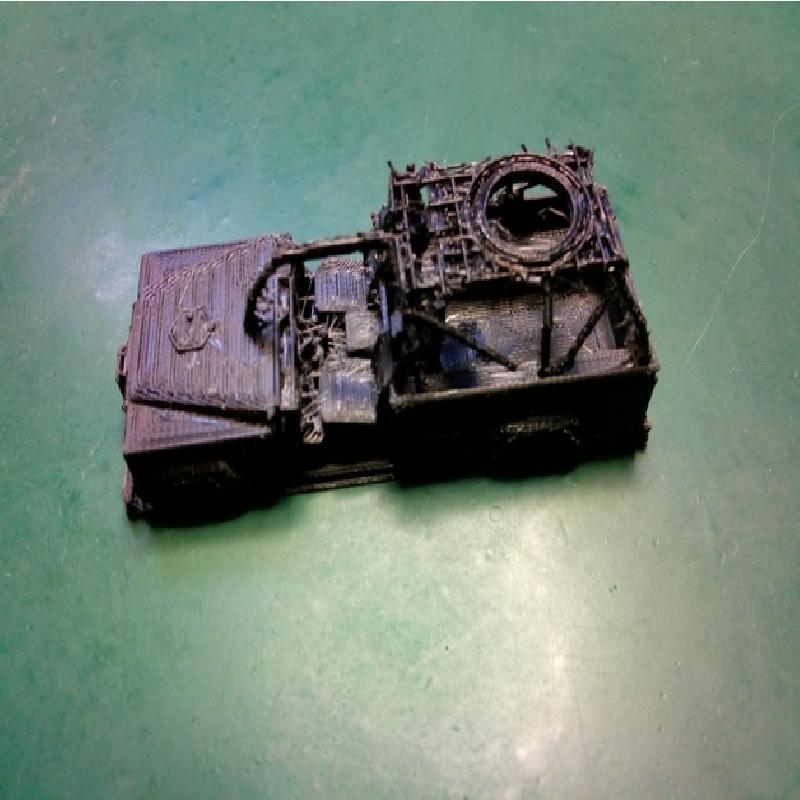

Hope it is of interest! The photograph showing the proposed assembly, without weapons, uses a frame print that has not had all the supports removed - this is the main challenge! It is actually better than the photo implies, perhaps.
More files will be added as I learn, and I am happy for derivatives that print more easily, or are otherwise improved. Wheels to follow, as the mounting hole did not match the strengthened axles, and I will update.
Designed using SketchUp and 3D Builder, iteratively, as on other contributions, with MiniMagic to check dimensions.
Enjoy!
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.1
Infill:
10%
Filament: AnyCubic PLA black
Notes:
This is an experimental project to explore the limits of this type of 3D printing. I hope to get advice on how to improve this, as small features required for modelling in this scale are challenging.
I am no expert on support settings, or on optimising print directions, so all helpful comments welcome!
