by BlueFenix, published
Props of grenades found in Fallout 4.
Fragmentation Grenade
Cryogenic Grenade
Plasma Grenade
Nuka Grenade
Instructions for printing and assembly.

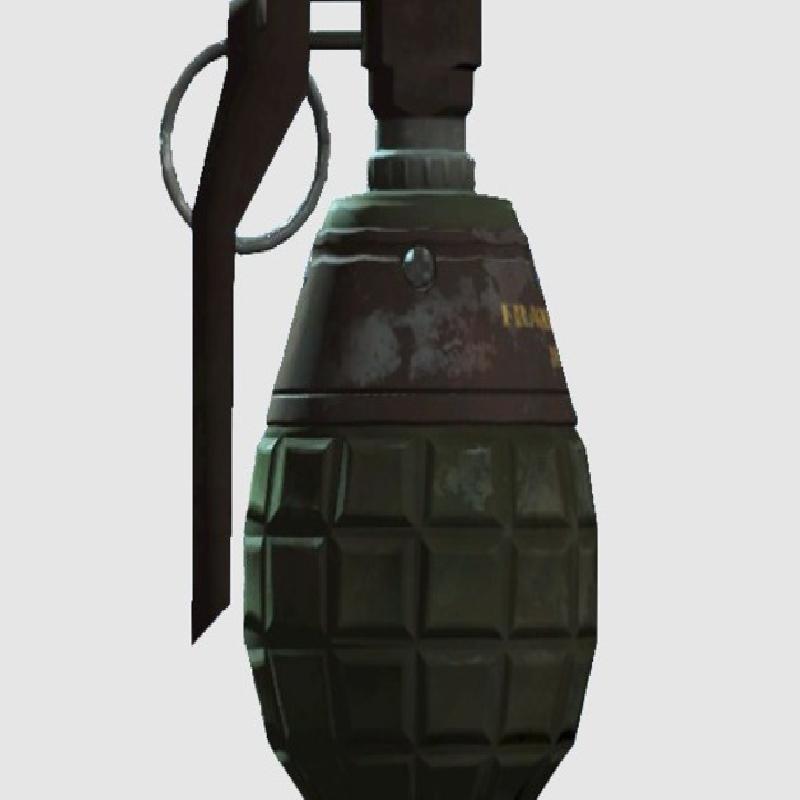

Fragmentation Grenade
The simplest print out. Main body and the sping loaded segment screw together.

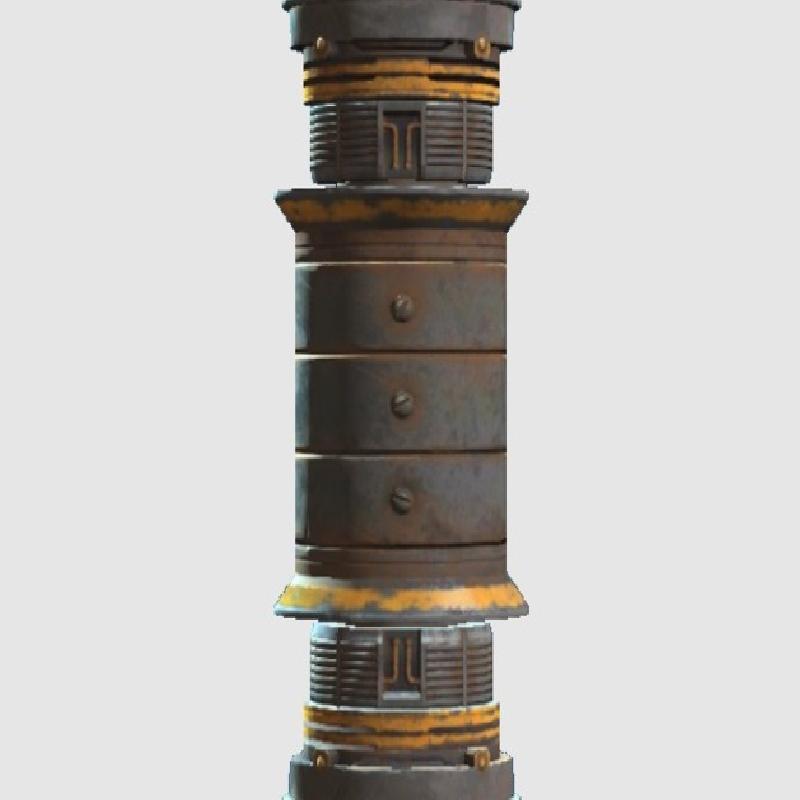

Cryogenic Grenade
Print:
1 of the main body
2 of the connection rods
2 of the end segments
Screw the connection rods into the main body and then tighten the ends on the rods.

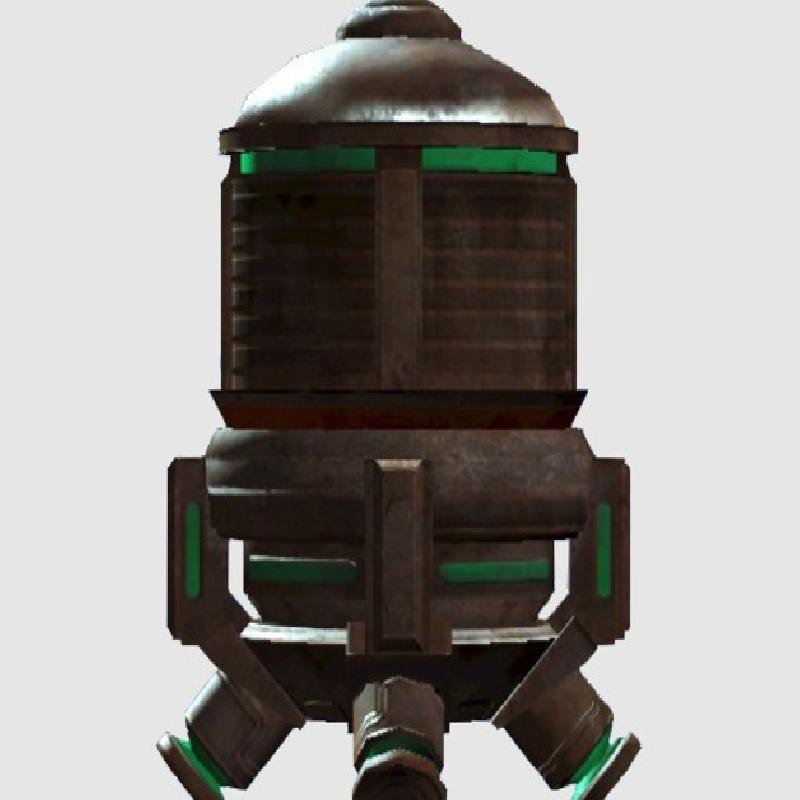

Plasma Grenade
Print off 1 of each
Top
Connection rod
Bottom
Screwn the rod into the bottom and then tighten the top.

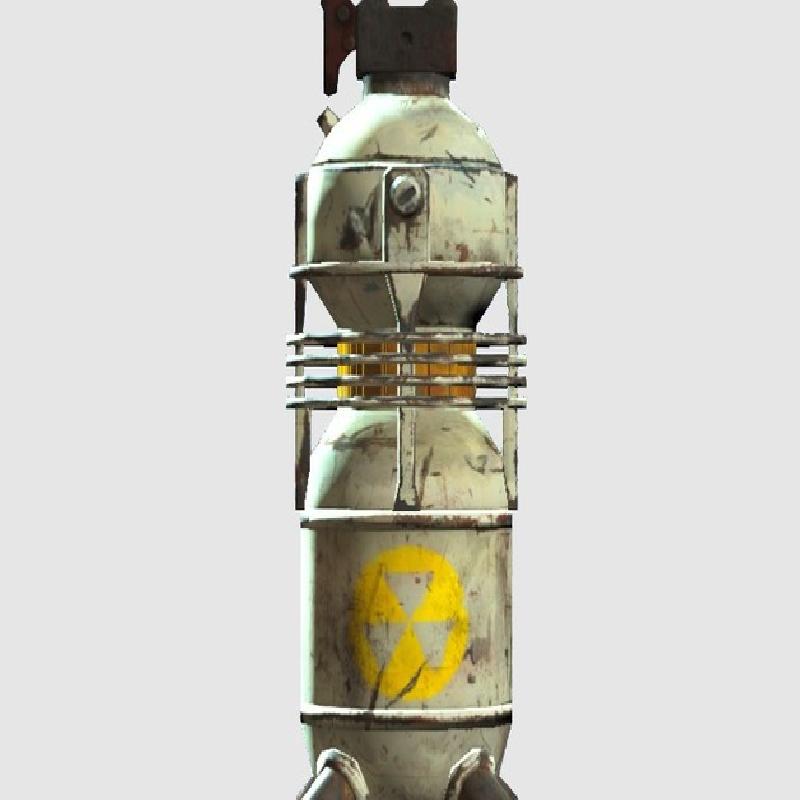

Nuka Grenade
Print:
1 Top
1 Middle
1 Bottom
2 Connection Rod
Screw 1 rod into the bottom, tighten the middle onto the bottom. Screw the second rod into the top of the Middle and then tighten the Top onto the rod.
