“Stick this explosive to any surface...or player!”

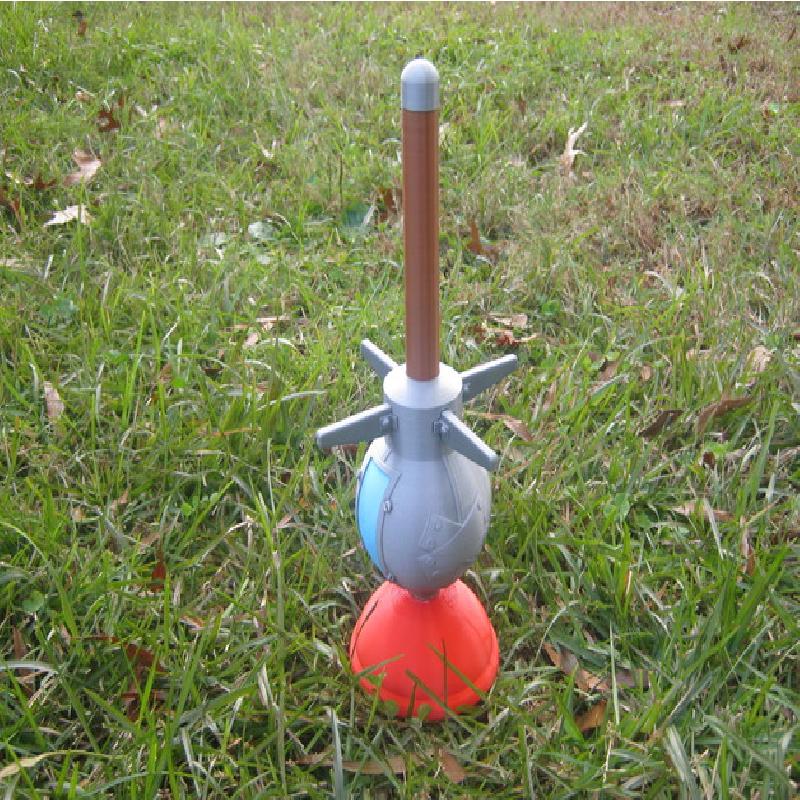

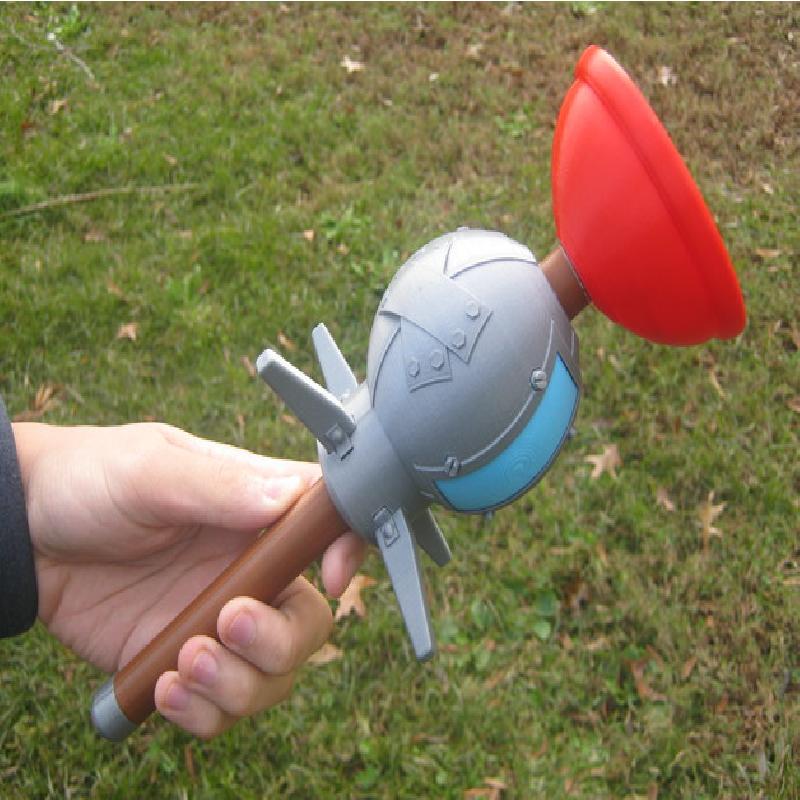

While this model for the clinger grenade can't actually stick to anything, it is still really cool to print out and hold in your hand. I used a reference photo of the grenade and modeled it in Blender. It has been modeled to scale and I think is the most accurate model of the grenade, at least for free.

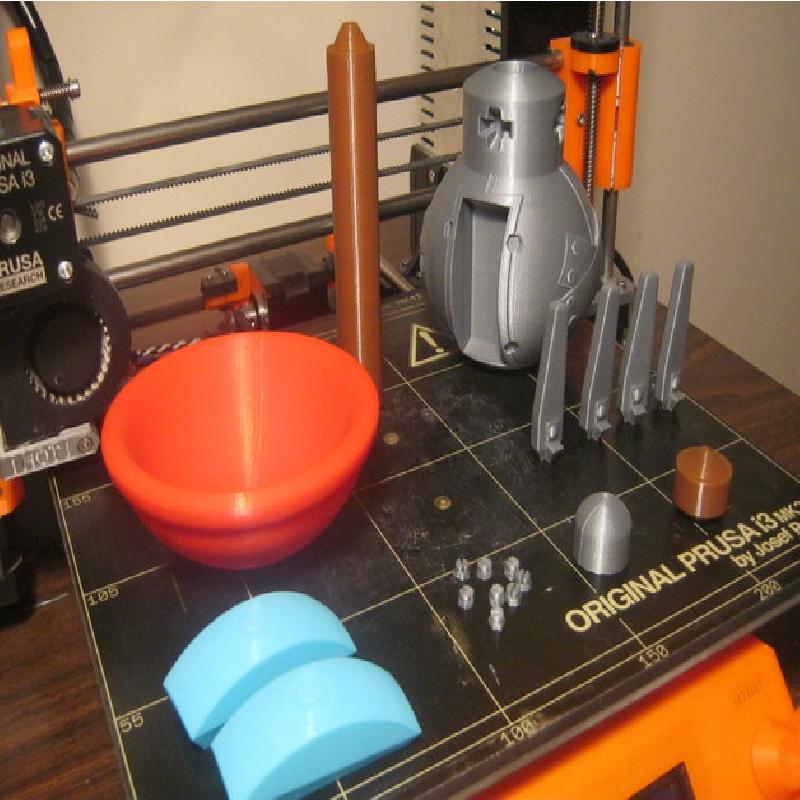

In all, you have to print 19 pieces and you will need some superglue.
Plunger x 1 (Red)
Short Rod x 1 (Brown)
Base x 1 (Gray)
Screw x 8 (Gray)
Wing x 4 (Gray)
Long Rod x 1 (Brown)
End Cap x 1 (Gray)
Emitter x 2 (Blue or Clear)

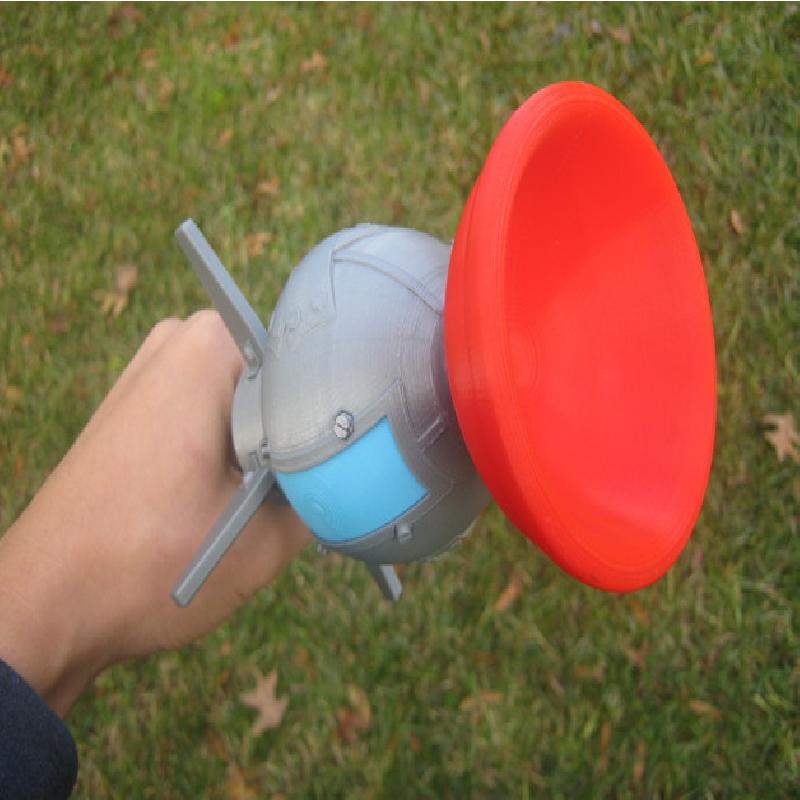

I would really like to see someone try to print the Plunger in Rubber or Nylon and see if it can actually stick to smooth surfaces. It would also be cool if someone could put LED's in the emitter pieces and make it glow.
If you think this is cool, leave a like or check out my other designs. Thanks!
Printer Brand:
Prusa
Printer:
Rafts:
Doesn't Matter
Supports:
No
Resolution:
0.2mm
Infill:
10%
Filament: SoluTech PLA Multiple
Notes:
The clinger grenade has been modeled to be completely support free. You just have to print multiple pieces and glue them together. Standard settings should work for everything except the screws which need to be printed 50% slower because they are pretty tiny. A good cooling fan for some of the overhangs wouldn't hurt either.
