by Birdman68

Hi This is not my design its one i have modified Credit to nakwada for the design https://pinshape.com/items/20856-3d-printed-darth-vader-bust-easy-print.

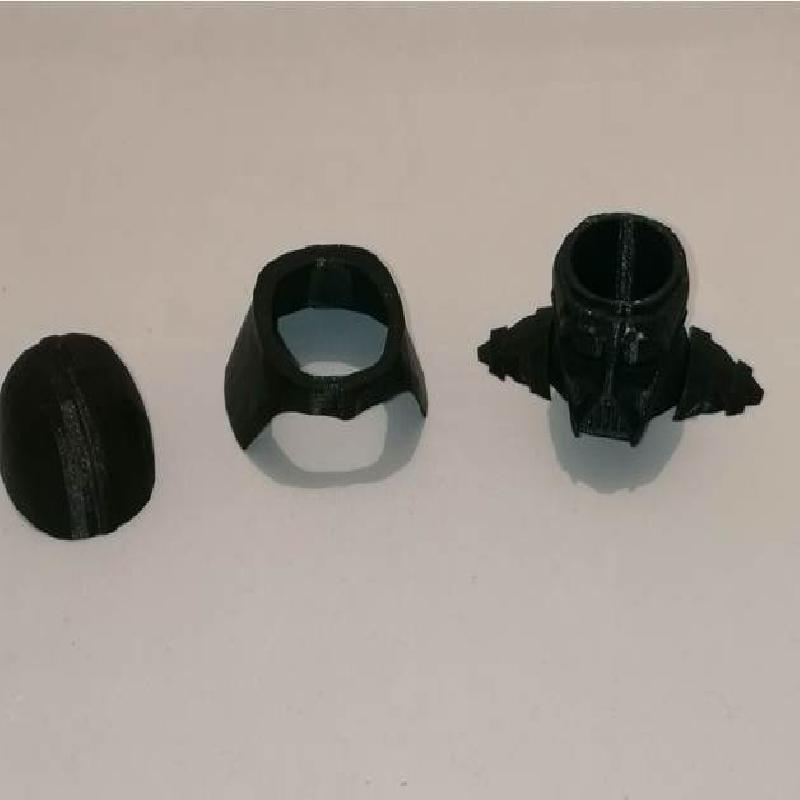

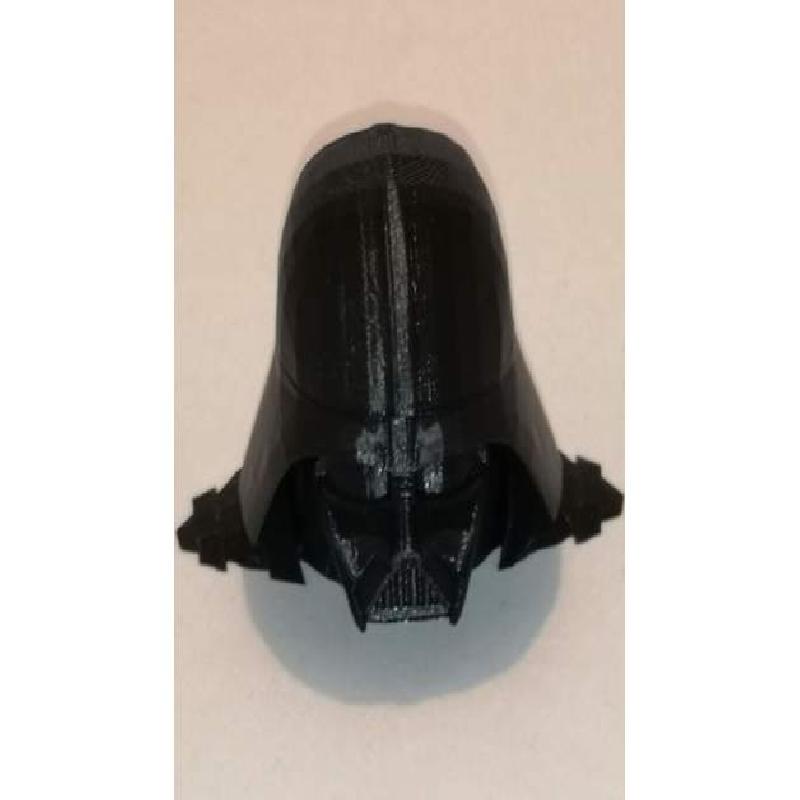

I just joined some of the parts together like the face and shoulders left the helmet section as a separate print, I wanted to put a hinge on the helmet but haven't been able to yet. Made the Head into a pot, I have included all the files Darth Vader Pot, Darth Vader Solid and the Helmet top and Bottom, Plus all the files from nakwada in the zip file, hopefully someone will find them useful.
Cheers
If you print the pot version with zero infill it will get a bit messy at the Inside bottom when it try's to print the bottom section of pot, and possibly some holes at the bottom inside the head,
Model height is about 5cm i used cura to scale up, just remember to scale the helmet sections as well to the same size

Print Settings

Printer Brand:

Anet

Printer:

A8

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

20

Filament:                                            Anet PLA                                        Black

Notes:

I managed to Print with 0 Infill
Wall Thickness, Top and Bottom Thickness =  0.8mm
Wall Line count = 2
Layers = 4

Post-Printing
