by C_Cheetos, published

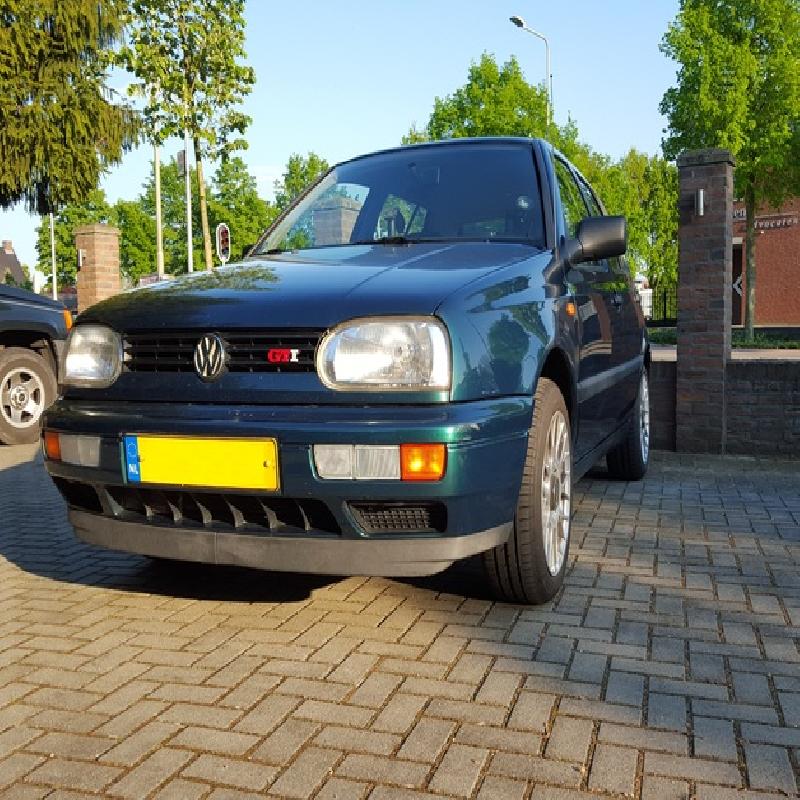

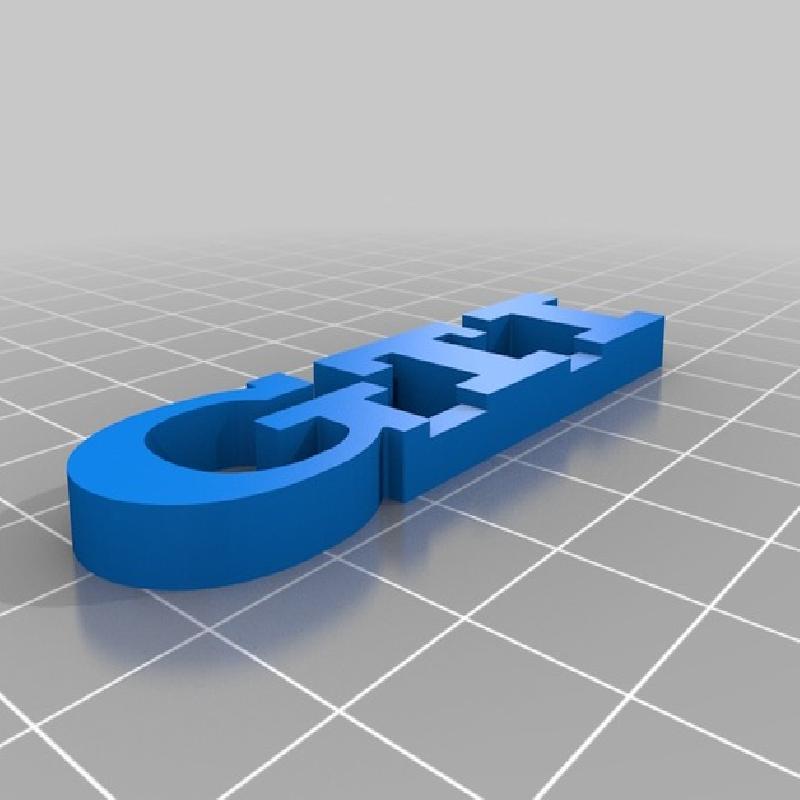

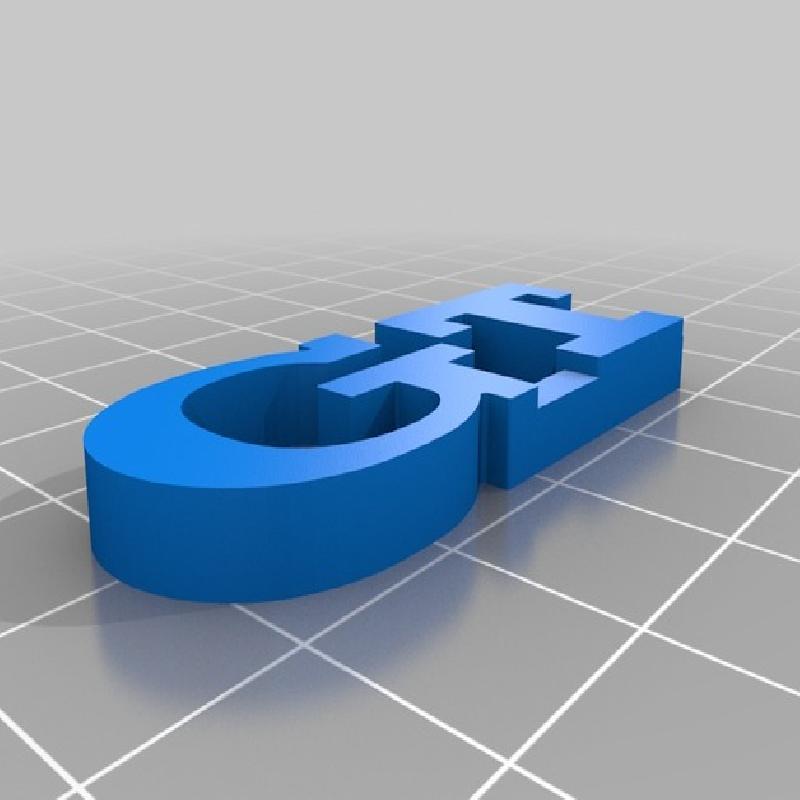

I lost my GTI Badge for my Volkswagen golf mk3 so instead of buying a new one i printed one, i used Loco's Volkswagen GTI Key-chain as my base and cut a few thing off. of course the size is not correct, this needs to be scaled to x1.4 for all the badges, this matches the OEM size of the original GTI badge.

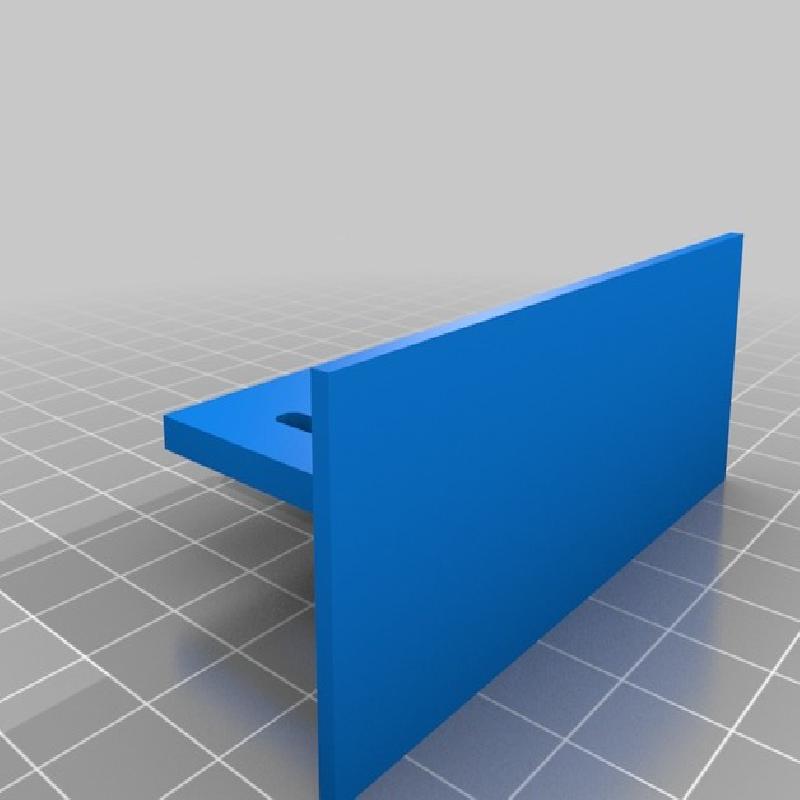

The grill holder i designed myself, just use 2 normal wood screws to get it in place (no you do not have to destroy your bumper for this). alternatively you could use m4 or m5 bolts with lock nuts.
the grillholder is the correct sizing no need to scale that.
i printed in PLA at 0.2 layer height and 30% infill, your mileage may vary.
The 2 components are printed separately, use clear kit or super glue to stick them together, works like charm for me.
Printer Brand: Solidoodle
Printer: Solidoodle 2 - Base
Rafts: No
Supports: No
Resolution: 0.2 Layer Heigt
Infill: 30%
Notes:
set speed to pretty low, also my solidoodle is modded with an e3d hottend, lawsy's replacement carriages, an actively cooled nema 17 mod and active filament cooling. not sure if it prints fine on unmodded solidoodles
