by V0g3l
This is the complete medal collection from Wing Commander I. I have tried to be as accurate as possible. To create your own Wing Commander medal box just follow the steps below and take your time.
For the Medals print
3x Bronze_Silver_Gold_Star.stl
2x BronzeSilverStarMount.stl
1x GoldStarMount.stl
1x Golden sun.stl
1x Medal_of_Honor_Base.stl
1x Medal_of_Honor_Ring.stl
2x MedalMount_Under.stl
For the ribbons print
12x Ribbon.stl
1x RibbonMount.stl
1x Ribbon_rail.stl (optional, as it's a tool)
Various
1x WCLogo.stl
1x wingedHeart.stl
The best way to print out the individual orders is in Metal Filament. This makes them look very real just because of their weight. Afterwards they can be sanded and polished. To make the metals look real you can use either electroplating or gold leaf/silver leaf.
Medals grosgrain ribbons
Gold Star/Medal of Honor is 30mm green
Bronze/Silver Star is 25mm blue
Golden Sun is 30mm
I used and impregnated 30mm and wide grosgrain ribbon. Then I was able to colour the individual ribbons with green, blue, red and money. This takes a very long time and you must not soak the ribbon too much with paint, otherwise it underflows.
Then the ribbon pieces are glued onto the ribbon.stl pieces. To fix the ribbon temporarily the part ribbon_rail.stl is included as a help.

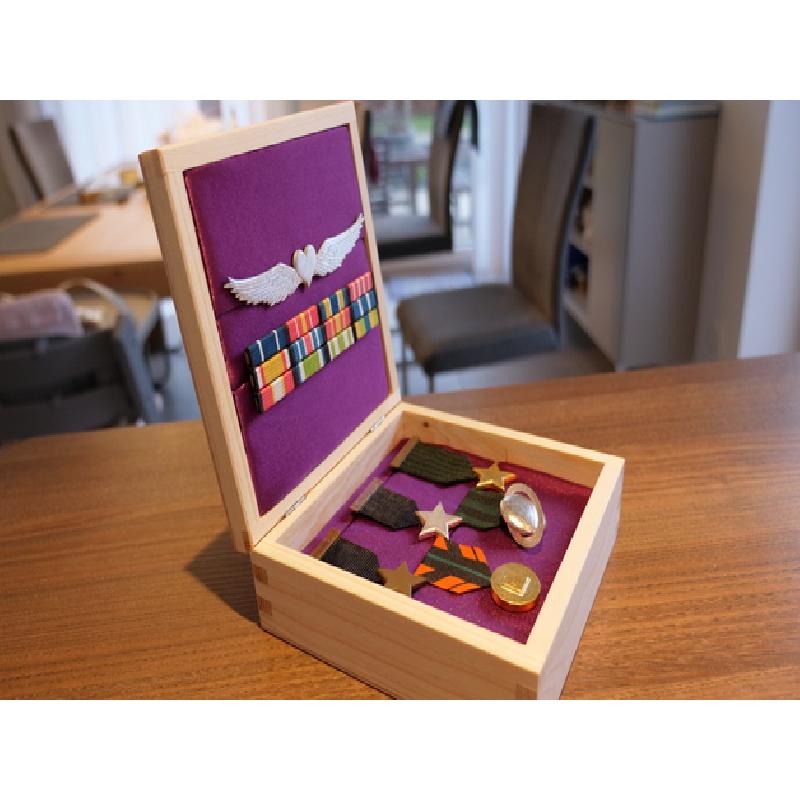

When everything is ready you can put the single pieces on the ribbonmount.stl.
Printer Brand:
Ultimaker
Printer:
Rafts:
No
Supports:
Yes
Infill:
Solid
Filament: Colorfabb Copperfill + PLA
