by pper

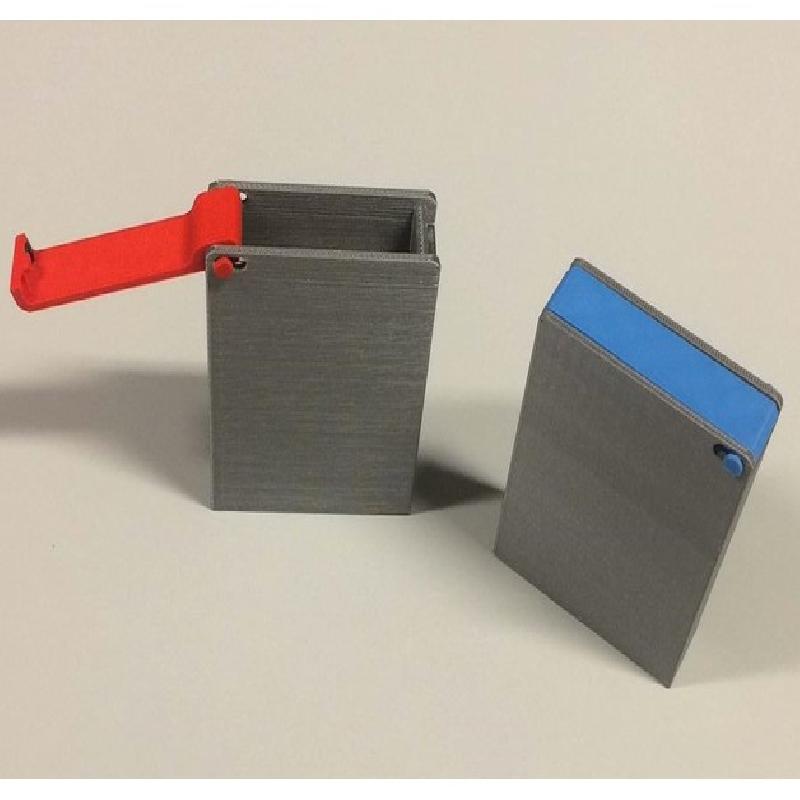

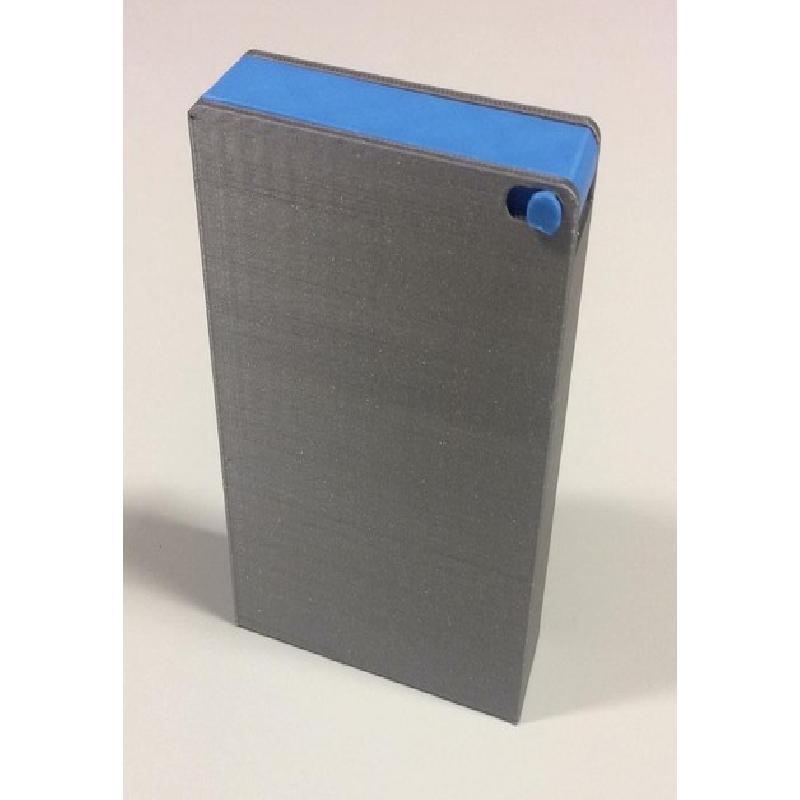

I have made this remix of Firestorm0708's playing card box because his box is for large card. My needs was for smaller playing cards, like sized 59x80 - 52 cards max.

I change some littles details :

• i have added a personal support in the hole of the box. You have simply to snap this support after printing. the box body not need supports to be print.

• i cut a little the pins to print them on the long way to have more stiffness and not need supports

• i replace magnet round hole on top's box by hex hole. I have used M3 nuts in front of magnets. It's enought to close the box and less expensive.

Print Settings

Printer Brand:

Prusa

Printer:

Prusa Mk2

Rafts:

No

Supports:

No

Resolution:

0.3

Infill:

10%

Filament:                                            cf notes (not on amazon !) PLA                                        body : grey - top and pins :  red and  blue (for two differents boxes)

Notes:

Filament Brand : sovb3d (french filament brand)

with the slicer, you have to turn pins on their flats surfaces and return the top part at 180°. Then you don't need supports to print those parts.

Post-Printing

on body part, you have to snap support on axes holes. I have used gently a little pliers and they snaped !
