by HighGrinder

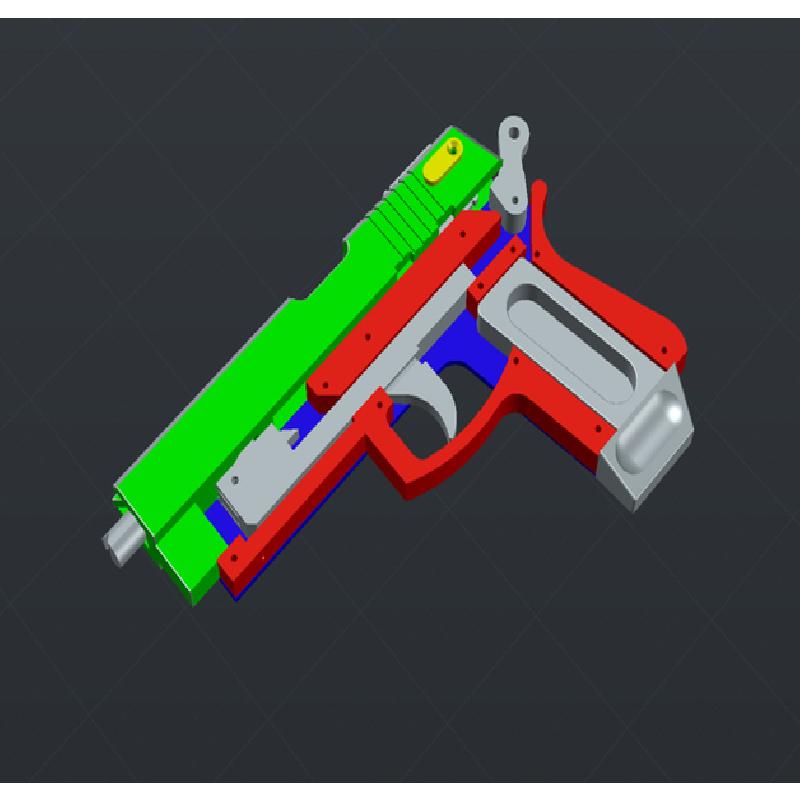

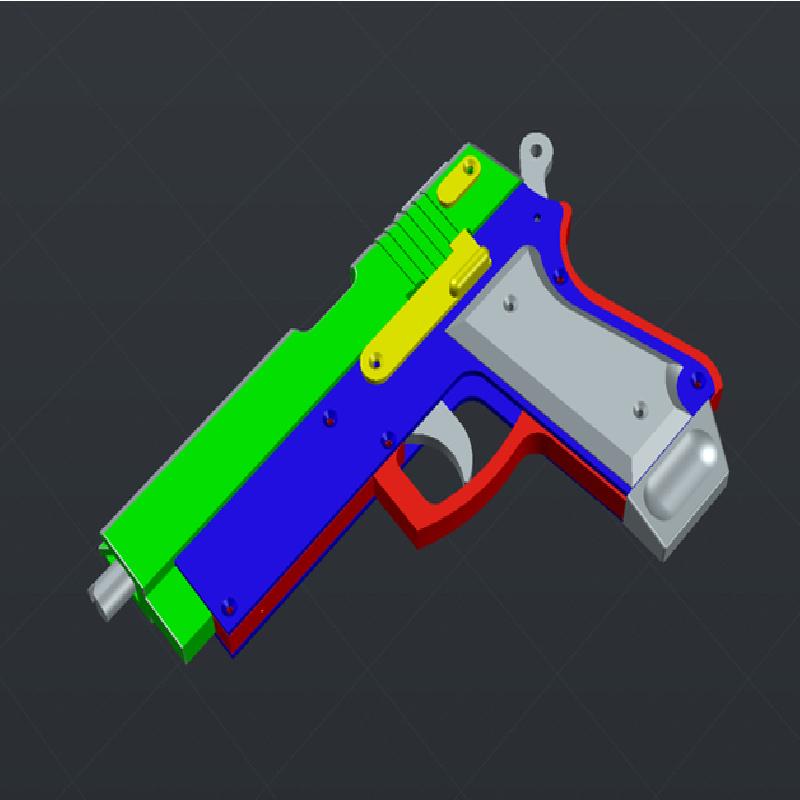

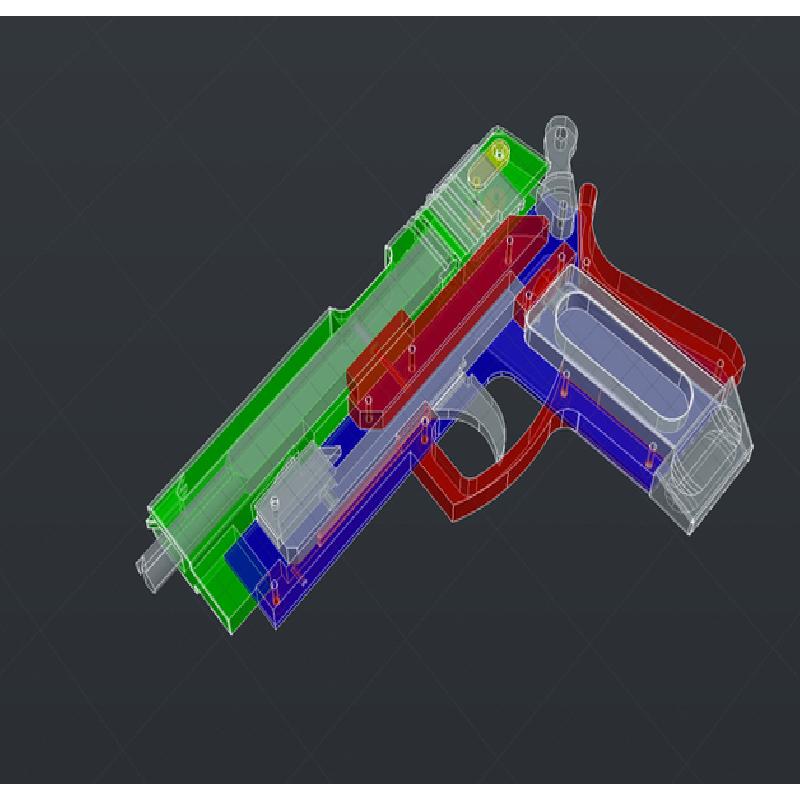

This rubber band gun is based on a wooden design rubber band gun. it's completely printed out of PLA. Slider, trigger and magazine parts are made of silver/grey PLA and the rest was printed in Black, but that's up to the person who wants to print this item what colours to use.
Printer Brand:
Prusa
Printer:
Rafts:
Yes
Supports:
Yes
Resolution:
150 microns
Infill:
yes
Filament: N/A PLA grey and black
additional parts required
Rubber bands and countersunk M3 x 8 Allen key or Philips screw
and for the trigger and pivot a spring from a cheap bic ballpoint can be used.
For the magazine I've used two round magnets 10 round 5 mm high
when installing the rubberbands make sure the first rubberband goes from the tip of the barrel to the square from that point forward the rubber bands can be installed from the slider tip towards the square. 8 rubber bands fit easily.
