by RyanTheMast
The mousers are one of my favorite robots from my childhood, these little robotic chompers have been on my list to cad for a while, I hope you enjoy them as much as I do.
Designed in 1/6th scale,
The Mousers (M.obile O.ffensive U.nderground S.earch E.xcavation & R.etrieval S.entries), are small, bipedal robots designed and built by Baxter Stockman. Which were antagonist of the Teenage Mutant Ninja Turtles in various iterations of the show and comics.
If there is interest I will work on a closed mouth model and perhaps a fully articulated one. Please post your makes and let me know in the comments if this interests you.

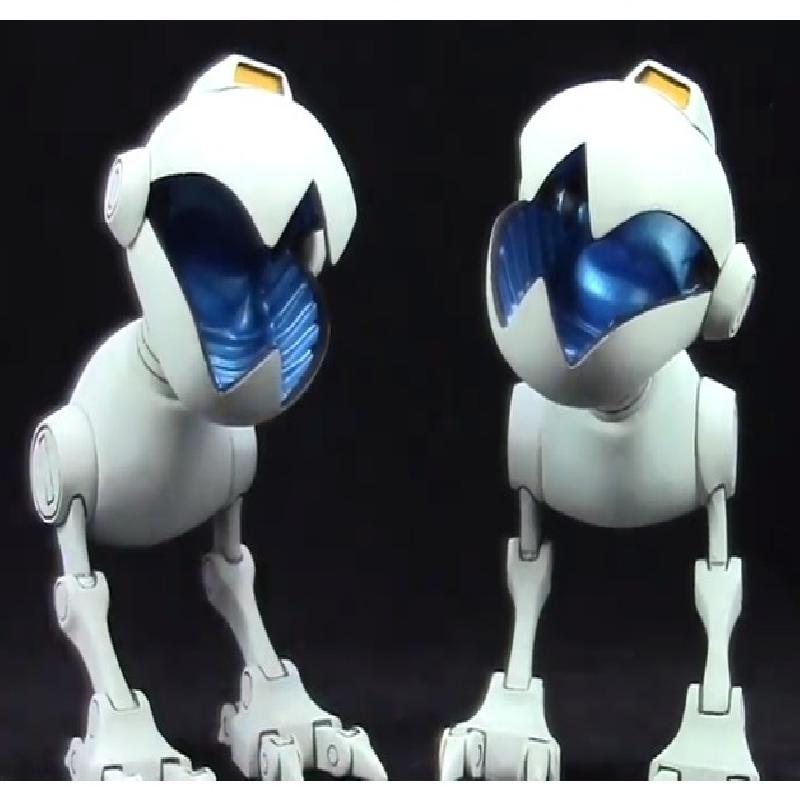

This model is based off of the Mondo 1/6th scale collectible toy. and should not be sold or purchased.
Printer:
Pankcake Bot
Rafts:
Yes
Supports:
Yes
Resolution:
.2mm layer or better
Infill:
15%
Filament: Polymaker Polysmooth Slate grey
Notes:
I designed this to print with support "touching build plate" and should not need "support everywhere" Depending on your printer and cooling of course.

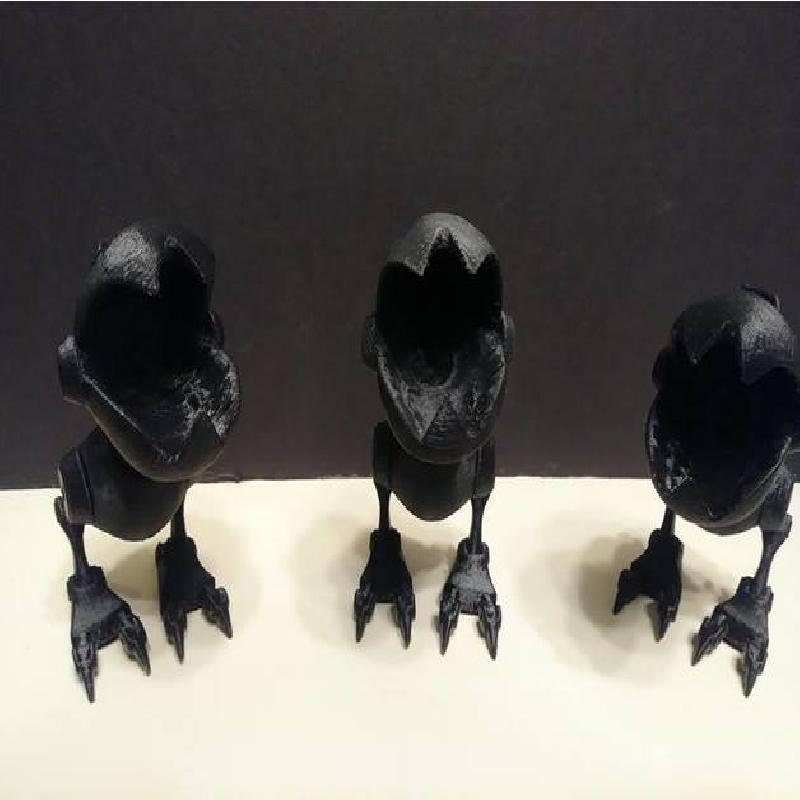

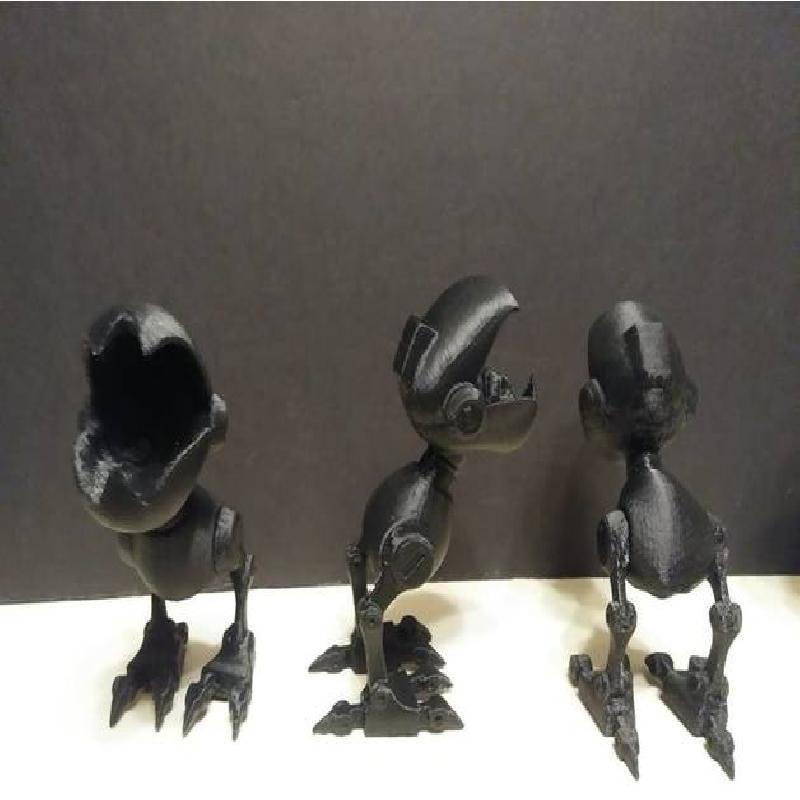

Files "should" load pre-oriented for best results with strong pegs, minimal support and rough areas hidden on back side, however depending on your slicer, some programs may rotate the files by swapping z and y but look at the examples above in "thing view" to get an idea of how best to position them)
The pegs are meant to be a snug but secure fit, I have tried on a few printers now and things friction fit well without spending any time sanding pegs after removing support (designed with about .4 mm clearance) if you have trouble getting things to fit you can scale down the Head and Legs a little to reduce the peg size or scale up the body.

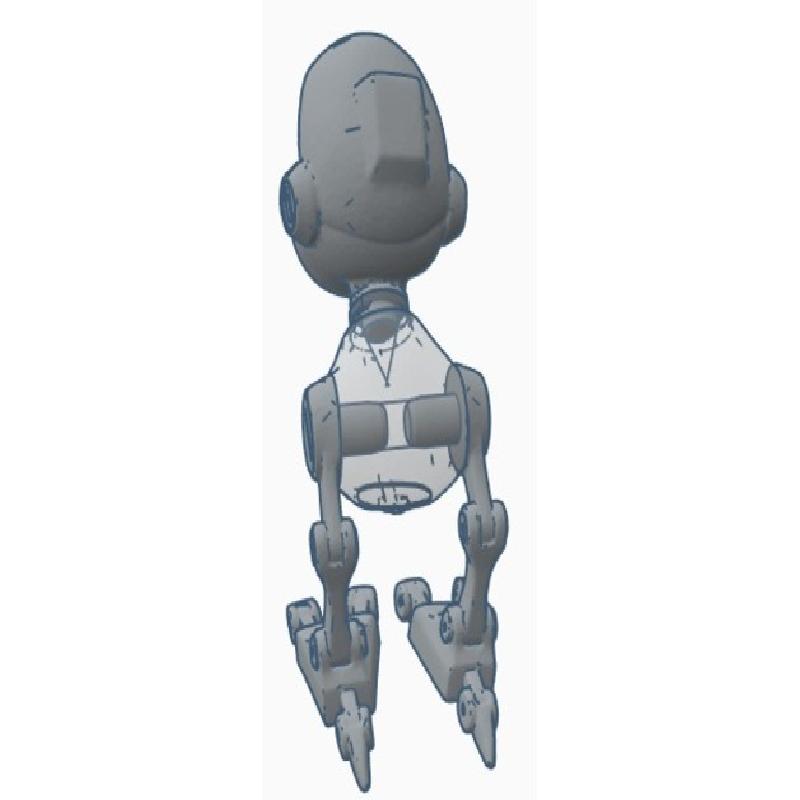

Scanned using the Einscan SP, then altered, enhanced, and optimized in Meshmixer, and Tinkedcad

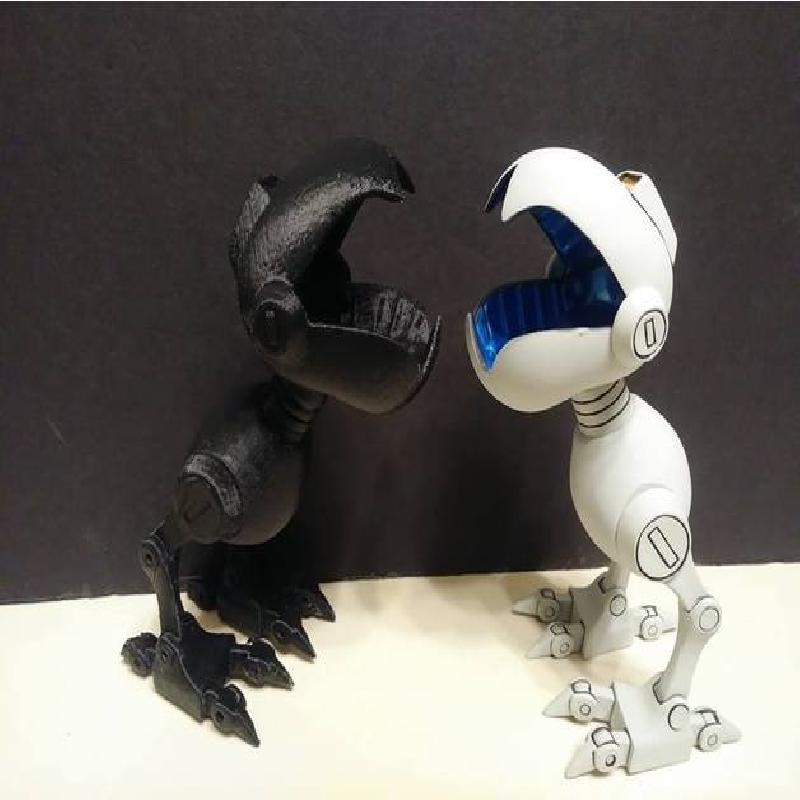

I can not take full credit for this design as it is heavily based off of the beautiful Mondo Figure, if you want to skip the print and own a high quality Mouser buy the Mondo figure.
