by DIehard2501
This is a remix of a remix that has been floating around for a while. The version that I received had a few fitment issues with parts not being consistently scaled and not fitting. I have reworked them to better fit and eliminated a few problem areas.

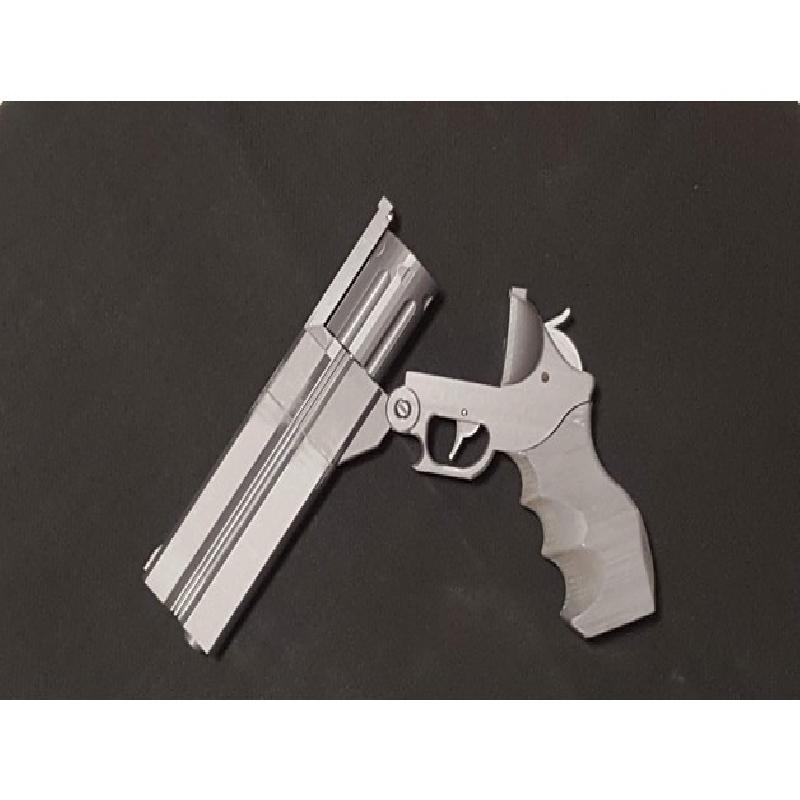

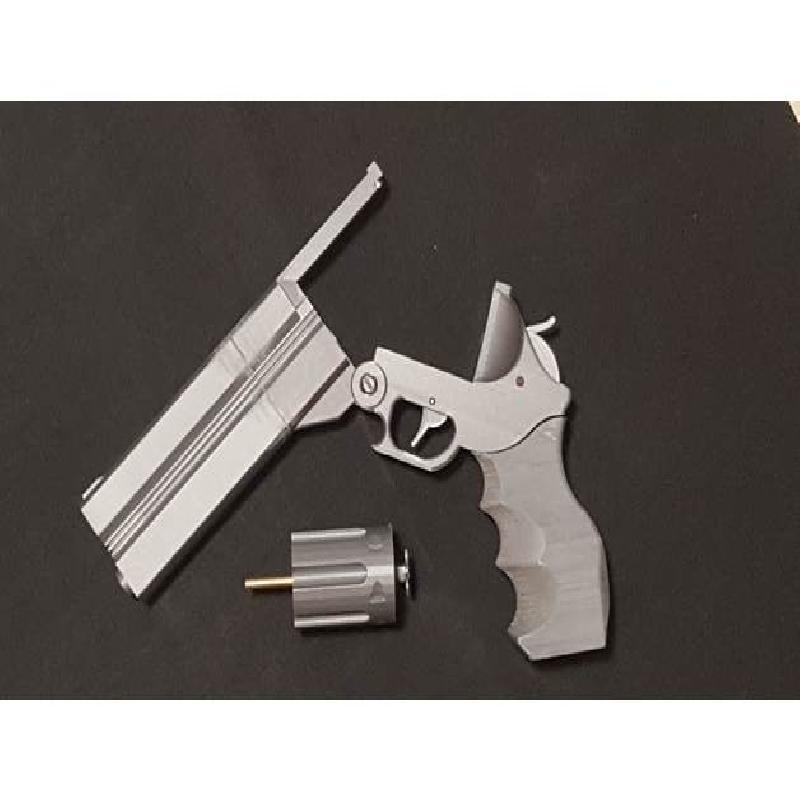

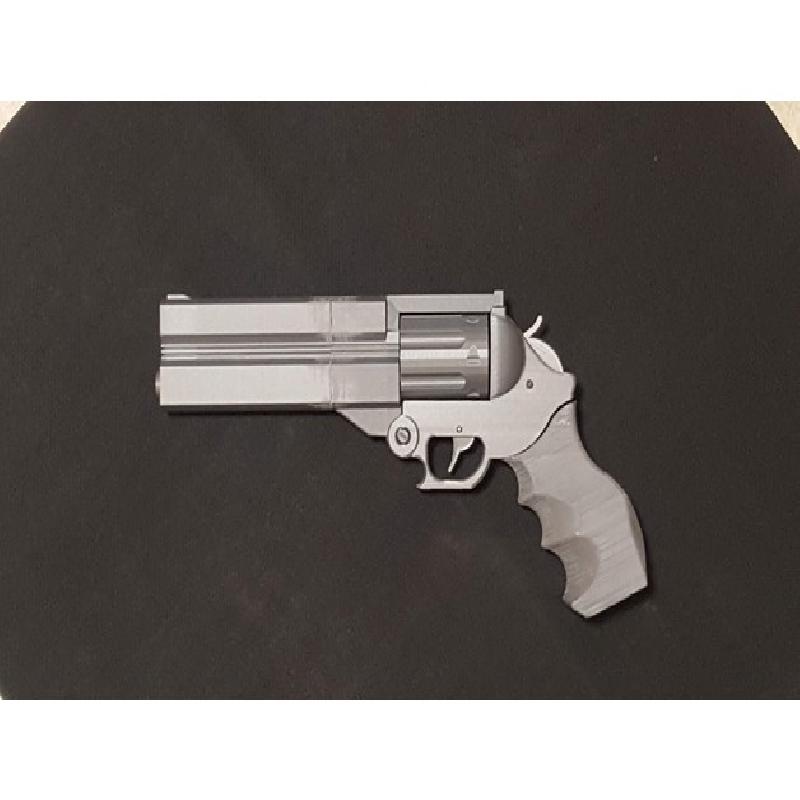

The frame was cut and stretched to fit the height of the barrel. The barrel back was cut into 2 sections to make it easier to print and to allow for an easy repair point if broken. Magnets and plastic can be tricky and I have broken enough resin 40K models to know this will be in the same category. The cylinder was reworked to eliminate the super long shell extractor tube. The printed cylinder tube needs to be replaced with a piece of 5mm / 0.187" brass tube. The pins for the trigger (3mm / 0.125") and hammer (4mm / 0.163") should also be replaced with tubing or solid rod. There are included printed versions of these if you cannot get the correct tube sizes. The magnets for the top are 2 - 6mm / 1/4" round. A blocking plug has been added for the base of the handle. Finally, there are some extras included. A replacement handle with holes for 2 printed screws and the screws, and a slotted pin for the main piviot.
This was a fun first remix and a great base to start from. I can see some other improvements like adding the barrel text and screws, making the barrel shape closer to the anime and even adding the removable cover for the top barrel.
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
0.2
Infill:
varies
Filament: Harchbox PLA Silver
Notes:
The pins should be printed with multiple shells to allow for shaping them to fit in their holes. If it is going to see heavy use as a prop, use a 3d infill and 35-50%.

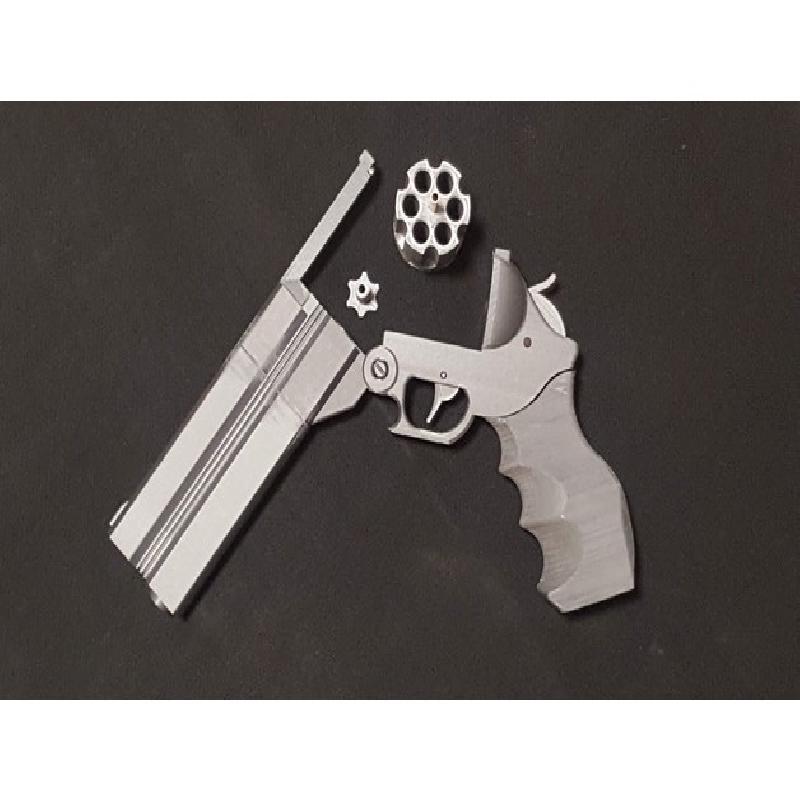

To make the shell extractor "work" place 2 magnets in the end with or add a small spring to pop the part up when the gun is open.
You will have to open up the pin hole for the handle to get the best fit. This was done to account for some fitment issues
