Then I plan to install FPV system and make robotic arm
I want to experience it on the street, but it is winter ... All around snow. Russia..))
there are only 19 pieces))) is not difficult to understand. Screws: M3, M5, M10

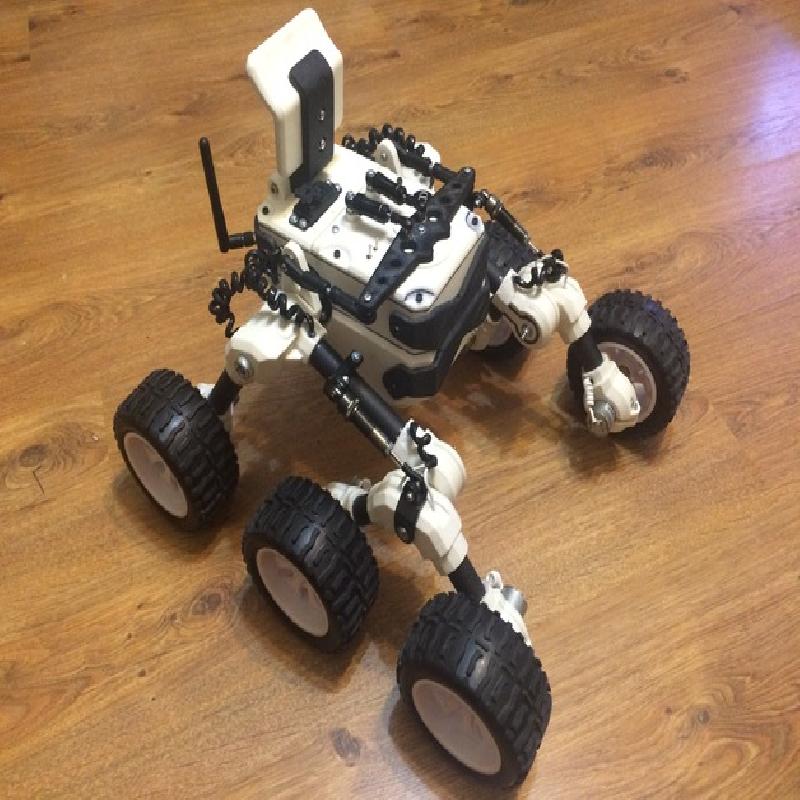

if the cab to make airtight, then it can be submerged. I did so, but it is not possible for me to check. it is winter. although seems to me he would not go under the water, it will float. his weight is only 2,8kg (6,17LB).
Please if you like my work, click Like my video))
Full version download: https://www.redpah.com/product/2439/martian-rover
when registering on the site, you are given as a gift of $ 1))
Video: https://youtu.be/l90EvvPsKK8

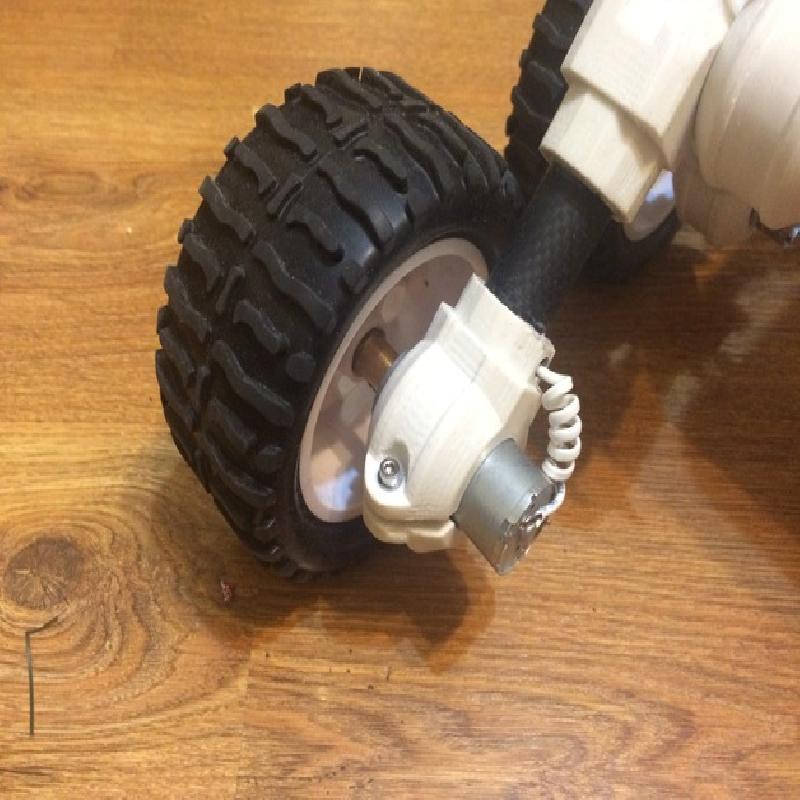

motor: https://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=26268
These powerful motors, but the speed will be less: http://www.hobbyking.com/hobbyking/store/__26267__133RPM_Brushed_Motor_w_75_1_Gearbox.html

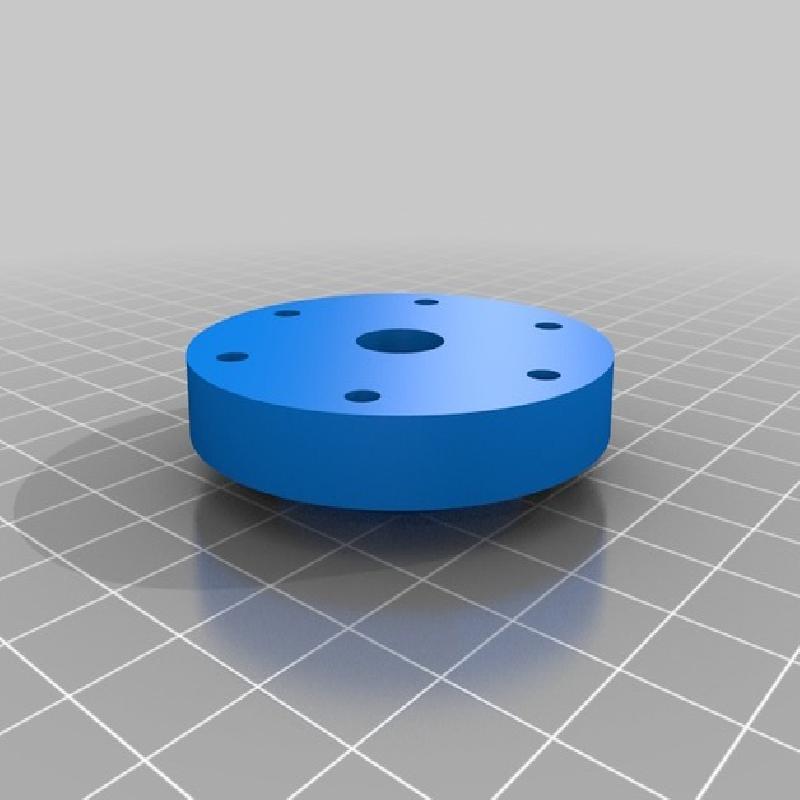

12MM Hex connector: http://www.ebay.com/itm/3-4-5-6-7-mm-Brass-Shaft-Couplings-Coupler-Motor-12MM-Hex-connector-DIY-Screws-/181739759207?var=&hash=item2a5088a667:m:mHCAxiTwXWJ3r5XeMDFTPTw
Wheels: https://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=40352

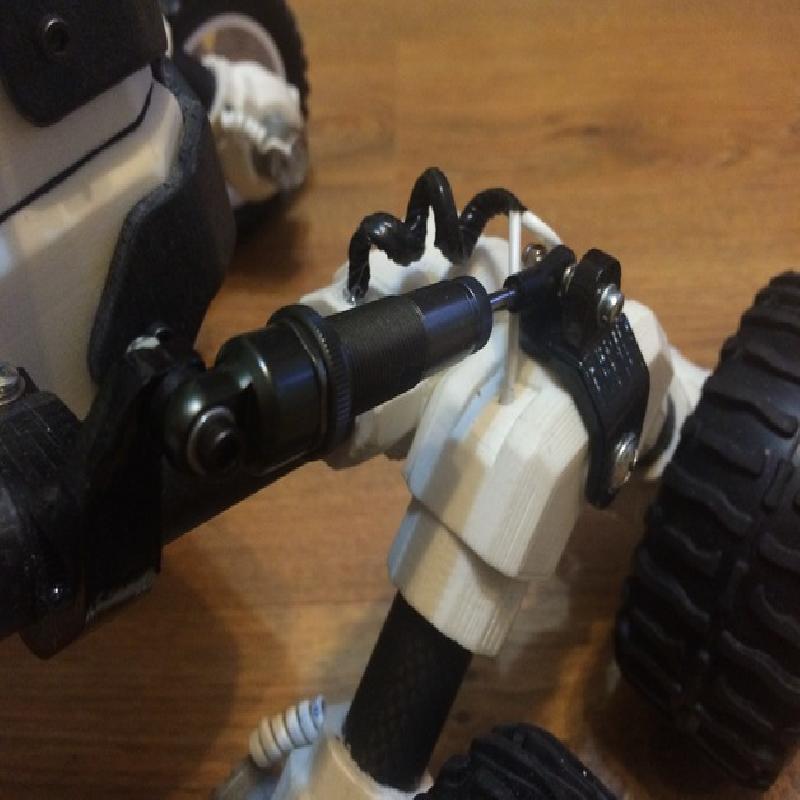

Shock Absorber: http://www.hobbyking.com/hobbyking/store/__26259__1_10_Car_65mm_Aluminum_Shock_Absorber_Purple_2pcs_bag_.html
Shock absorber: https://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=22627
Hexagon Ball End: https://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=37679
Ball End: https://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=37672
ESC: http://www.hobbyking.com/hobbyking/store/__32025__HobbyKing_X_Car_45A_Brushed_Car_ESC.html
Tube carbone 20mm

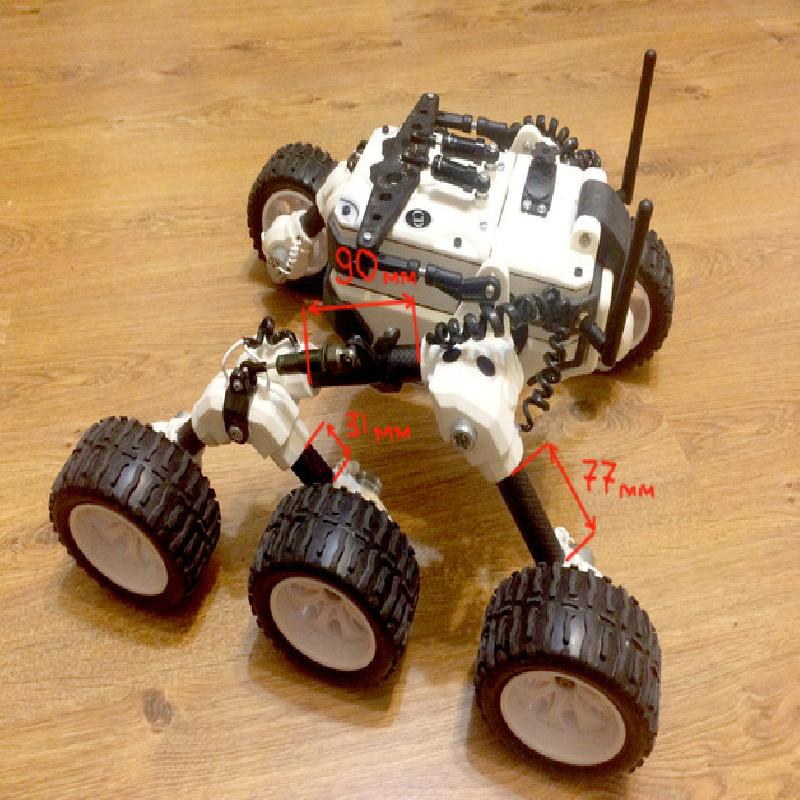

approximate length:
2x50mm, 95mm, 105mm

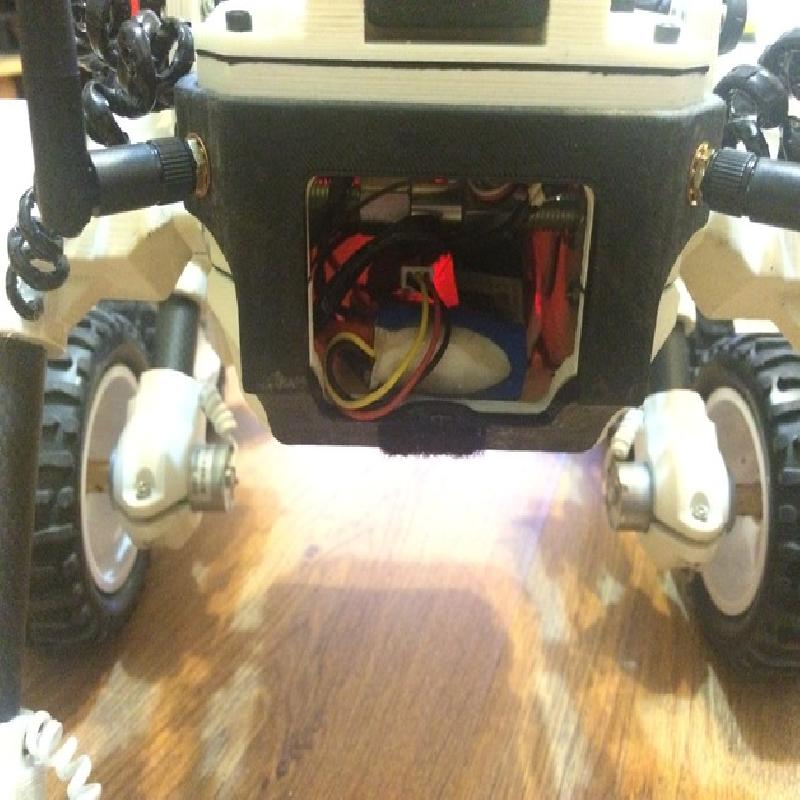

Three on the left side of the motor are connected in parallel to a single speed controller. the right side is also parallel to the second speed control. Further speed controllers are connected to the receiver from the model aircraft equipment. the first and second channel. Control equipment of RC Planes. I use this: http://www.hobbyking.com/hobbyking/store/__8992__Turnigy_9X_9Ch_Transmitter_w_Module_8ch_Receiver_Mode_2_v2_Firmware_.хтмл
(but it can be less expensive and does not matter.)
how to configure the console's hard to explain in a few words. each country has its own forum on aircraft modeling. There, people can easily prompt to configure the remote. Simply place a link to the video, and they understand everything.
Now the international forum: http://www.rcgroups.com/forums/index.php
