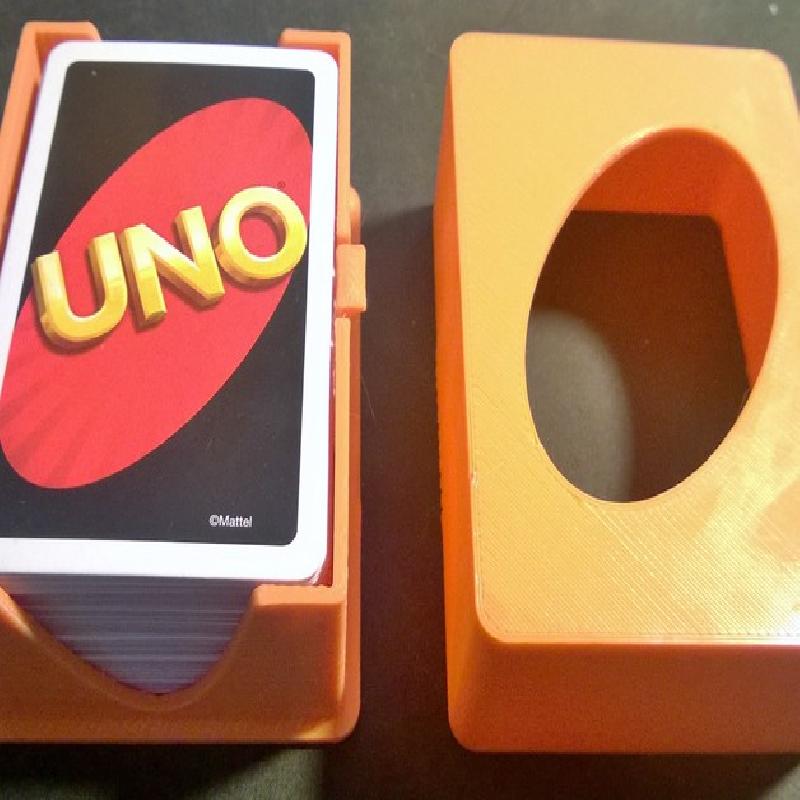

This is a simple UNO card game deck holder consisting of two parts. Design is inspired by JeremyVS's "Customizable Card Box with Cutouts" and been modified to fit the UNO card design.
Card size: 8.8mm x 5.6mm
Printer Brand: RepRap
Printer: Prusa i3
Rafts: No
Supports: No
Resolution: 0.2mm
Infill: 15%
Notes:
I printed this in PLA on my Afinibot A3 (prusa i3) using Sli3er and Repetier-Host with the following parameters: - 2 perimeters - 2 solid layers (top/bottom) - 15% rectilinear infill - 0.2mm layer hight (first layer 0.3mm) PLEASE NOTE: You will have to rotate the top cover 180° around the X- or Y-axis to place the flat side on the printer bed.

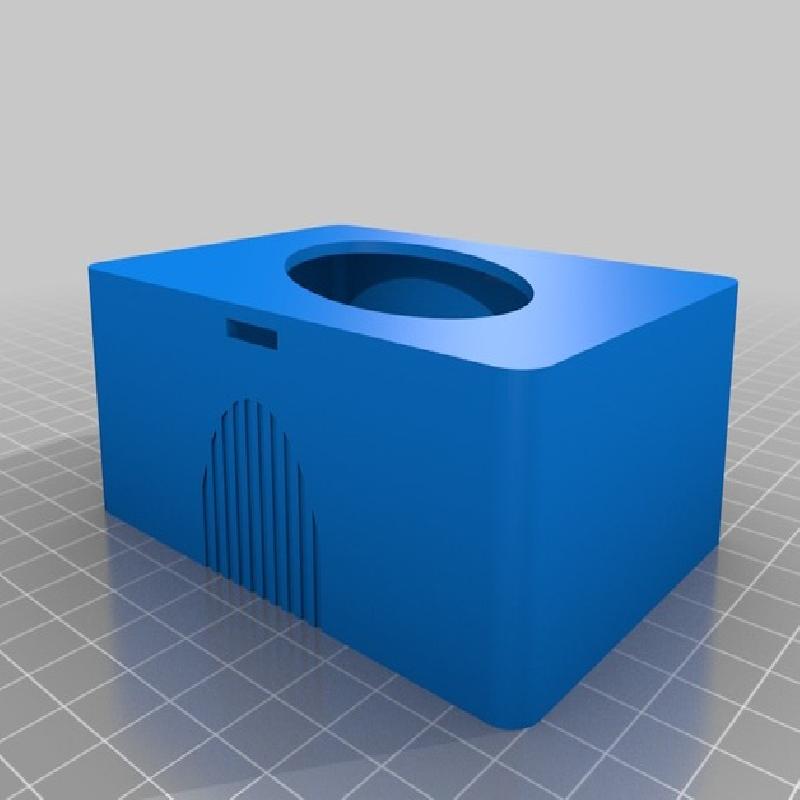

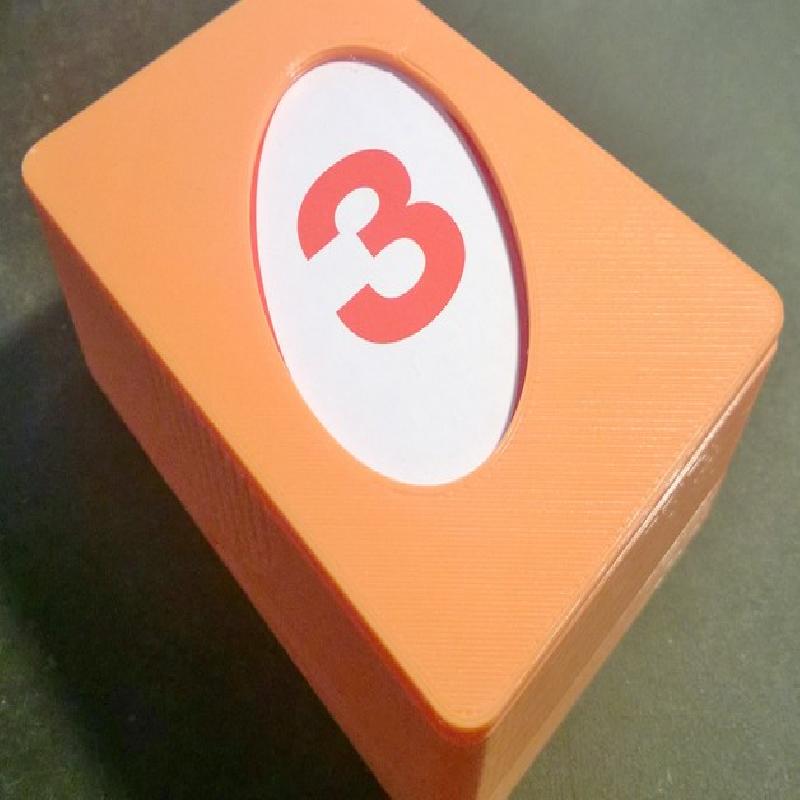

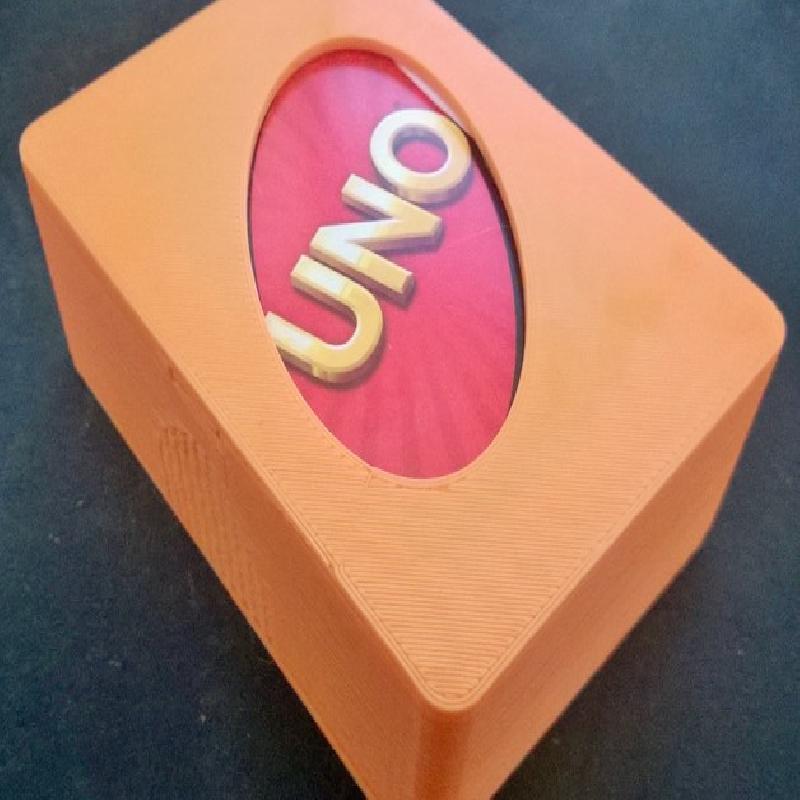

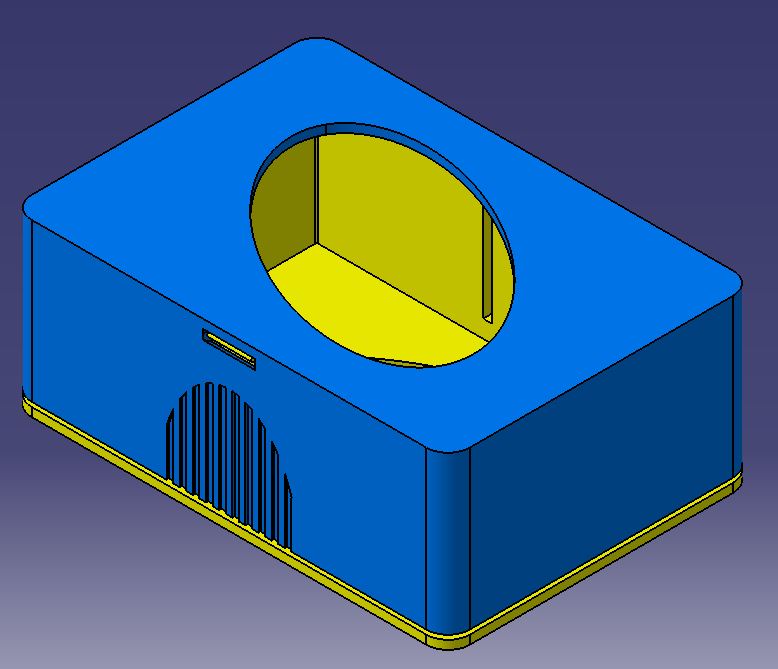

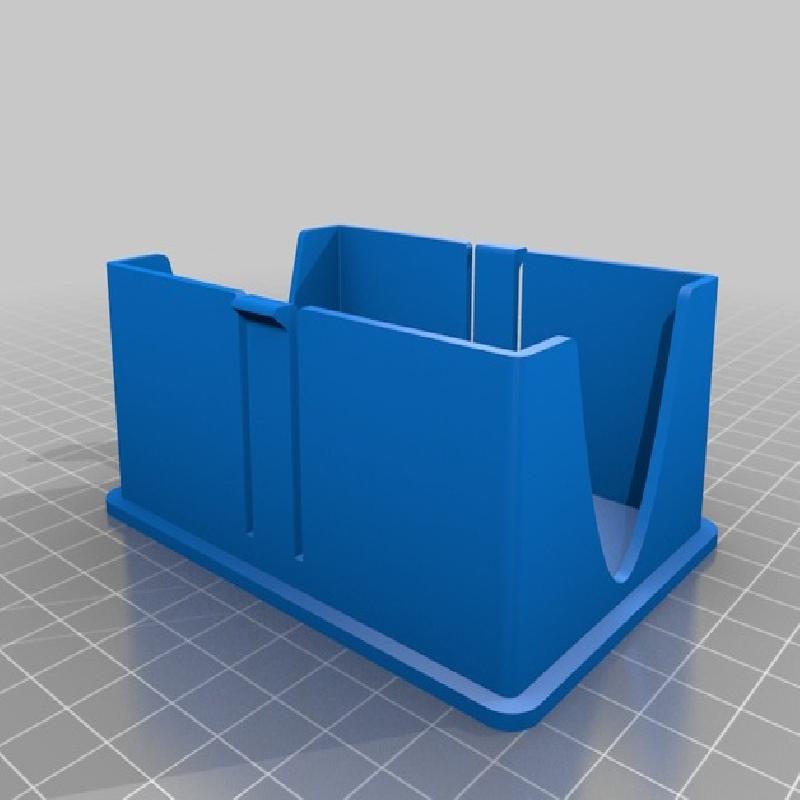

Compared to the source design I edited some elements like elliptical cutout to fit the design of the UNO card game, so you can see the UNO logo nearly completely. I also rounded the corners of the box, edited the clips and added some structured areas on the sides of the cover for a better grip. At last I splited the Thing into two separat STL-files to print both parts of the box separately.
