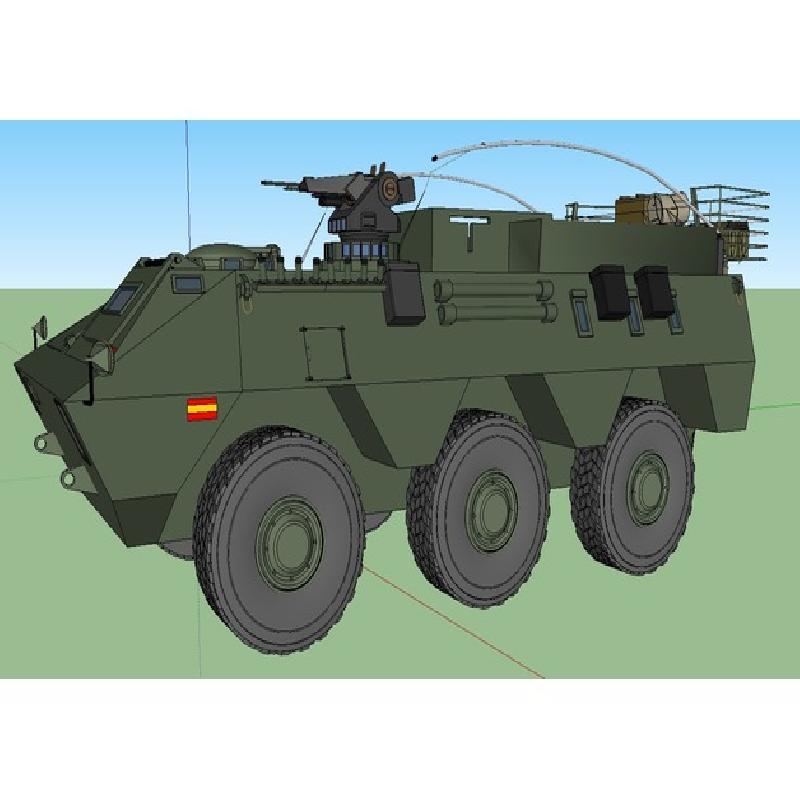

The BMR-600 is a Spanish wheeled APC that has seen service on several UN operations, and is in active use with the Spanish Army. It is an interesting vehicle, and this is a 1:76 model, based on a 3D skin model by I.J. Q. in the SketchUp library, to whom my thanks.
It required a significant amount of work, as many elements were too fine to print in this scale, and the wheel area was incomplete. I also changed several elements to ensure that the model represented vehicles I had seen in photographs, so the result is not quite as shown on the SketchUp picture, but should be closer to the real APC.

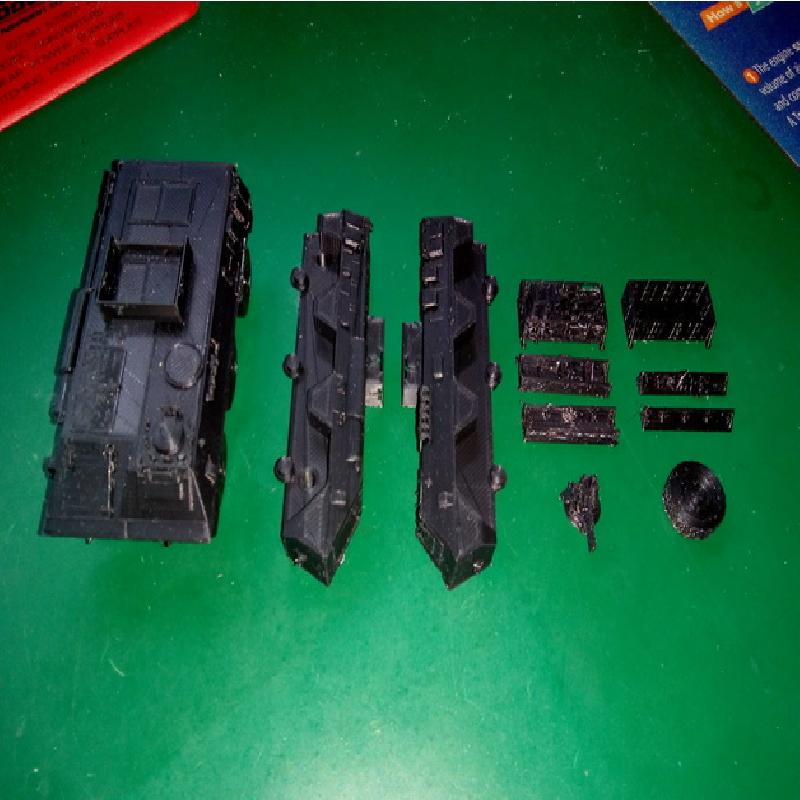

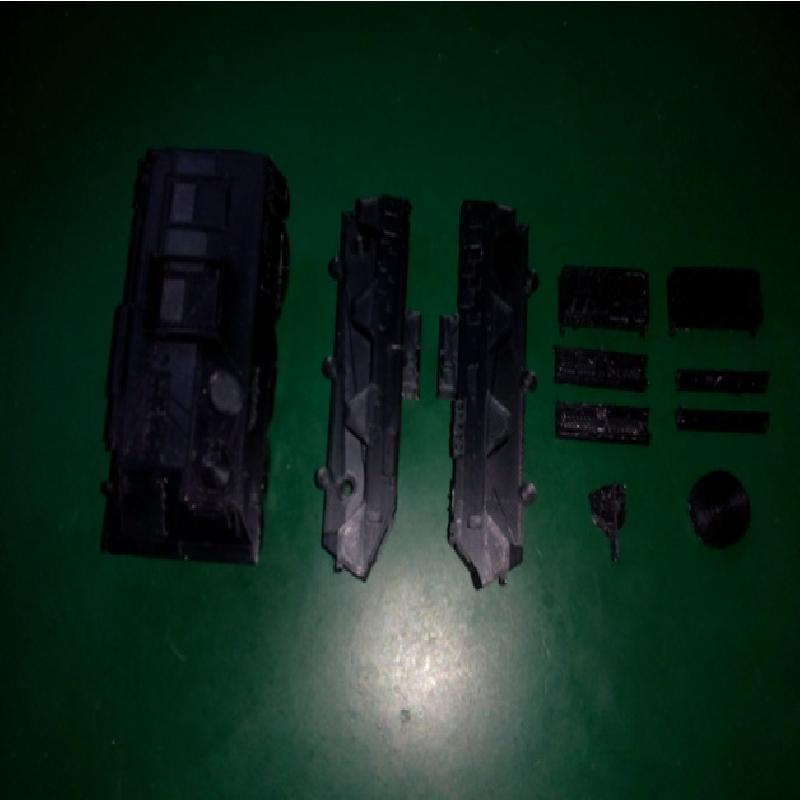

I believe that this will now print well, but the racks can be tricky - I have provided versions with kit in them which may prove easier to make. The main hull is split to optimise the print positioning, but can easily be fused if so required. The wheels appear a bit flat, but are actually correct, as far as I can tell. I have enlarged the nuts so that they print. The turret gun can also be tricky, and you may wish to print at a higher resolution.
Again, my thanks to Microsoft and AutoCAD for their excellent CAD programmes.
I hope this beast is of interest! Enjoy!
Loaded wheel without collar to match latest hull...
Printer Brand:
Creality
Printer:
Ender 3
Supports:
Yes
Resolution:
0.1mm
