by boelle

This is the same as by @farscape1

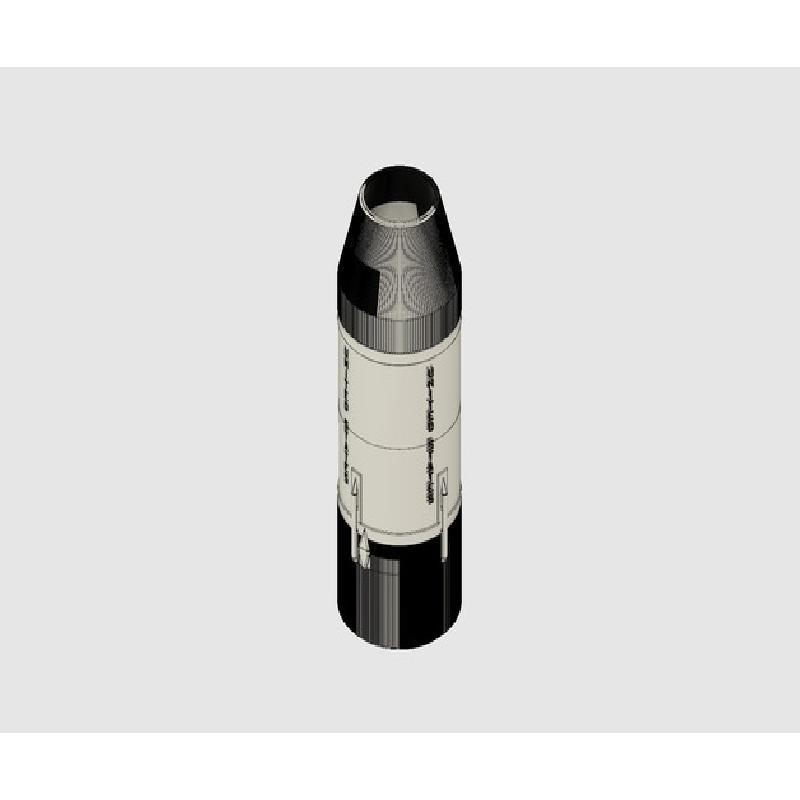

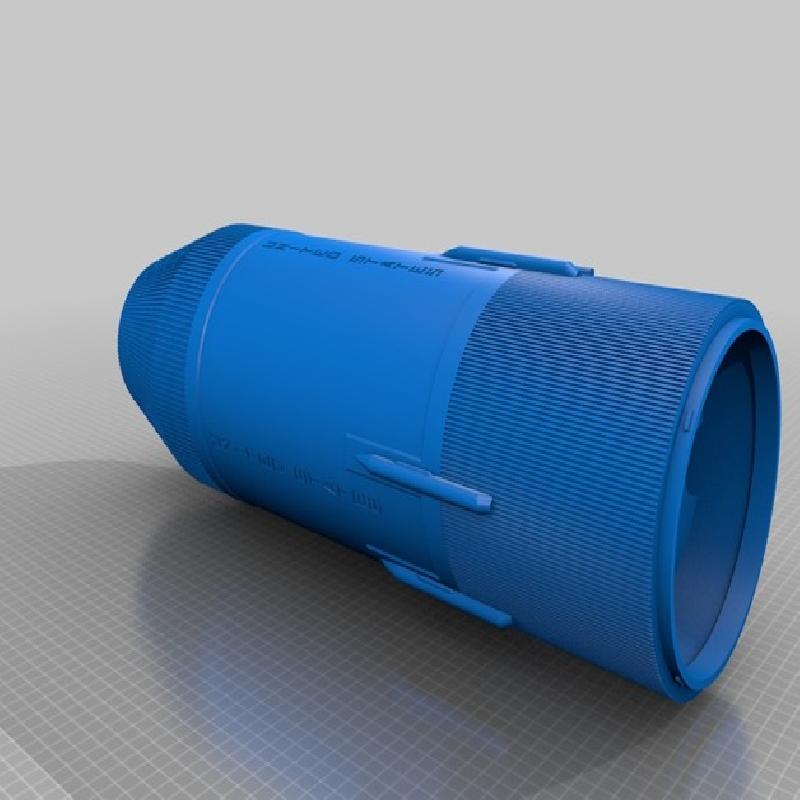

I just collected the bits into Fusion360 so that each part can be shown or hidden.

It will come very handy during assembly.

Fusion360 Public download link: https://a360.co/2DgNENs

I will also do a slideshow video of my assembly when i get that far

STATUS: To be printed

Materials needed - will update once all parts are printed:

Red ........? kg
White........ ? kg
Black ........? kg
Gray .......? kg
Green.......? kg
Blue .... ? kg

Loctite Super Glue - Precision (2062278)
It's a small 5g bottle and it's thin as water. A little goes a long way and it hardens very fast

The engines can be found here: http://www.semaker.com/productdetail/21189

I will print the engines and pipes seperate, BUT getting the pipes and engines mounted will be tricky, not as simple as with the first stage.

Stl's will be added once assembly is done and I know for sure everything match up

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK2.5

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

25%

Filament:                                            Devil Design PLA

Notes:

Standard slicer setting except:

3 perimeter
Infill 25%

Where Support material is needed set XY seperation to 100%

I also changed retract speed to 60 mm/s and disabled retract on layer change

Filament settings was set to standard Prusament and worked fine with Devil Design PLA
