by boelle

This is the same as by @farscape1

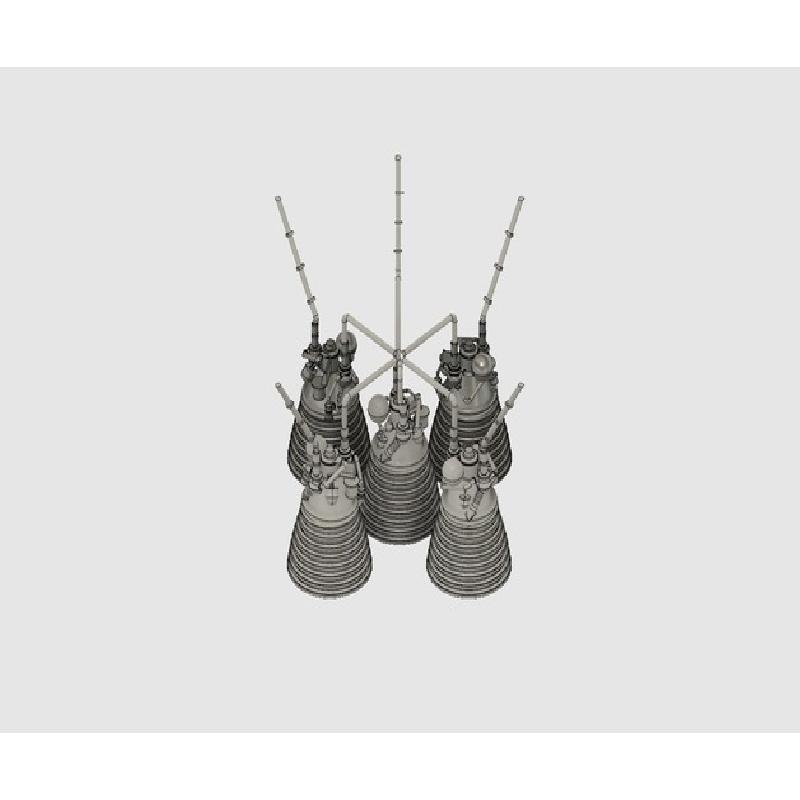

I just collected the bits into Fusion360 so that each part can be shown or hidden.

It will come very handy during assembly.

Fusion360 Public download link: https://a360.co/2Seuu5f

I will also do a slideshow video of my assembly when i get that far

STATUS: To be printed

Materials needed - will update once all parts are printed:

Gray .......? kg

Loctite Super Glue - Precision (2062278)
It's a small 5g bottle and it's thin as water. A little goes a long way and it hardens very fast

Stl's will be added once assembly is done and I know for sure everything match up

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK2.5

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

25%

Filament:                                            Devil Design PLA

Notes:

Standard slicer setting except:

3 perimeter
Infill 25%

Where Support material is needed set XY seperation to 100%

I also changed retract speed to 60 mm/s and disabled retract on layer change

Filament settings was set to standard Prusament and worked fine with Devil Design PLA
