by AndrewBougie, published
The dark side and the light side are just two sides of the same coin, right? At least they are in this case.

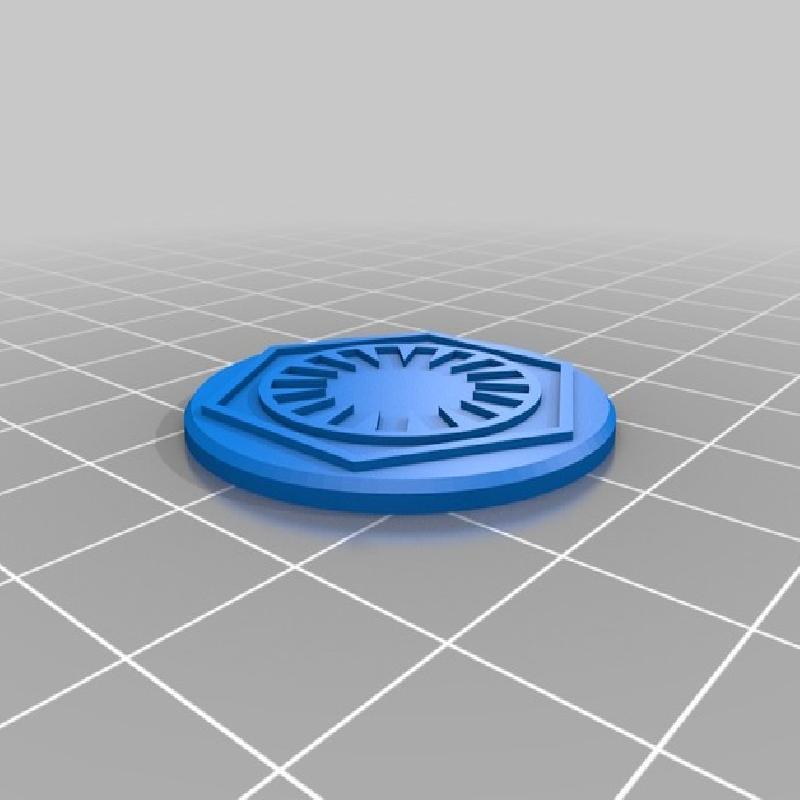

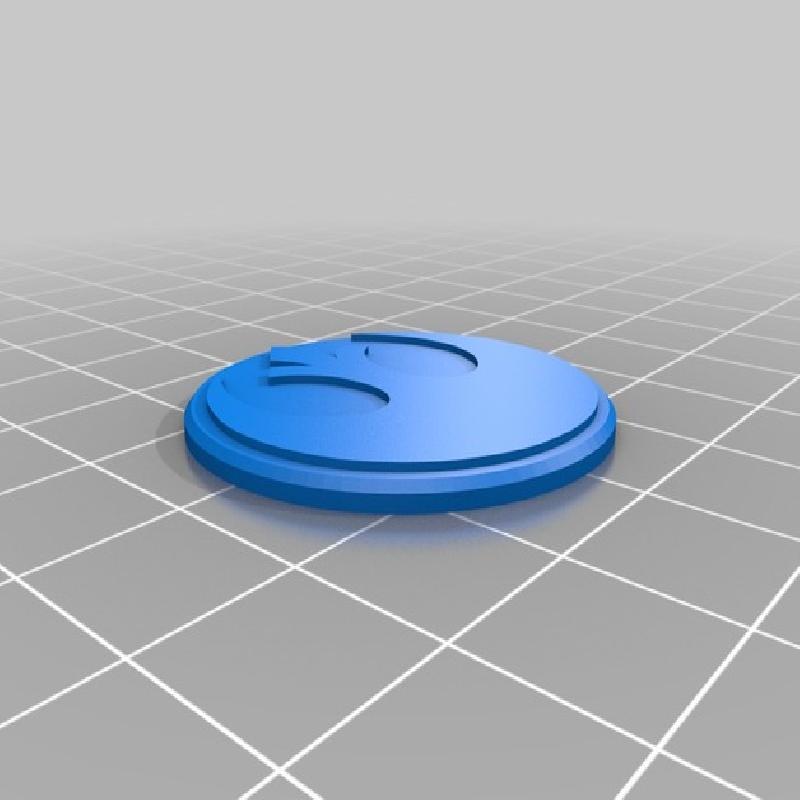

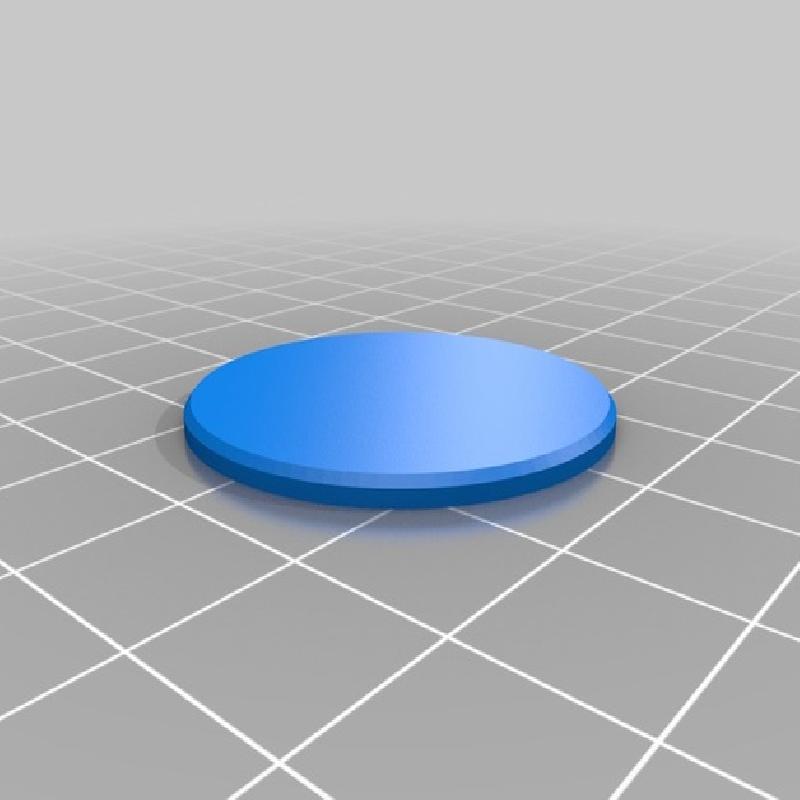

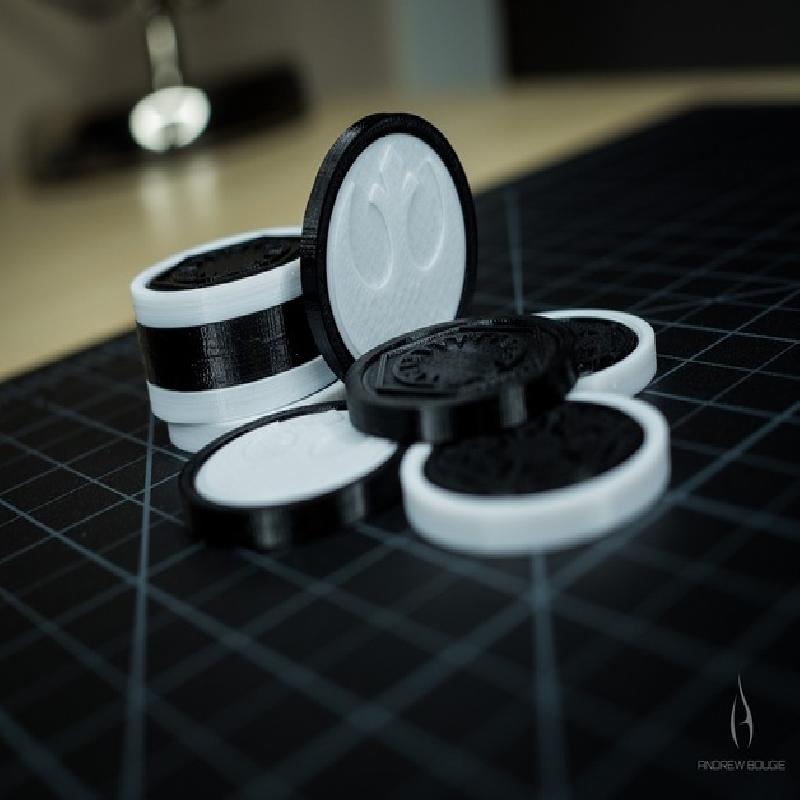

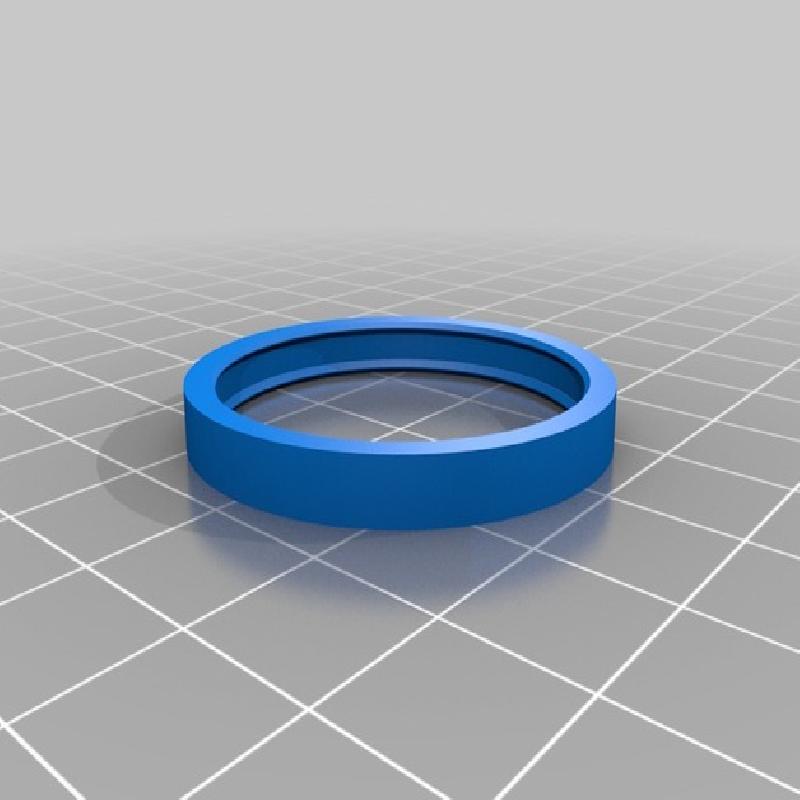

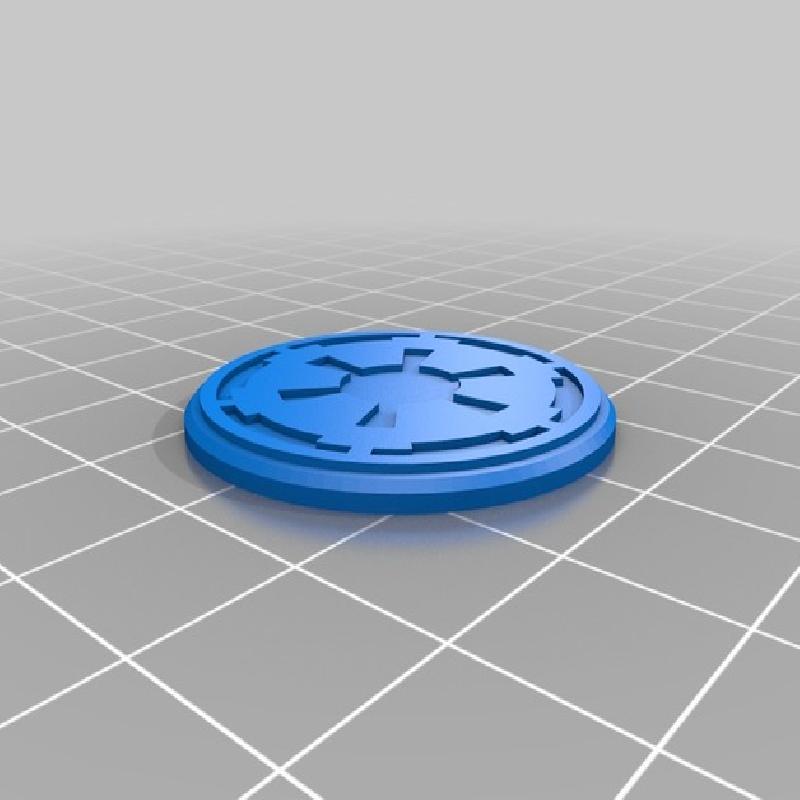

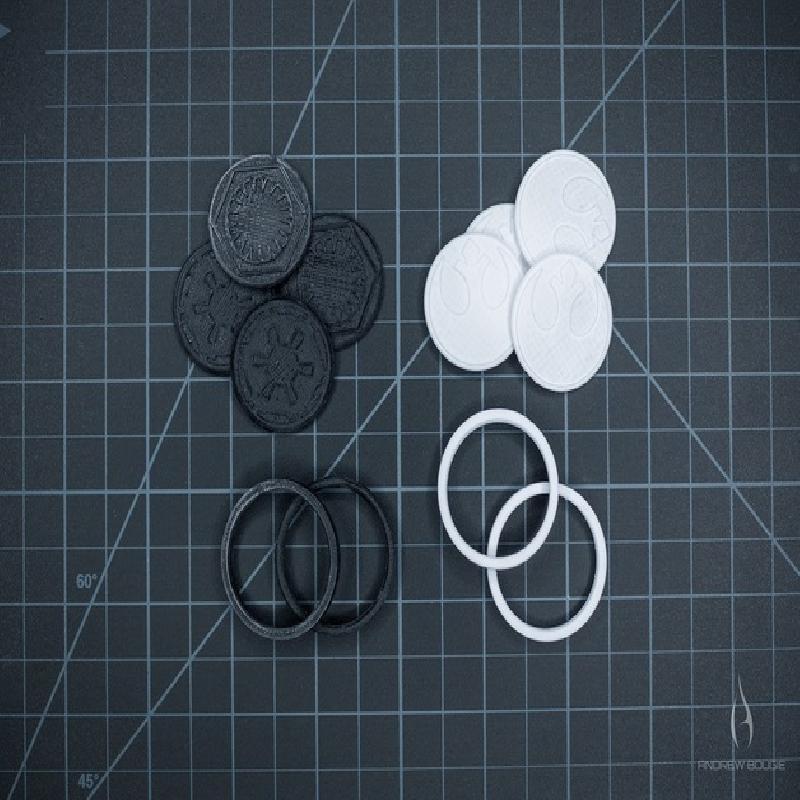

This is a simple modular coin design that consists of 3 parts: 1 rim and 2 inserts. I have included a blank for remixing or gluing your own designs to the coins as needed. The finished coins have a 36mm diameter and are 4mm thick.
The inserts are just the right size to snap into the rim and stay in place. When installed, the inserts have a little bit of play. This was to allow for various printer capabilities. If you don't like the bit of wiggle room that is left, you can put a small piece (or two) of standard office paper in between the inserts to get rid of the movement.
Printer Brand: Printrbot
Printer: Simple Black
Rafts: No
Supports: No
Resolution: 100 microns
Infill: 25% or solid
Notes:
I printed these in PETG which may make it easier to snap the inserts into the rim without breaking them. It should work fine with ABS or PLA, though.
