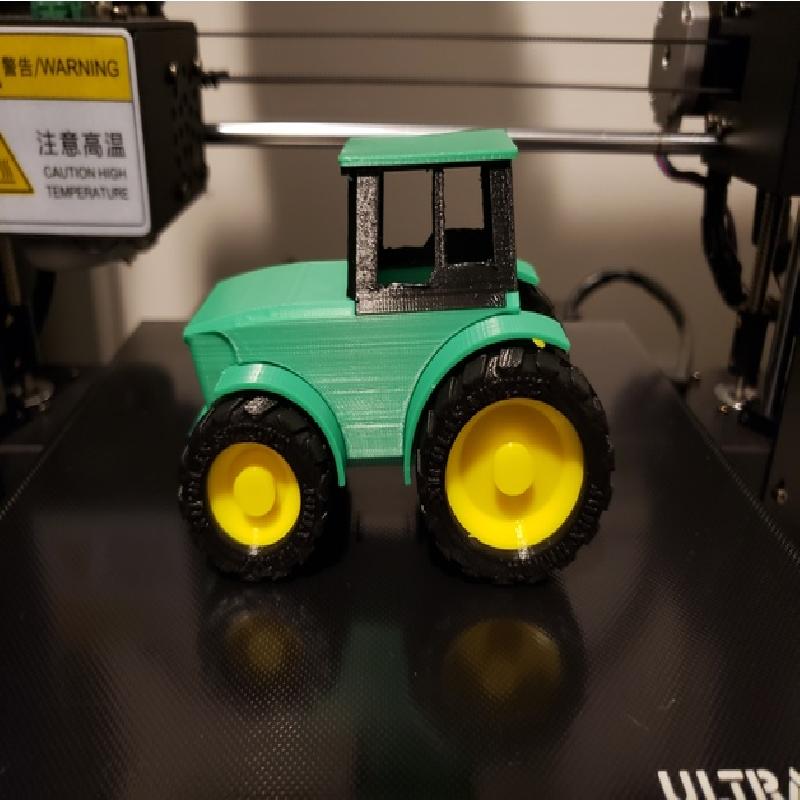

I very much enjoyed making the original of this, but I wanted to improve some of the default planes and create printed hubs to avoid buying threaded rod. The wheels do spin on this remix. Also, the original wheels didn't seem to have enough surface area to properly adhere to my baseplate so I flattened the inside. I also had to create a larger diameter hole in the wheels to fit the hub.
The files that I created from scratch are the wheels and wheel hubs. All of the others that were remixed were to put them in the proper plane for Cura. All of the files I modified or created from scratch end in _Remix.
Tires friction fit on the wheels. Hubs friction fit in the body. Glue is needed for cab to body, roof to cab, and fenders to body.
Make sure to alternate your tire tread patterns both on the same wheel and for a left and right. Lesson learned for my next one.
Printed on an AnyCubic I3 Mega. Please read the print notes.
NOTE: It took my kids 15 minutes to break the hubs, so I am reprinting those at 100% infill.
Printer Brand:
Anycubic
Printer:
All-metal Mega
Rafts:
No
Supports:
Yes
Resolution:
0.1mm
Infill:
10%; 25%; 100%
Filament: Hatchbox PLA Green; Black; Yellow
Notes:
I used supports from the baseplate for the tractor body because of the hitch. All others were printed without. The cab could use supports, but I didn't like the results so printed without. Some minor sagging resulted.
I used 10% infill for the body, 100% infill for the cab, and 25% for everything else.
Designed/Modified in Fusion 360. Sliced in Cura.
How I printed:
Green body printed alone
All green fenders and cab roof printed in one print (5 pieces)
Black cab printed alone
All black tires printed in one print (8 pieces)
All yellow hubs and wheels printed in one print (8 pieces)
Part List Tractor:
1x Body
1x Cab
1x Cab Roof
2x Fender Front
2x Fender Rear
2x Wheel Front
2x Wheel Rear
2x Tire Front 1
2x Tire Front 2
2x Tire Rear 1
2x Tire Rear 2
4x Wheel Hub
