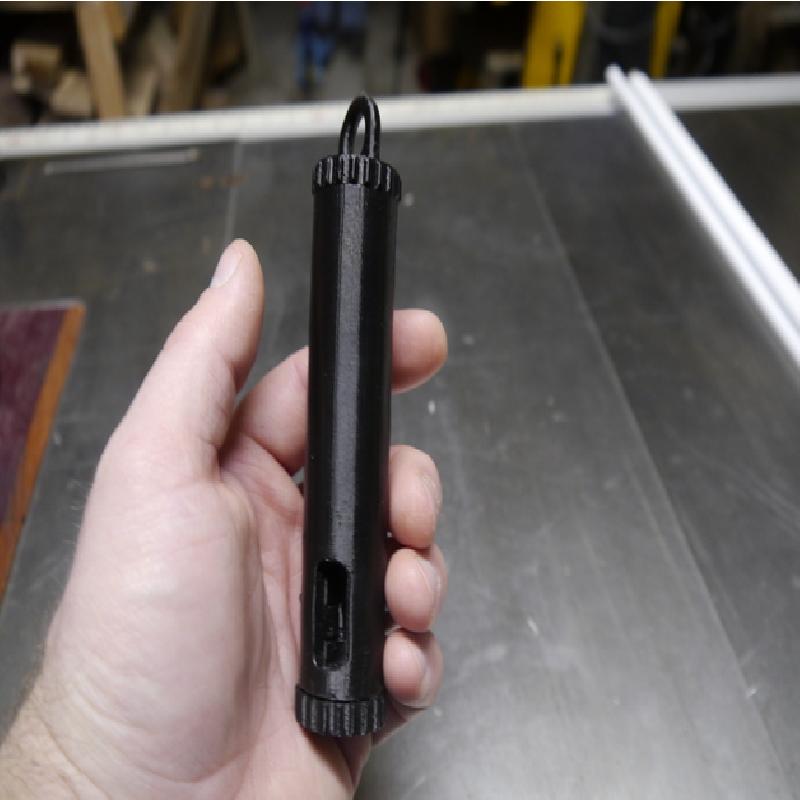

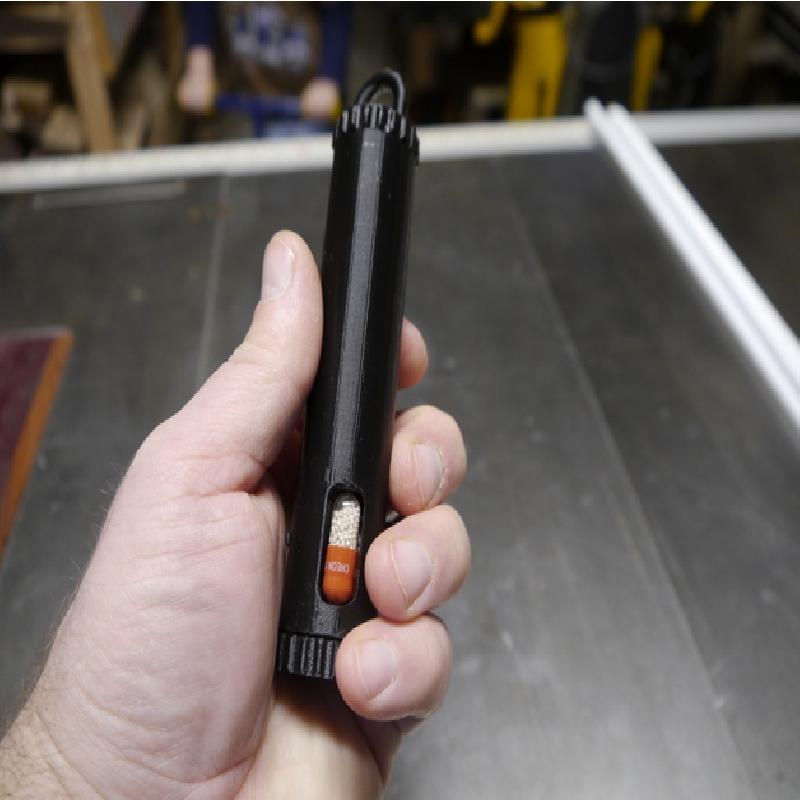

This is a medication holder, in my case Creon Lipase 24,000 units. It is designed for one handed dispensing. Every 1/4 rotation one capsule is released out the tangential opening. It should work well if your particular medication is approximately Ø0.30" in diameter and about 0.80" tall and cylindrical. I am still working on a "Cap" to allow it to be reasonably sealed, but since it is working how I envisioned it I don't see that happening soon so I thought I would release it now and update when I get around to it.
Video link below.
Printer Brand:
Prusa
Printer:
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
.2
Infill:
20%
Filament: Prusa PETG Black
Notes:
Cut off the 8 pillar supports on the rotor before inserting into the main body. Rotor can be printed without supports. The PIll_Body and the screw on top should have supports on when printing. Print the rotor with more 3 or 4 external shells so the central shaft has more strength. Print with PLA or PETG either works well.
