by D3Dorsett

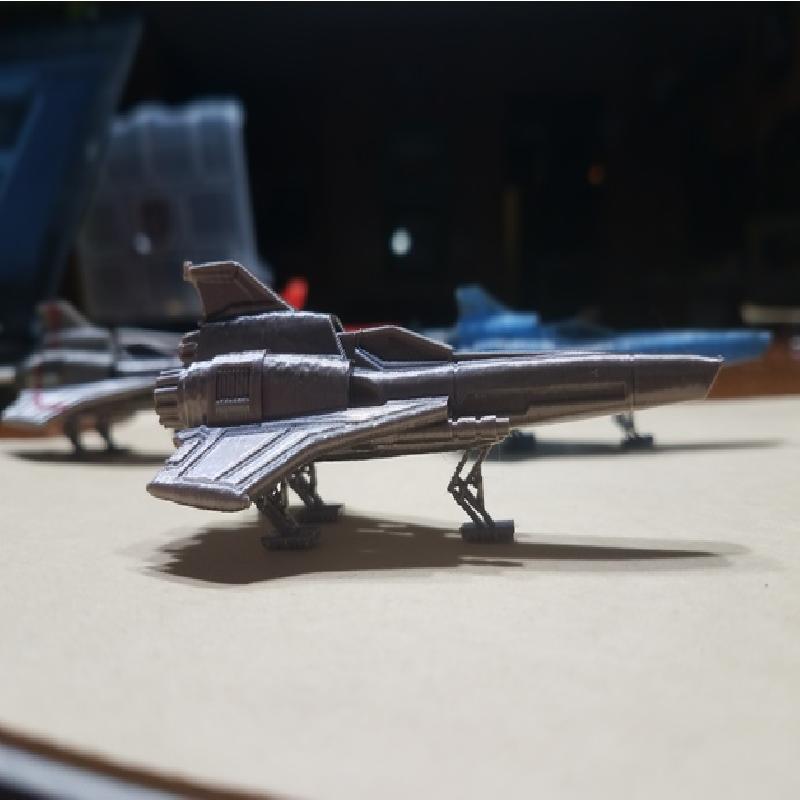

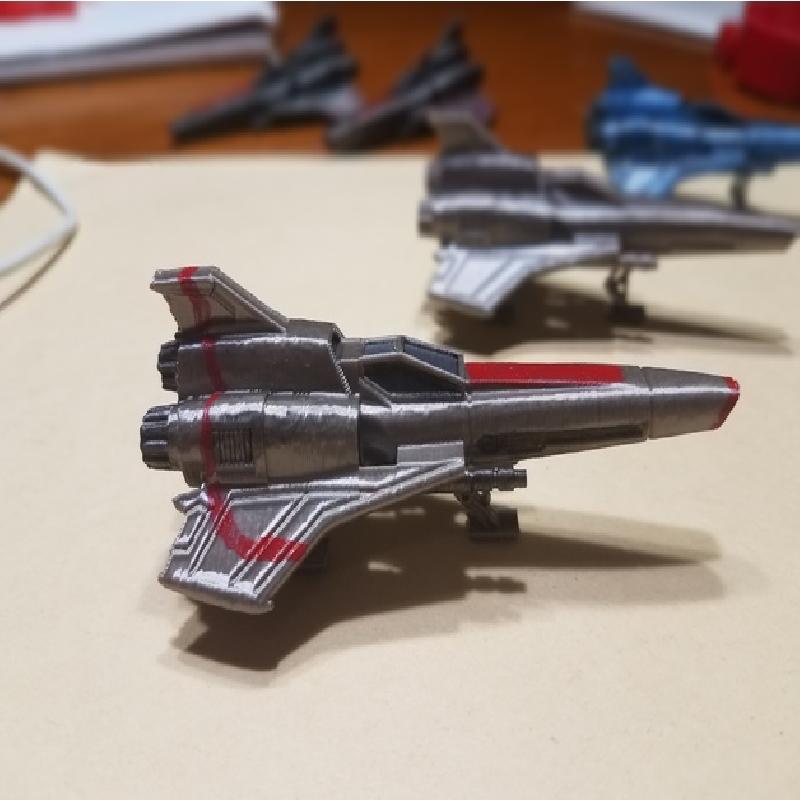

The best things about 3D printing is getting to print things you loved as a kid, the Battlestar Viper is one of mine.
I searched and found many versions. I wanted one with landing gear so it would sit better as a display. So, I started with Mylotian's version, however when I scaled it down it print too thin and I really wanted one that was all one piece. Next, I tried alpokemon's version with a stand. I looks good, but no landing gear.
Enjoy!
Printer:
Ender 3
Rafts:
No
Supports:
Yes
Resolution:
.2
Infill:
10%
Filament: Stronghero3D 3D PLA Epic Rainbow Multicolors
Notes:
Touching Build for supports.
For Cura, supports try...
Support Overhang 60
Support Pattern Grid
Support Density 15%
Support Top Distance 0.3mm
Support X/Y Distance 0.6mm (PLA) 0.7mm (PETG)
Support Distance Prority Z Overides X/Y
Minimum Support 0.2mm
Support Join Distance 2.0mm
Gradual Support Infill Step 3
