by sasha19md

Print with a machine that handles tolerances of 0.3-0.4 mm, if it doesn't, things won't fit together, and the ladder peaces will most probably stick to each other.

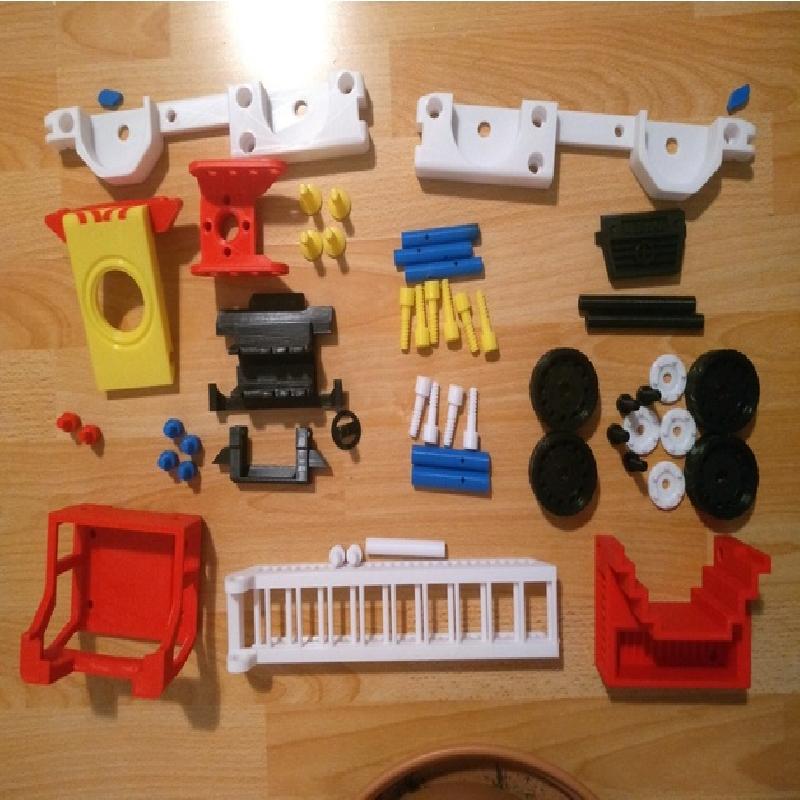

Print list - quantity - stl file name - used collor - observation:

• 2x - die_connection_69p6mm_r6p7.stl  blue        III         as it is            no support

• 1x - front_grill.stl                 black       I           turn 90 deg over Y  no support

• 1x - back_top.stl                    yellow      I           as it is            no support

• 1x - back_grill_lights.stl           red         I           turn 90 deg over Y  no support

• 1x - ladder_base.stl                 red         I           as it is            with support

• 1x - ladder_in_out.stl               white       I           upside down         with support

• 1x - cockpit.stl                     black       I           as it is            with support

• 1x - trunk_stairs.stl                red         I           turn 180 deg over Y with support

• 1x - cabin.stl                       red         I           turn 90 deg over Y  with support

• 1x - seats_2_rows.stl                black       I           as it is            no support

• 1x - side_left.stl                   white       I           turn 90 deg over X  no support

• 1x - side_right.stl                  white       I           turn 90 deg over X  no support

• 2x - wheel_axle_100mm_r5p5.stl       black       II          as it is            no support

• 3x - die_connection_69p6mm_r5p5.stl  blue        III         as it is            no support

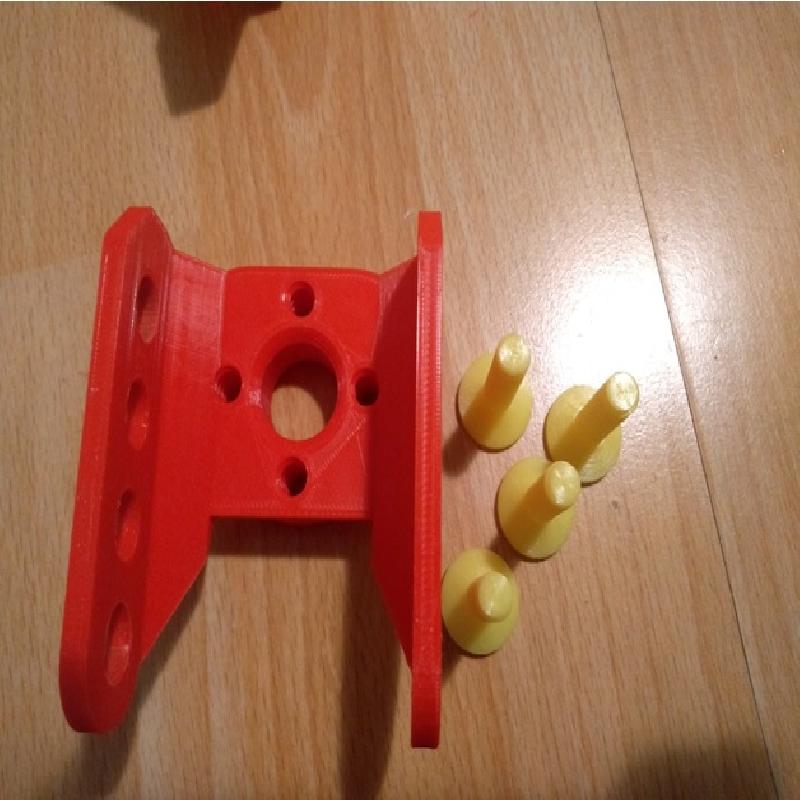

• 4x - screw_ladder_base.stl           yellow      IIII        as it is            no support

• 6x - screw_20mm_filet_10mm_full.stl  yellow      IIIIII      as it is            no support

• 4x - screw_20mm_filet_10mm_full.stl  white       IIII        as it is            no support

• 4x - screw_27mm_filet.stl            black       IIII        as it is            no support

• 2x - fire_truck_roof_light.stl       blue        II          as it is            no support

• 2x - roof_light_LEFT_HAND.stl        blue        II          as it is            no support

• 1x - fire_truck_roof_light.stl       red         II          as it is            no support

• 1x - roof_light_LEFT_HAND.stl        red         II          as it is            no support

• 2x - fire_truck_roof_light.stl       white       II          as it is            no support

• 2x - wheel_left.stl                  black       II          as it is            with support

• 2x - wheel_right.stl                 black       II          as it is            with support

• 4x - wheel_cap.stl                   white       IIII        as it is            no support

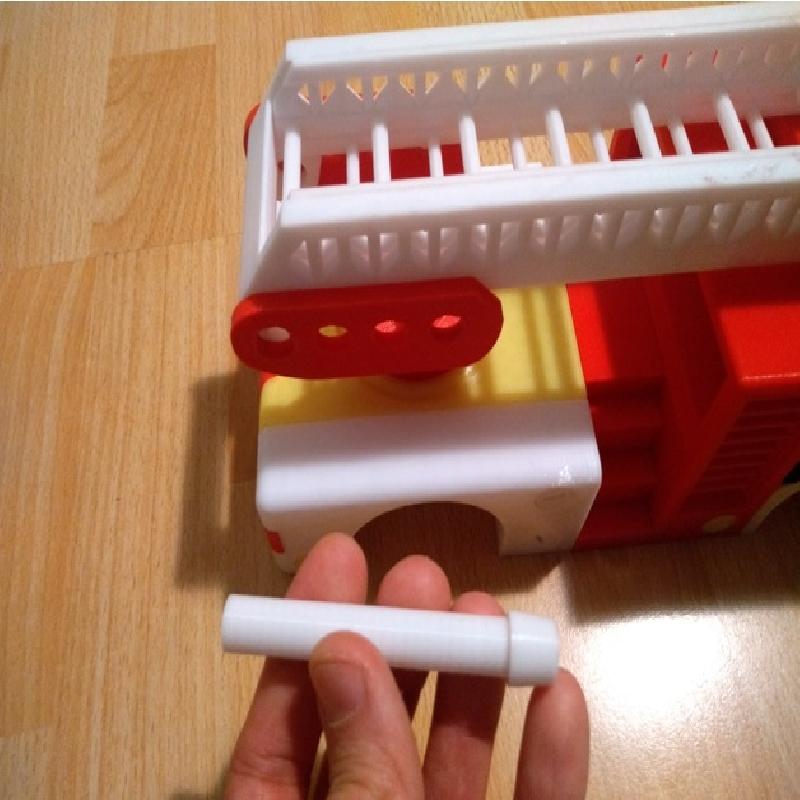

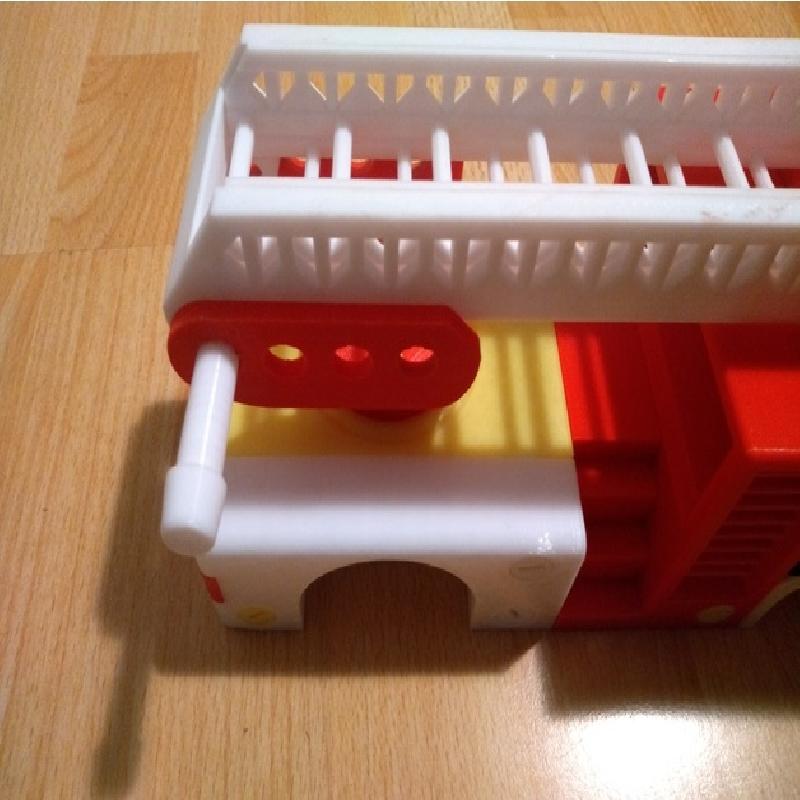

• 1x - lader_axle_72mm_r5p5.stl        white       I           as it is            no support

• 2x - front_light.stl                 blue        II          turn 90 deg over Y  no support

Print Settings

Printer:

Creality CR10 mini

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

0.12 to 0.20

Infill:

0.15 to 0.25

Filament:                                            cheap PLA cheap PLA                                        white, black, yellow, red, blue

Notes:

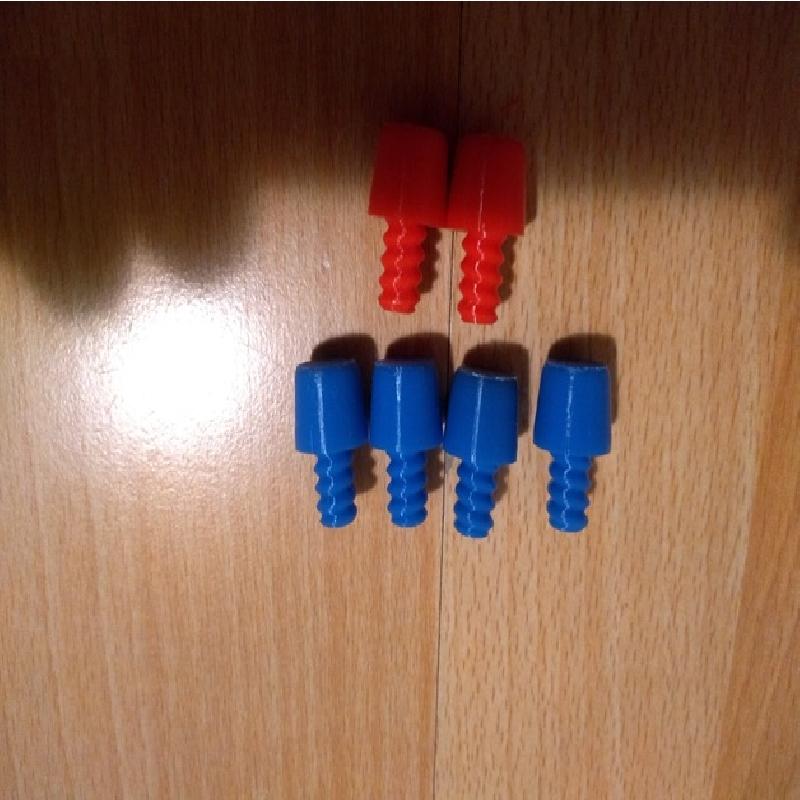

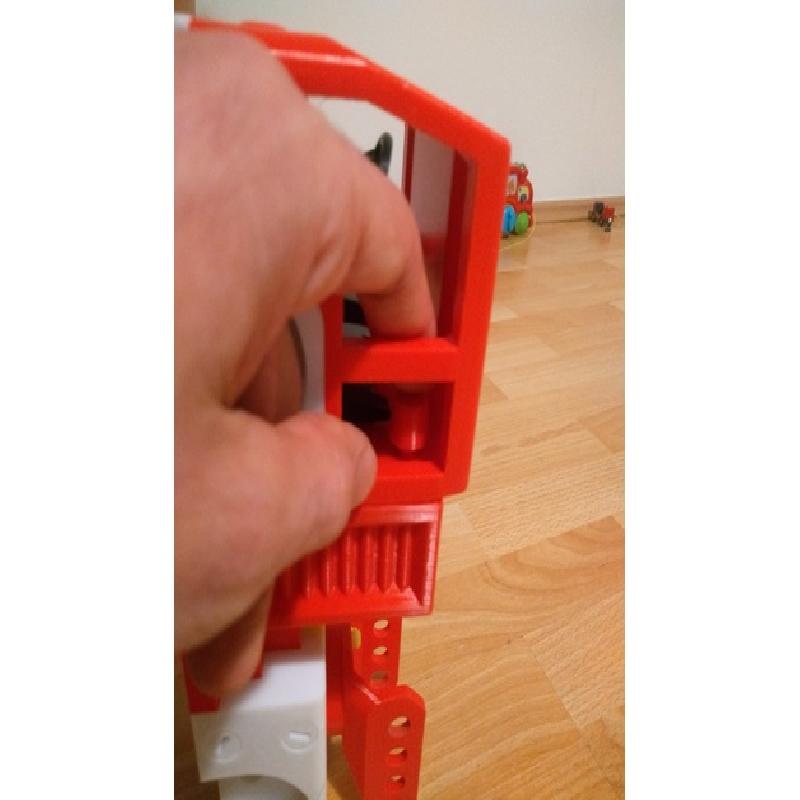

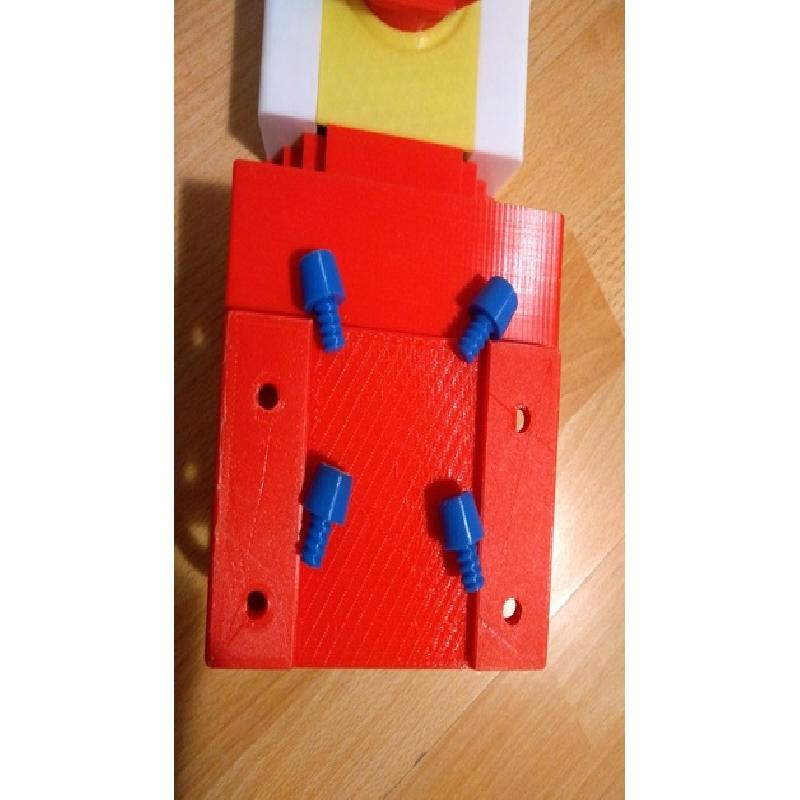

The blue light-screws that come on the cabin top are right and left handed (2 and 2)! The same is valid for the 2 small red screws that fix the cabin from the inside. The rest of the screws are right handed.

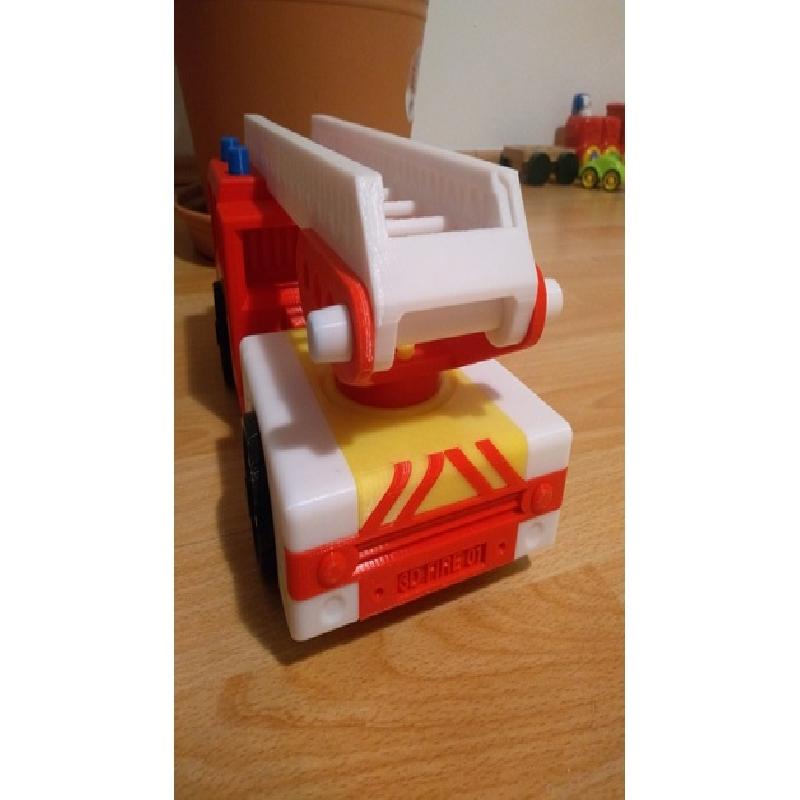

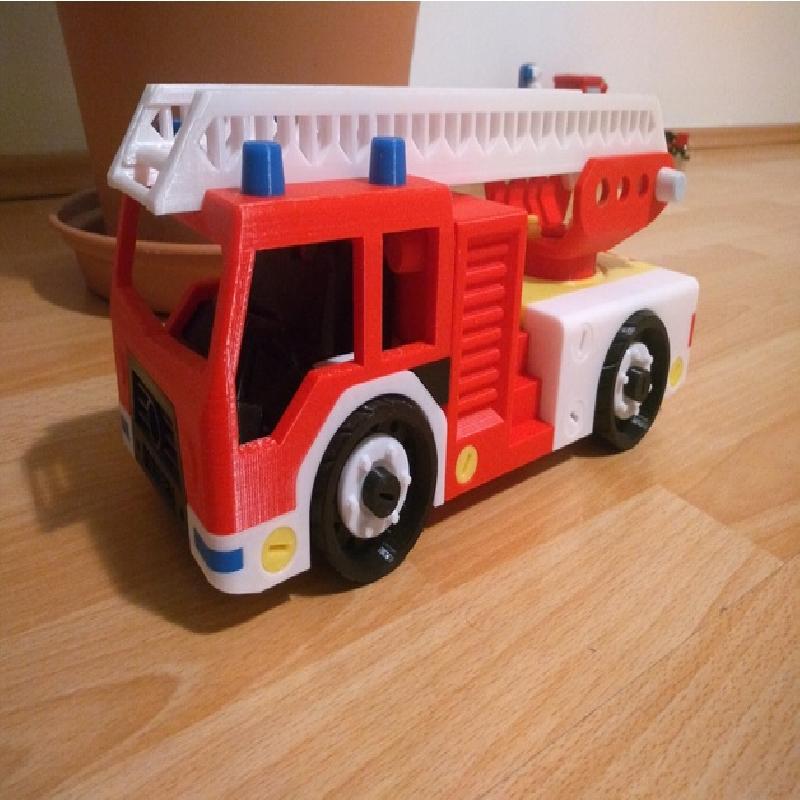

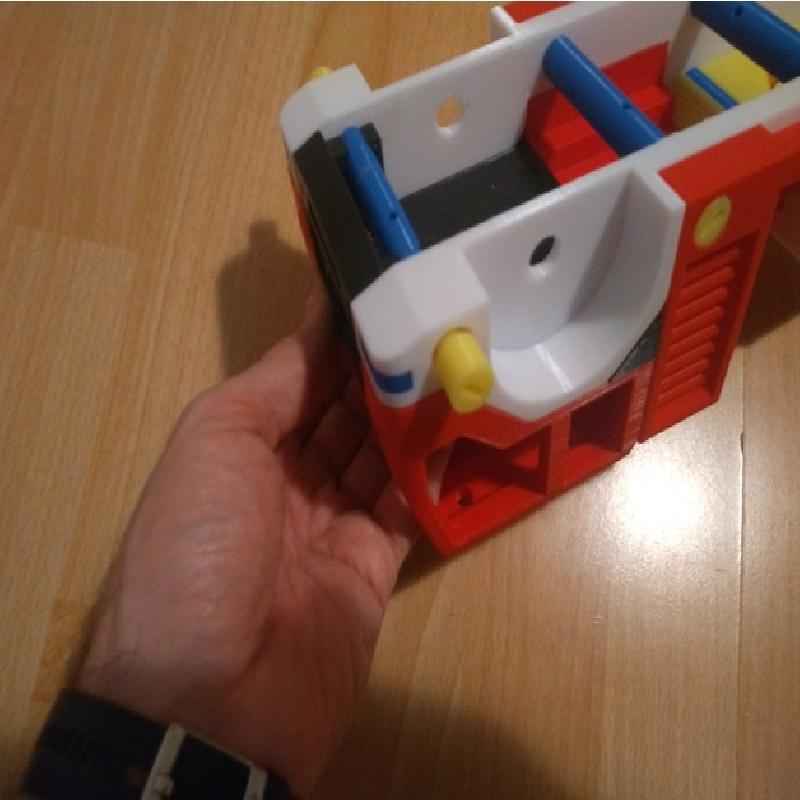

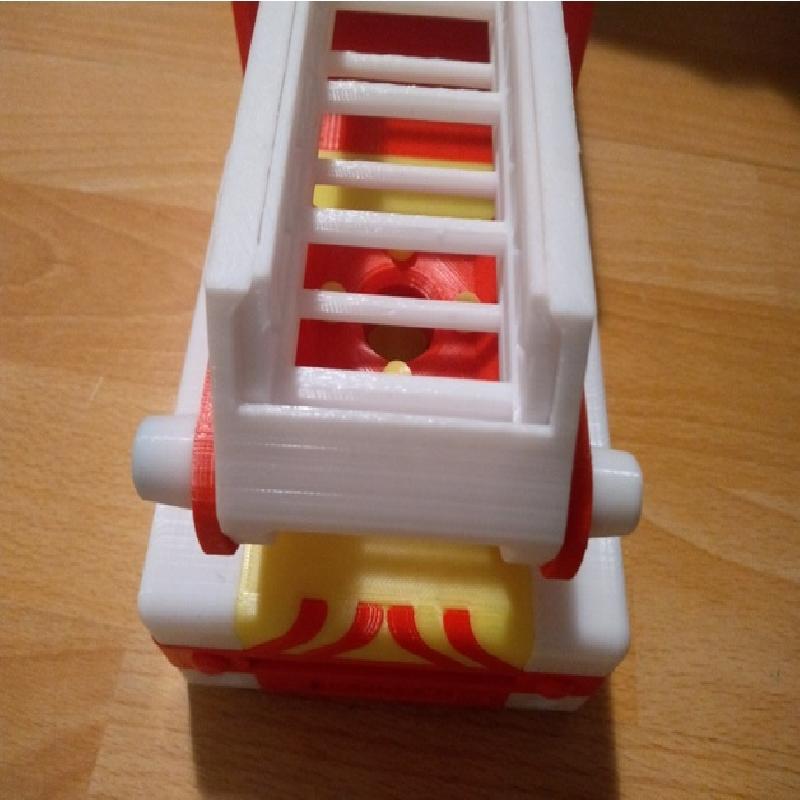

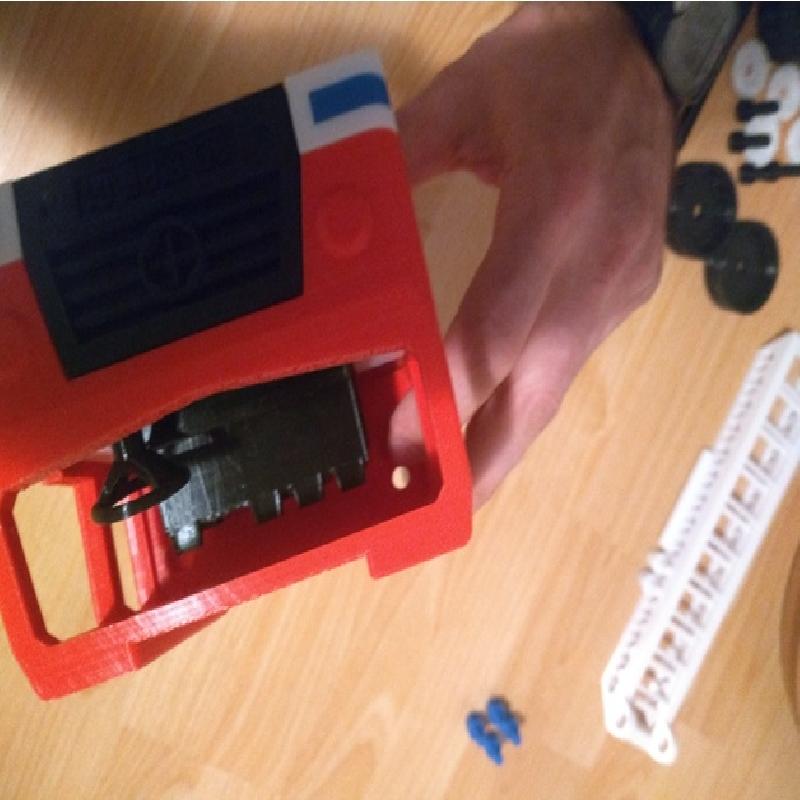

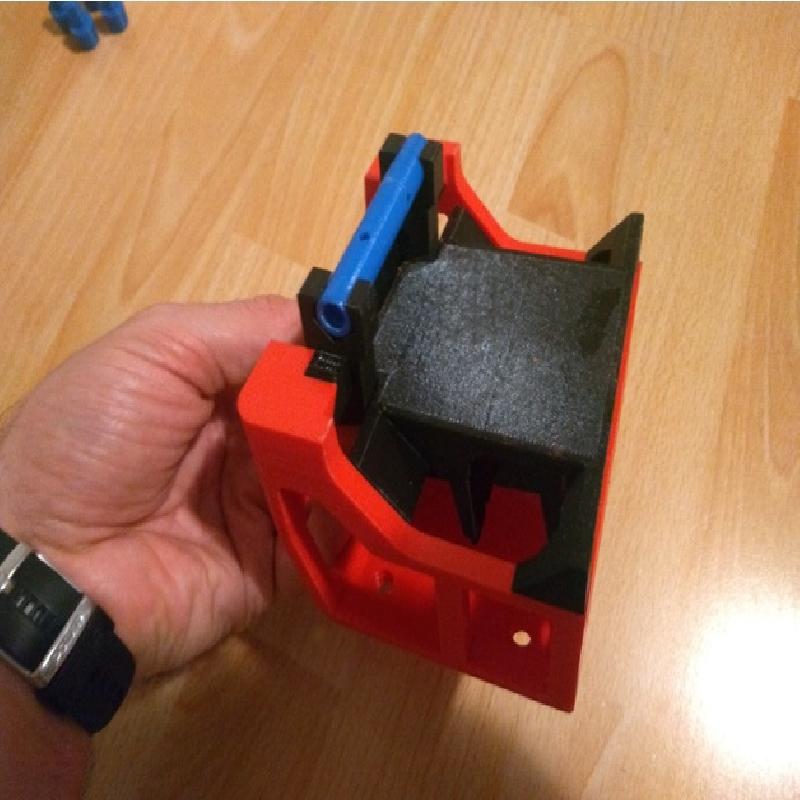

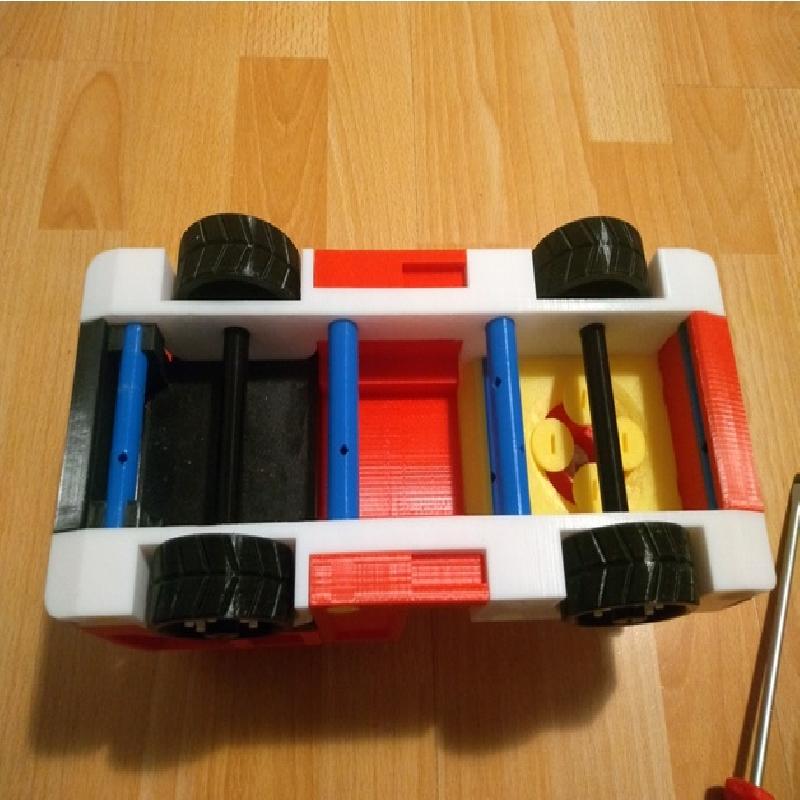

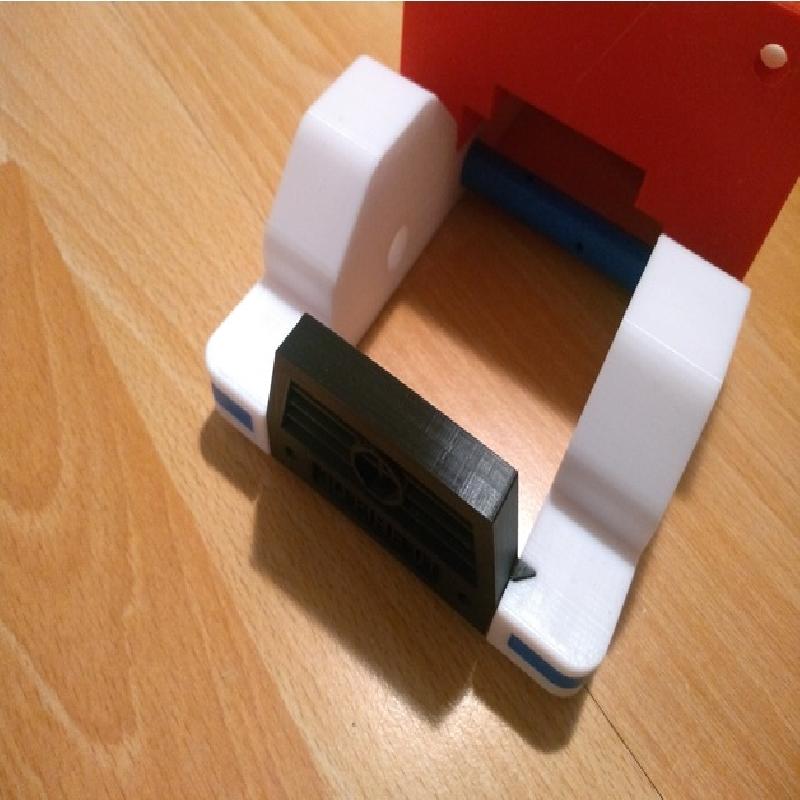

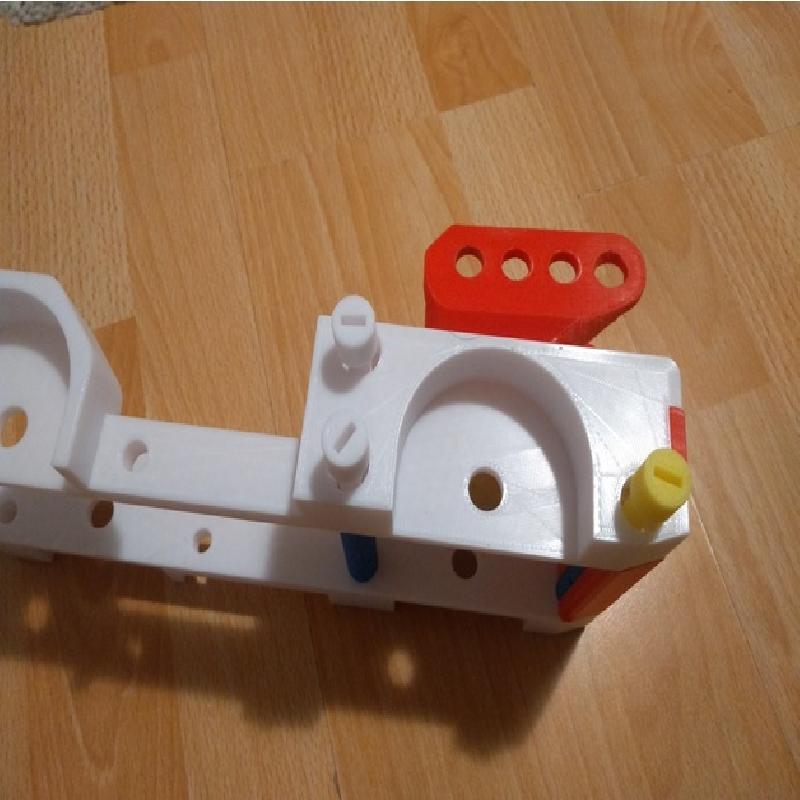

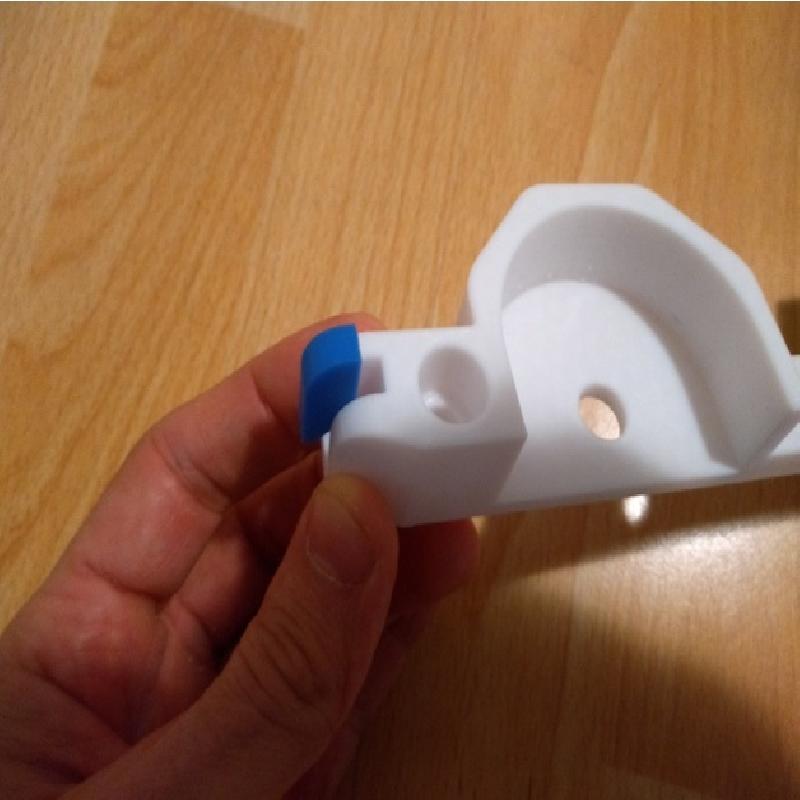

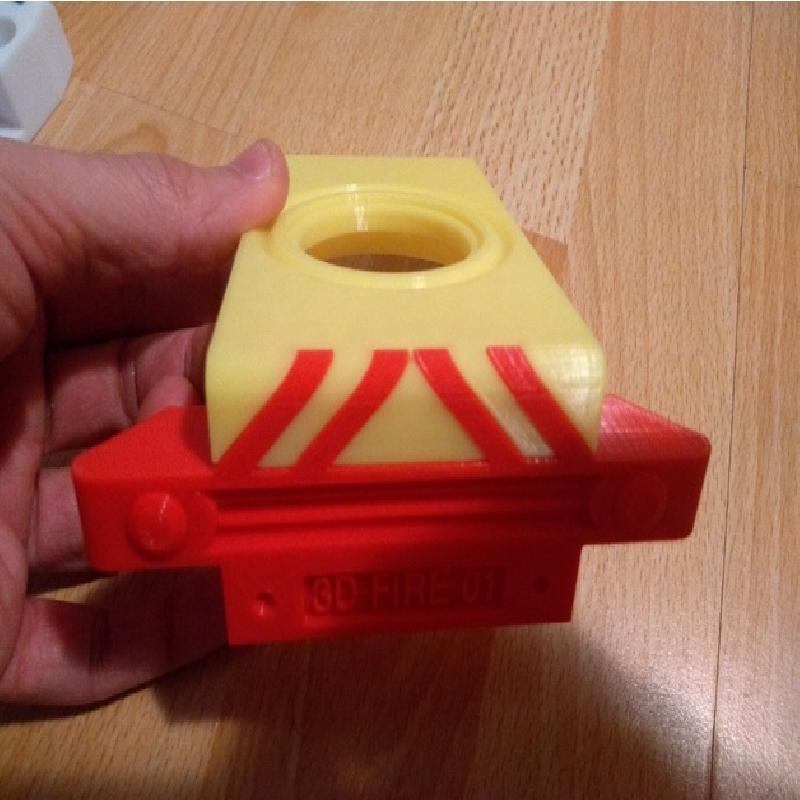

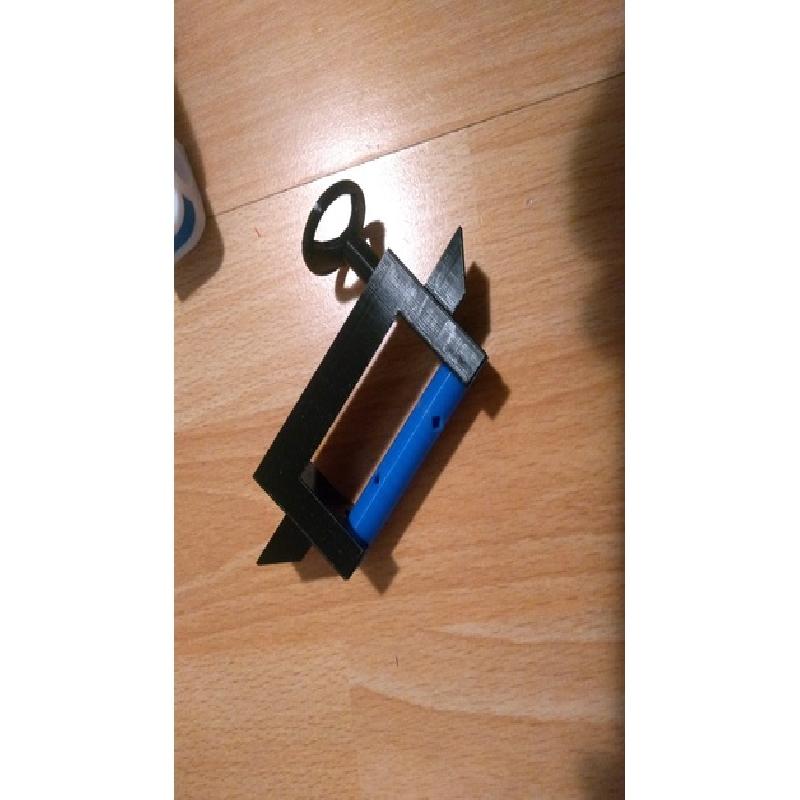

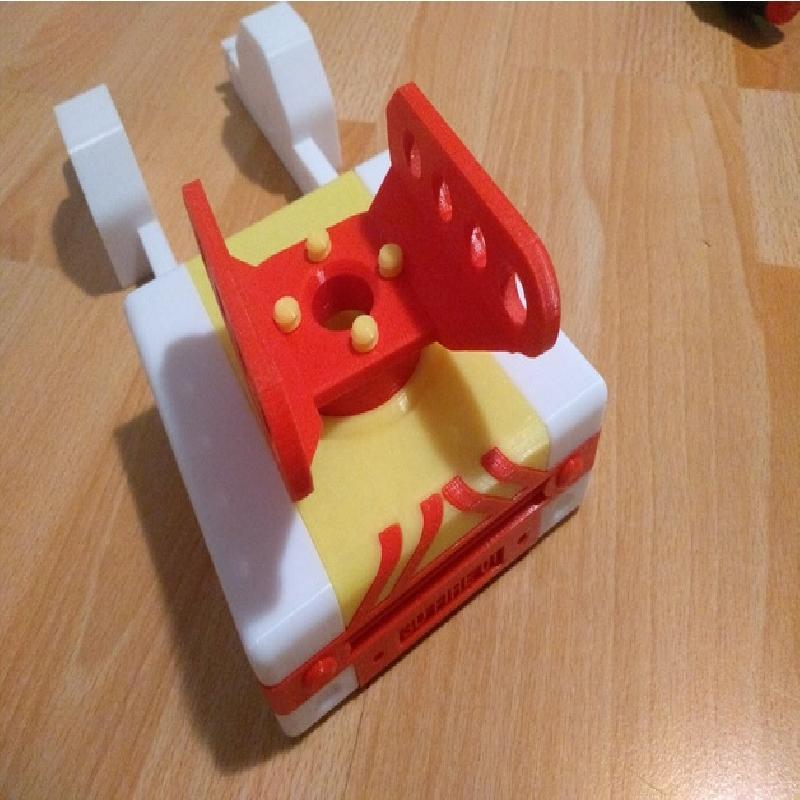

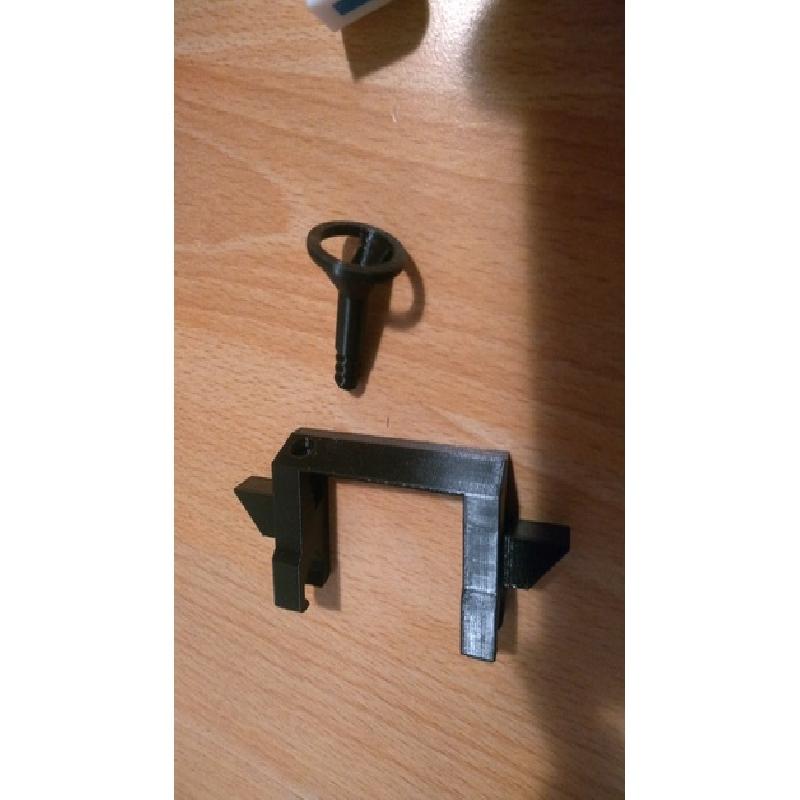

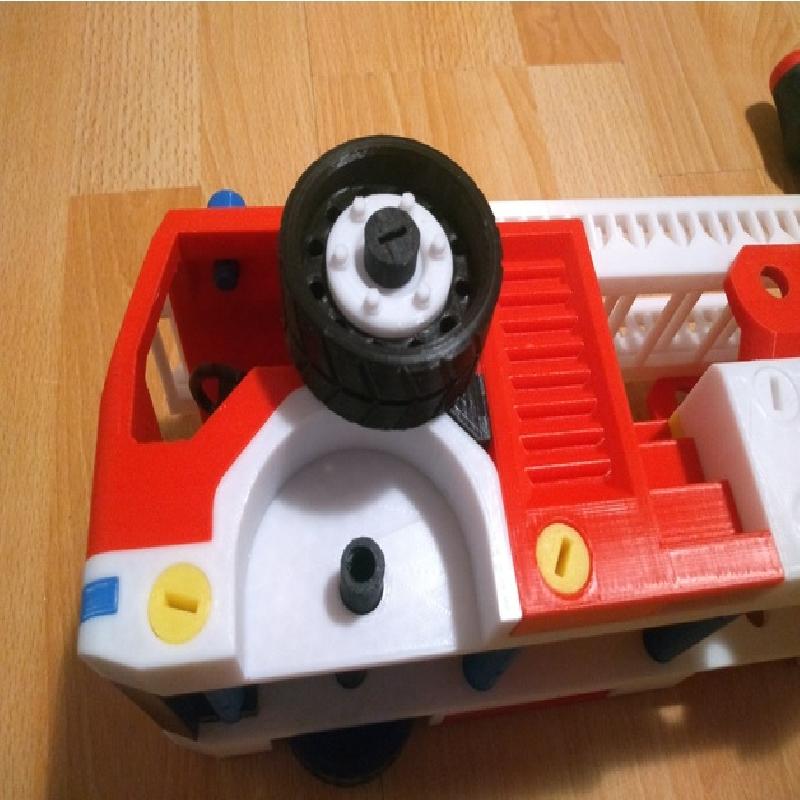

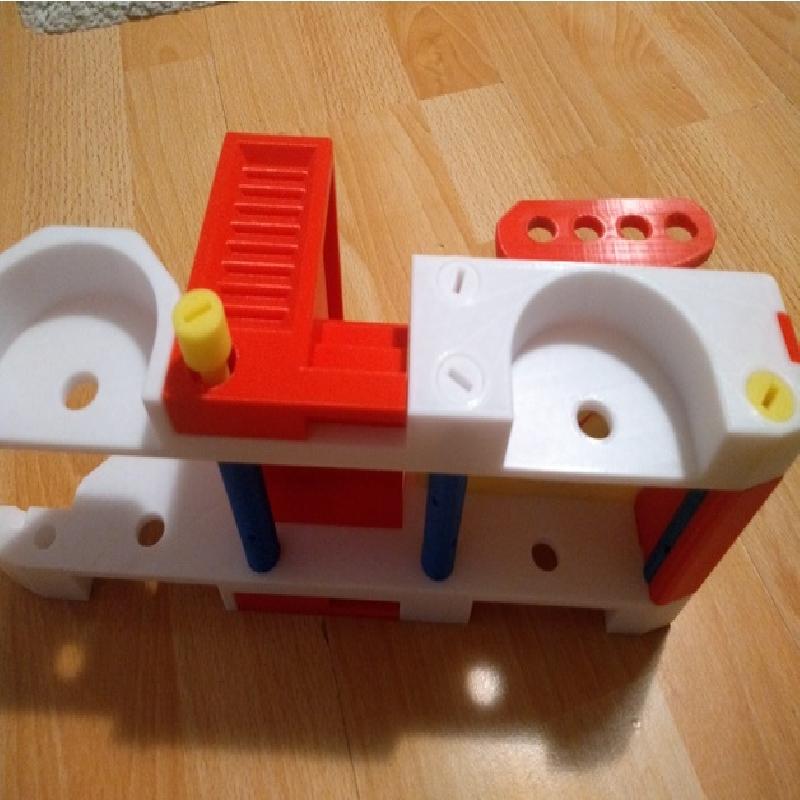

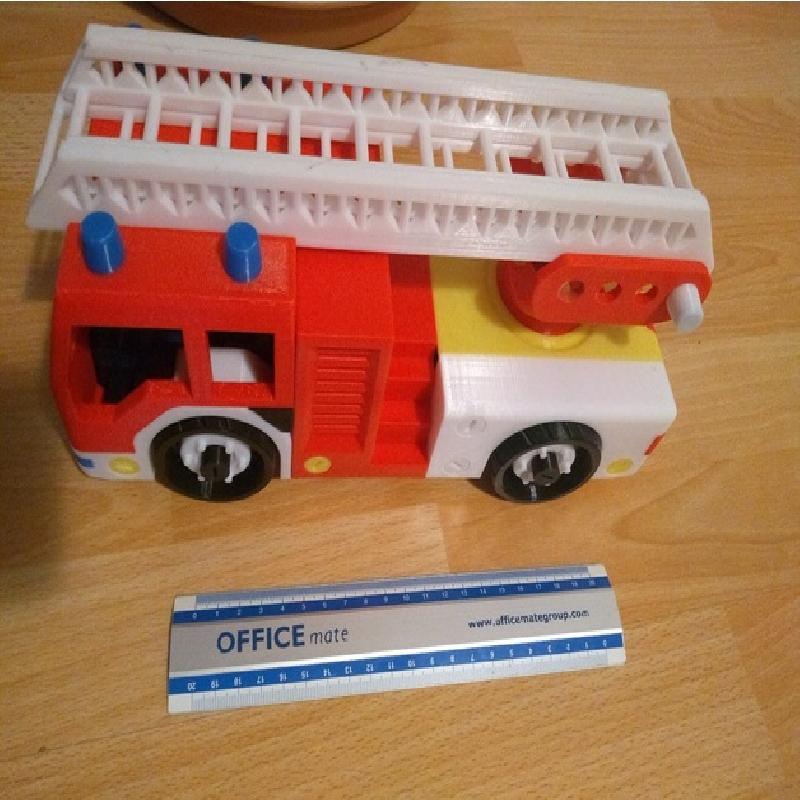

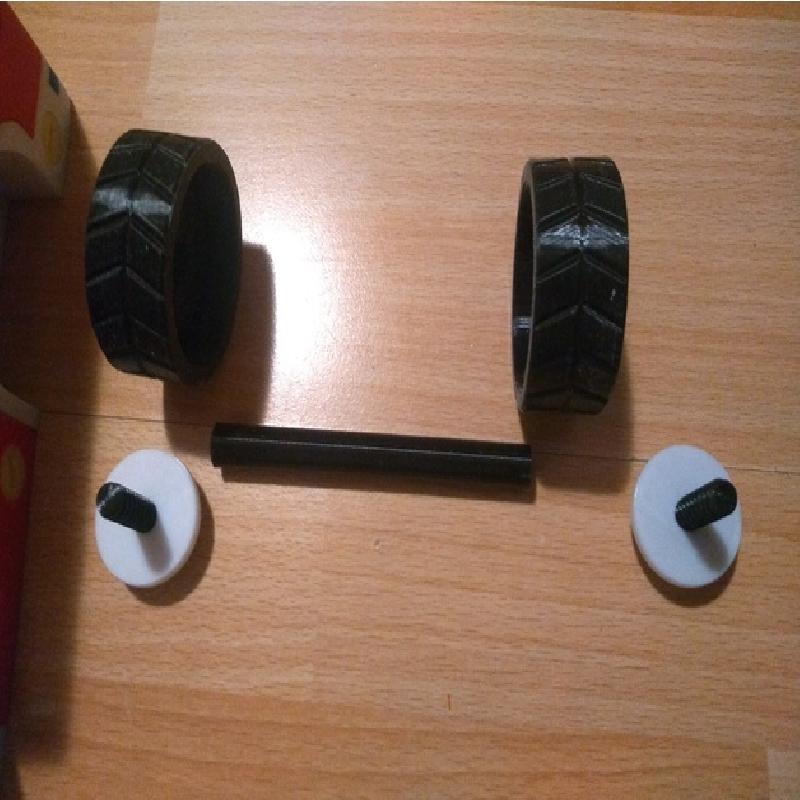

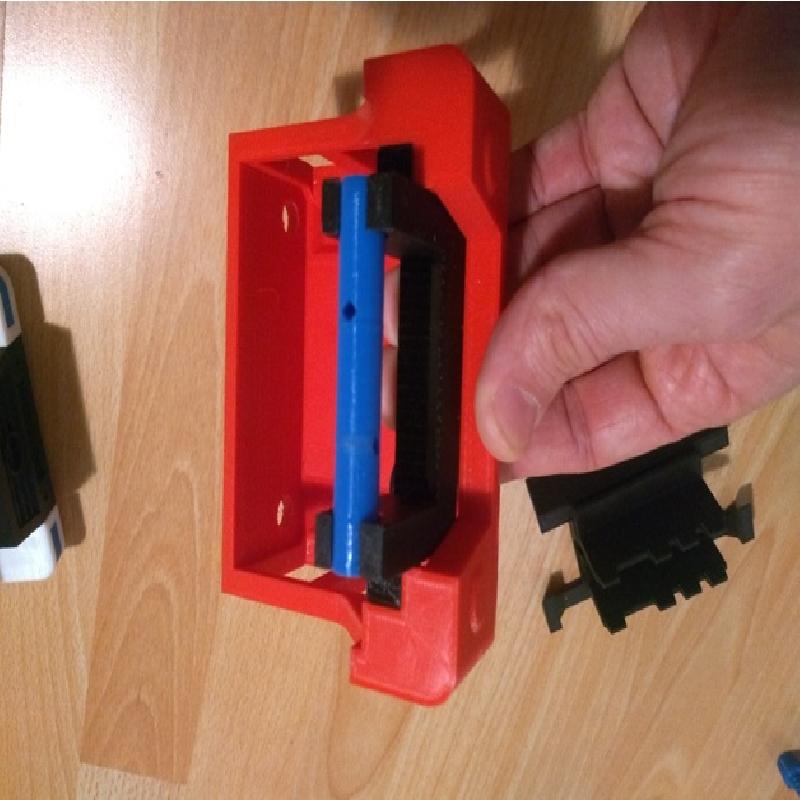

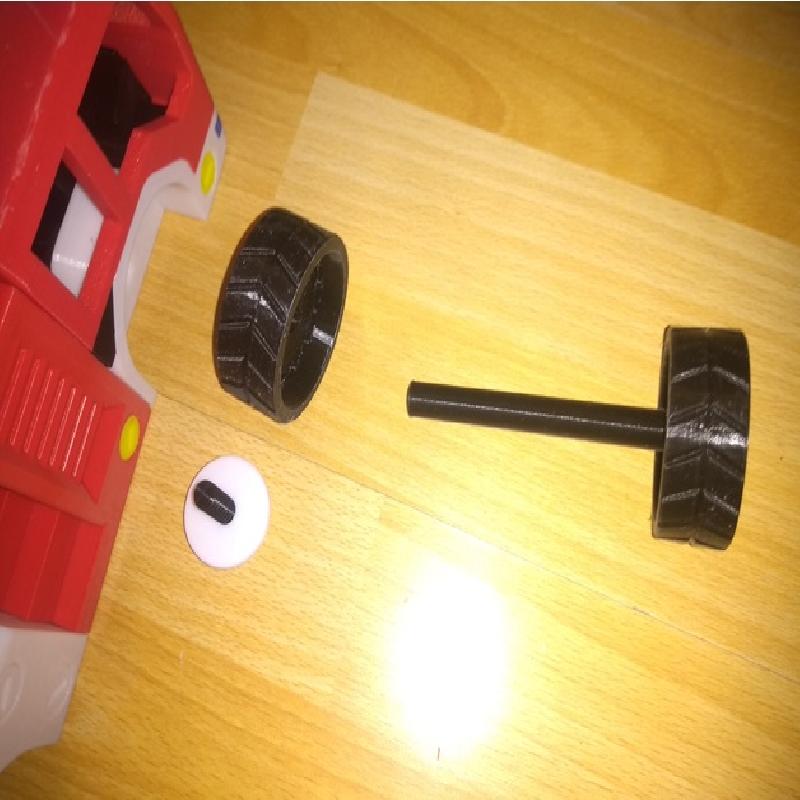

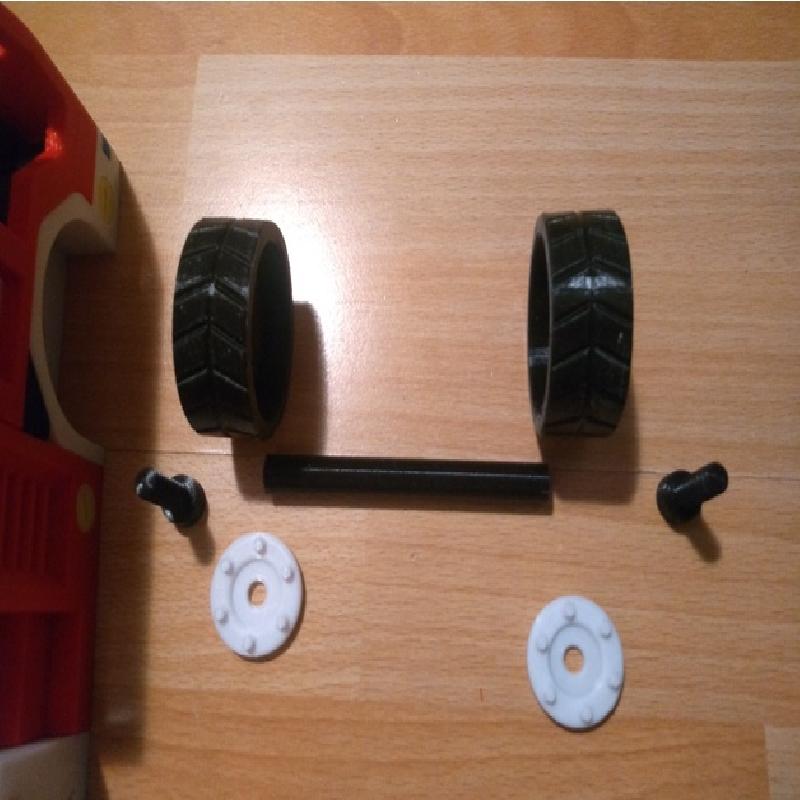

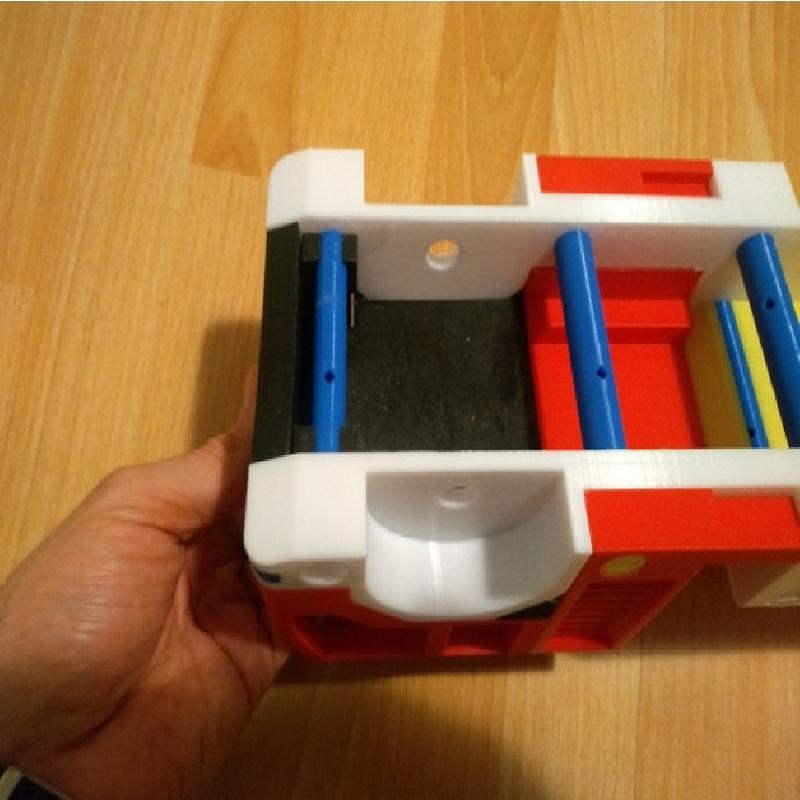

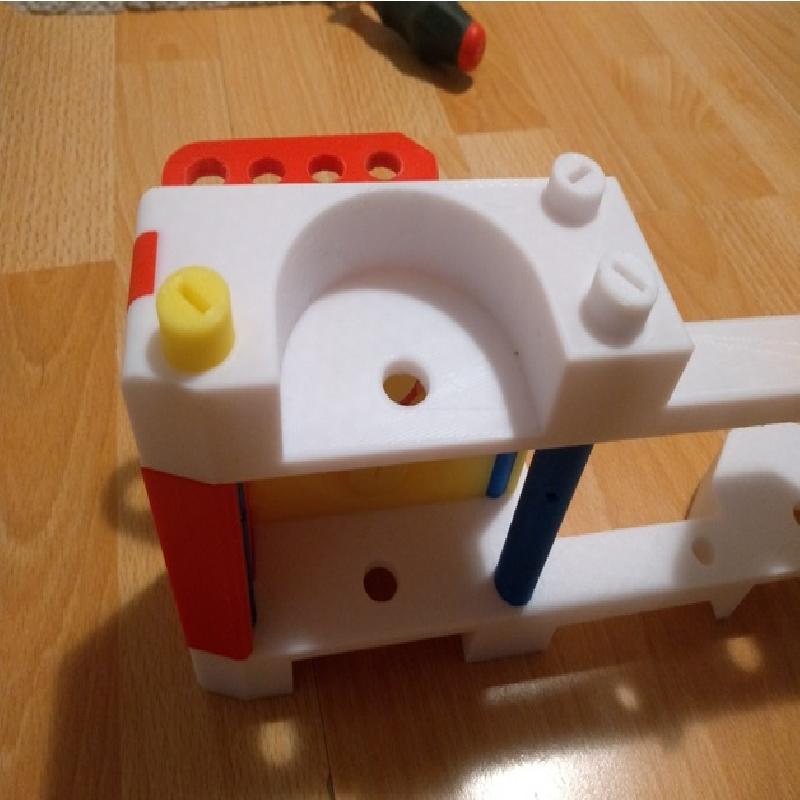

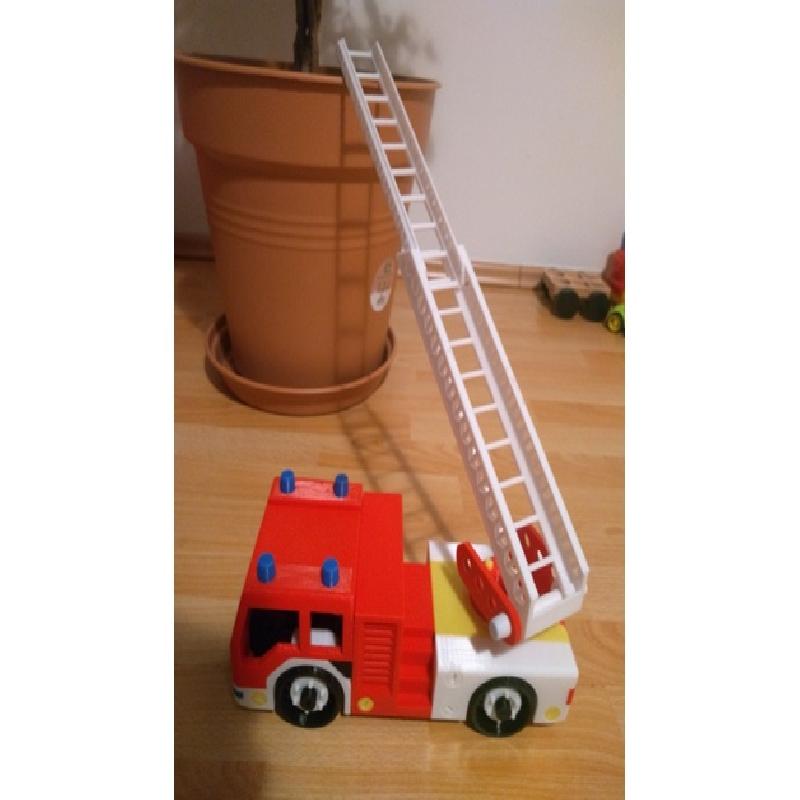

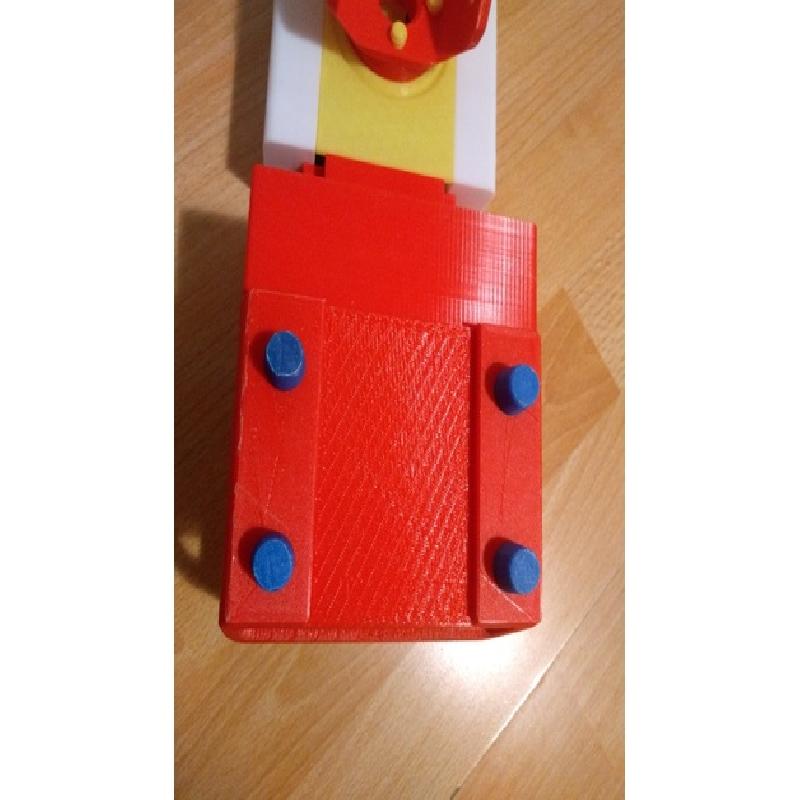

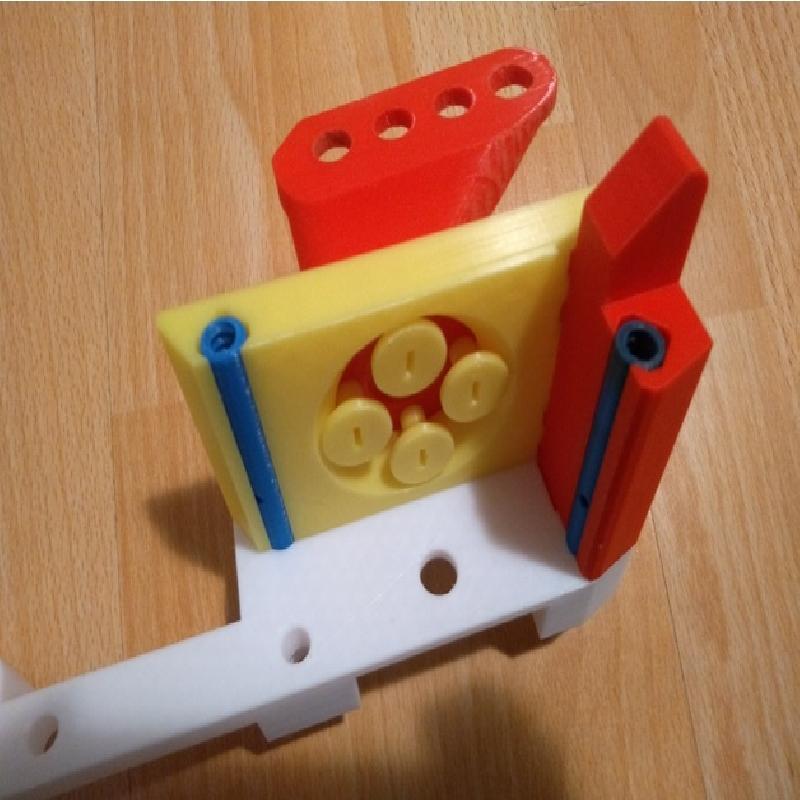

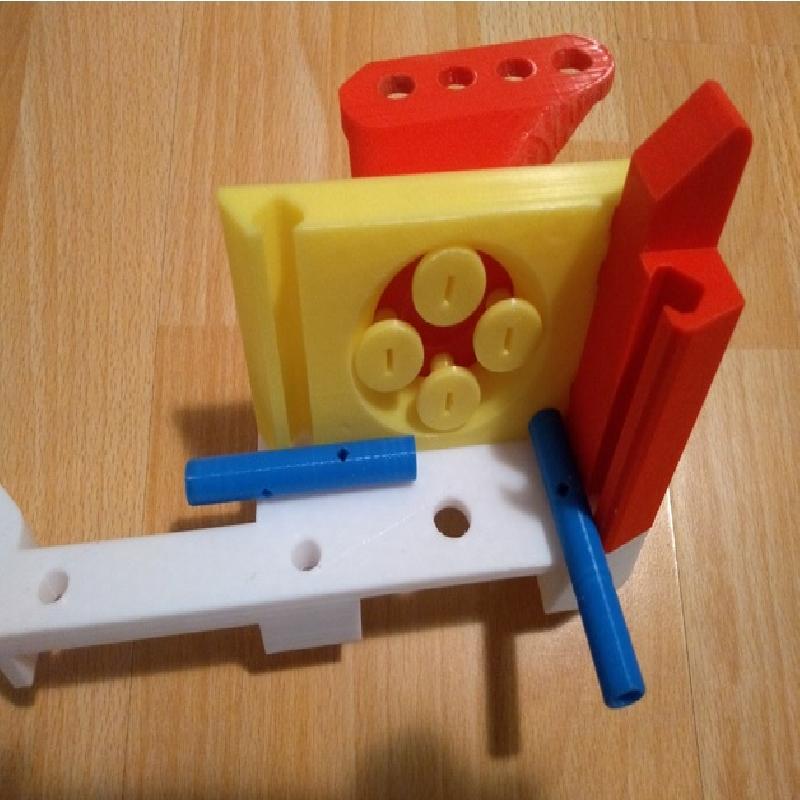

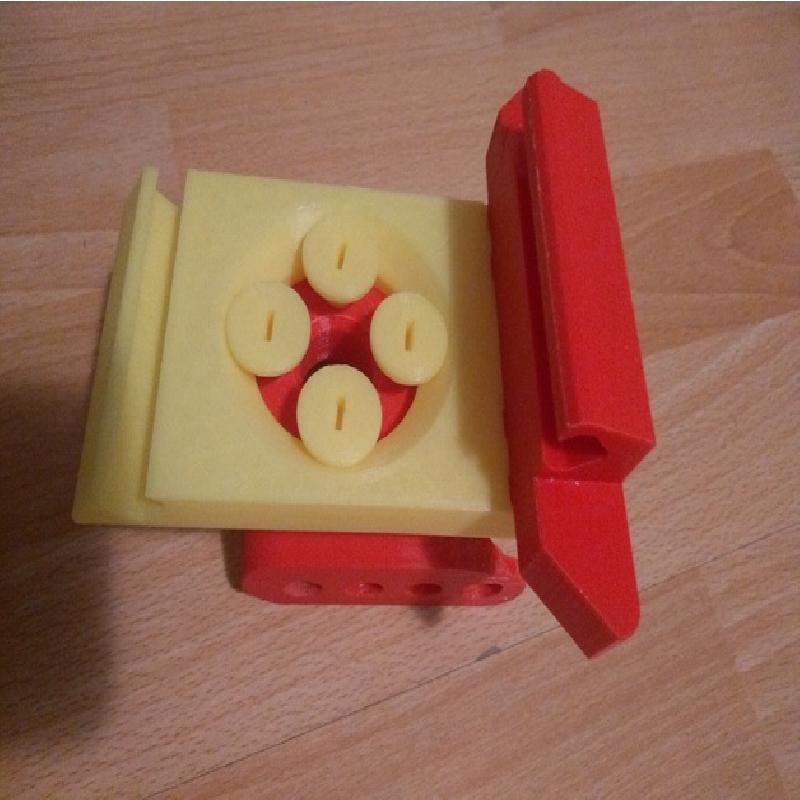

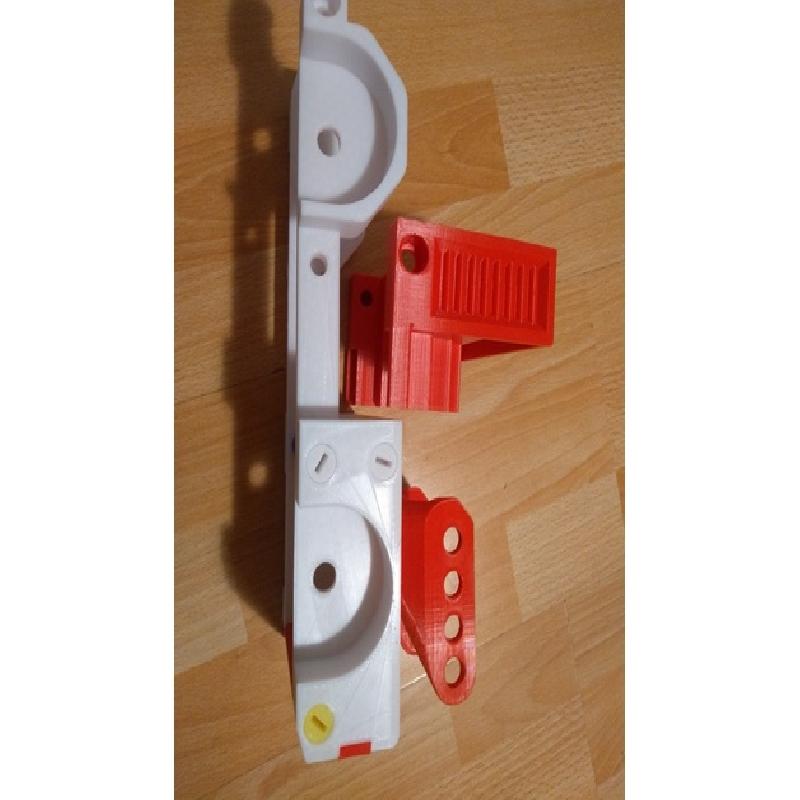

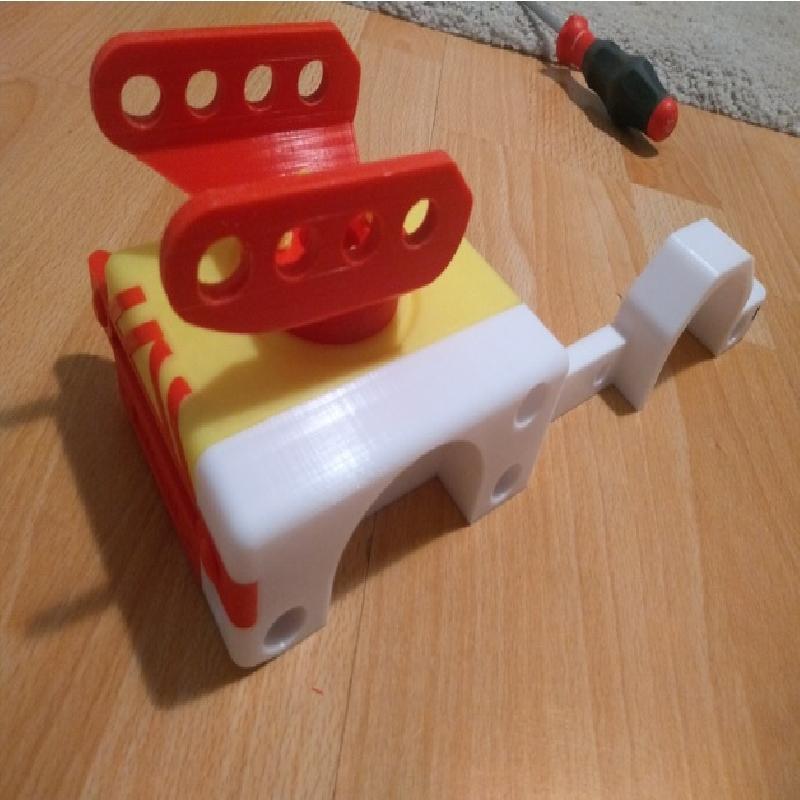

See the printing list in the summary, for assembly see the attached pics.
