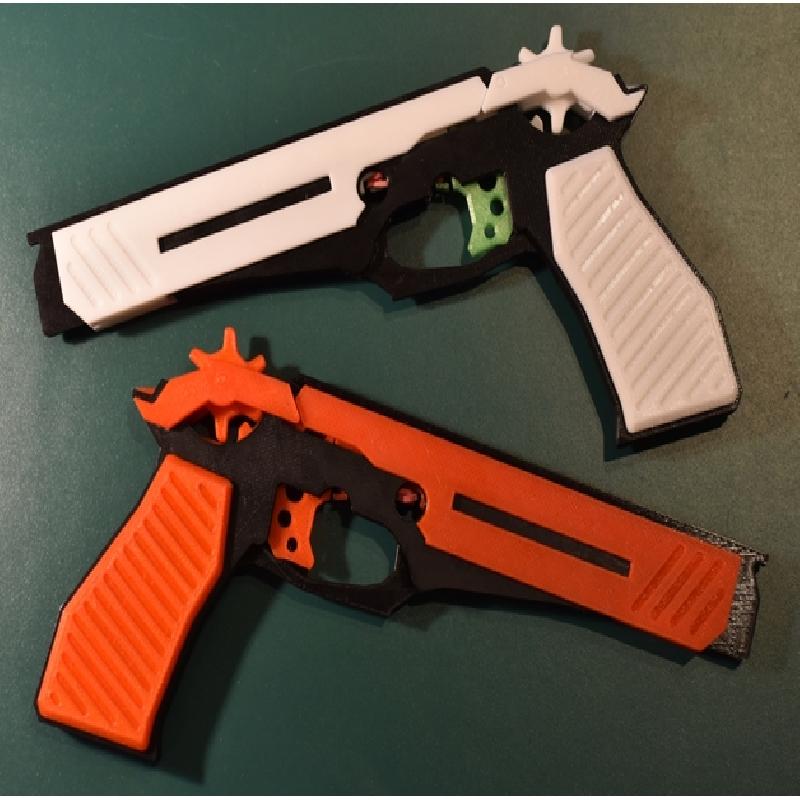

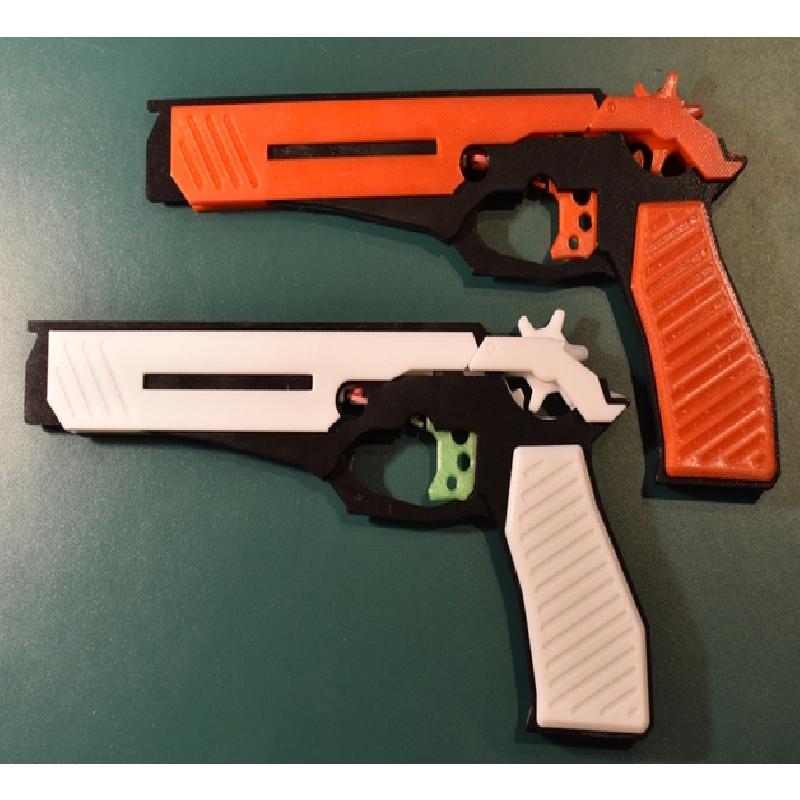

The original Rubber Band Gun has a lot of Bugs that the Author didn't fix the last years,
but i like the Design and took it for an optimization.
What has changed:
Rubber Wheels have been to thick for the rest of the Gun, fixed.
Rubber Wheels are now smaller to have space for 6 or more Rubber Bands.
Optimized trigger to hang in Rubber bands.
Wholes to have the Possibility to change the Trigger-Rubber Band in the Future.
Changed Trigger and Main-Parts to have space for the Trigger-Rubber Band.
The original Design Shoots when releasing the Trigger, with the now inverted mechanism it is shooting when pushing the Trigger.
I have included a Hand Grip, the original has been too narrow.
You can use "Nutenstein" (need 4x for the whole Thing) to make the precise glueing of the Hand Grip easier.
I am using Cyanacrylate Glue to mount the Parts.
Start with "Seite R" , glue "Magazin Seite R" and "Griffschale R" with the "Nutenstein" to it.
Proceed with "Seite L", after glueing "Magazinrad1" & "-2" together you can at first test the mechanism with both Sides, "Kern", "Auslöser" & "Schlittenkern".
If it is not working 100% you may have to rework "Schlittenkern" or "Magazinrad" before glueing the Sledge and the Gun finally.
The slim Pins of the "Magazin Seite" may break easily, but the parts will be working anyway.
If you see any other open Issues feel free to leave a Comment, and have fun with the Fixed Rubber Band Gun
Printer Brand:
Anycubic
Printer:
All-metal Mega
Rafts:
No
Supports:
No
Resolution:
0.2 - 0.1
Notes:
Part "Ausloeser" is working best for me with a brim.
