by eugenyale

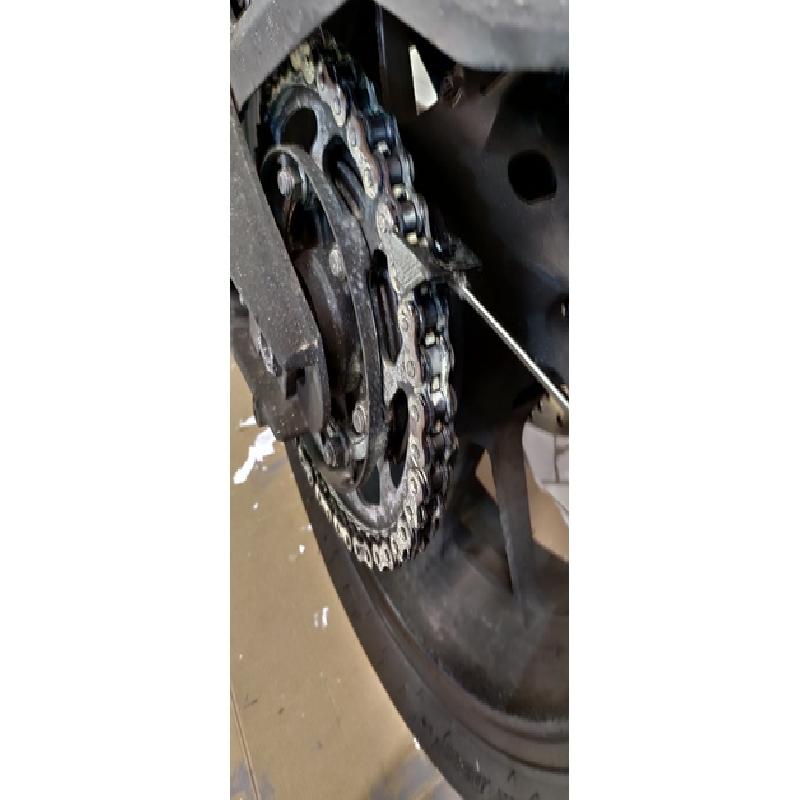

I made this guide to lub for Yamaha mt09

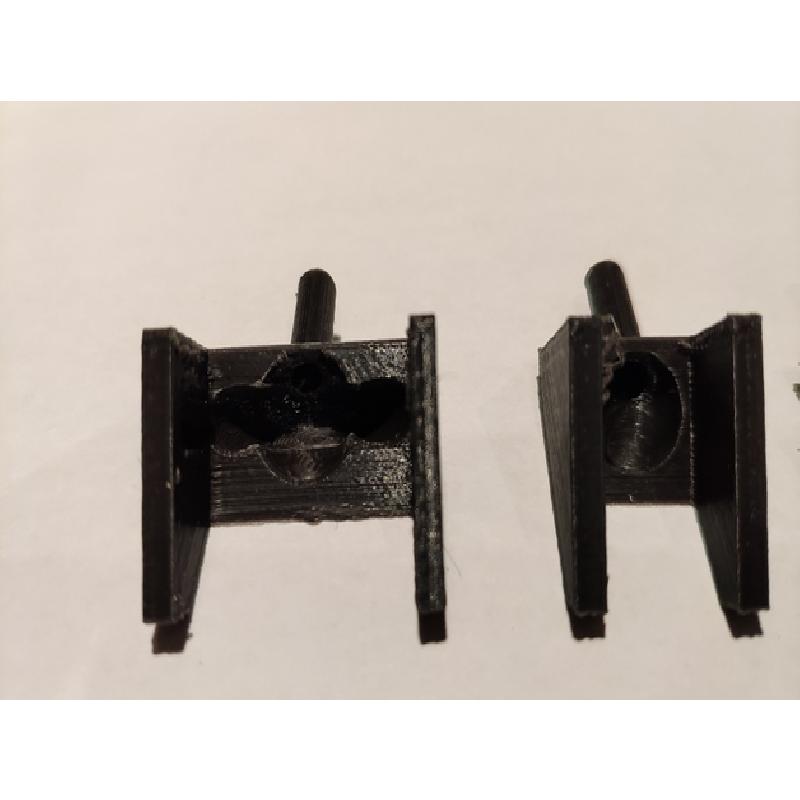

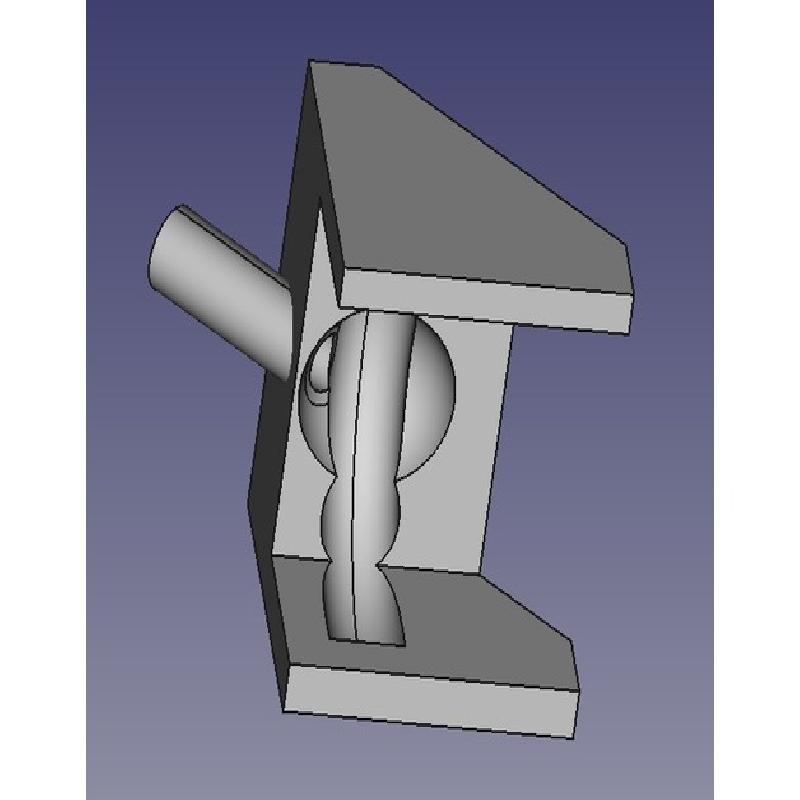

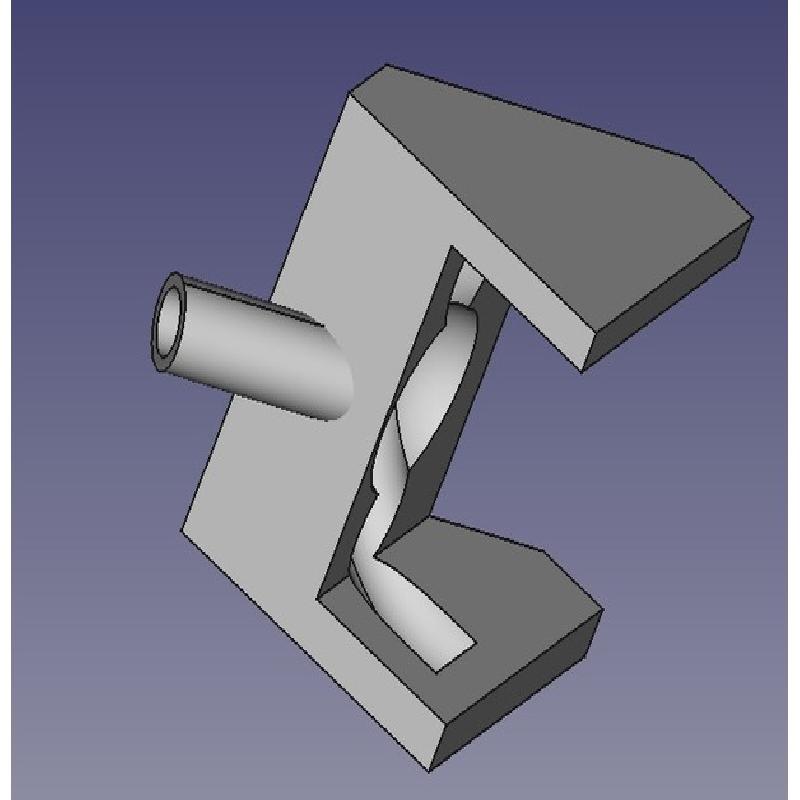

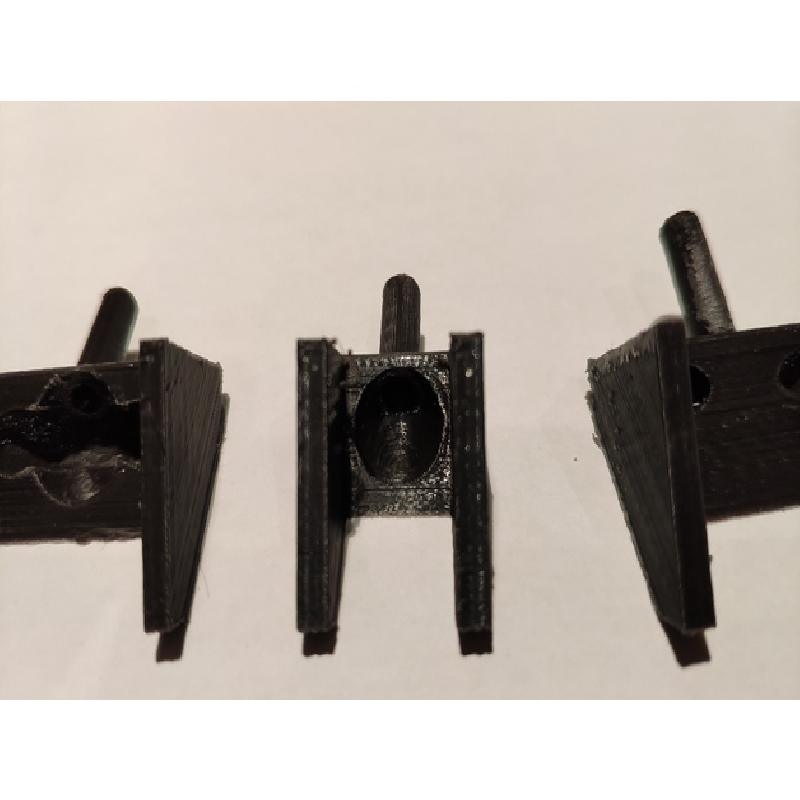

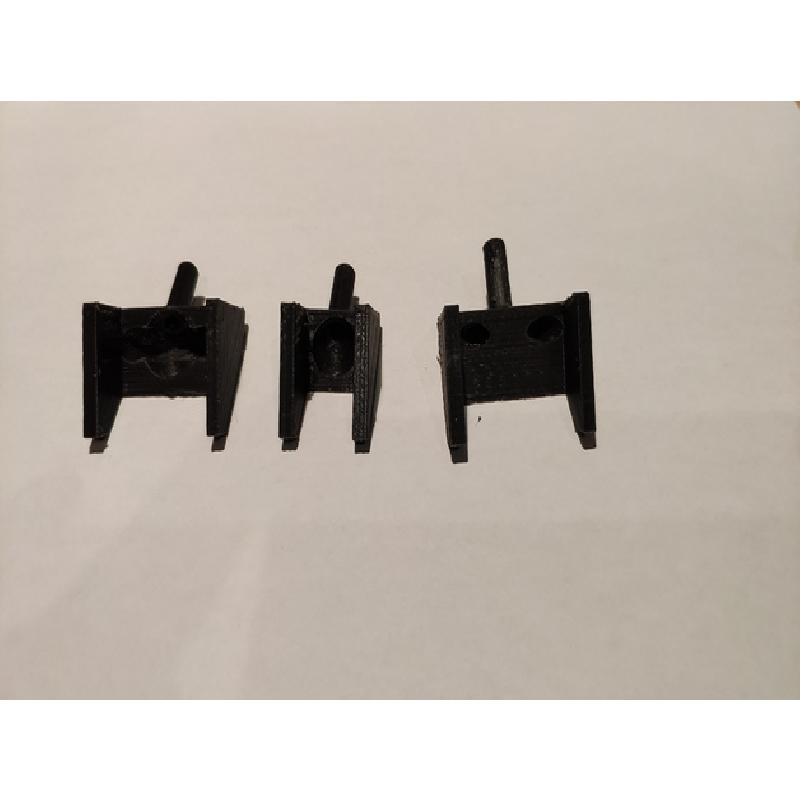

Three pieces
1 for wide lub on top of the chain
1 for side lub

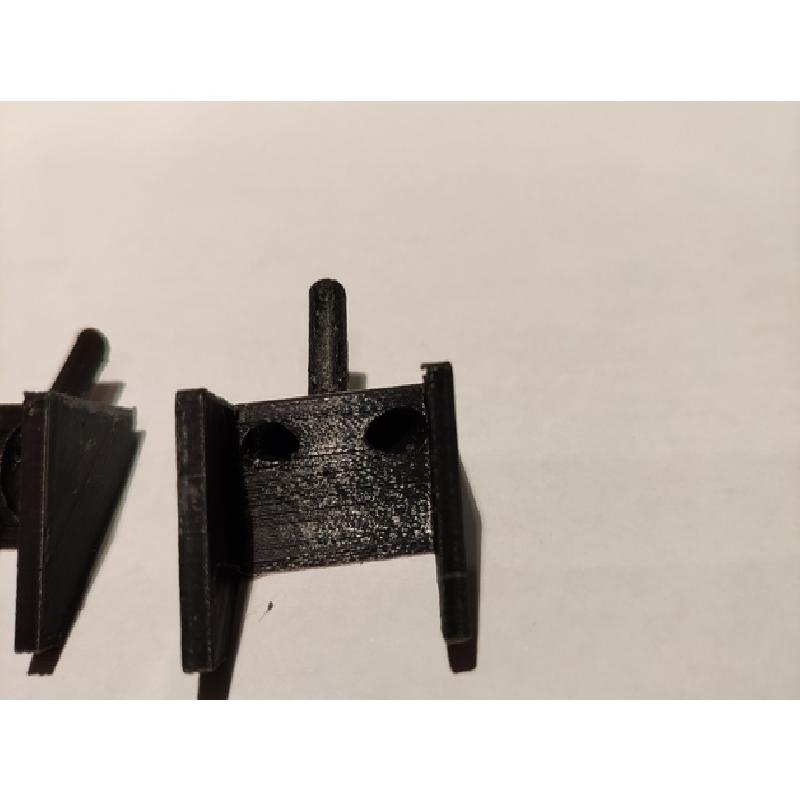

1 with 2 pipes for lub on each upper side
the dimensions are
22 millimeters for the top size
12 millimeters for the height size

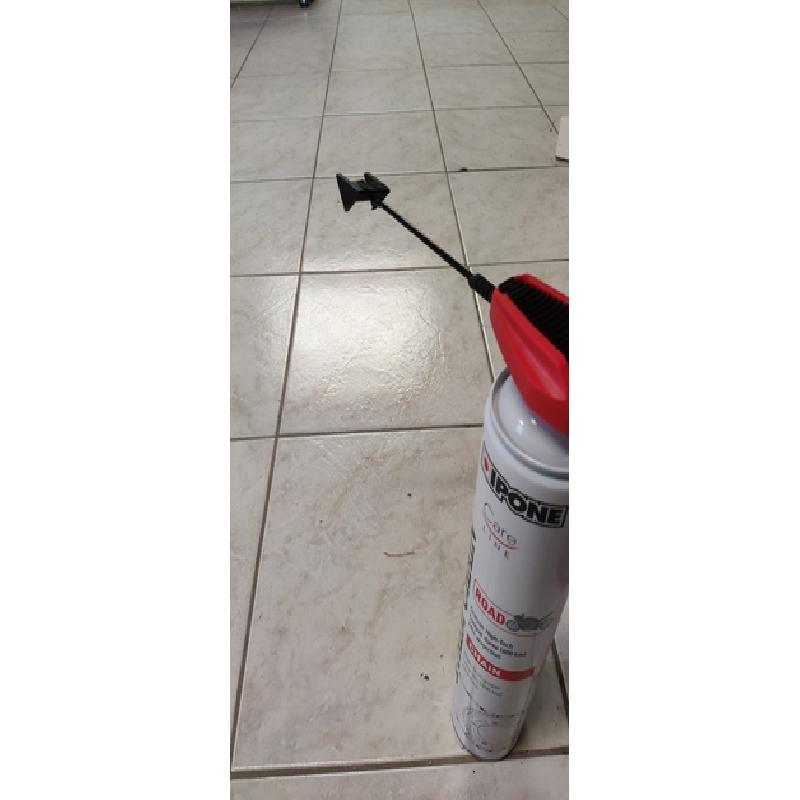

the pipe of the lub can is 3,6 millimeters diameter
it's easy to modify for any chain, just give me the top size and height size
