by uwezi

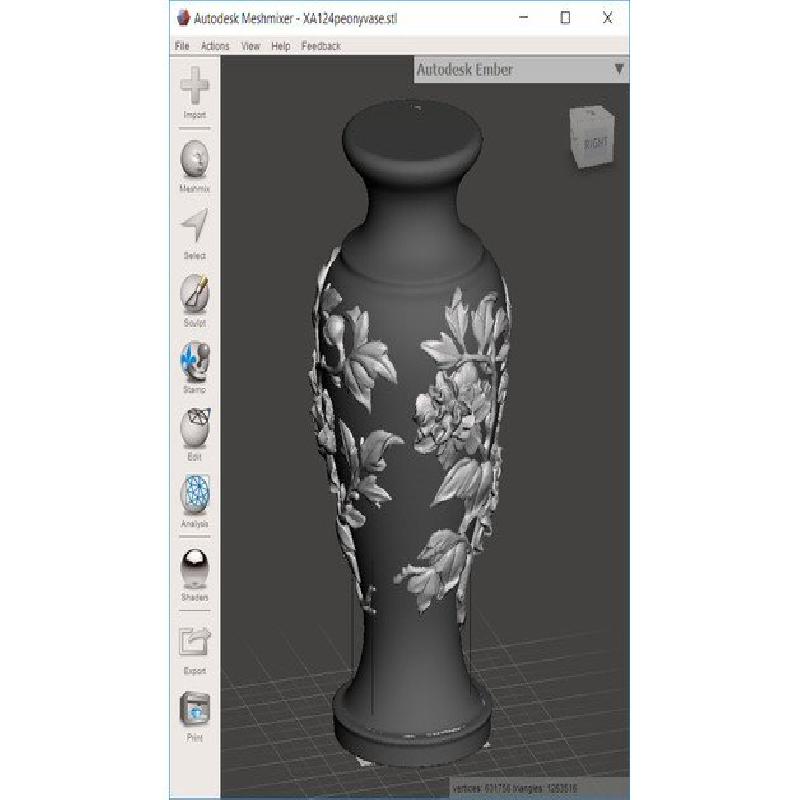

The model Vase of Peony Pattern by stronghero is an amazing piece of art - but the model file itself is not a vase at all, but a solid blob.
Trying to hollow out the vase is not easy, because the original model consists of two intertwined parts, as you can see in the pictures.

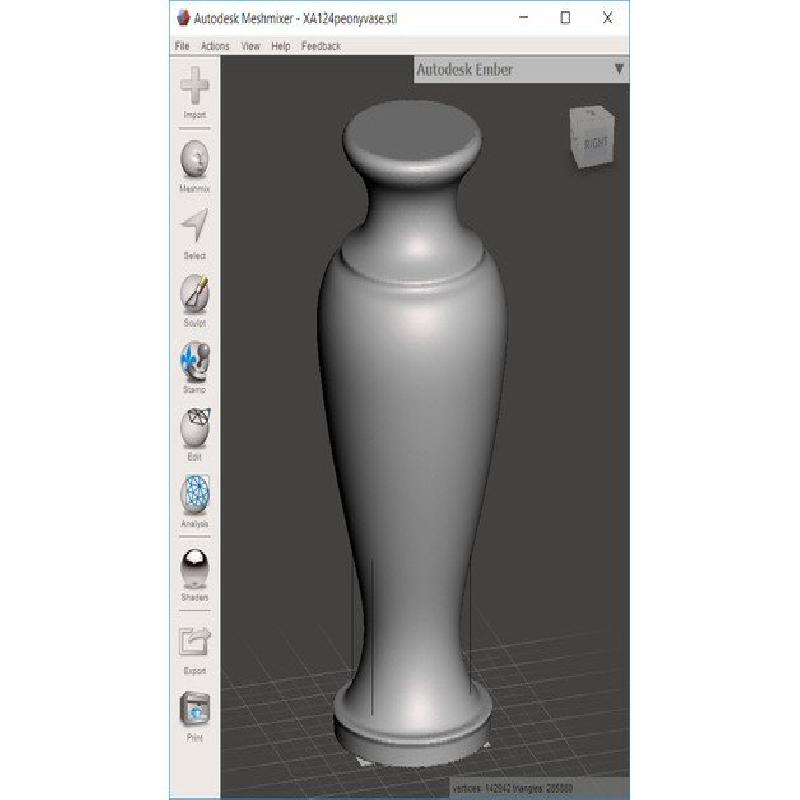

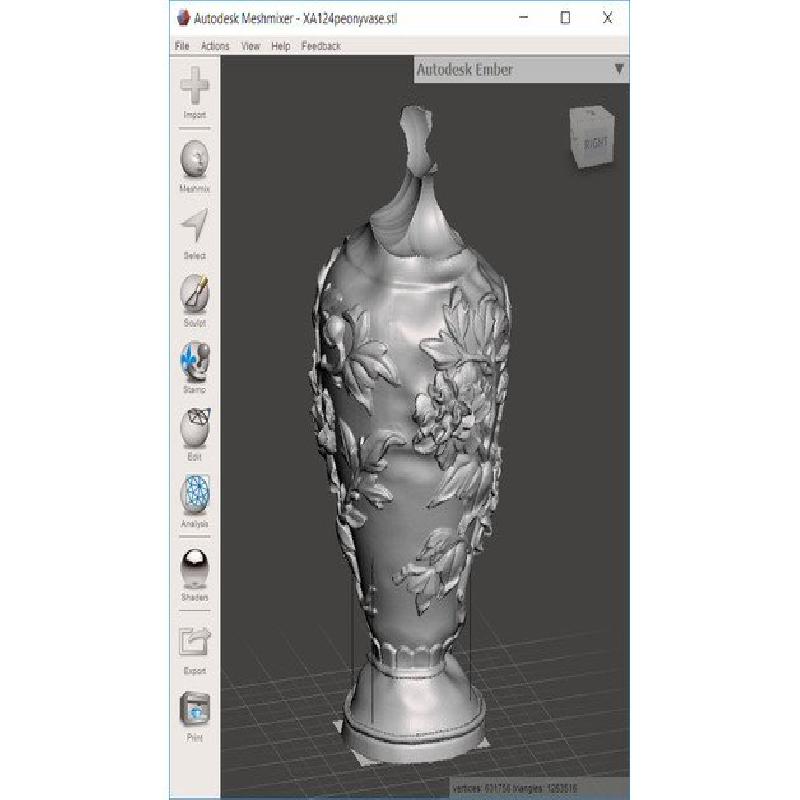

Spliting the shells in MeshMixer reveals the intricate structure of the model consisting of two intertwined models:
I followed the instructions on MESHLAB STUFF and using Meshlab removed all internal vertices which resulted from the combination of the two objects by the original author.

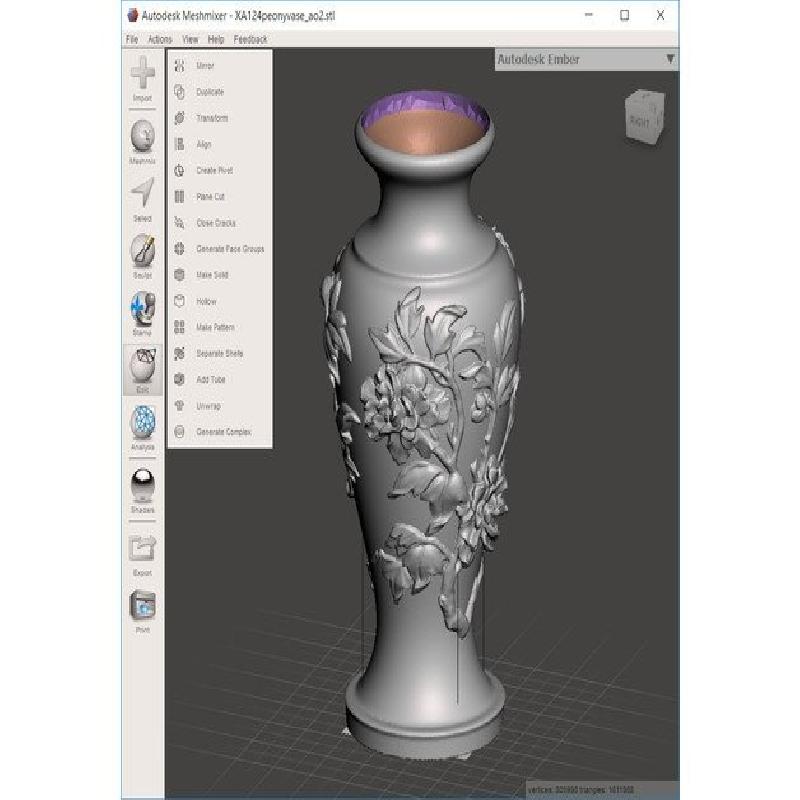

After re-importing the model into MeshMixer I used the Edit-Hollow function to create a conformal inner shell inside the now solid vase.
Subtracting a suitable cylinder from the top of the vase opens up the top of the vase. The resulting model file is XA124peonyvase_ao_hollow_2.stl
Since there is an extreme overhang on the inside just above the base I also made a second version where I added a cylinder from the bottom to make the bottom part of the vase solid again - just to the neck of the base: XA124peonyvase_ao_hollow_3.stl
