by bouncygoth, published

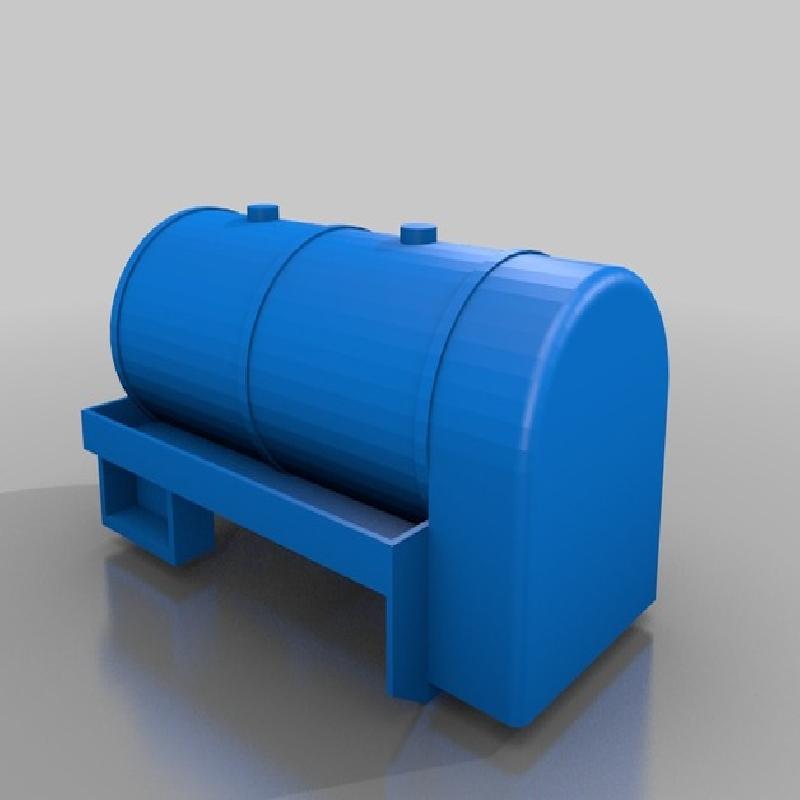

A tanker version of my Chevy COE. Uses all the same components as the original plus a new tanker body.

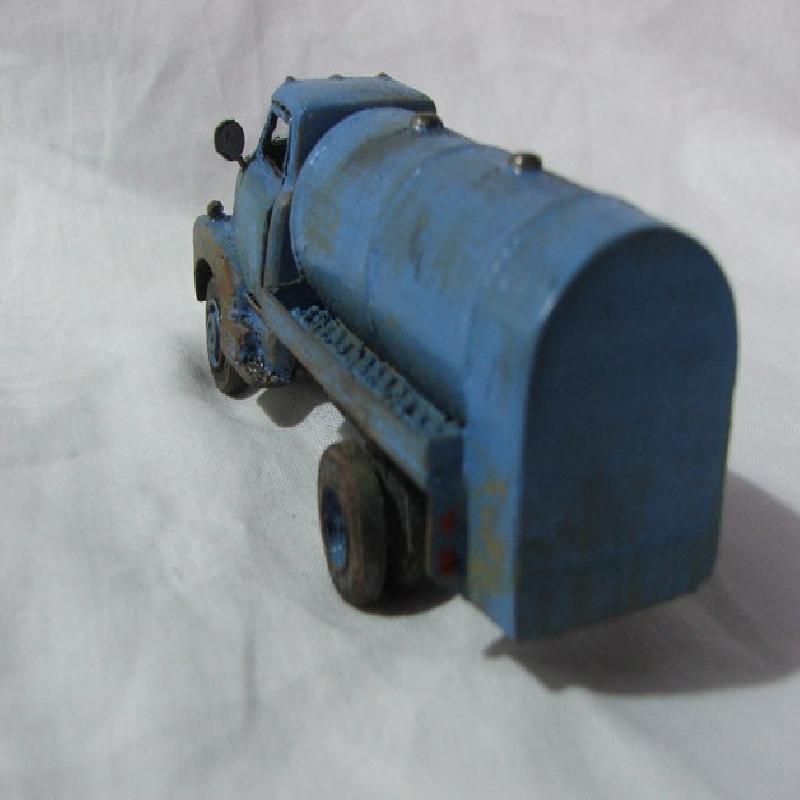

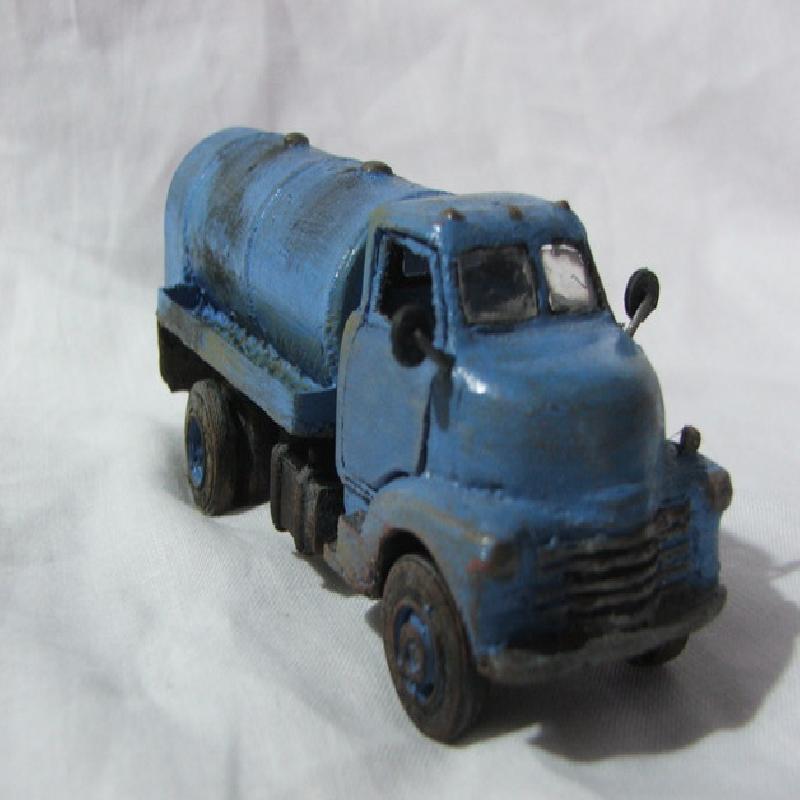

As with all my trucks, the model is full scale so you can easily scale to whatever size you want. The truck in the photos is 1:48th, mirrors and windows added afterwards.
Note the tool boxes under the tank are missing on this one, they were too fragile on the prototype, I have since strengthened them and printed them successfully
Printer Brand: RepRap
Printer: RepRap
Rafts: Doesn't Matter
Supports: Yes
Resolution: printed on 0.3
Infill: yes
Notes:

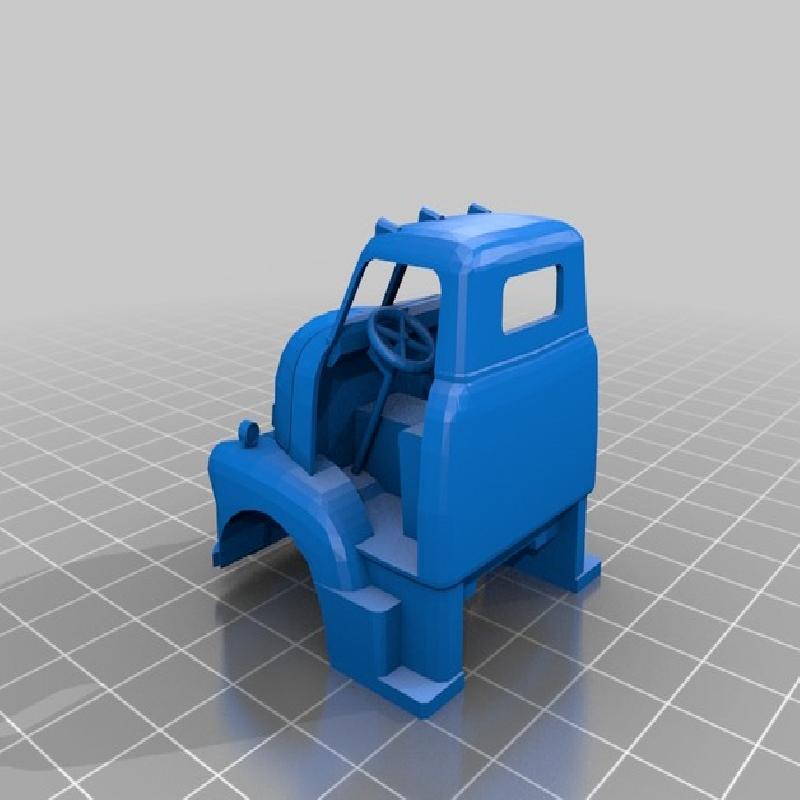

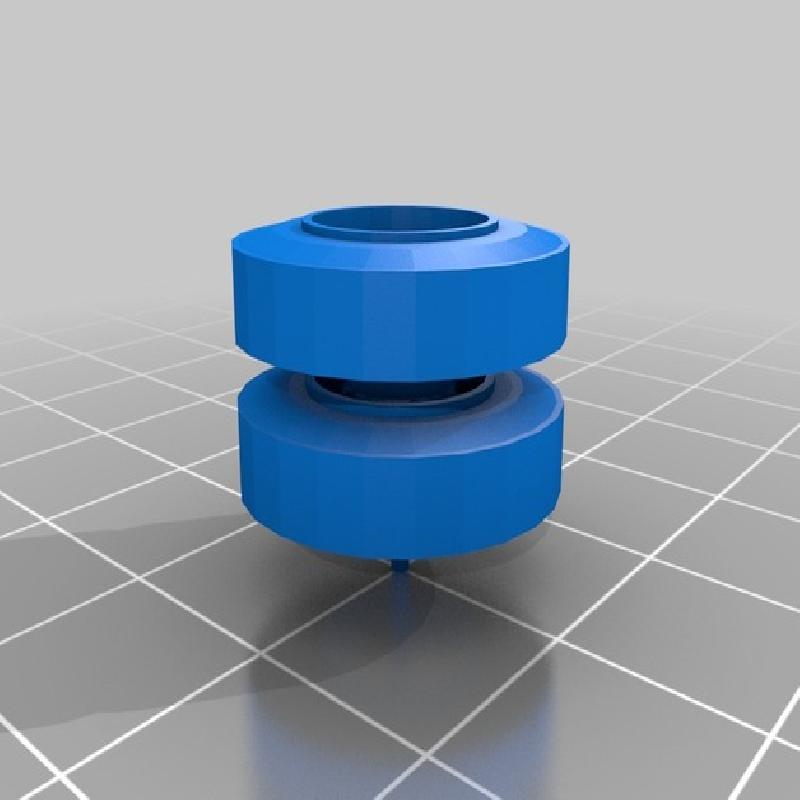

The cab needs support as does the chassis and tanker. I print the wheels flat with no support. I tried printing the tanker on end with no support but I get better results flat with support enabled The toolboxes under the tank and the sides of the trays are pretty fragile in 1:48th.
