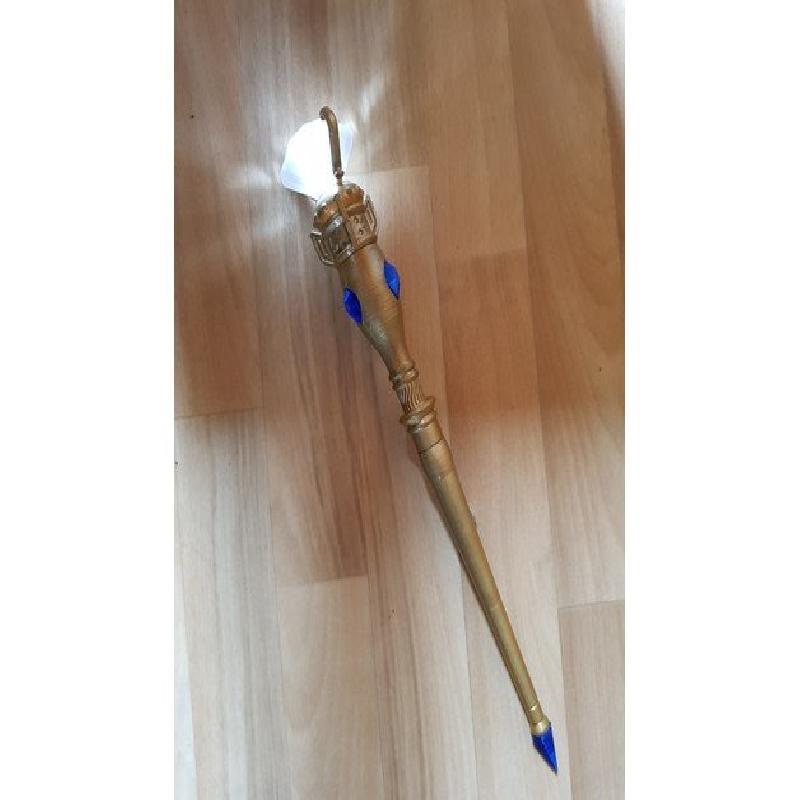

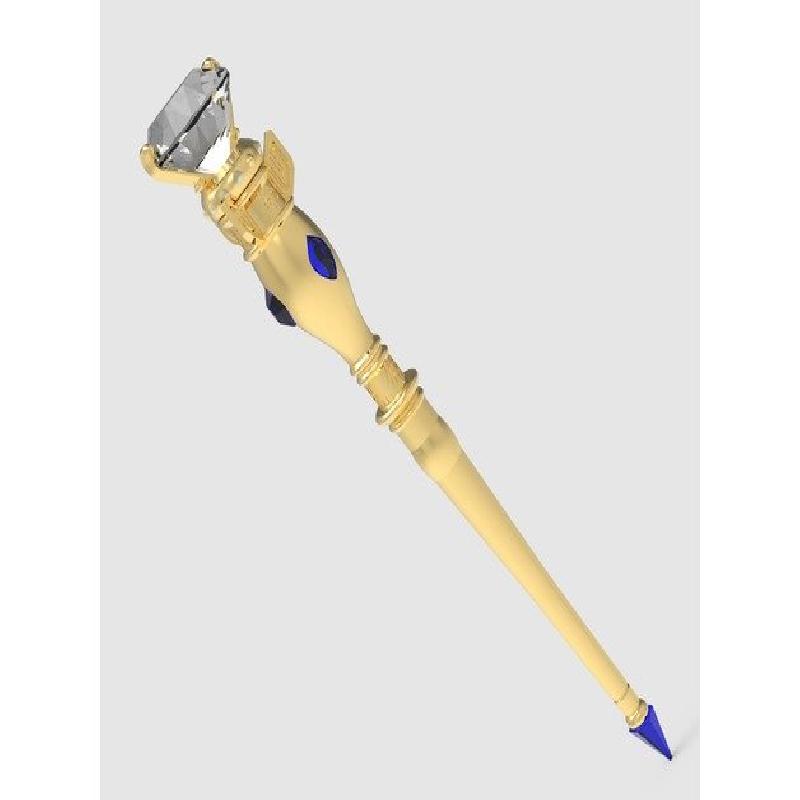

I designed this scepter for my daughter. Easy to print and easy to assemble.
The big diamond was printed in vase mode with transparent PETG.
The smaller diamonds (buttons) were printed with blue clear PETG. (best result with 215°C smooth and shiny)

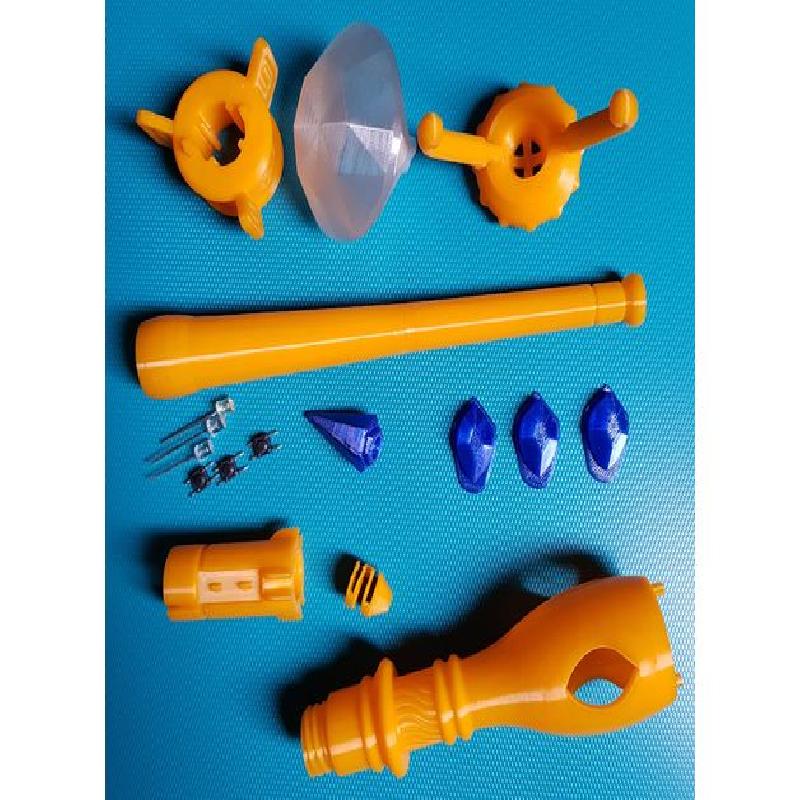

The other parts I printed from PLA with a layer thickness of 0.2 mm. I printed the thinner parts with brim for better adhesion. Only Teil2 and diamond_bottom are printed with support.

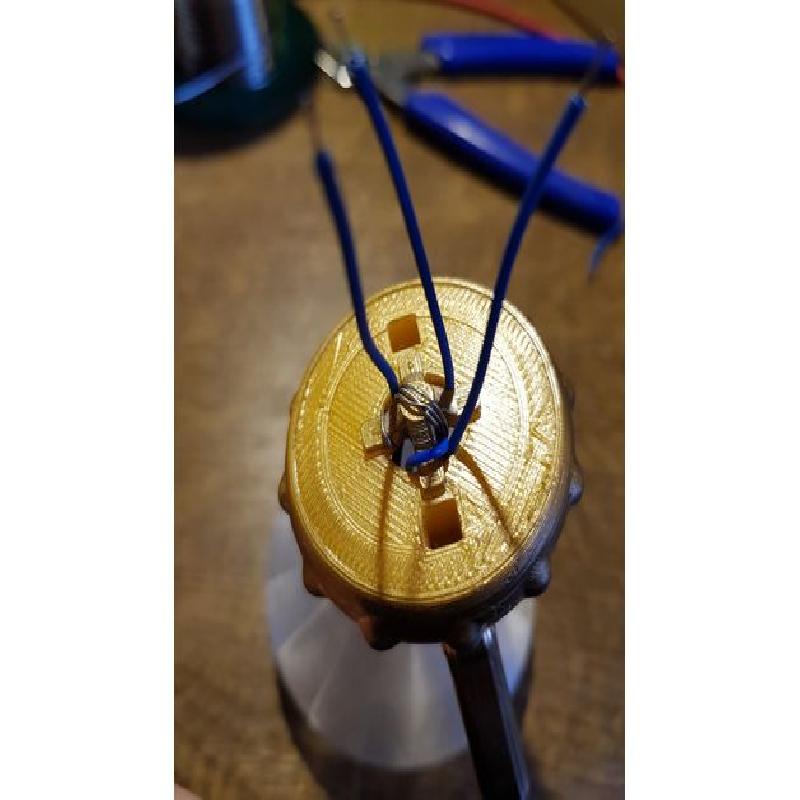

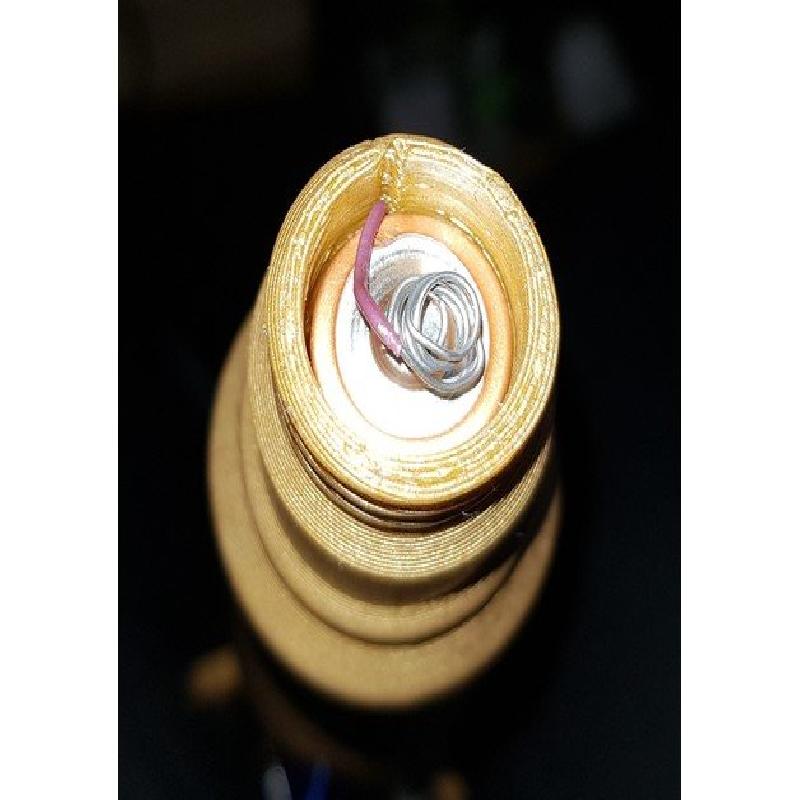

All parts are so small that they can be printed even in a small space. However, they must be glued together after wiring. A joint is threaded to change batteries.

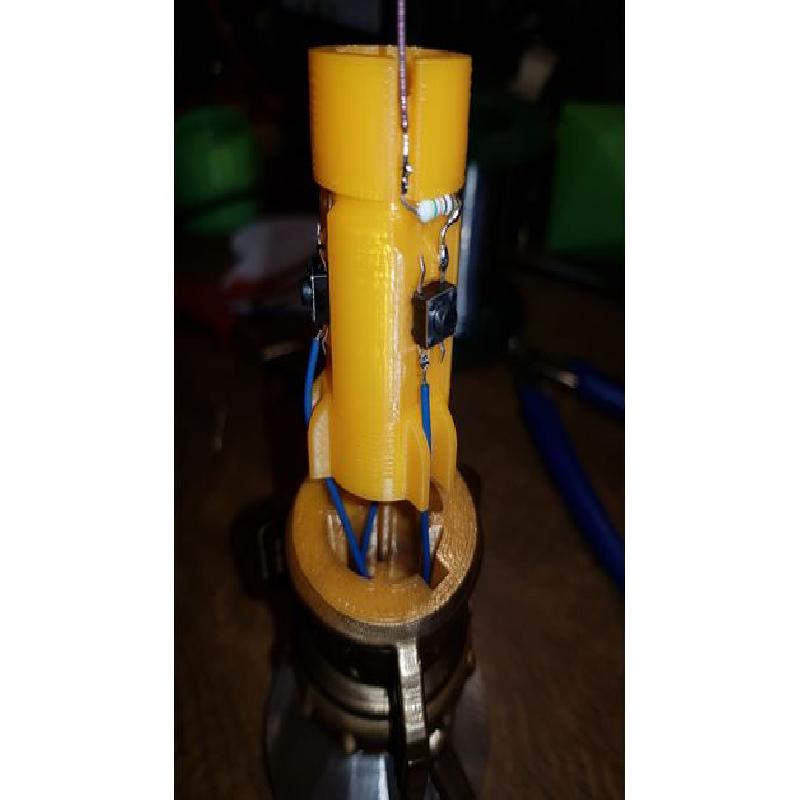

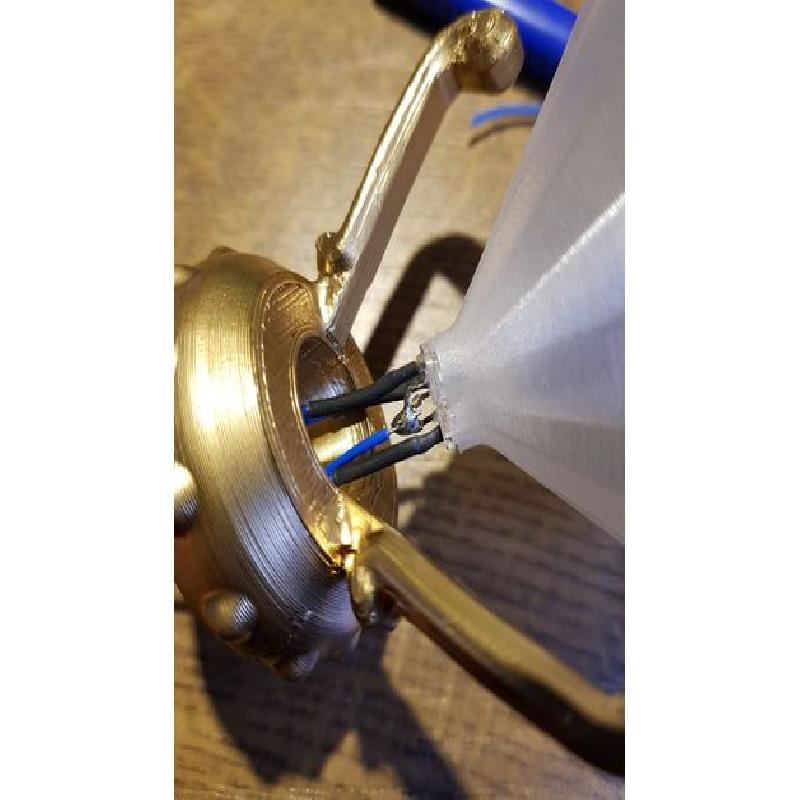

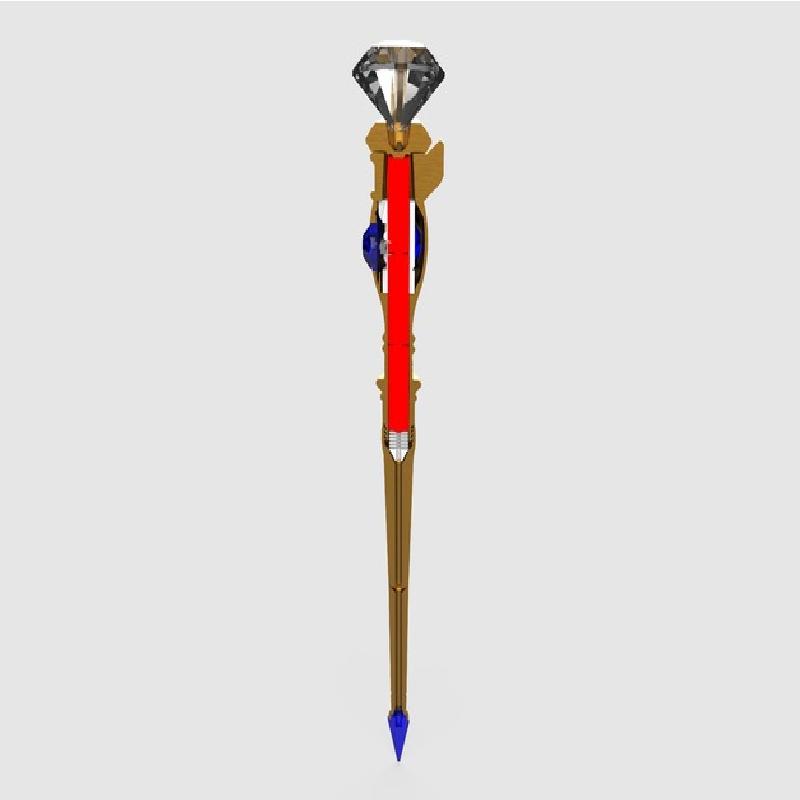

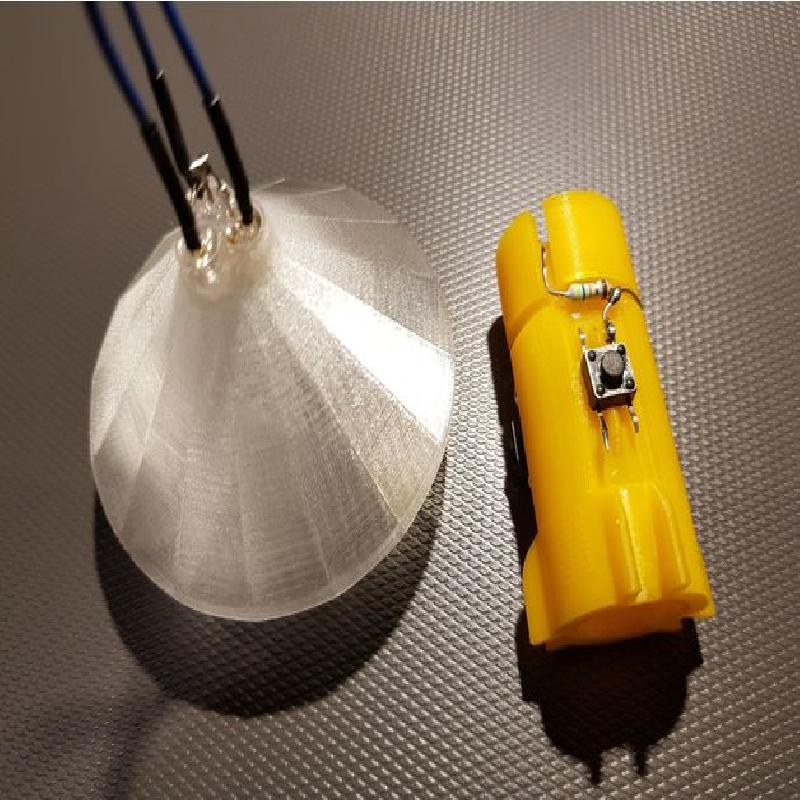

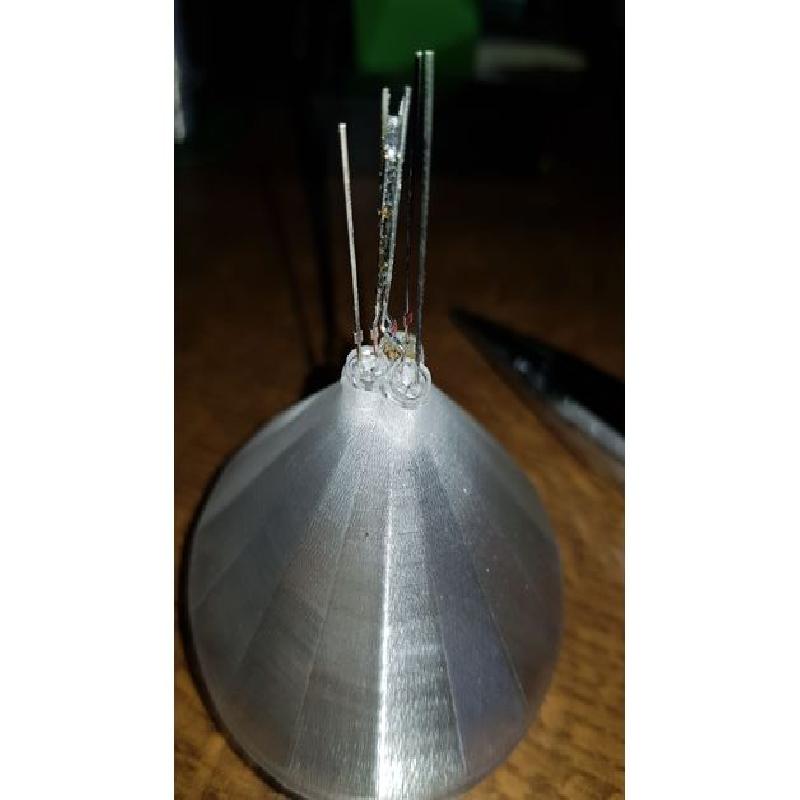

This scepter is constructed so that it could be lit with 3 AA batteries. 3 mini momentary switches 6x6x7mm are wired and glued to the inner part. In the big diamonds fit 3 LED's 5mm diameter. Resistors can be soldered directly to their connections.
Hints:
Gently glue the parts together, otherwise the batteries will not slide easily inside! There must be no glue in the inner space.

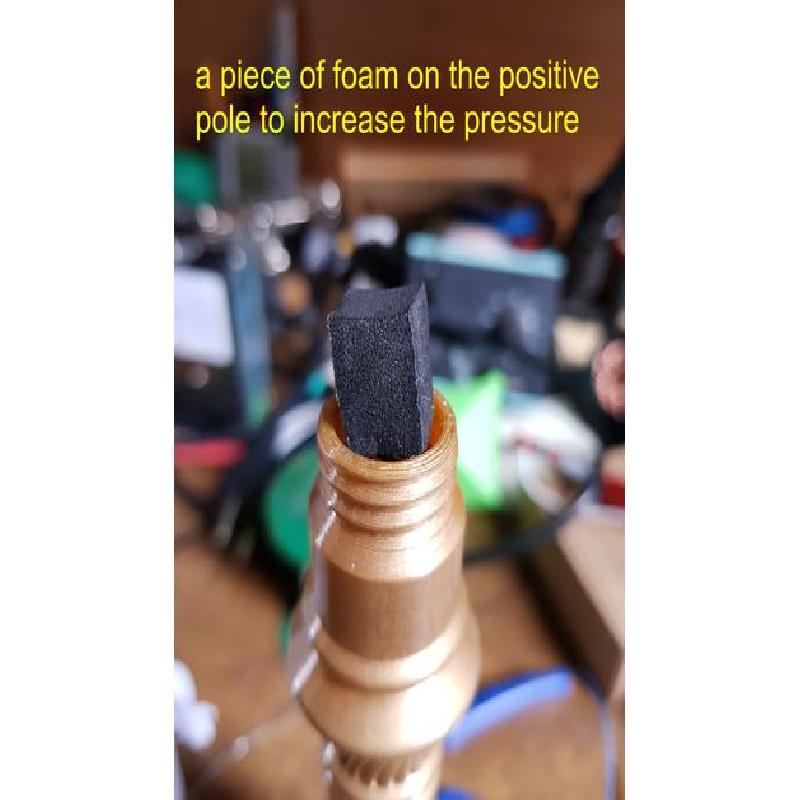

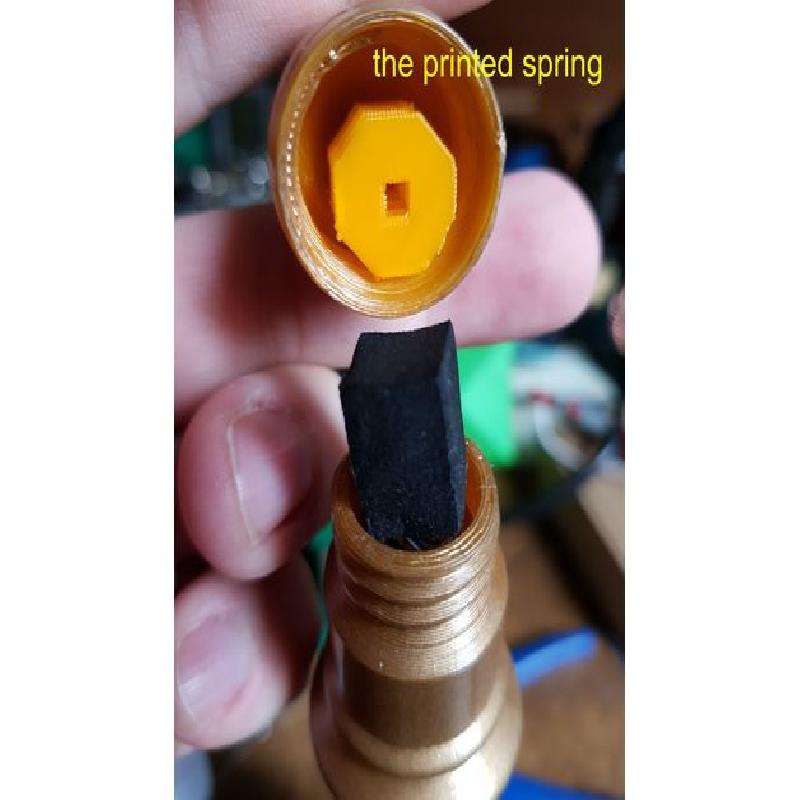

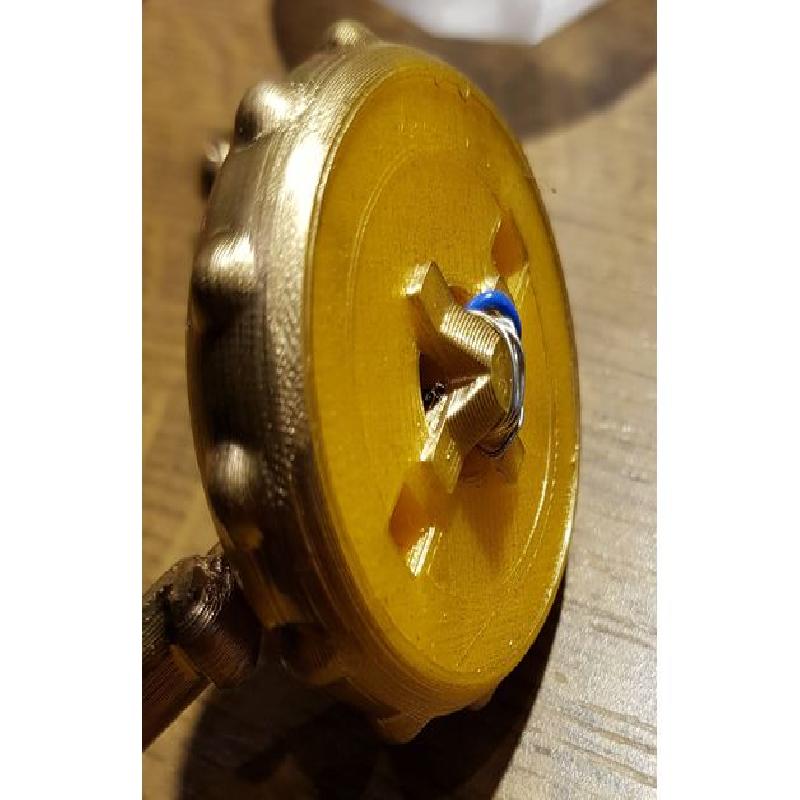

In order to push the batteries better together, I have used a piece of plastic when screwing the parts.
Have fun crafting!
