by Dahakk

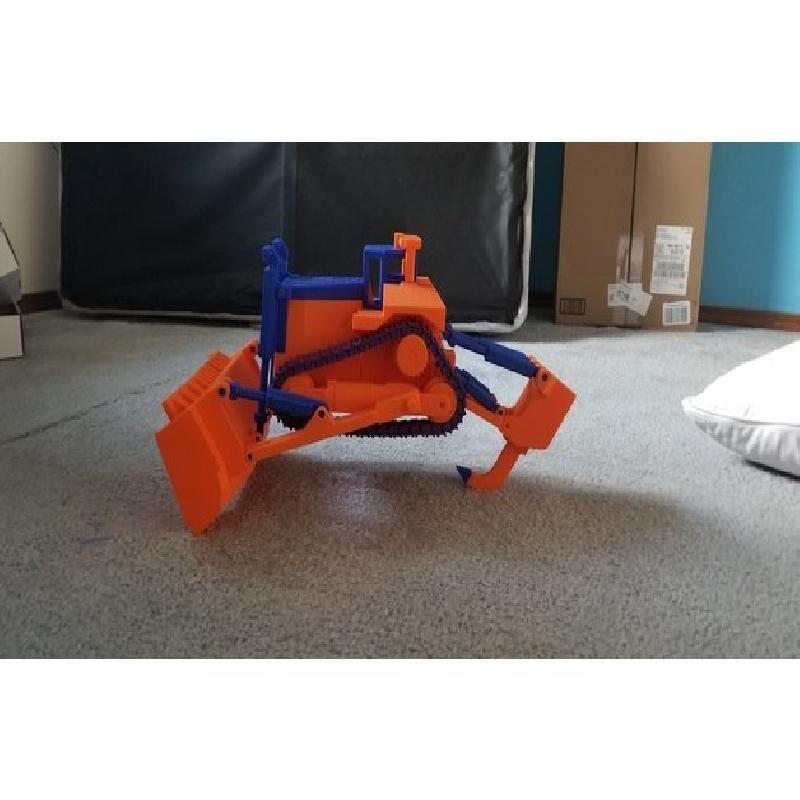

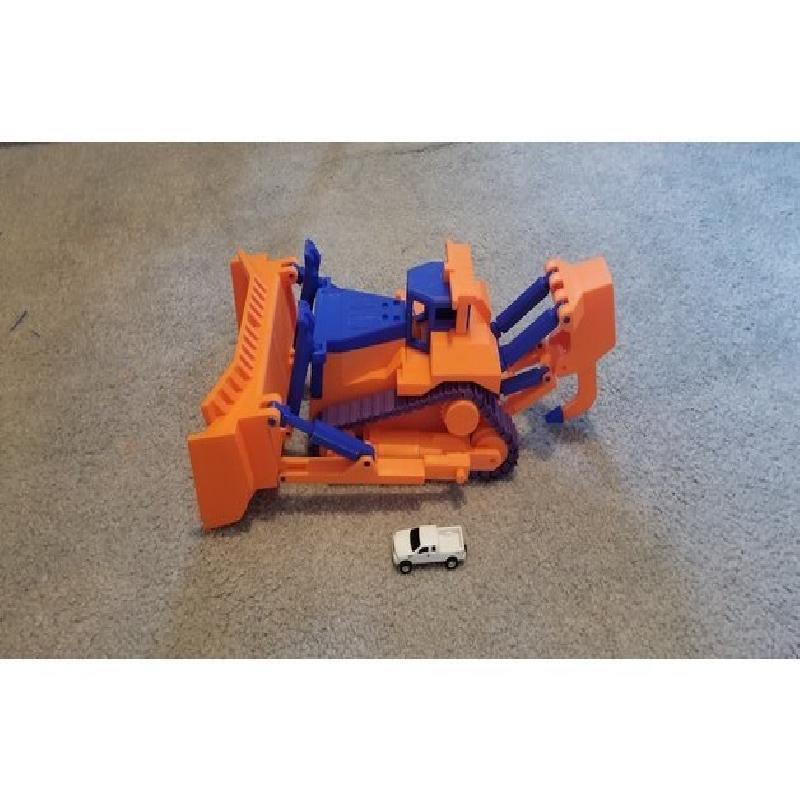

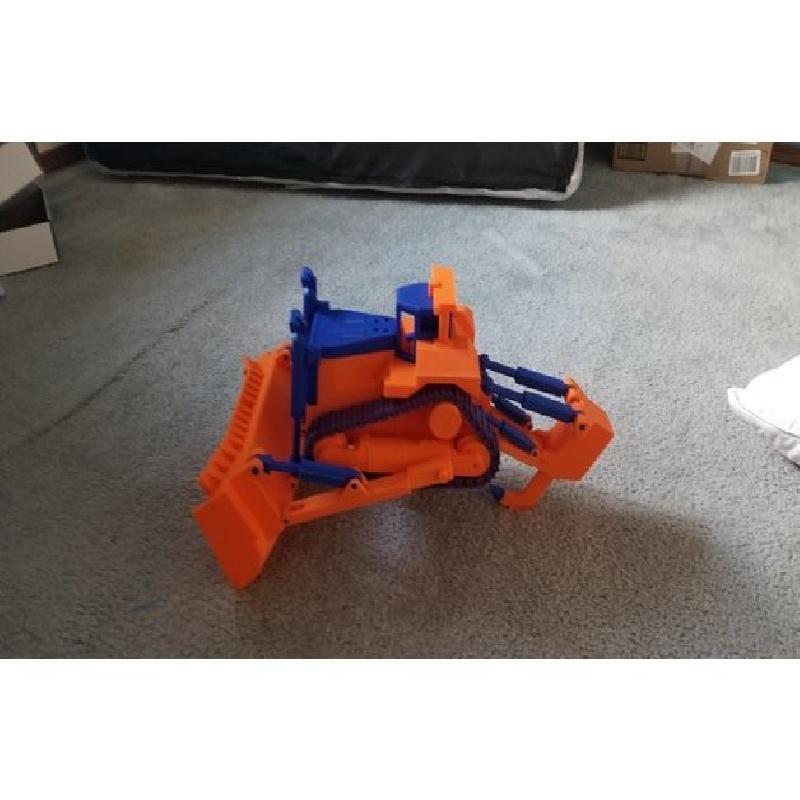

Printed at 200% size. 18 x 10 x 7.5 inches.

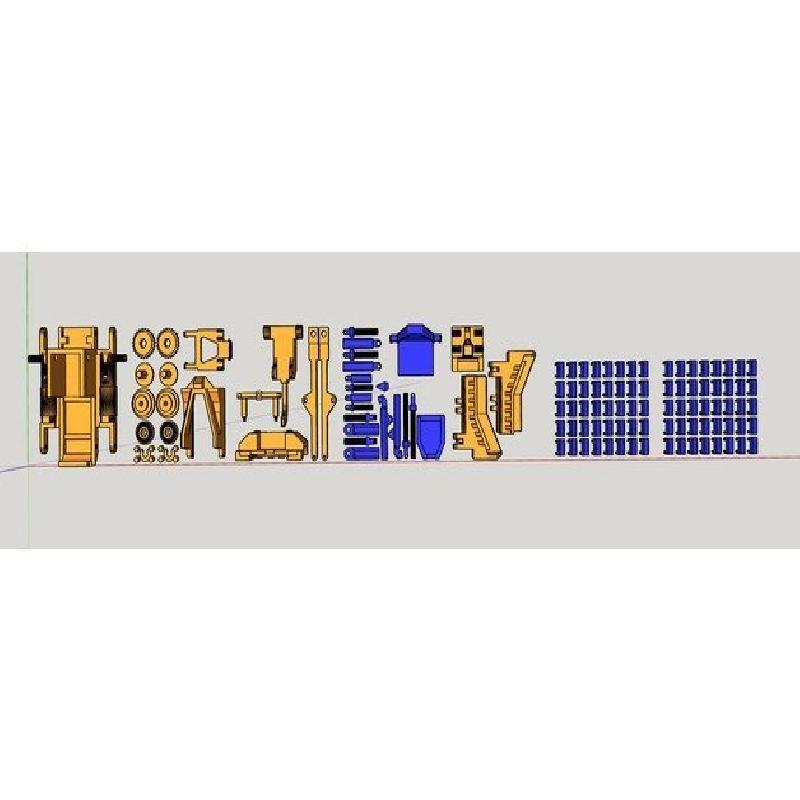

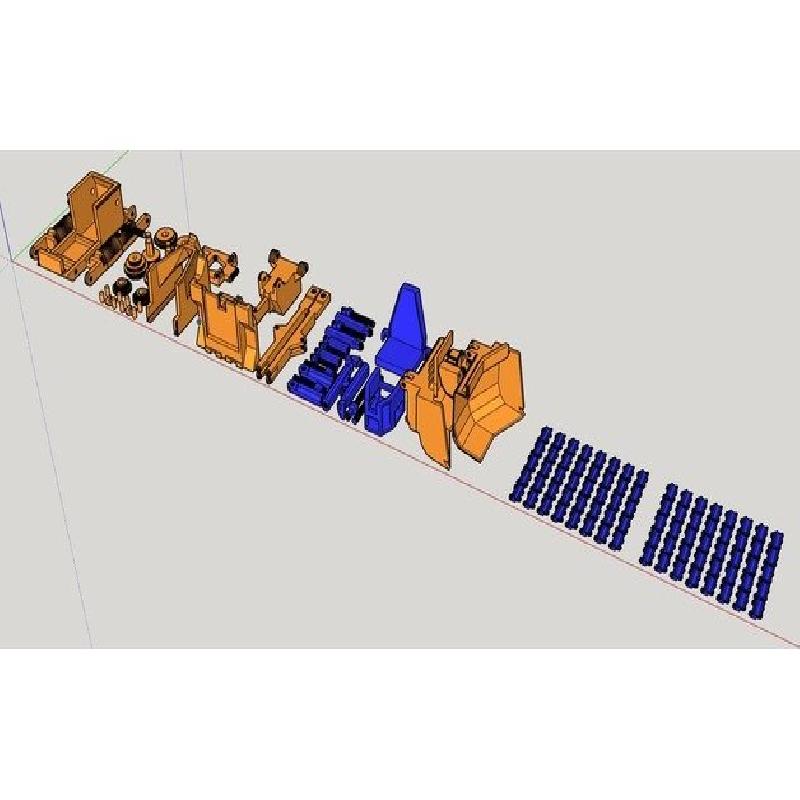

Modified all parts to be snap together. No non-printed parts necessary.
Tracks are snap together and move freely.
Hydraulic cylinders are modified to twist lock together so they have end stops.
Geared axle shaft has a c-clip for axle retention.
All joints use pop in pins.
Some parts were optimized to print without supports.
Haven't gotten time to add a track tensioner and would like to include 8mm skate bearings to make the track move more easily.

All in all a great toy for my son who's three and been beating it up a bit for the last 4 months. Recommend wall thickness be a little thicker than standard. Maybe 1.5 to 2 mm for durability.

Print Settings

Printer:

Anet A8

Rafts:

No

Supports:

No

Resolution:

.2

Infill:

10

Filament:                                            hatchbox pla your choice                                        Your Choice

Notes:

Recommend wall thickness be a little thicker than standard. Maybe 2 mm for durability.

Post-Printing

Assembly is snap together. No other parts required to make this.
